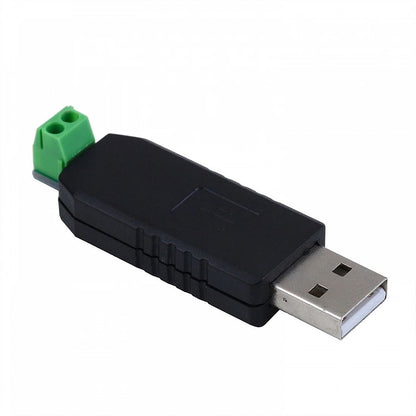

USB TO RS485 Converter Adapter

USB TO RS485 Converter Adapter

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Description:

The USB to RS485 Converter Adapter module support WIN7 XP Vista Linux Mac OS  provides an easy to use RS485 interface by means of a Virtual Com Port on the user's system.

There are no command structures, whatever is sent to the Virtual Comm Port is automatically converted to RS485 and vice versa. The module is completely self-powered from the USB bus.

Controlling / Communicating with RS-485 devices from your PC has never been easier! This device is plug-and-play. It shows up as a serial/com port and is accessible from applications or hyper-terminal.

This converter provides half-duplex RS-485 communication. The Baud rate range is 75 bps to 115200 bps, maximum up to 6 Mbps. No need for external power supply for operation.

Applications :

  • All kinds with RS485 port device parameter settings, data communication.
  • LED display of communication data.
  • Machine PLC data reading and writing.
  • Monitoring data read and write, and PTZ control.
  • Centralized control of household electrical appliances.
  • Access Control System card.

Features :

  • Fully compliant USB 2.0 standard, backward compatible with USB1.1
  • Support System: Windows XP, Vista, Windows 7, Linux, macOS, and WinCE5.0 drive.
  • Supports Plug, Play and hot-swap ( USB side).
  • Better than using a CH341D chip or similar chip to support the laptop USB port.
  • Communication distance up to 1.2KM, with the anti-jamming performance of the industrial site.
  • No need external power, powered by USB port.
Feature Specification
USB Interface USB 2.0 Type-A (compatible with USB 1.1/3.0)
RS-485 Interface 2-wire half-duplex
Chipset CH340 / FTDI FT232RL / Prolific PL2303 (varies by model)
Baud Rate 300 bps to 1 Mbps (some models up to 3 Mbps)
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Mark, Space
Isolation Some models offer 600W surge protection, 15kV ESD
Connector USB on one end, RS-485 via terminal block or DB9 (depending on model)
Driver Support Windows (XP to 11), macOS, Linux
Power Powered by USB port (no external power needed)
Operating Temp 0°C to 70°C (commercial); some models -40°C to +85°C
Indicators TX/RX LEDs (optional)
