UNO R3 Board ATmega328P with USB Cable(Arduino-Compatible) for Arduino, Input Voltage 7-12V, 16MHZ,14 Digital 1/0 pins Support PWM, SRAW 2KB, Compatible with RPi 4B/3B+/3B/2B/B+/Zero/Zero W

UNO R3 Board ATmega328P with USB Cable(Arduino-Compatible) for Arduino, Input Voltage 7-12V, 16MHZ,14 Digital 1/0 pins Support PWM, SRAW 2KB, Compatible with RPi 4B/3B+/3B/2B/B+/Zero/Zero W

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (Recommended) 7–12V
Input Voltage (Limits) 6–20V
Clock Speed 16 MHz
Digital I/O Pins 14 (of which 6 support PWM)
Analog Input Pins 6
PWM Channels 6 (D3, D5, D6, D9, D10, D11)
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
USB Interface Chip CH340G / ATmega16U2 (varies by version)
USB Connector Type-B (Standard USB 2.0)

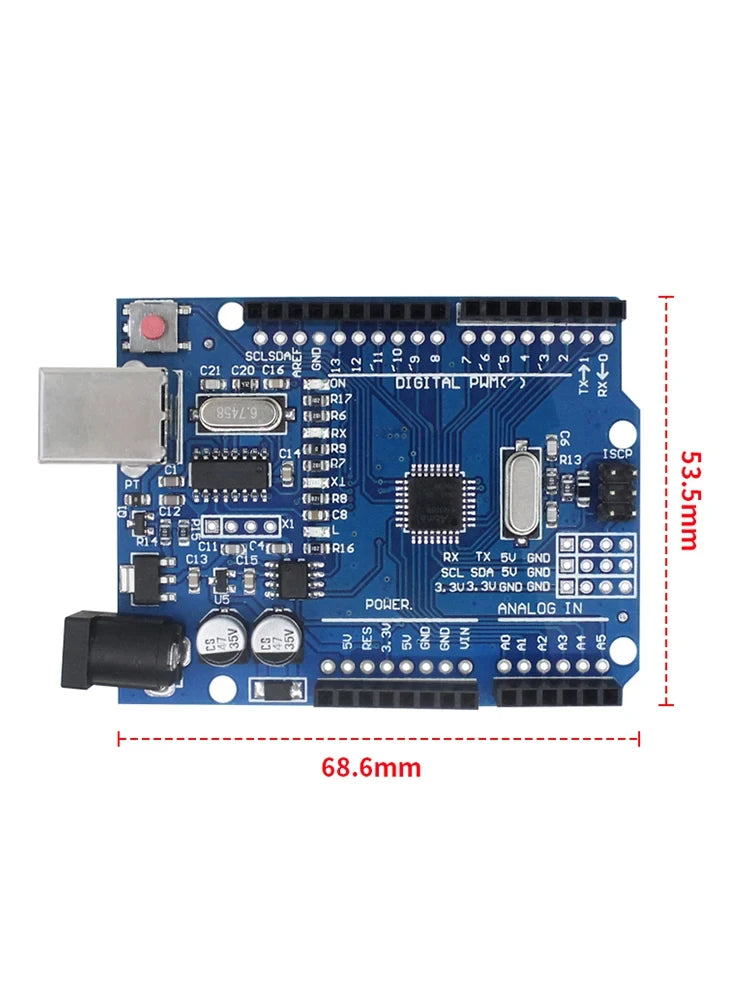

Board Dimensions ~ 68.6 mm × 53.4 mm
Weight Approx. 25g



Features:

  • USB Programmable: Easily upload code via the included USB Type-B cable using Arduino IDE.

  • Breadboard Friendly: Standard female headers and pin layout compatible with shields and jumper wires.

  • PWM Support: 6 digital pins with Pulse Width Modulation for motor control and dimming LEDs.

  • Wide Power Range: Can be powered via USB or external adapter (7-12V recommended).

  • Resettable Fuse: Protects USB ports from overcurrent conditions.

  • ICSP Header: Allows in-system programming of the ATmega328P.

  • Built-in LED: Onboard LED connected to pin D13 for easy testing.

Description:

The UNO R3 Board (Arduino-Compatible) is a reliable, open-source microcontroller development board based on the ATmega328P microcontroller. Designed to be fully compatible with the official Arduino IDE and ecosystem, it is perfect for beginners, hobbyists, and advanced developers building embedded systems, IoT applications, and robotics projects.

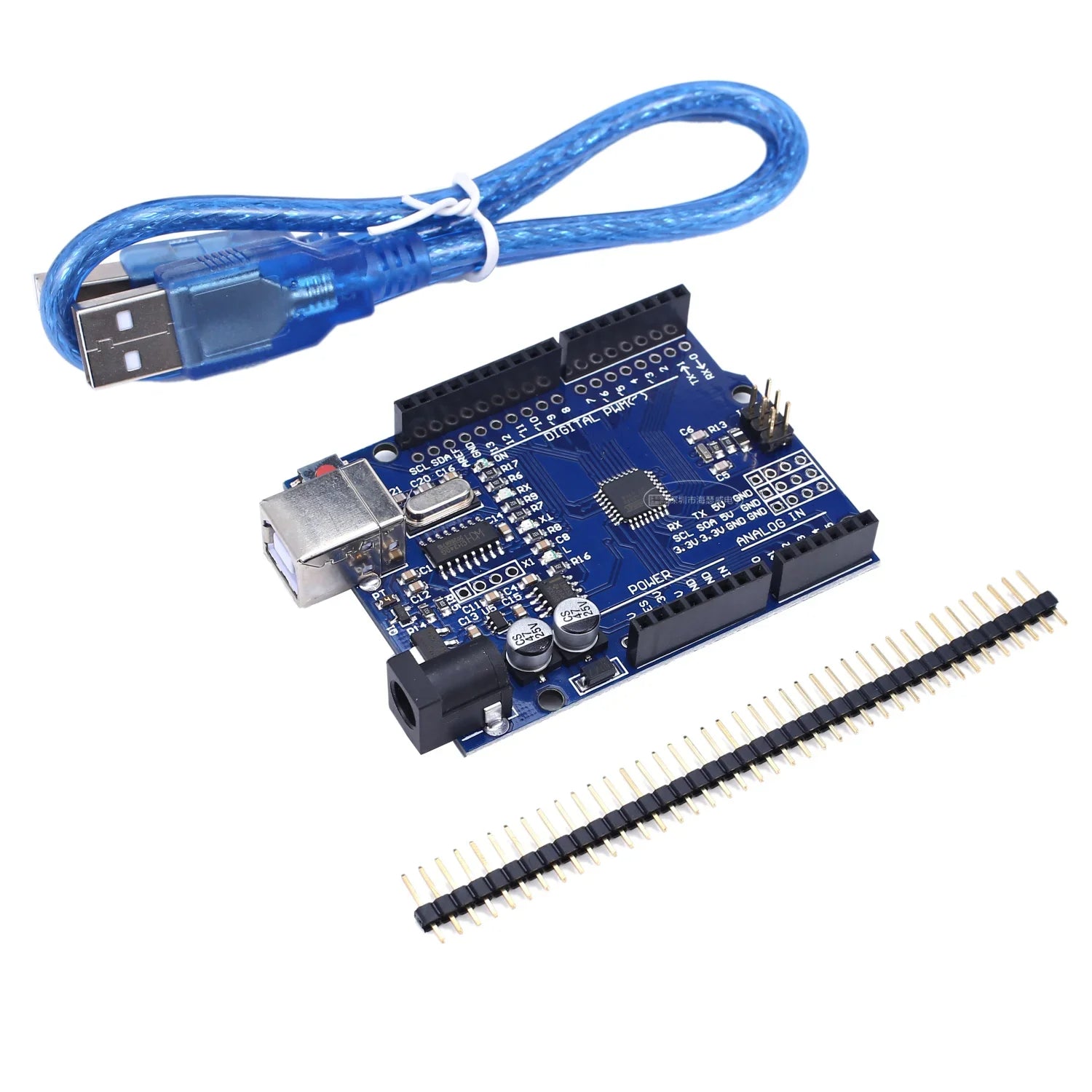

This board comes pre-assembled and includes a USB cable for easy programming and power via a computer. It is also compatible with Raspberry Pi models (4B/3B+/3B/2B/B+/Zero/Zero W), allowing seamless integration into hybrid systems.
