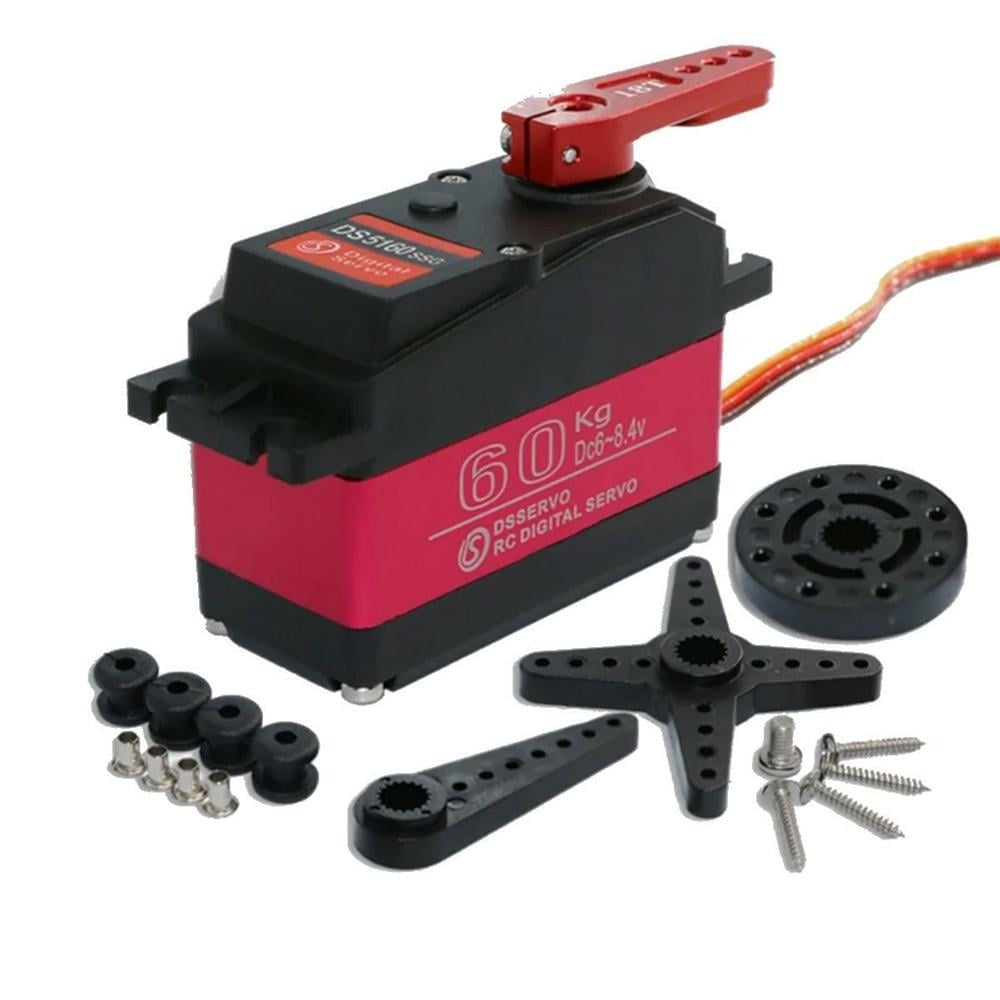

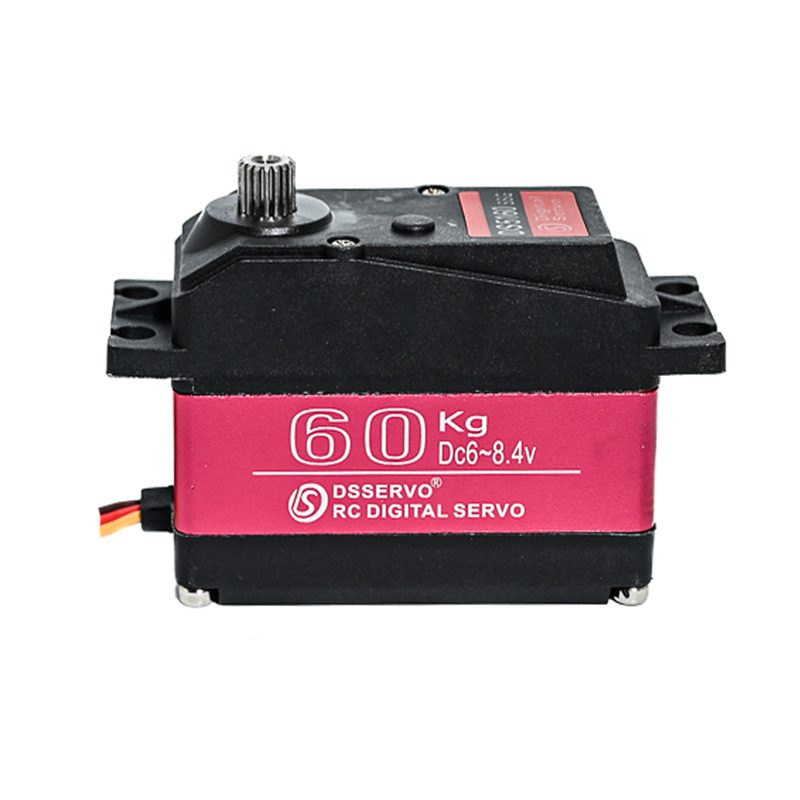

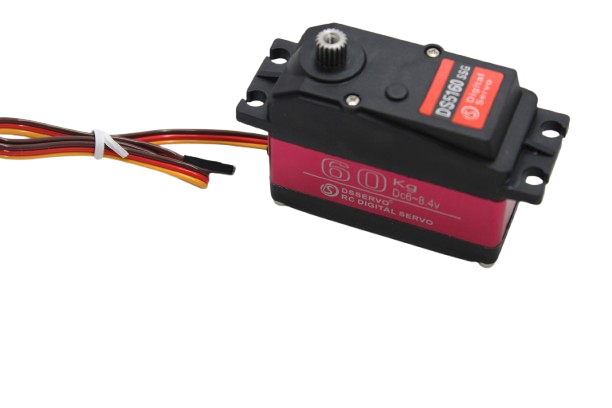

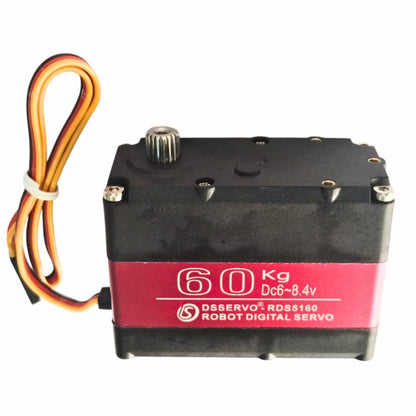

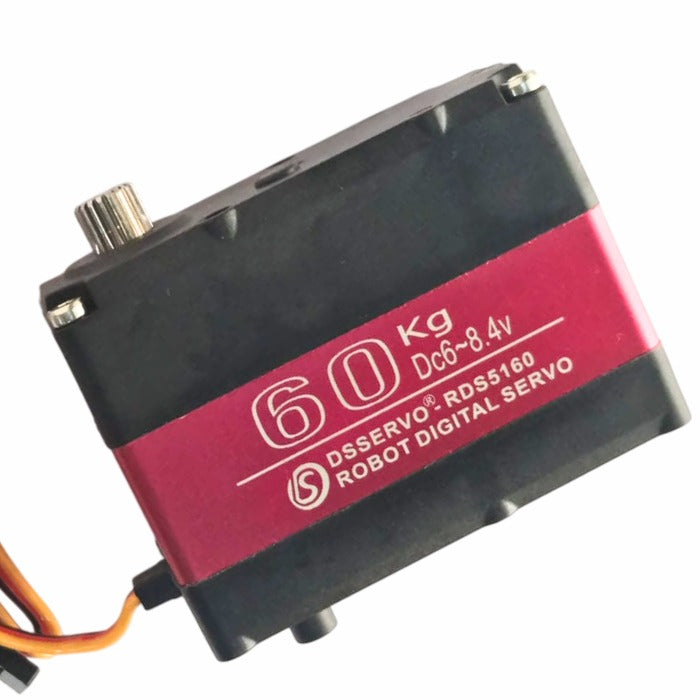

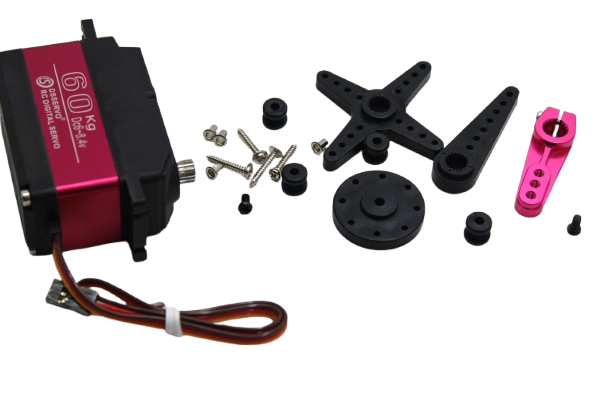

Ultra Torque Quarter Scale 60kgcm Metal Gear Servo Motor

Ultra Torque Quarter Scale 60kgcm Metal Gear Servo Motor

₹ 1,599.00
₹ 1,599.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Details
Model Type Quarter Scale Ultra Torque Servo
Operating Voltage 6.0V – 8.4V
Stall Torque @ 6.0V ~48kg·cm
Stall Torque @ 7.4V ~55kg·cm
Stall Torque @ 8.4V ~60kg·cm
Speed @ 6.0V ~0.16 sec/60°
Speed @ 8.4V ~0.12 sec/60°
Motor Type High-efficiency coreless motor
Gear Type Full metal gears (steel/titanium alloy depending on model)
Case Material CNC-machined aluminum housing (middle and bottom)
Control Signal PWM (Pulse Width Modulation)
PWM Pulse Range 500 – 2500 µs (typical)
Dead Band Width ≤ 2 μs
Bearing Type Dual ball bearing
Rotation Angle 180° (limited), up to 270° (for some extended models)
Connector Type 3-pin (Signal, VCC, GND) compatible with standard servo headers
Cable Length ~30 cm (varies by manufacturer)
Dimensions Approx. 65mm × 30mm × 57mm (L×W×H)
Weight ~160g – 200g

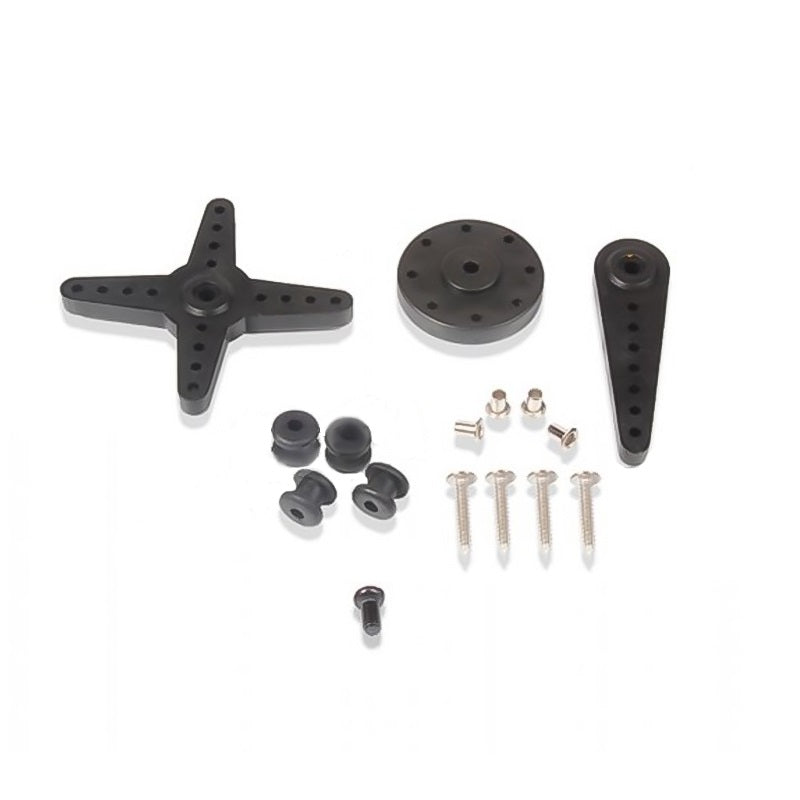

Horn Type 25T (25 teeth), aluminum horn usually included
Application Areas Large RC vehicles, robotic arms, hexapods, humanoids, actuators, lifting mechanisms



Features:

  • Ultra high torque up to 60kg·cm – ideal for demanding applications.

  • Full metal gear train for durability and high-load resistance.

  • Coreless motor for fast, efficient, and precise movement.

  • CNC aluminum case enhances structural integrity and thermal performance.

  • Standard PWM control, compatible with Pi, RC receivers, etc.

  • Plug-and-play with most hobby-grade control systems.

  • Quarter-scale form factor offers increased power in a compact unit.

Description:

The Ultra Torque 60kg·cm Quarter Scale Servo Motor is a powerful, high-torque, digital servo designed for heavy-duty applications. With a massive stall torque of up to 60kg·cm (at 8.4V), this servo is perfect for robotics arms, large RC vehicles (cars, boats, planes), humanoid robots, and industrial automation setups.

Equipped with full metal gears, the servo offers outstanding durability and resistance to wear, even under high-load conditions. It features a coreless motor for faster response and higher efficiency, and a CNC aluminum case for enhanced heat dissipation and rigidity.

As a quarter-scale servo, it is physically larger than standard hobby servos (such as SG90 or MG996R), providing both higher torque and a more robust mechanical footprint. It supports PWM signal input and is compatible with most standard RC and robotics control systems, including PWM drivers, RC receivers, and more.
