UG LAND INDIA 4S 30A 12.8V BMS 18650 Lithium Iron Phosphate Battery Protection Board (LiFePO4) Battery Module Over-Discharge/Over-Current

UG LAND INDIA 4S 30A 12.8V BMS 18650 Lithium Iron Phosphate Battery Protection Board (LiFePO4) Battery Module Over-Discharge/Over-Current

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Express Delivery FedEx
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • On Time Delivery
  • Worldwide Order Delivery
  • Delivery Location
Parameter Specification
Brand UG LAND INDIA
Battery Type LiFePO4 (Lithium Iron Phosphate, 3.2V nominal per cell)
Number of Cells 4 Series (4S) – Total Pack Voltage: 12.8V nominal
Continuous Discharge Current 30A
Peak Discharge Current 40A – 50A (short duration)
Charging Voltage 14.6V (3.65V × 4 cells)
Overcharge Protection Voltage ~3.75V ± 0.05V per cell
Over-discharge Protection Voltage ~2.0V ± 0.1V per cell
Overcurrent Protection Yes (Typically triggers above 40A)
Short Circuit Protection Yes

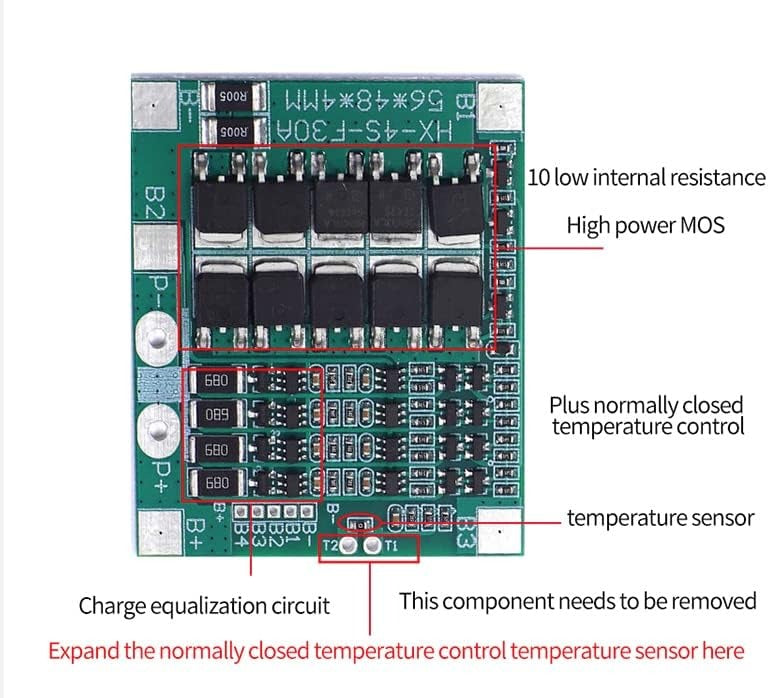

Balancing Function Yes (Passive balancing to equalize voltage between cells)
Temperature Protection Optional (depends on version; may require external sensor)
Board Dimensions Approx. 65mm × 45mm × 4mm

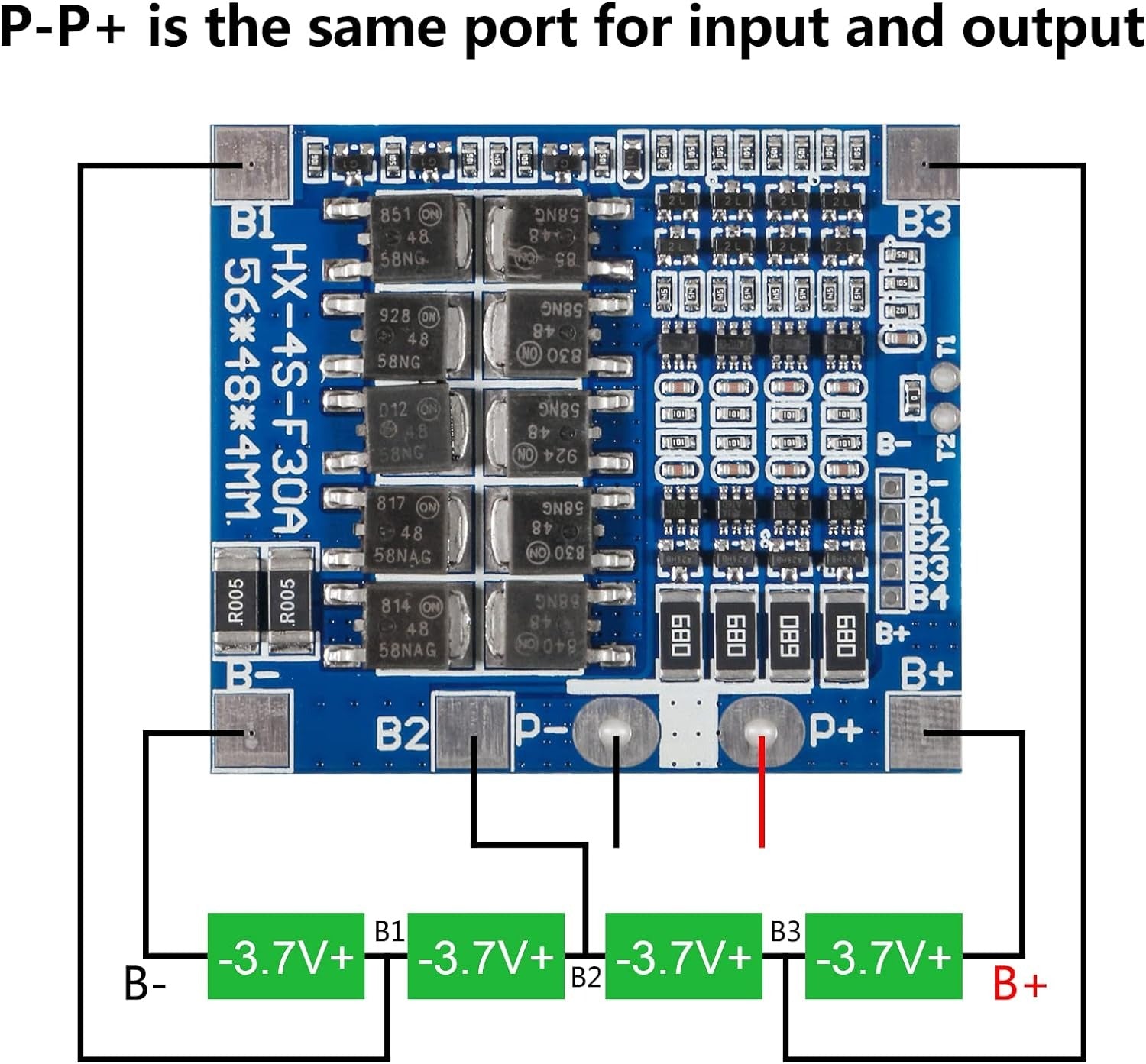

Connector Type 5-pin JST/PH connector for cell balancing (B+, B-, B1, B2, B3, B4)
PCB Material High-quality FR4 with thick copper traces
Self-Consumption <50μA (low standby power drain)
Application LiFePO4 battery packs for solar energy storage, e-bikes, UPS, portable systems

Features:

  1. Designed for LiFePO₄ Cells

    • Specifically built to manage 4-cell LiFePO₄ (3.2V nominal per cell) packs for a total nominal voltage of 12.8V.

  2. Supports High Discharge Current

    • Handles up to 30A continuous discharge current, making it suitable for high-drain applications.

  3. Overcharge Protection

    • Cuts off charging when any cell voltage exceeds ~3.65V to prevent overcharging and increase battery lifespan.

  4. Over-discharge Protection

    • Prevents battery damage by disconnecting the load when any cell drops below ~2.0V.

  5. Overcurrent Protection

    • Activates when the output current exceeds a safe threshold (typically over 60A peak), protecting your battery and circuitry.

  6. Short Circuit Protection

    • Instant shutdown in case of output short circuit conditions to ensure safety.

  7. Automatic Recovery

    • Restores normal operation when the fault condition (overcurrent or short circuit) is cleared — no manual reset required.

  8. Cell Balancing Function (if included in model)

    • Automatically balances the charge between cells during charging, ensuring consistent performance and safety.

  9. Temperature and Self-Protection

    • Some versions may include thermal cut-off or self-resetting fuse components.

  10. Compact & Durable PCB Design

  • Lightweight, reliable, and easy to integrate into custom battery pack assemblies.

Description:

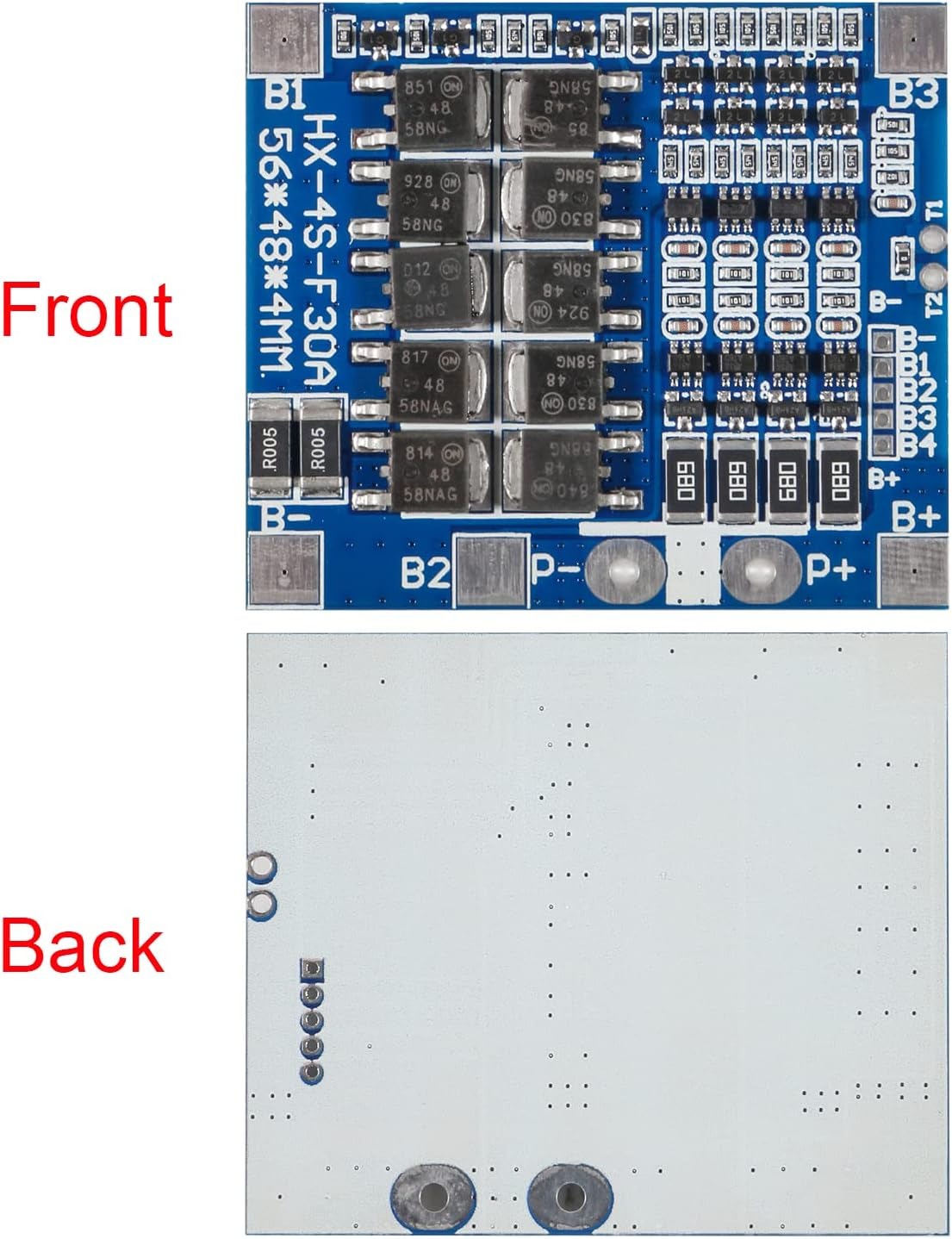

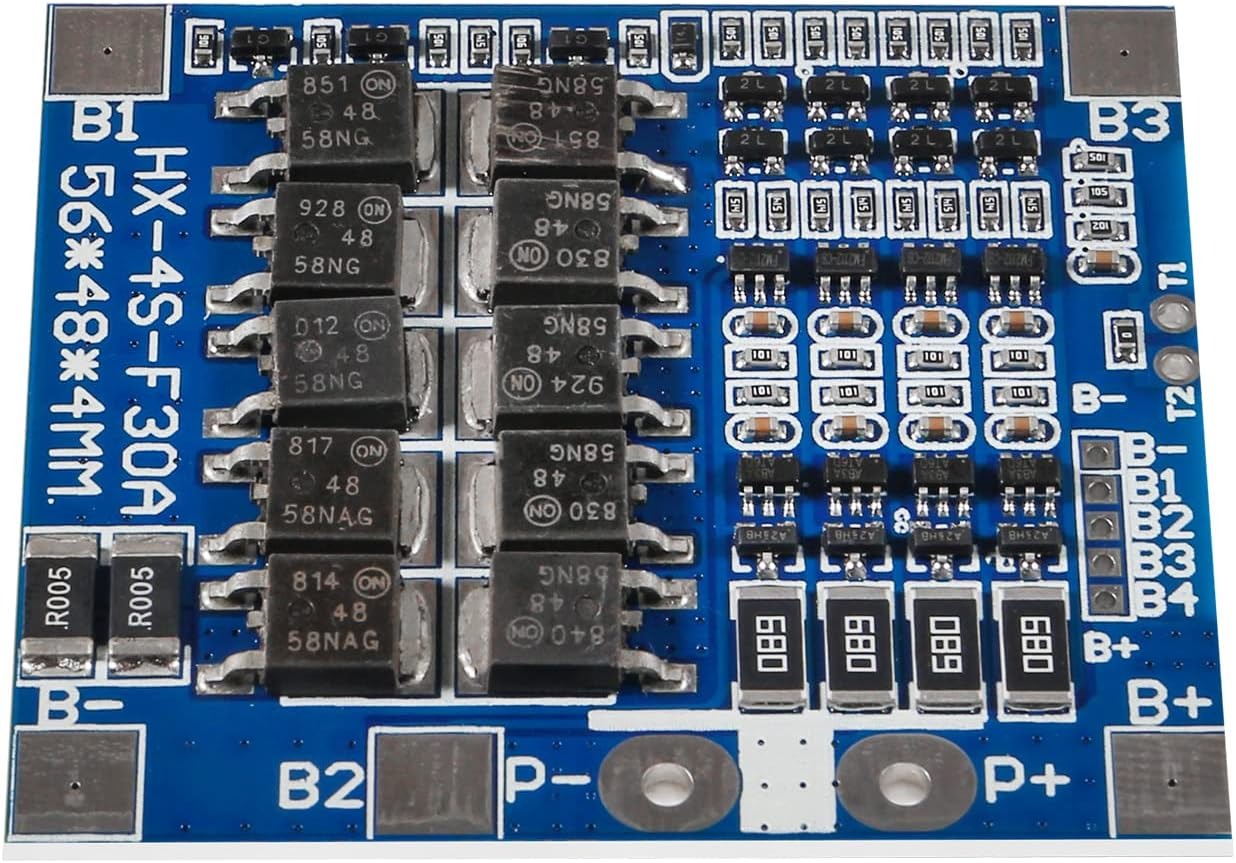

  • This board is 4 string 3.2V Lithium iron phosphate battery protection board.

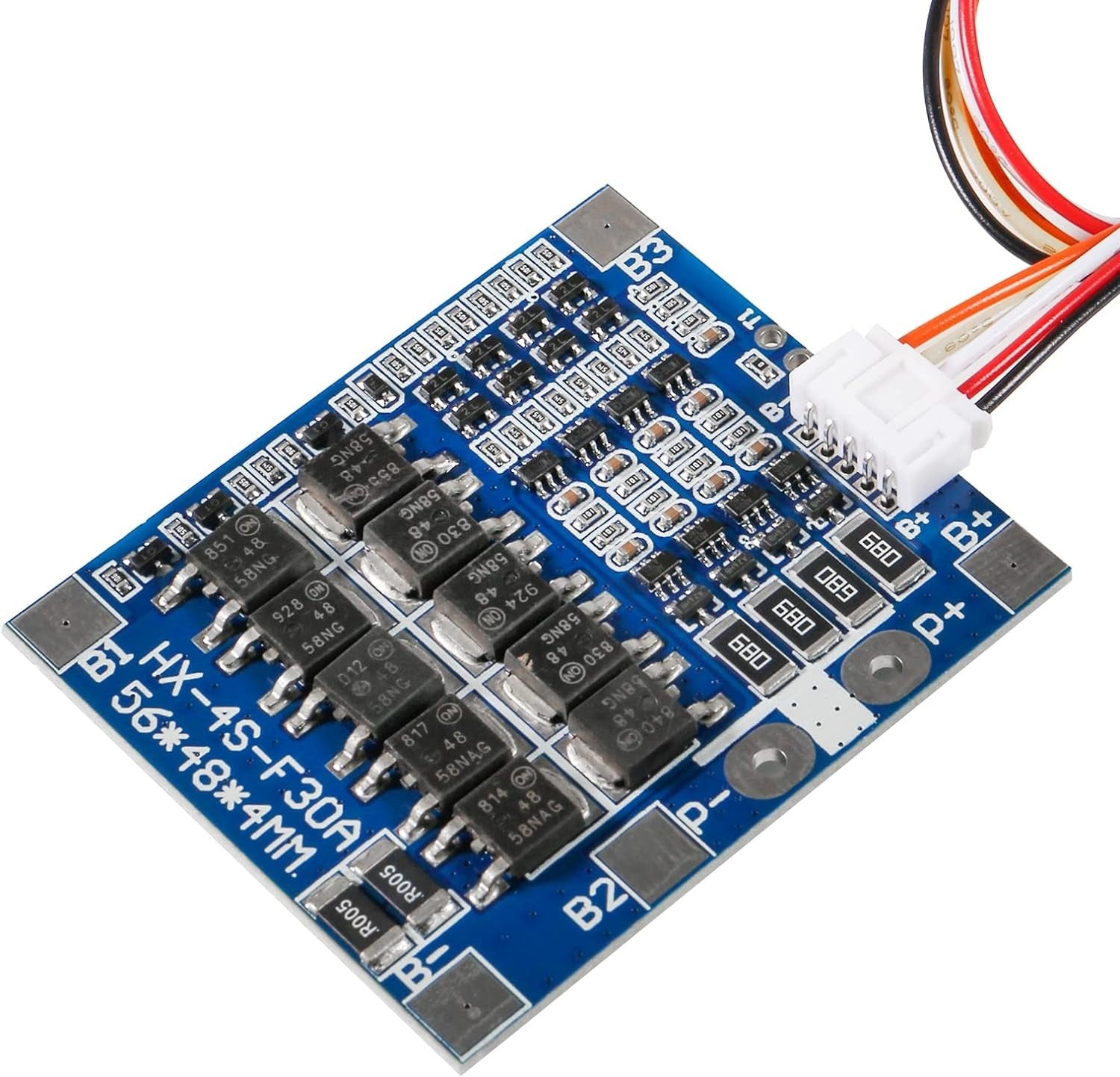

  • Features: High current protection board, continuous 30A current, with balance circuit The board comes with cable.
  • Discharge: Continuous Discharging Current: 30A(MAX); Instantaneous Discharge Current: 56A. Charge:Charging Voltage: 14.8V; Charging Current: 20A (MAX).
  • Balance:Detect Voltage: 3.60±0.05V; Release Voltage: 3.59±0.05V; Balance Current: 58mA.
  • Over-charge Detect: 3.75±0.05V; Over-charge Release: 3.60±0.05V; Protect Delay: 1300MS.

Discharge: Continuous Discharging Current: 30A(MAX); Instantaneous Discharge Current: 56A Charge: Charging Voltage: 14.8V; Charging Current: 20A (MAX) Balance: Detect Voltage: 3.60±0.05V; Release Voltage: 3.59±0.05V; Balance Current: 58mA Over-charge Protect: Over-charge Detect: 3.75±0.05V; Over-charge Release: 3.60±0.05V; Protect Delay: 1300MS Over-discharge Protect: Over-discharge Detect: 2.1±0.08V; Over-discharge Detect delay: 145S; Release Voltage: 2.3±0.1V Over-current Protect: Detect Voltage: 200mV; Detect Delay: 20mS; Current Detect: 56±10A Release Condition: Cut Load; Inner Resistance: ≤20mΩ Self-Consumption: Working Current: ≤30uA; Sleep Current (when Over-discharge): ≤20uA Working Temperature Range: -30+80℃ PCB Board Size: 56x47mm/2.2x1.85"
