Description:

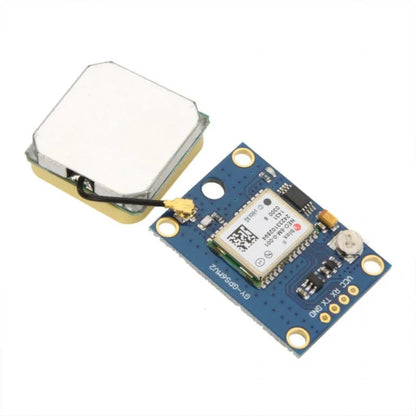

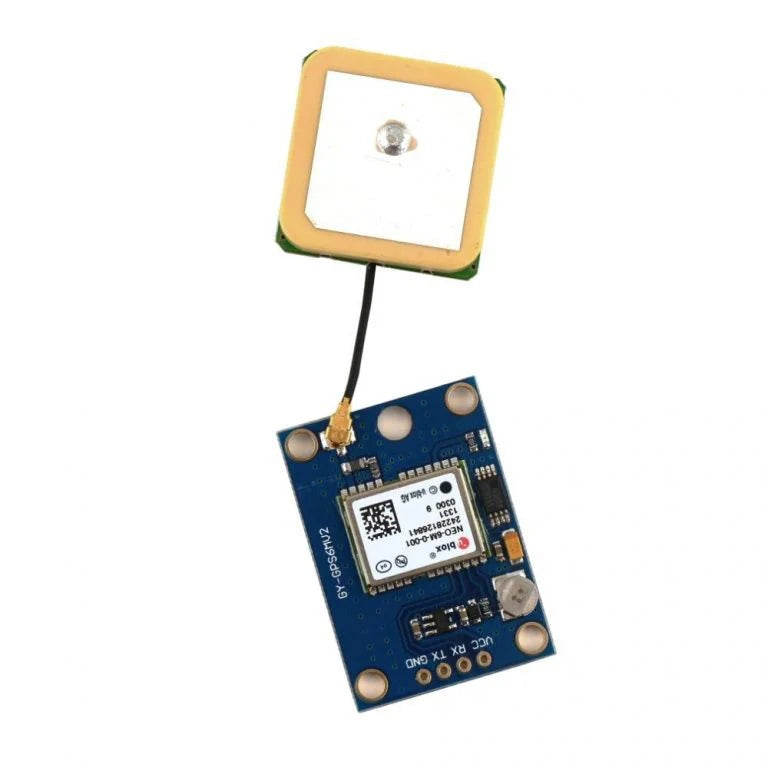

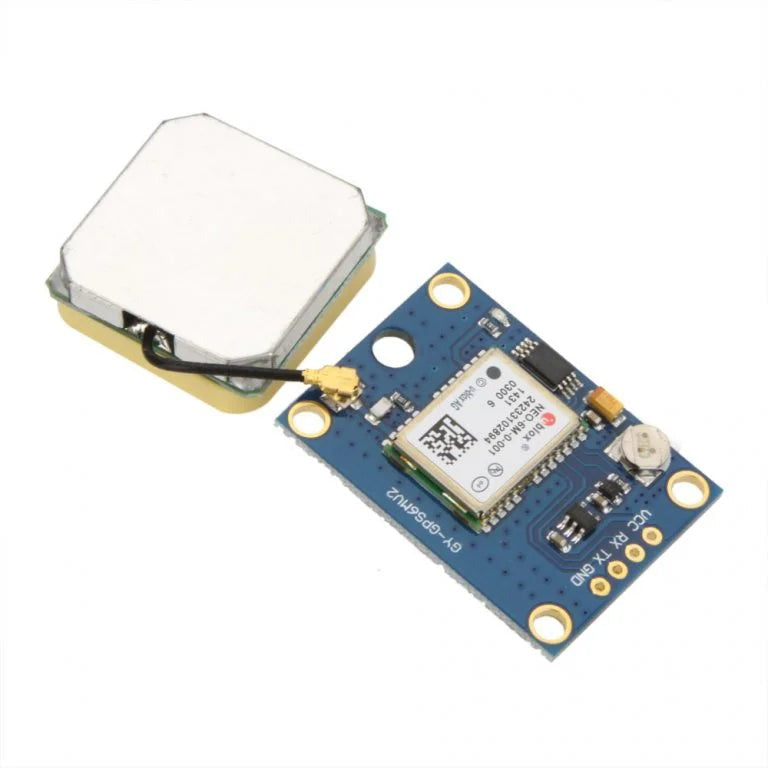

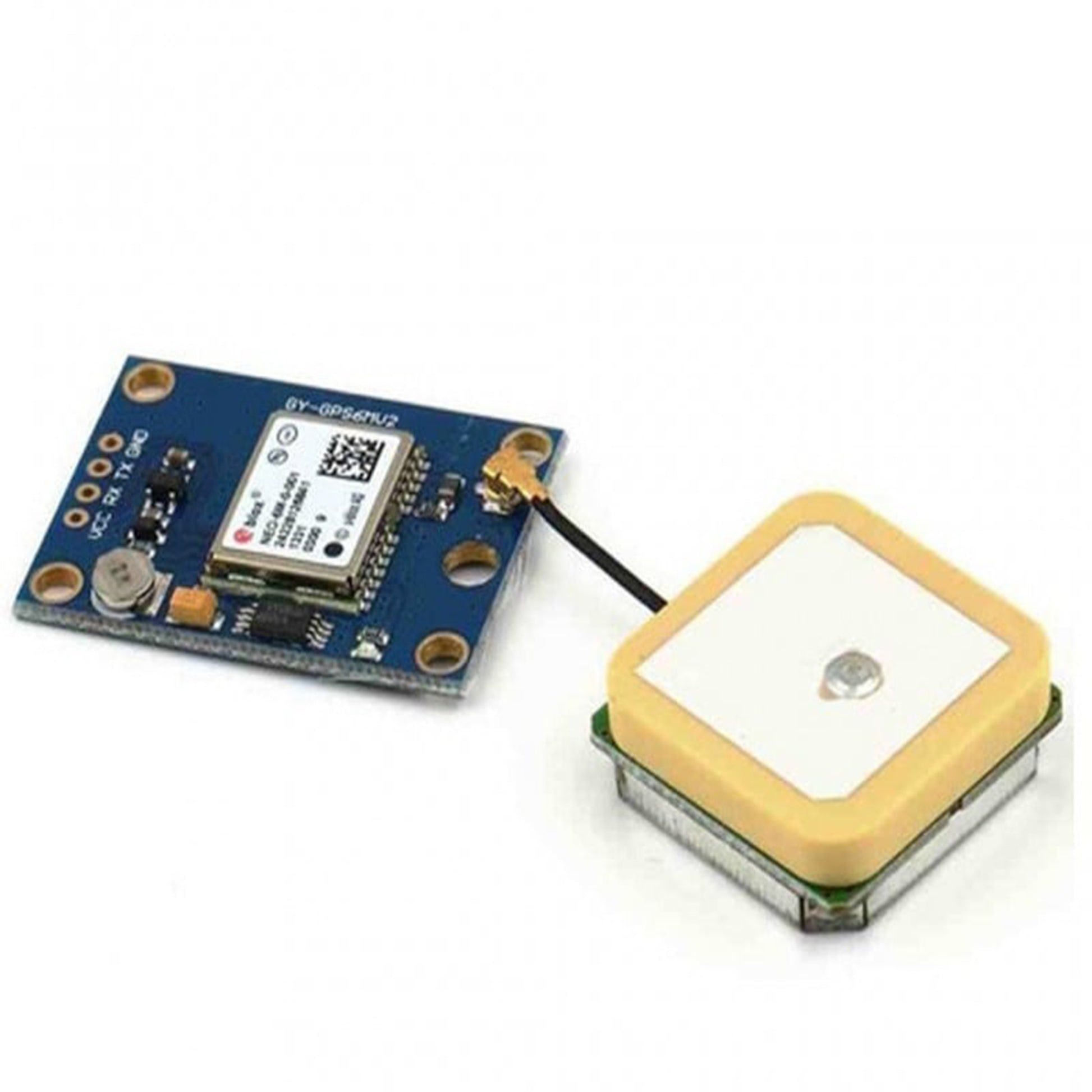

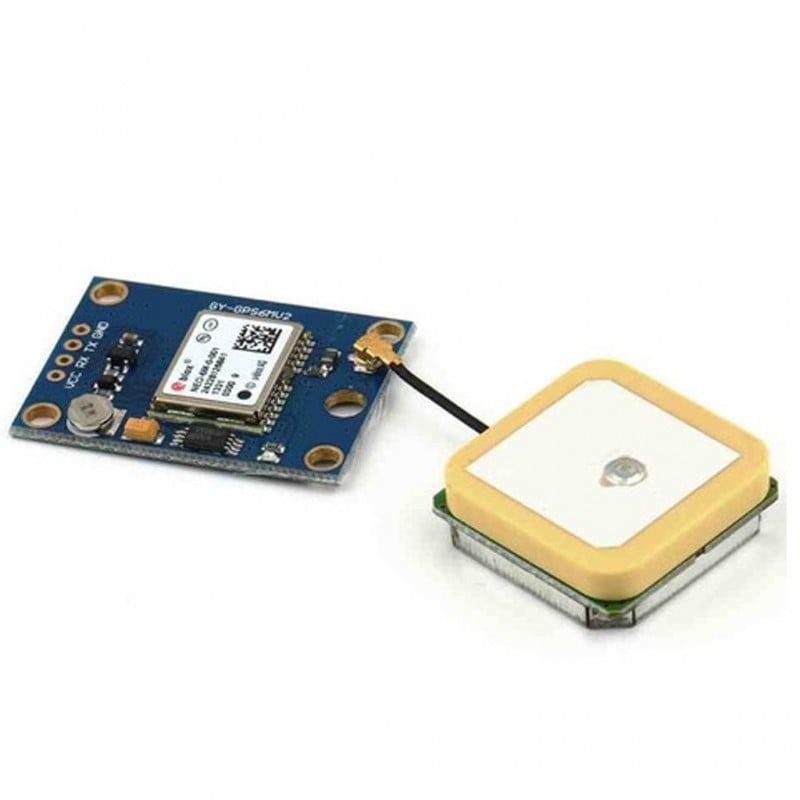

Presenting the NEO-6M TTL GPS Module with EPROM, featuring state-of-the-art technology from Ublox for unparalleled positioning accuracy. The module has been upgraded to include a larger 25 x 25mm active GPS antenna with a UART TTL socket for improved performance. It comes with a battery for faster GPS lock times, is compatible with Ardupilot Mega v2, and is designed to deliver exceptional performance for multirotor control platforms.

The Ublox GPS module provides serial TTL output through four pins: TX, RX, VCC, and GND. The u-center software, which can be downloaded for configuration and settings management, offers a user-friendly interface and full functionality. Maximize your GPS module’s capabilities with this accessible software.

Application:

• Connectivity between machines
• Industrial tanks
• Agricultural irrigation systems
• Manufacturing robotics

Features:

1. High Sensitivity & Accuracy

   • Tracking sensitivity: -161 dBm

   • Position accuracy: <2.5 meters CEP

   • Supports 50 satellite tracking channels

2. Fast Satellite Acquisition

   • Cold start: ~38 seconds

   • Warm start: ~33 seconds

   • Hot start: ~1 second

3. Update Rate

   • Default: 1 Hz

   • Configurable up to 5 Hz for real-time applications

4. Built-in EEPROM

   • Stores configuration settings for power-loss recovery

5. Backup Battery (CR1220)

   • Maintains real-time clock and last known location for faster startup

6. Integrated Active Antenna

   • Compact ceramic patch antenna for improved signal reception

   • Optional support for external antennas via U.FL or IPX connectors (in some variants)

7. UART Communication Interface

   • Standard TTL level serial communication

   • Default baud rate: 9600 bps

8. Power Supply

   • Operating voltage: 3.3V to 5V DC

   • Current consumption: ~45 mA

9. LED Indicator

   • Blinks when a GPS fix is acquired, helping in status monitoring

10. Compact Form Factor

    • Approximate dimensions: 31mm × 24mm

    • Lightweight and ideal for drones or mobile setups

Specification:

• 5Hz position update rate
• Operating temperature range: -40 TO 85°CUART TTL socket
• EEPROM to save configuration settings
• Rechargeable battery for Backup
• The cold start time of 38 s and Hot start time of 1 s
• Supply voltage: 3.3 V
• Configurable from 4800 Baud to 115200 Baud rates. (default 9600)
• SuperSense ® Indoor GPS: -162 dBm tracking sensitivity
• Support SBAS (WAAS, EGNOS, MSAS, GAGAN)
• Separated 18X18mm GPS antenna.
