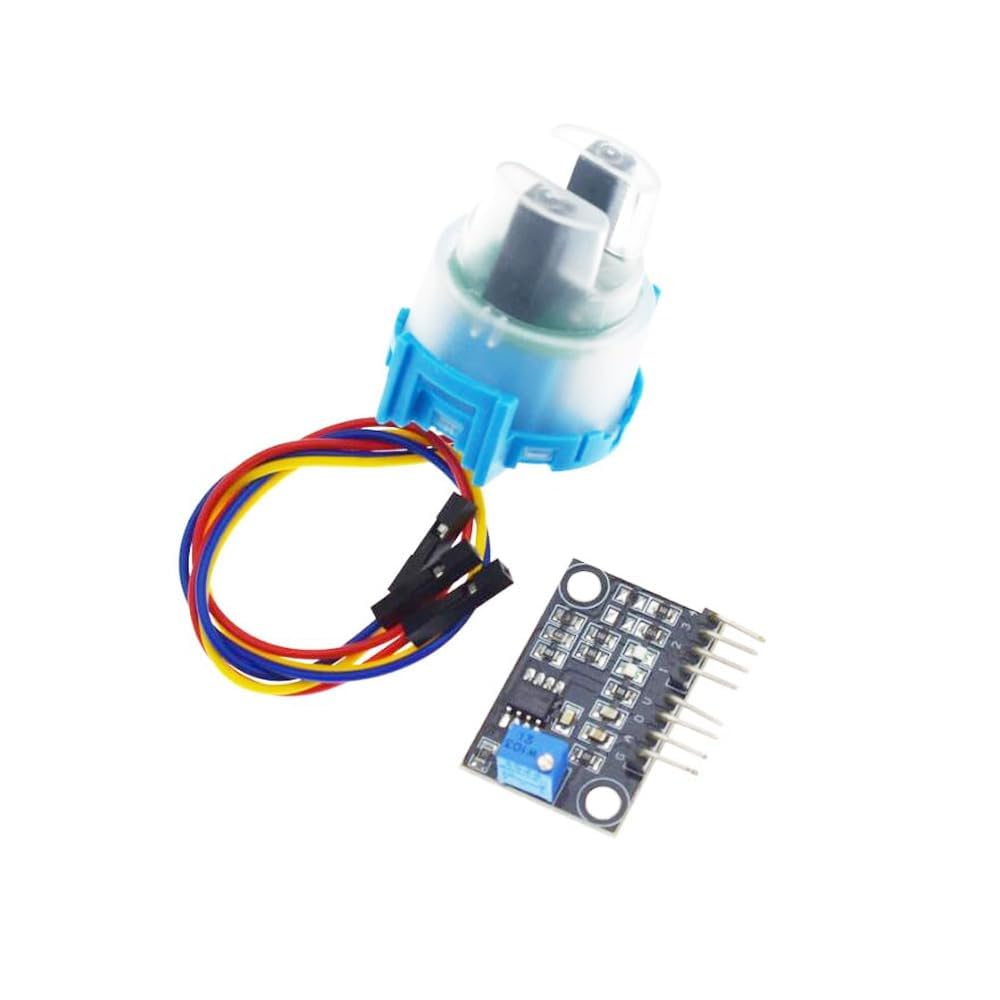

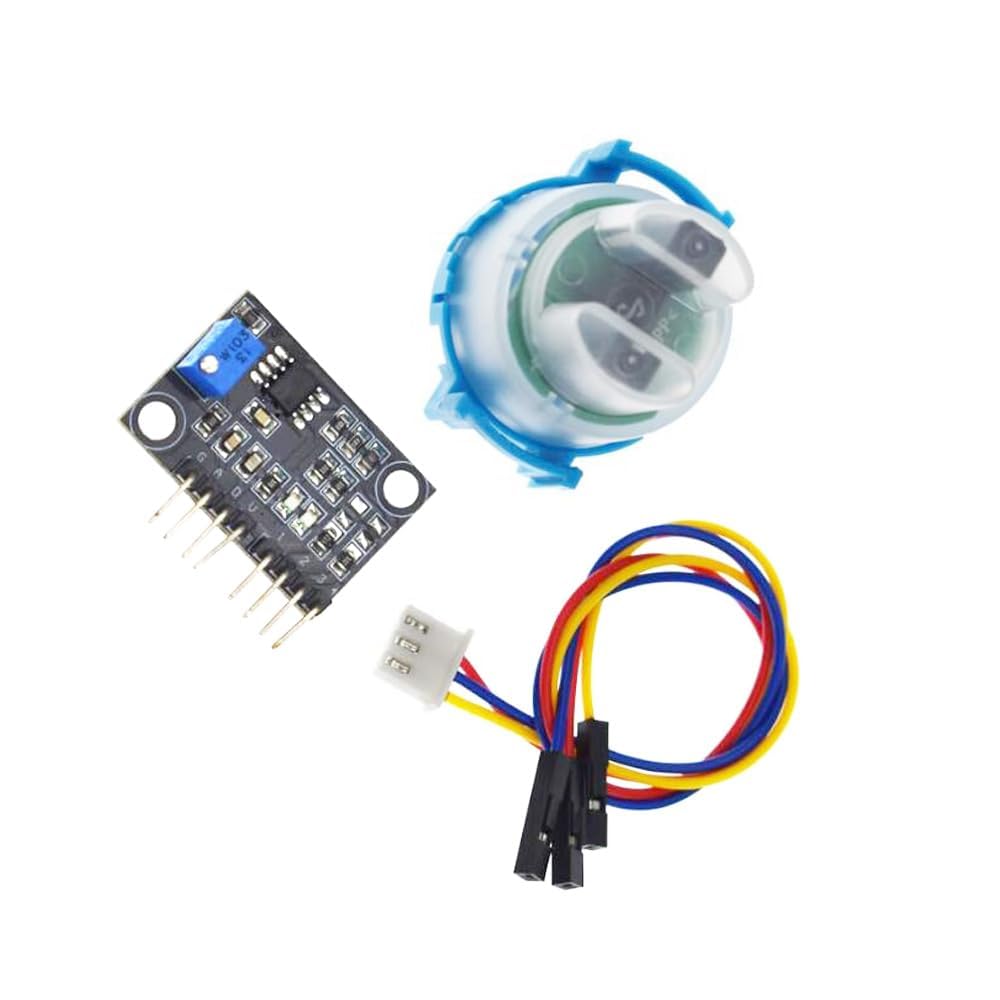

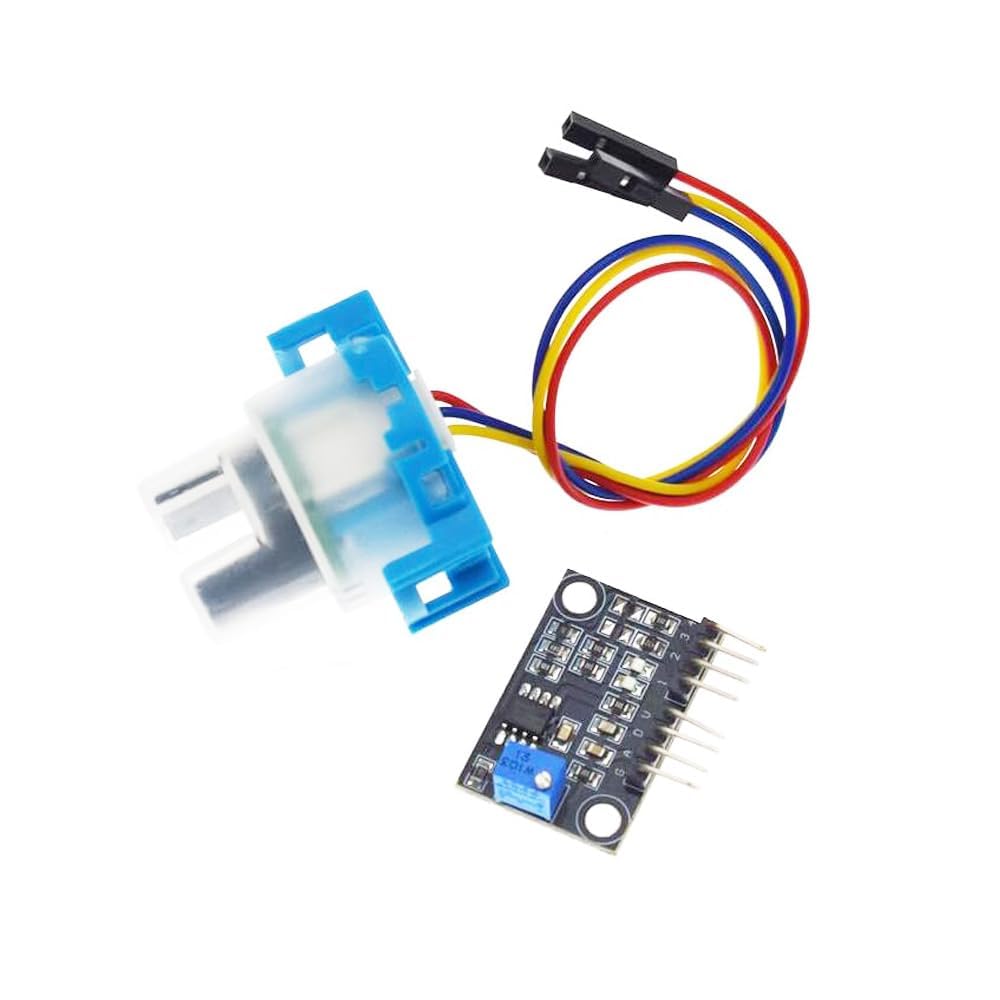

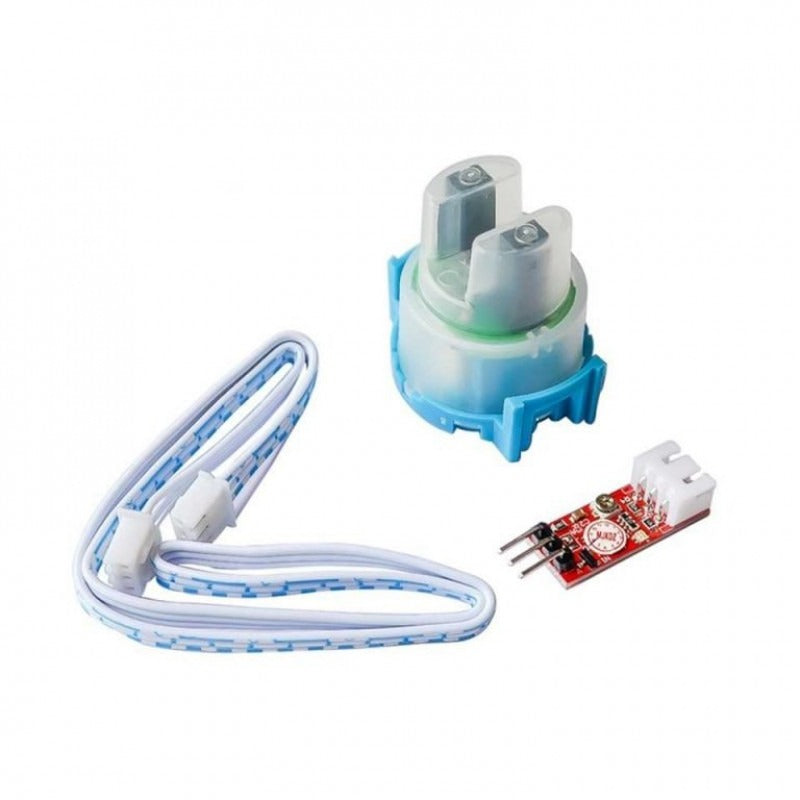

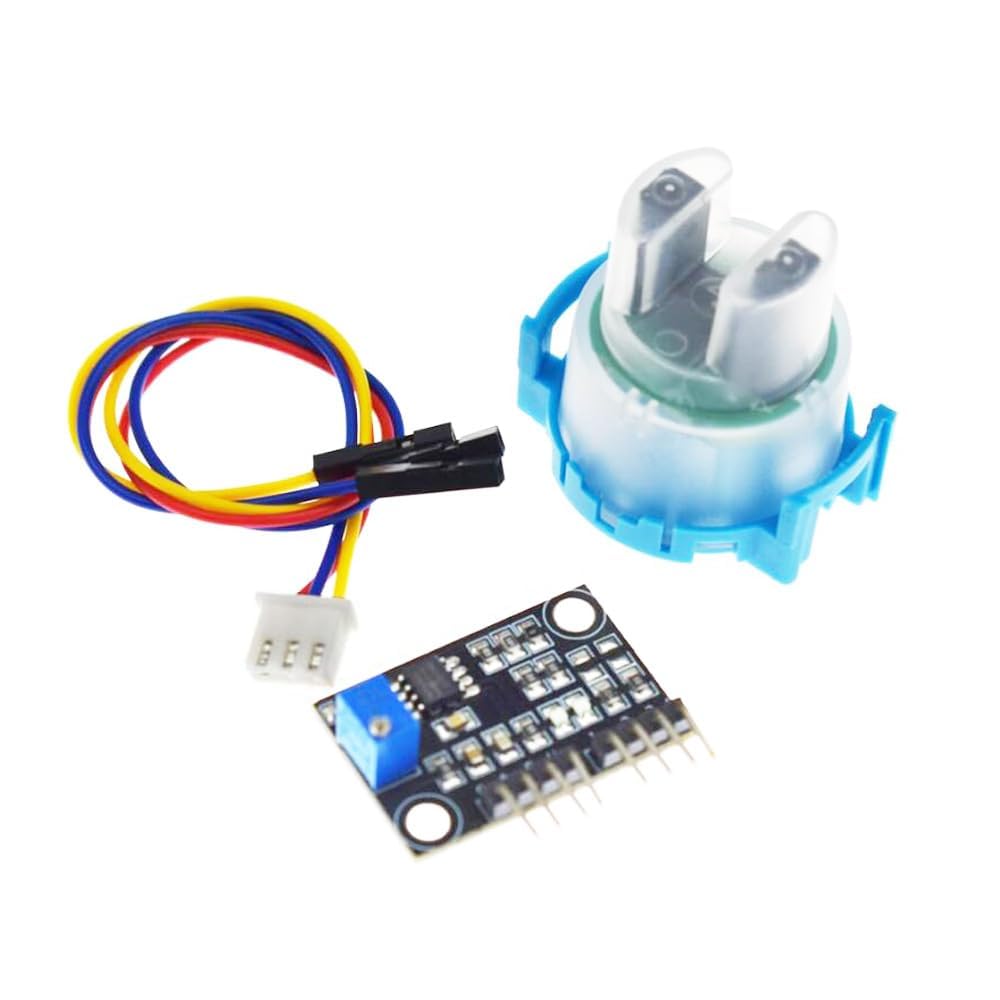

Turbidity Sensor Module V1 for Water Quality Monitor Particles Water/Liquid Turbidity Level Tester

Turbidity Sensor Module V1 for Water Quality Monitor Particles Water/Liquid Turbidity Level Tester

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Details
Operating Voltage 5V DC
Current Consumption < 30mA
Output Types Analog (AO) & Digital (DO)
Detection Principle Light scattering and absorption
Measurement Range 0–1000 NTU (Nephelometric Turbidity Units)
Response Time < 500 ms
Operating Temperature -30°C to +80°C
Interface 3-pin (VCC, GND, Signal), 2.54mm pitch
Sensor Cable Length Approx. 45–50 cm
Dimensions (Module) Approx. 35mm x 25mm x 12mm



Features:

Turbidity Detection

  • Measures the level of particles in water by detecting light scatter.

  • Suitable for monitoring water cleanliness and identifying contamination.

Analog and Digital Output

  • Analog output gives a precise, continuous voltage level corresponding to turbidity.

  • Digital output with an adjustable threshold using onboard potentiometer.

Wide Voltage Range

  • Operates on 5V DC, fully compatible with IDUINO and similar platforms.

Easy to Use

  • Plug-and-play with standard 3-pin connector (VCC, GND, Signal).

  • Can be used with standard IDUINO analogRead or digitalRead functions.

Compact and Durable

  • Small form factor, robust design with waterproof sensor probe for direct immersion in liquids.

Description:

The Turbidity Sensor Module V1 is a reliable and easy-to-use water quality detection module designed to measure the turbidity (cloudiness or haziness) of liquids. It detects the presence of suspended particles in water such as mud, silt, algae, or other solid contaminants by measuring the amount of scattered light caused by particles in the water.

This module is ideal for ESP32, Pi, and other microcontroller platforms, and is widely used in water filtration systems, aquariums, environmental monitoring, and smart agriculture. The sensor outputs analog and digital signals, allowing flexible integration into your electronics projects.
