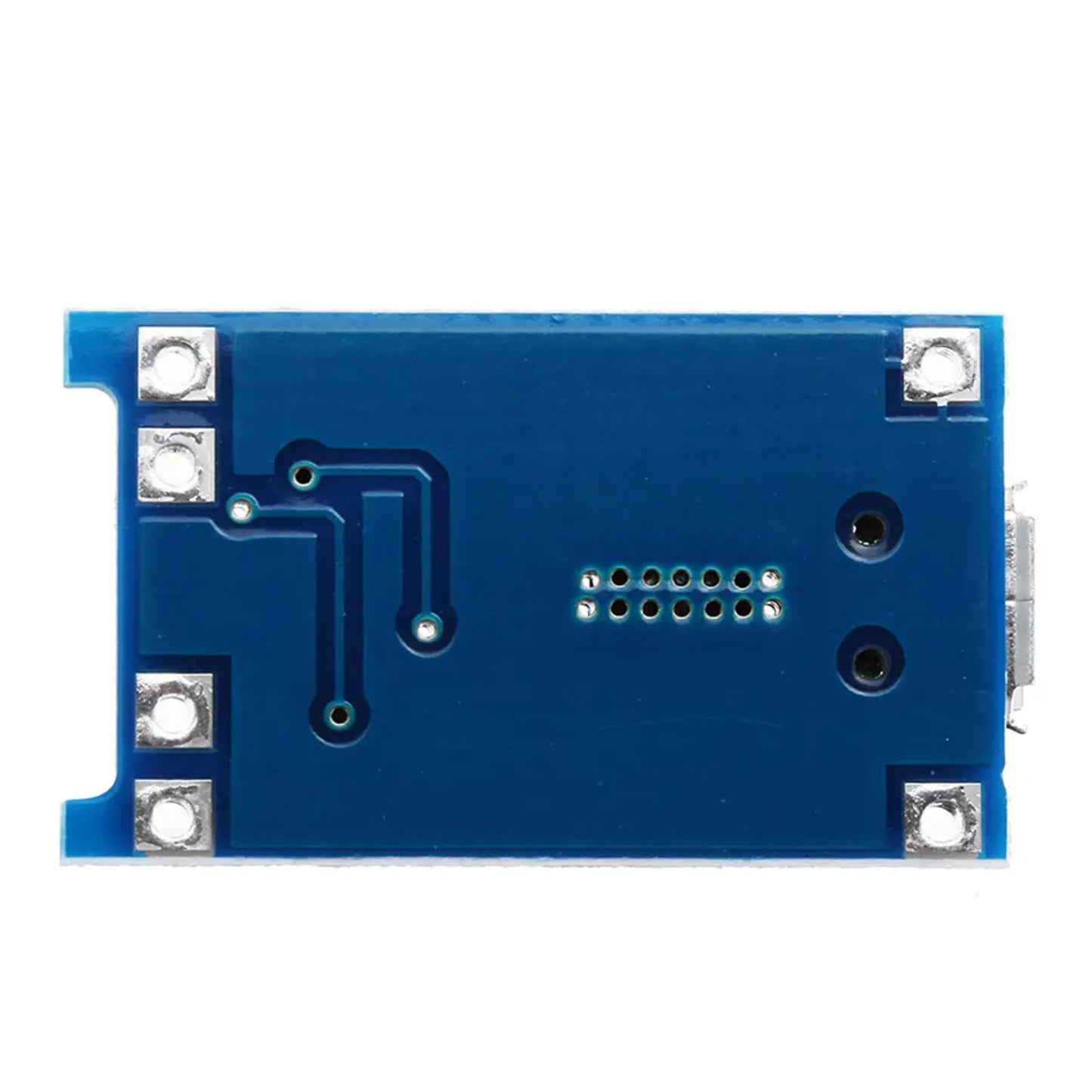

TP4056 Micro USB 5V 1A Lithium Battery Charging Protection Board

Name: TP4056 Micro USB 5V 1A Lithium Battery Charging Protection Board
Brand: UG LAND INDIA
SKU: TP4056 charging module
Price: 20.00 INR
Availability: InStock

₹ 20.00

Sale Sold out

Shipping calculated at checkout.

Safe Secure Delivery
10 Days Returnable
Secure Payment Transaction

In stock

Quantity

For bulk orders or B2B inquiries, email us: support@uglandindia.com
Bulk order on WhatsApp

Specification

Charge module- Linear charging.
Current- 1A adjustable.
Charge precision- 1.5%.
Input voltage- 4.5V-5.5V.
Full charge voltage- 4.2V.
Led indicator- red is charging Green is full charged.
Input interface- micro USB.
Work temperature- -10° to +85°.
Inversed polarity- NO.
Size- small to 25X19X10mm.

Led indicator: red is charging Green is fully charged.
Current Protection: Yes
Inversed polarity: NO.

NOTE:

Ampere meter can only be connected to 5v input end of the module.
It is better that the charging current is 37% of the battery capacity.
If you charge to the battery of 1000mAH, current of 400 is enough.
The connection wire should not be too thick.
Make sure the connect point is good.
If the input voltage is too high, like 5.2v, the current will be less than
1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip.
NO Reveral polarity.

Description

This TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium ion (Li-Ion) cells such as 16550s that don’t have their own protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished.
Furthermore when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage – and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time.

Connect micro USB cable for power, or 5V DC to pads marked IN+ and IN- on the left-hand side of the module
Connect cell to charge to B+/B- pads on the right-hand side of the module.
A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right-hand side
Important! Disconnect load when charging
The red LED indicates charging in progress, green LED indicates charging has finished.
Never charge your battery at a rate greater than 1C.
