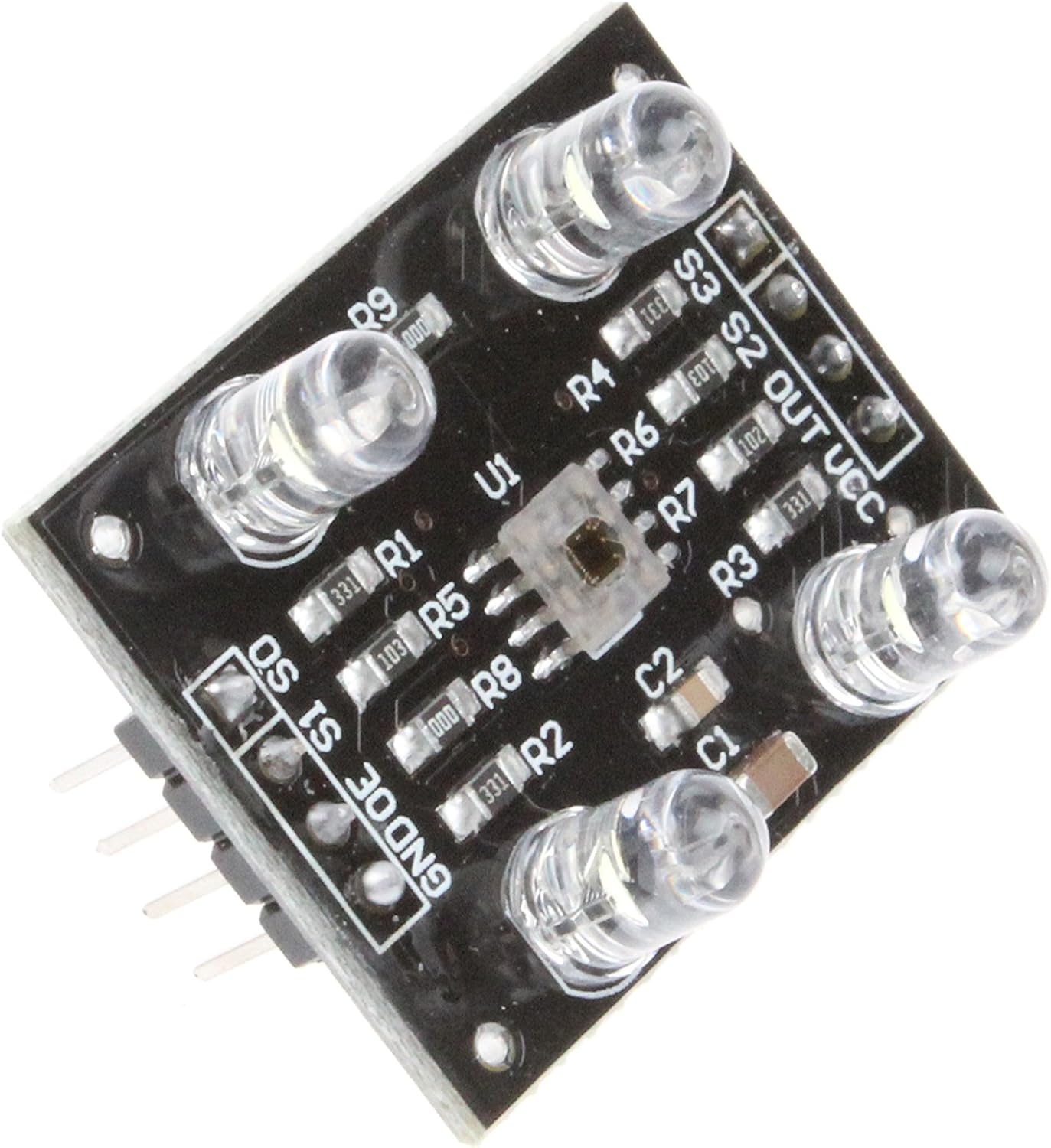

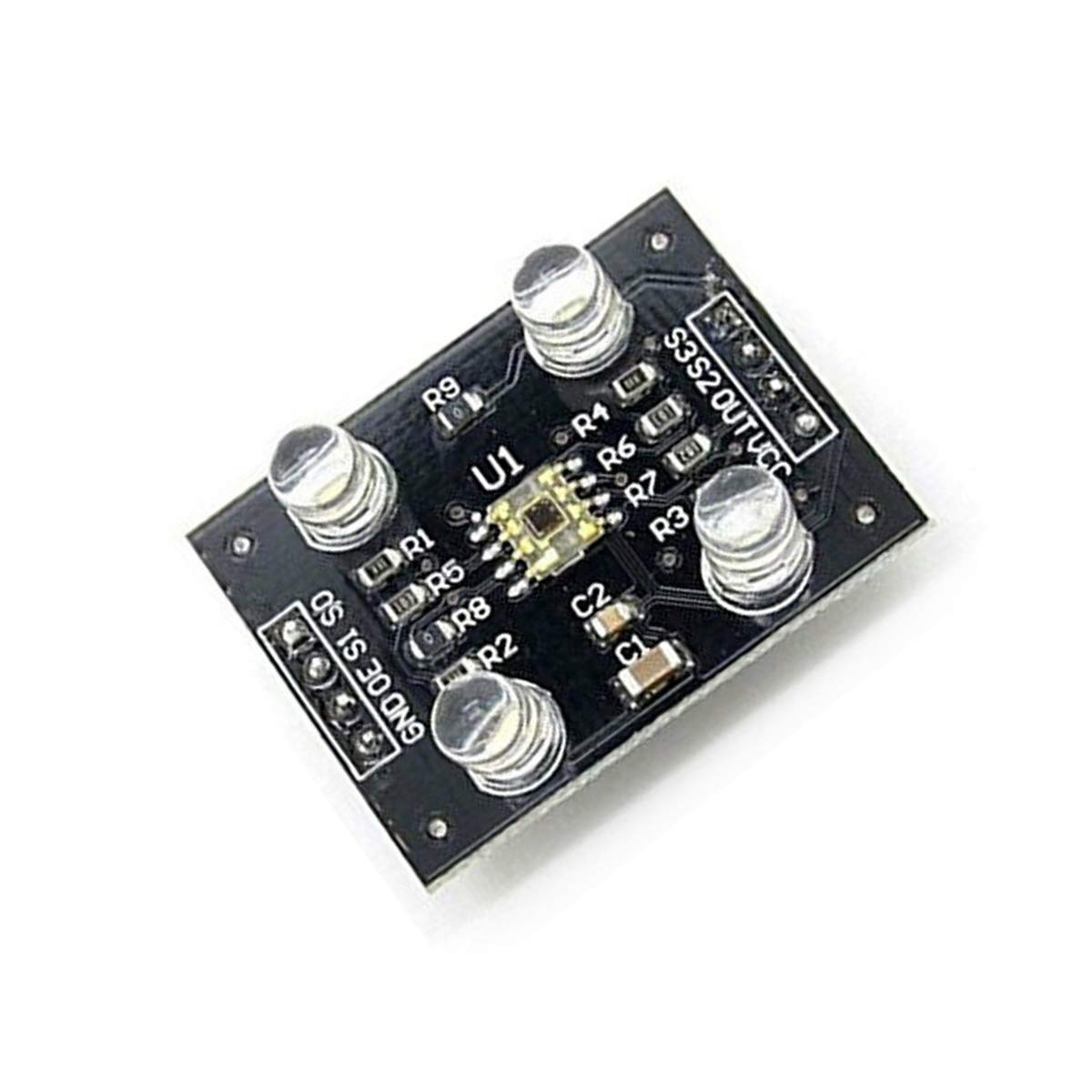

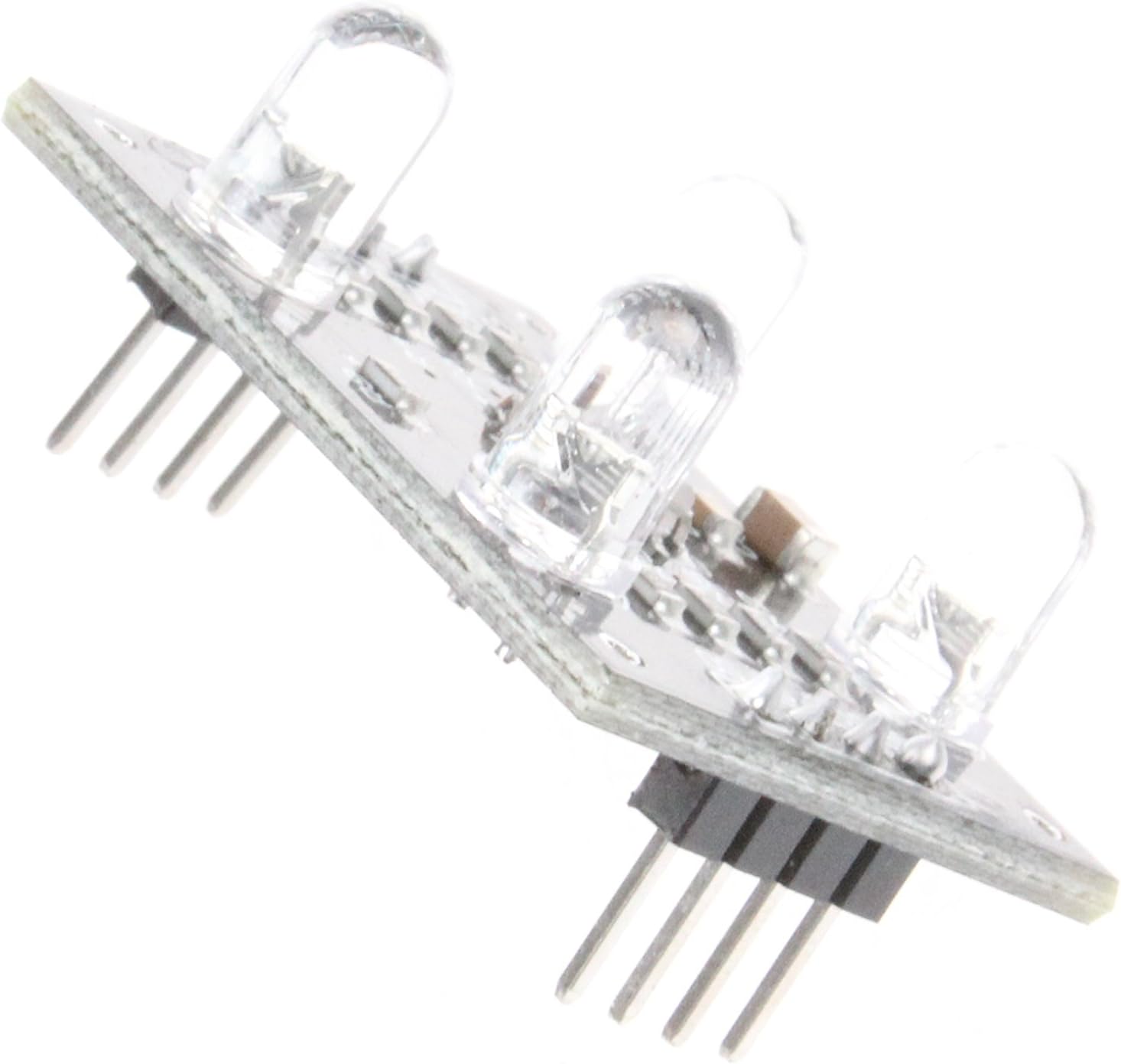

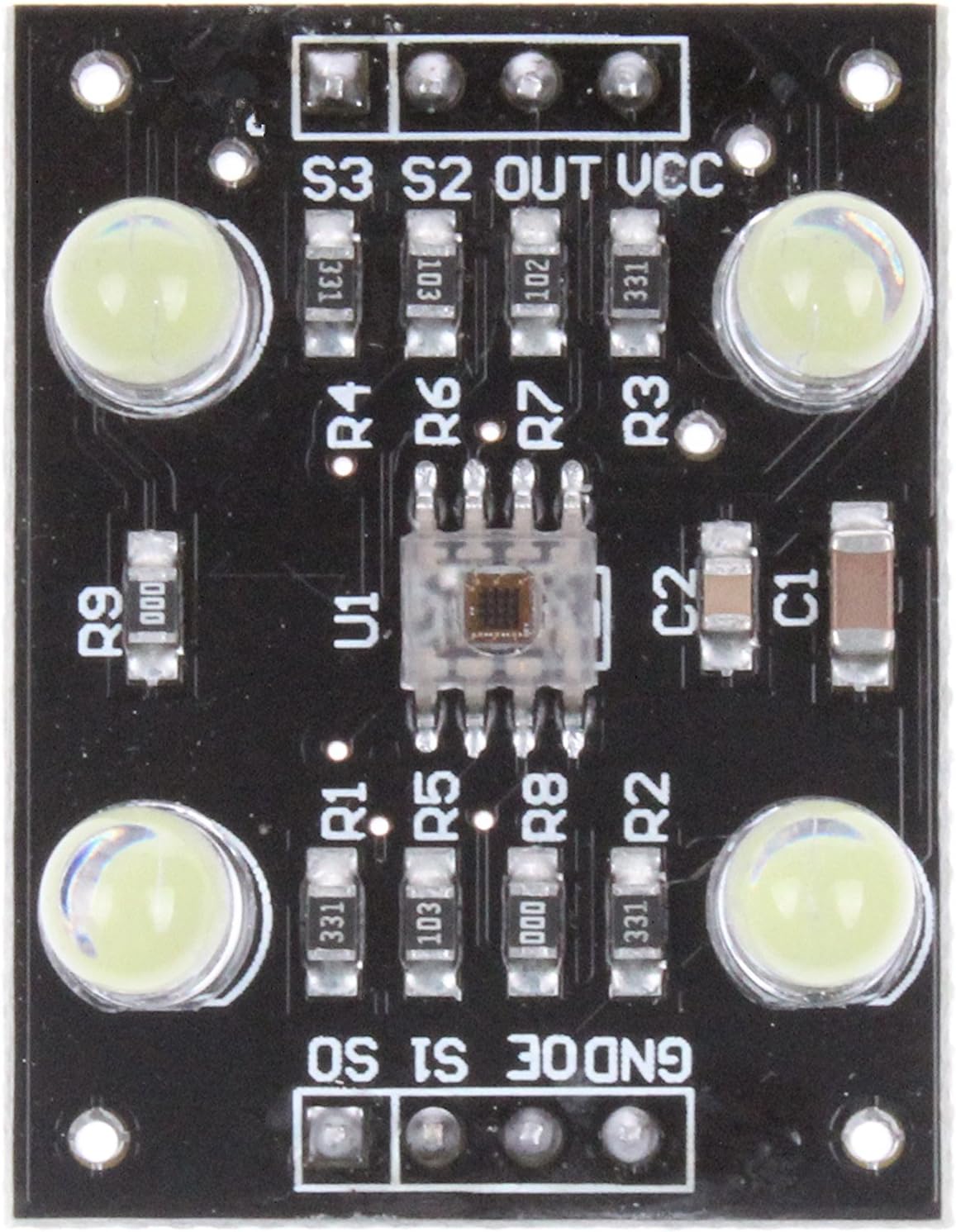

TCS3200 Color Recognition Sensor Module

TCS3200 Color Recognition Sensor Module

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Specification
Sensor Chip TCS3200 (or TCS230, similar functionality)
Input Voltage 3.3V to 5V DC
Operating Current ~10–15 mA
Output Type Digital pulse (frequency)
Sensing Elements 64 photodiodes (16 each for R, G, B, Clear)
Frequency Scaling 100%, 20%, 2% (via S0–S1 pins)
Light Source 4 × Onboard white LEDs
Module Dimensions ~28mm × 28mm
Output Frequency Range ~2kHz – 500kHz (scalable)
Response Time Fast (suitable for real-time applications)
Mounting Holes Yes (typically 4 corner holes)



Features:

  • Detects Red, Green, and Blue colors individually

  •  Output is a square wave frequency proportional to light intensity

  •  Selectable frequency scaling (100%, 20%, 2%)

  •  Integrated white LEDs for consistent illumination

  • Compact module with mounting holes

  •  Operates on 3V to 5V – suitable for 5V/3.3V logic systems

  •  Easy interface with Arduino, STM32, ESP32, etc.

Description:

The TCS3200 is a programmable color light-to-frequency converter module capable of detecting red, green, blue (RGB) colors using a silicon photodiode array and a current-to-frequency converter. It is widely used in color sorting, object recognition, and color-based automation projects with Arduino, Raspberry Pi, and other microcontrollers.
