SX1278 LoRa Module 433M 10KM Ra-02 Wireless Spread Spectrum Transmission Socket for Smart Home DIY

SX1278 LoRa Module 433M 10KM Ra-02 Wireless Spread Spectrum Transmission Socket for Smart Home DIY

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Specification
Model RA-02 (with SX1278 LoRa chip)
Frequency 433MHz ISM Band
Modulation LoRa™, FSK, GFSK, OOK
Transmission Distance Up to 10KM (LoS, optimal antenna & power)
Sensitivity Up to -148 dBm
Output Power Up to +20 dBm (100 mW)
Data Rate 0.018–37.5 kbps
Power Supply Voltage 1.8V – 3.7V (typically 3.3V)
Interface SPI (Standard 4-wire)
Operating Current TX: ~120mA, RX: ~10mA
Sleep Current < 200nA
Antenna Interface IPEX (U.FL) for external antenna
Module Size ~17mm



Features:

  • Ultra-Long Range Communication
    Up to 10KM transmission range (in ideal line-of-sight conditions).

  • LoRa Modulation Technology
    Superior interference immunity and long-distance performance compared to traditional FSK/ASK.

  • 433MHz Frequency
    Operates in the license-free ISM band; ideal for rural and urban IoT networks.

  • Low Power Consumption
    Suitable for battery-operated sensor nodes or remote systems.

  • High Sensitivity
    Down to -148 dBm, ensuring signal reliability over long distances.

  • Compact Socketed Design

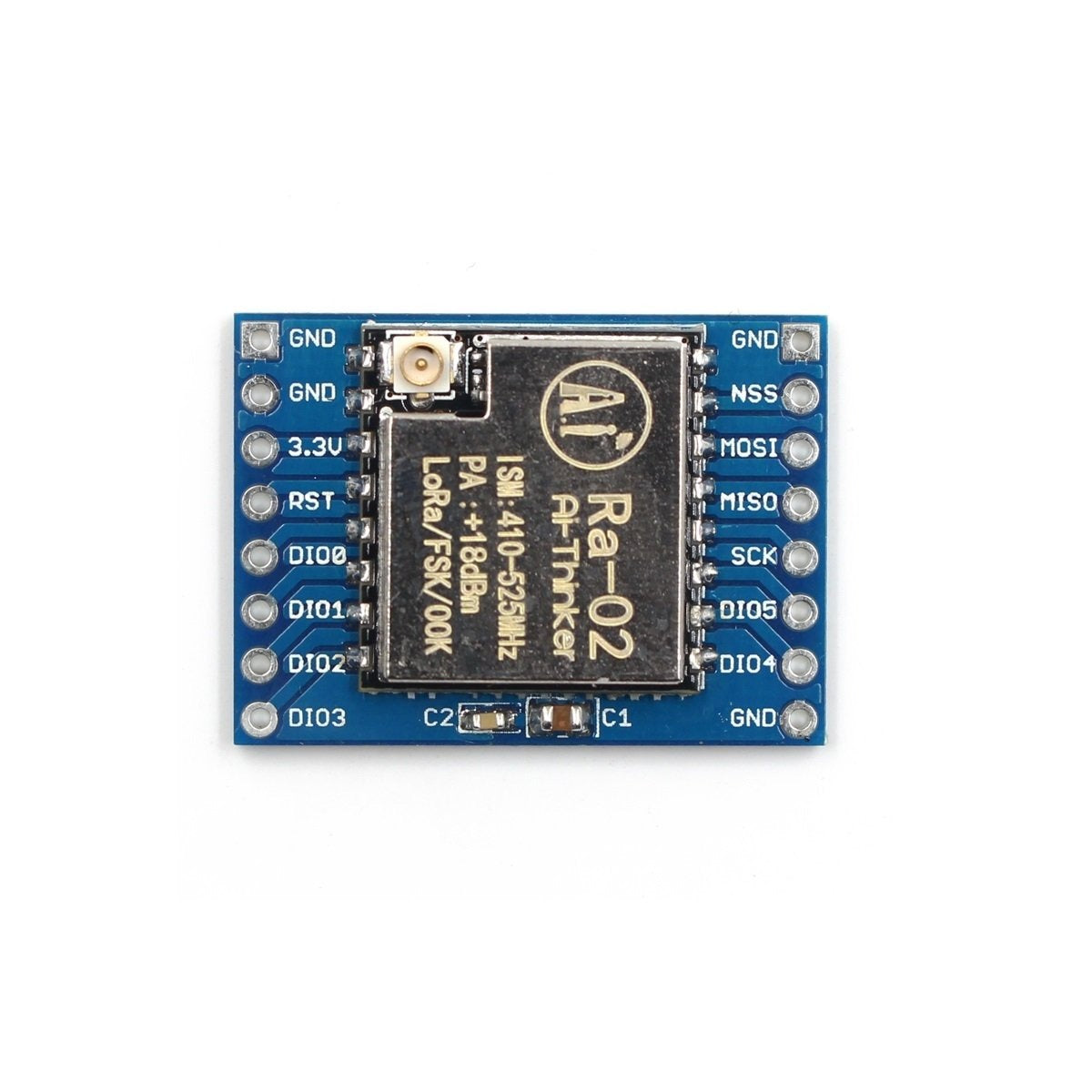

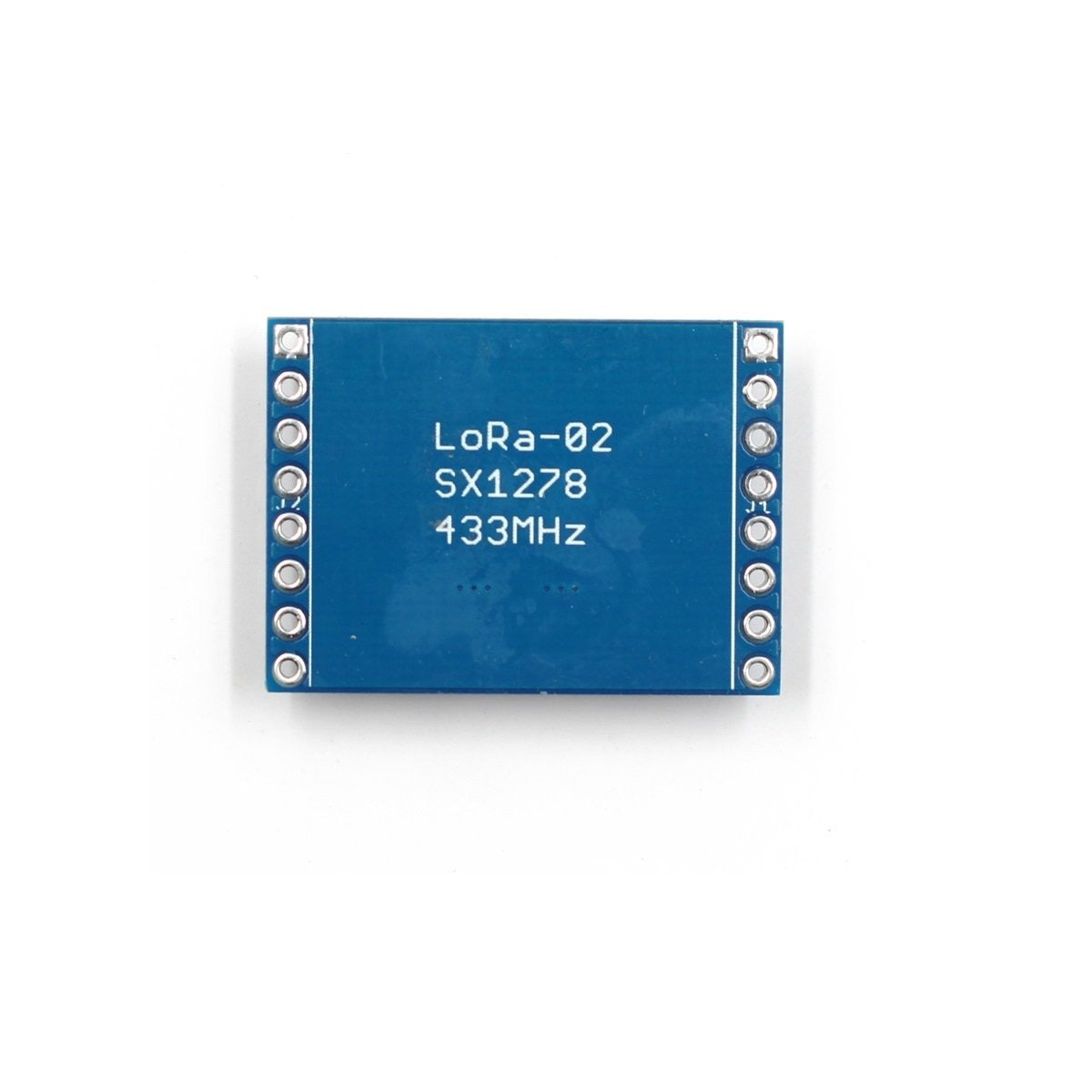

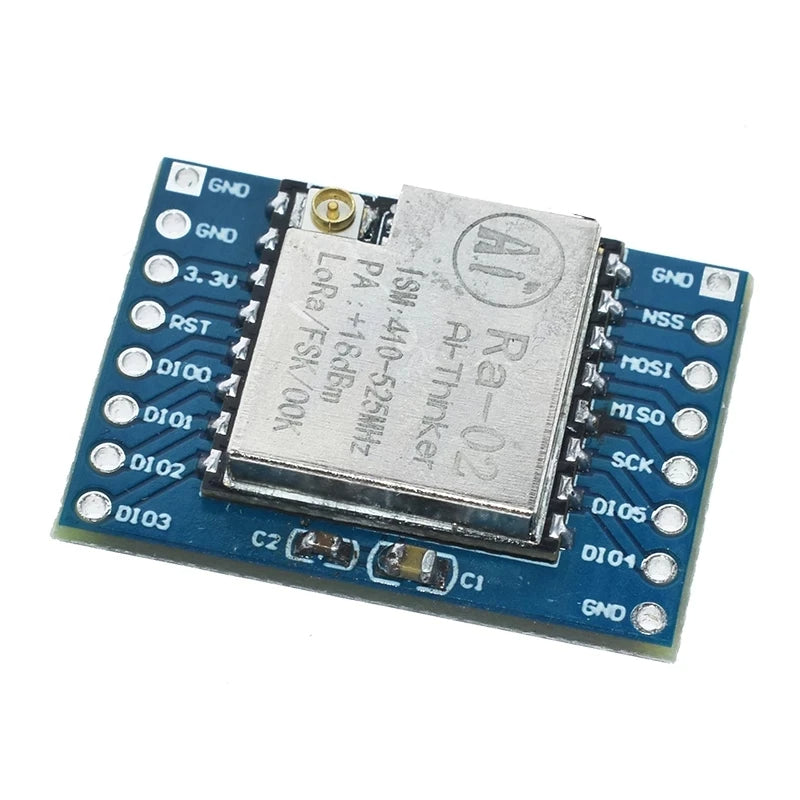

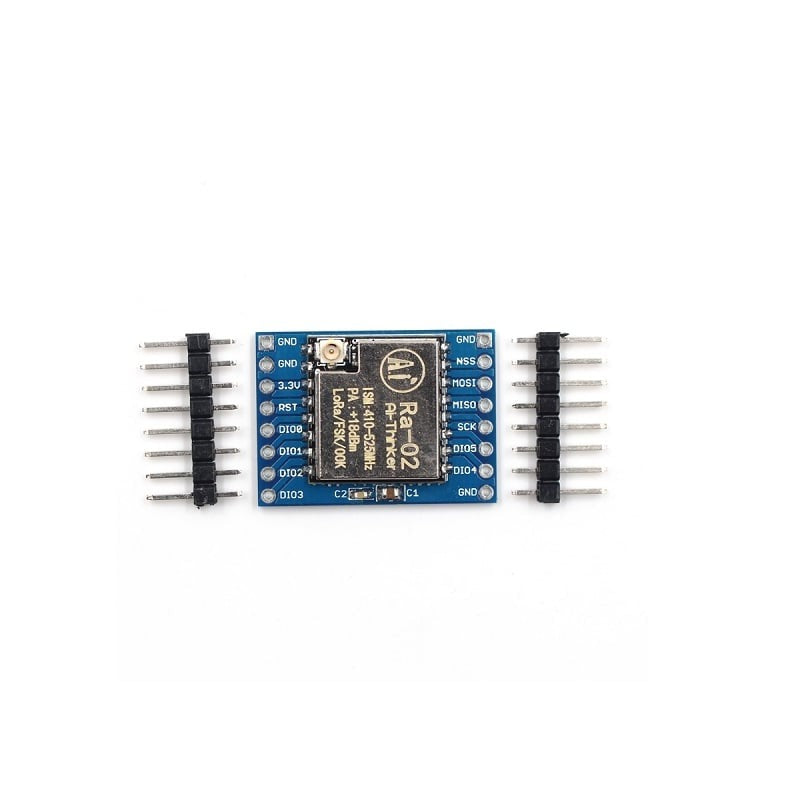

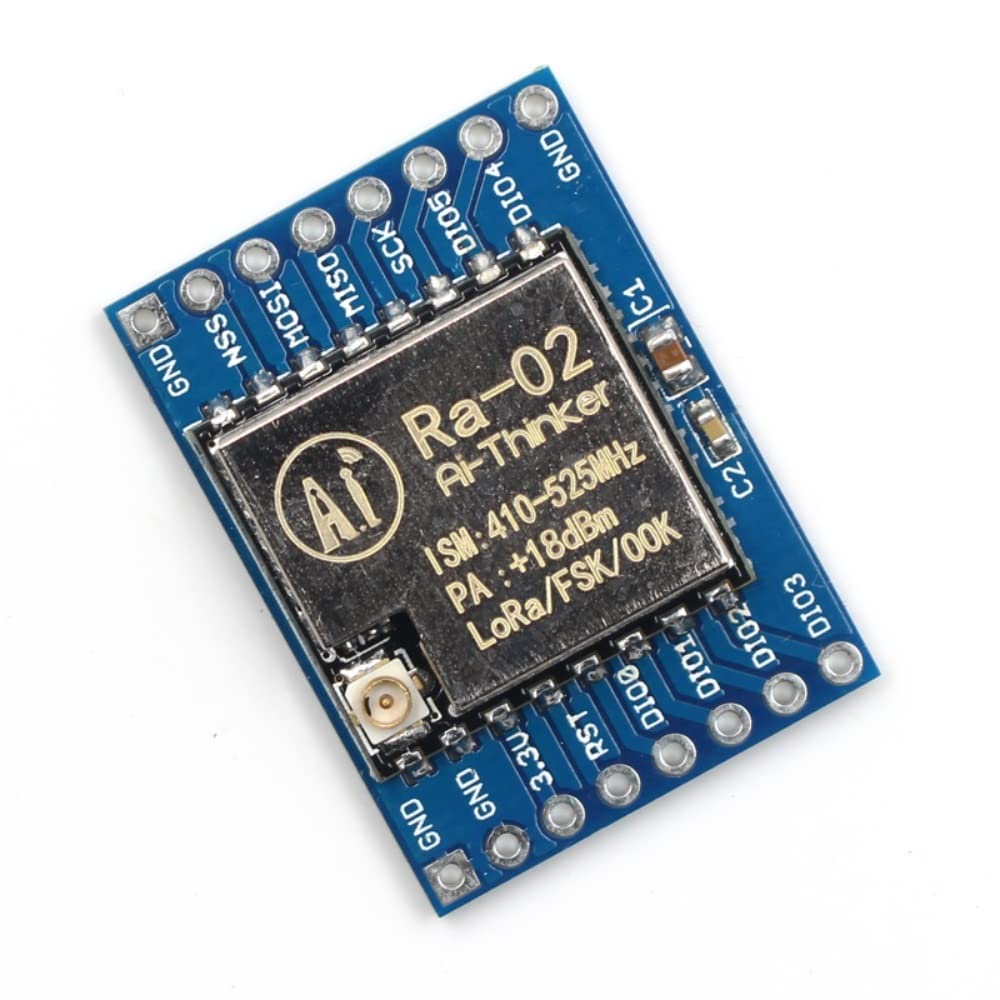

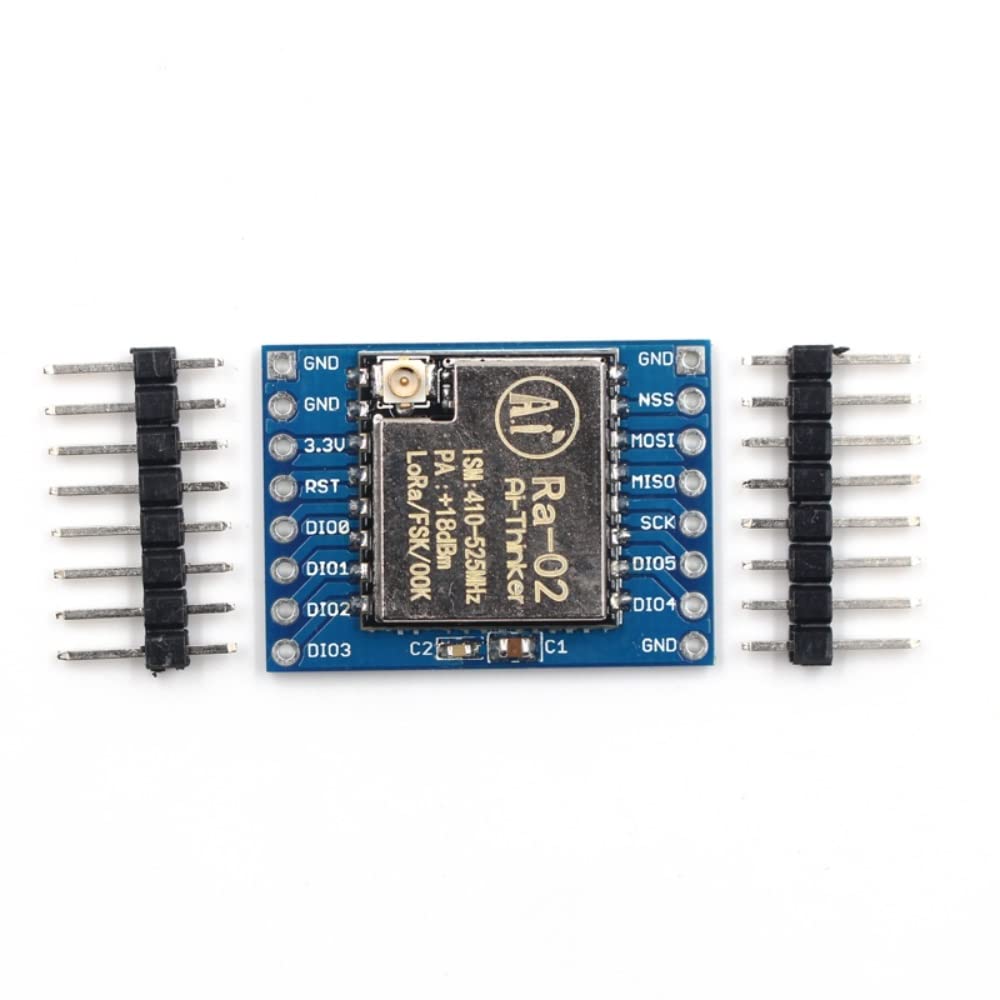

    Pre-mounted in a breakout base – simplifies prototyping and DIY projects.

Description:

High-Performance LoRa Spread Spectrum Communication Module – Ideal for IoT, Smart Home & DIY Wireless Networks

The SX1278 RA-02 LoRa Module is a high-performance wireless communication module based on Semtech’s SX1278 LoRa transceiver chip, operating at 433MHz frequency. It offers ultra-long-range spread spectrum communication of up to 10 kilometers in open areas while maintaining low power consumption, strong anti-interference ability, and high sensitivity.

This RA-02 module comes pre-soldered in a breakout socket, making it beginner-friendly and ideal for ESP32, STM32, and other microcontroller integrations without the need for complex SMD soldering.
