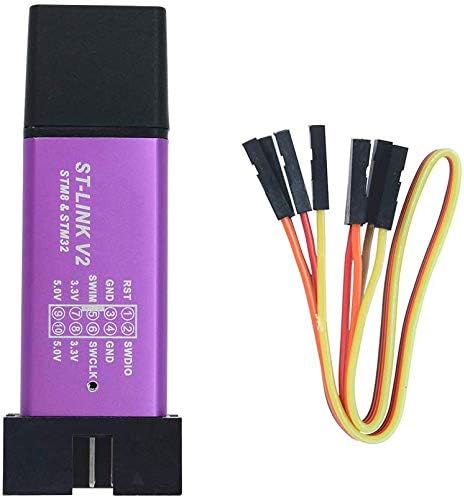

ST-Link V2 Programming Unit Mini STM8 STM32 Emulator Downloader M89 New

ST-Link V2 Programming Unit Mini STM8 STM32 Emulator Downloader M89 New

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp
Parameter Specification
Model ST-Link V2 Mini (M89)
Supported MCUs STM32 (ARM Cortex-M), STM8 (8-bit ST Microcontrollers)
Supported IDEs STM32CubeIDE, Keil uVision, IAR, STVP, ST-LINK Utility
Programming Interface SWD (Serial Wire Debug) for STM32, SWIM for STM8
Supported Protocols SWD (2-wire), SWIM (1-wire)
Connector Type 10-pin 2.54mm pitch male header
Communication Interface USB 2.0 (Plug-and-play with driver installation)
Input Voltage (USB) 5V DC from USB port
Target Voltage Range 3.3V or 5V (auto-detect, depending on target board power)
Output Voltage Pins 3.3V and 5V (limited current output for powering small target circuits)
LED Indicators Red LED: Power On, Blue LED: Communication/Programming
Board Dimensions Approx. 45mm × 15mm × 8mm

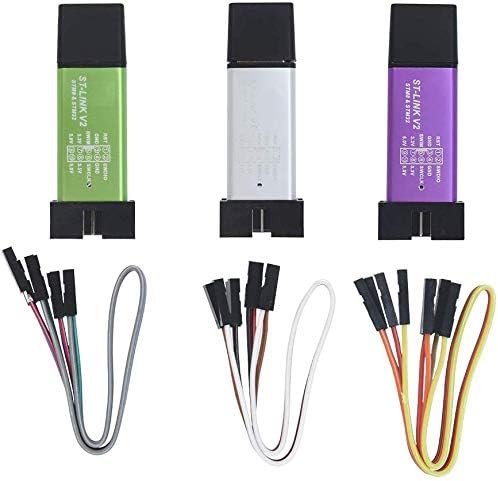

Enclosure Type Plastic shell (varies by version; some open PCB)
Driver Support STSW-LINK009 (Official ST-Link V2 driver)

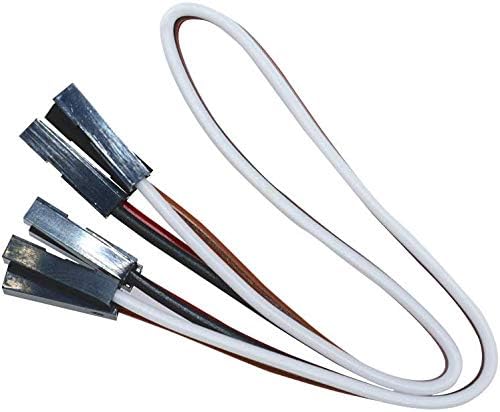

Cable Included 4–6 Dupont wires (female-female jumper wires for connection)

Freature:

The ST-Link V2 programming unit emulator downloader supports downloading and debugging the full range of STM32-SWD and STM8-SWIM
Wiring is very simple! This is convenient and practical as the interface definition is indicated directly on the case
It supports both 5V and 3.3V power outputs and all E/A output ports are protected
You can easily observe the working status with red and blue LED indicators.
It can protect your computer motherboard as the internal board of this programming device is equipped with a 500mA self recovery backup.

1. Supports the entire STM32-SWD debugging interface.
2. Support the entire bandwidth of STM8 SWIM download debugging (popular development environments such as IAR, STVD, etc. are supported). Supported software versions as follows:
① ST-LINK Utility 2.0 and 4.2.1 above.
StVD and above.
③ STVP 3.2.3 and above.
④ IAR EWARM V6.20 and above.
⑤ IAR EWSTM8 V1.30 and above.
6 Wedge RVMDK V4.21 and above.

3. Support for automatic firmware upgrades.

Description:

  • ST-Link V2 Emulator Downloader Programming: Supports the entire STM32 SWD debugging interface; Supports the full bandwidth of STM8 SWIM download debugging (popular development environments such as IAR, STVD, etc. are supported); support for automatic firmware upgrades

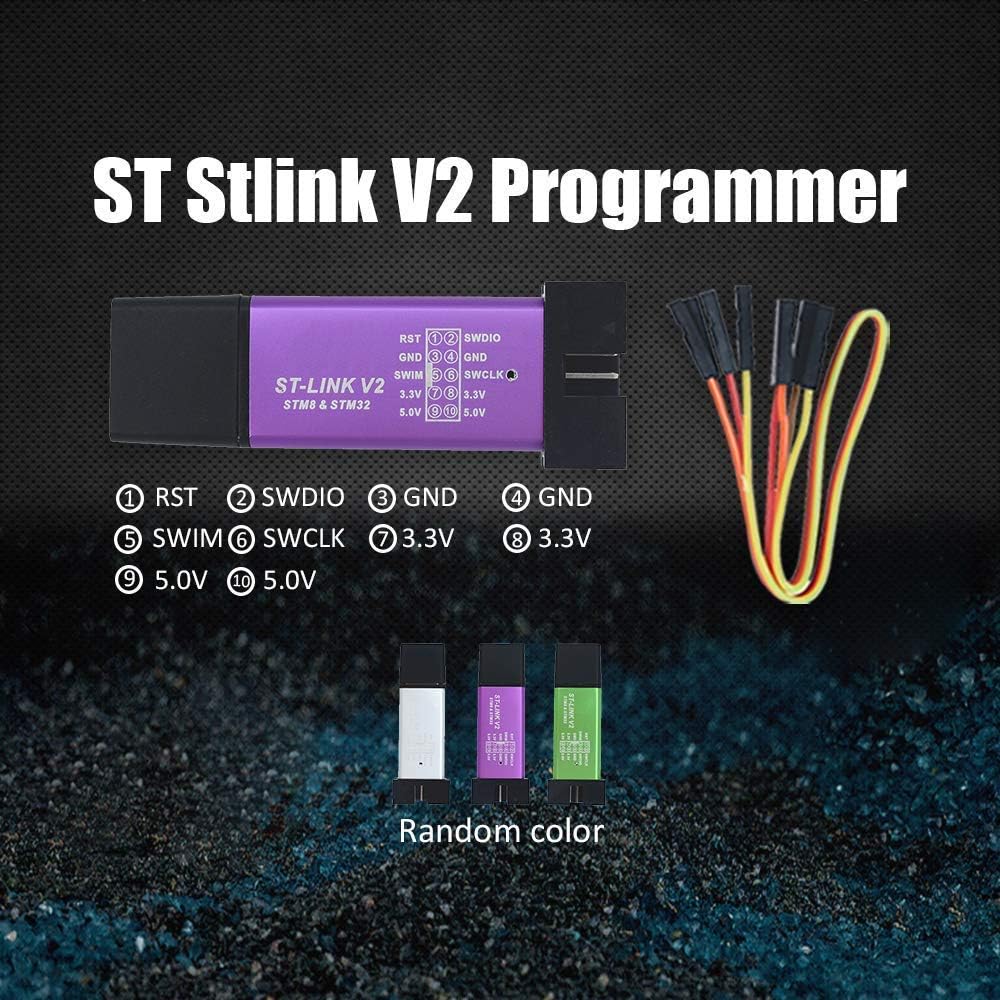

  • Unique interface definition: 4-wire interface (including power supply), the wiring is very simple as the interface definition is directly attached to the aluminium housing. RST; SWDIO,GND,GND,SWIM,SWICKTAGE 3.3V3.3V5.0V5.0V
  • Supported software versions. ST-LINK Utility 2.0 and above; STVD and above; STVP 3.2.3 and above; IAR EWARM V6.20 and above; IAR EWSTM8 V1.30 and above; Wedge RVMDK V4.21 and above
  • It is convenient and practical, fast and stable. 1. Increases the 5V output power, the E/A output ports are protected from operating errors caused by ST-LINK V2 damage. The internal board of this programming device is equipped with a 500mA fuse for self-recovery and can protect your computer's motherboard
  • The interface is easy to use, simple horns, seat distance of 2.54, with 20 cm DuPont cable, the cable can react to different target sequences, flexible wiring.
