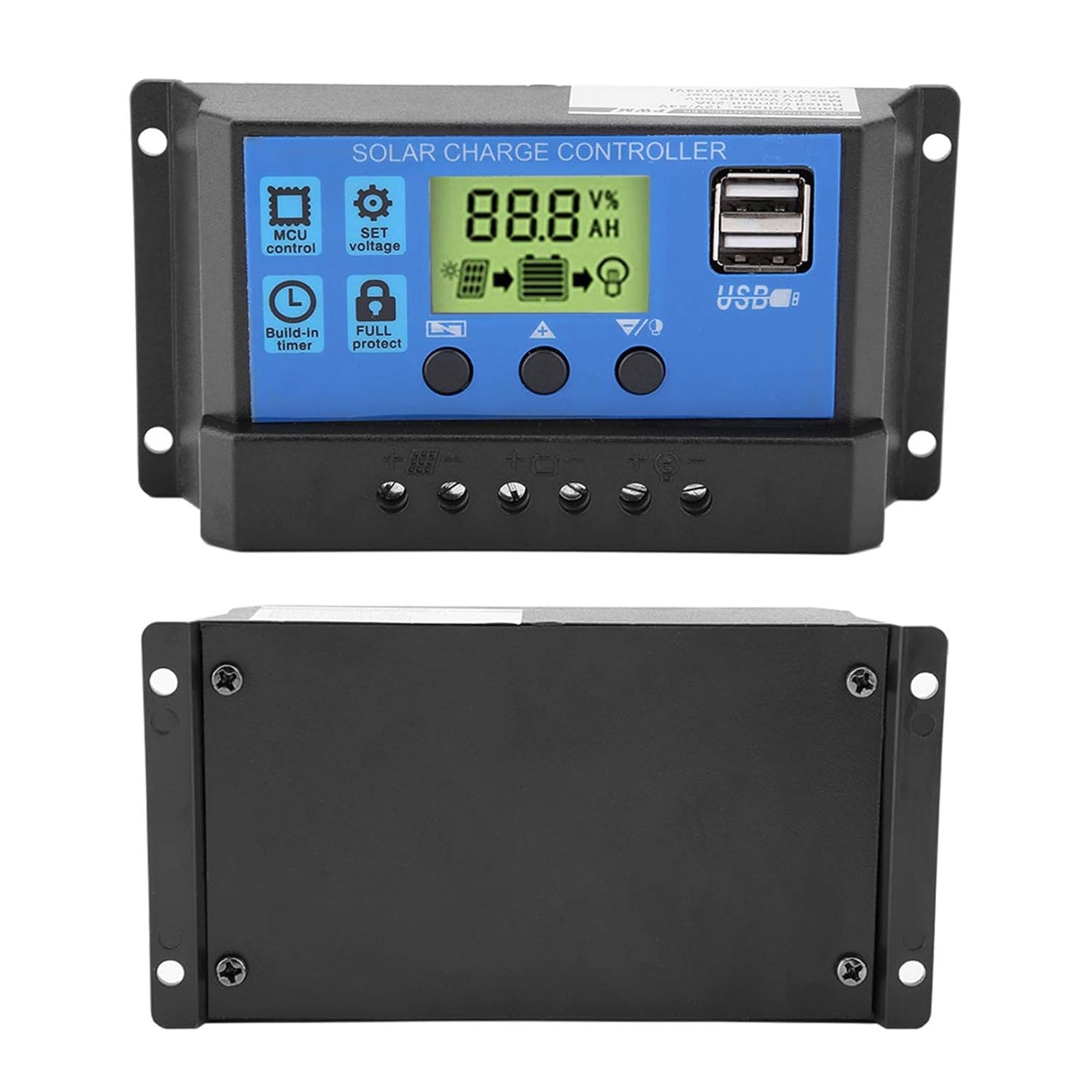

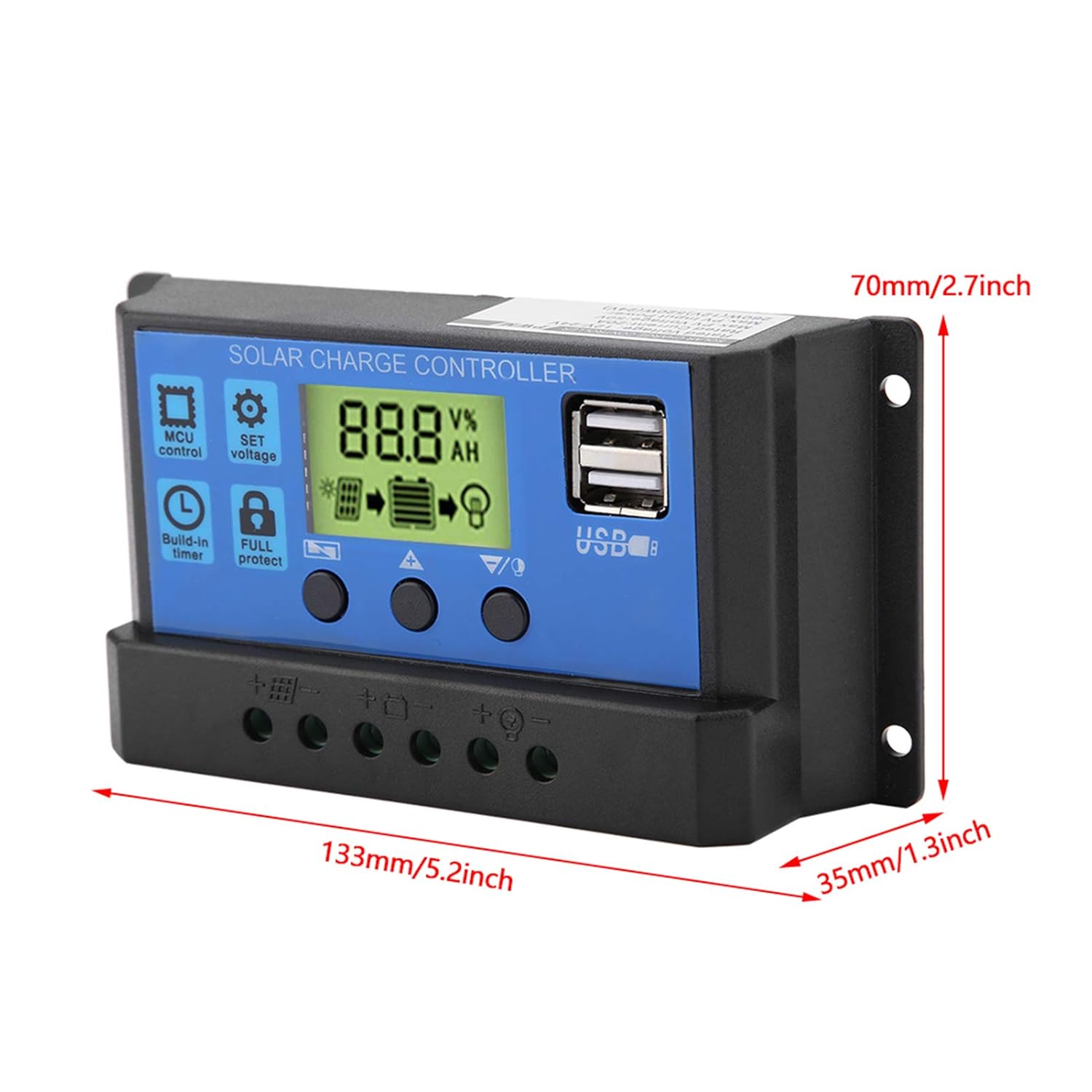

Solar Controller PWM 12V/24V USB Solar Panel Battery Controller Regulator LCD Display 10/20/30A Overload Overcurrent

Solar Controller PWM 12V/24V USB Solar Panel Battery Controller Regulator LCD Display 10/20/30A Overload Overcurrent

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Details
System Voltage 12V / 24V Auto Switch
Charge Controller Type PWM (Pulse Width Modulation)
Rated Current 10A / 20A / 30A (depends on model)
Max Solar Input Voltage ≤50V
USB Output 5V/2A Dual USB Ports
Charging Mode PWM Regulation
Battery Type Supported Lead Acid, Sealed Gel, Flooded
Load Control Mode Manual / Light Control / Time Control (varies by version)

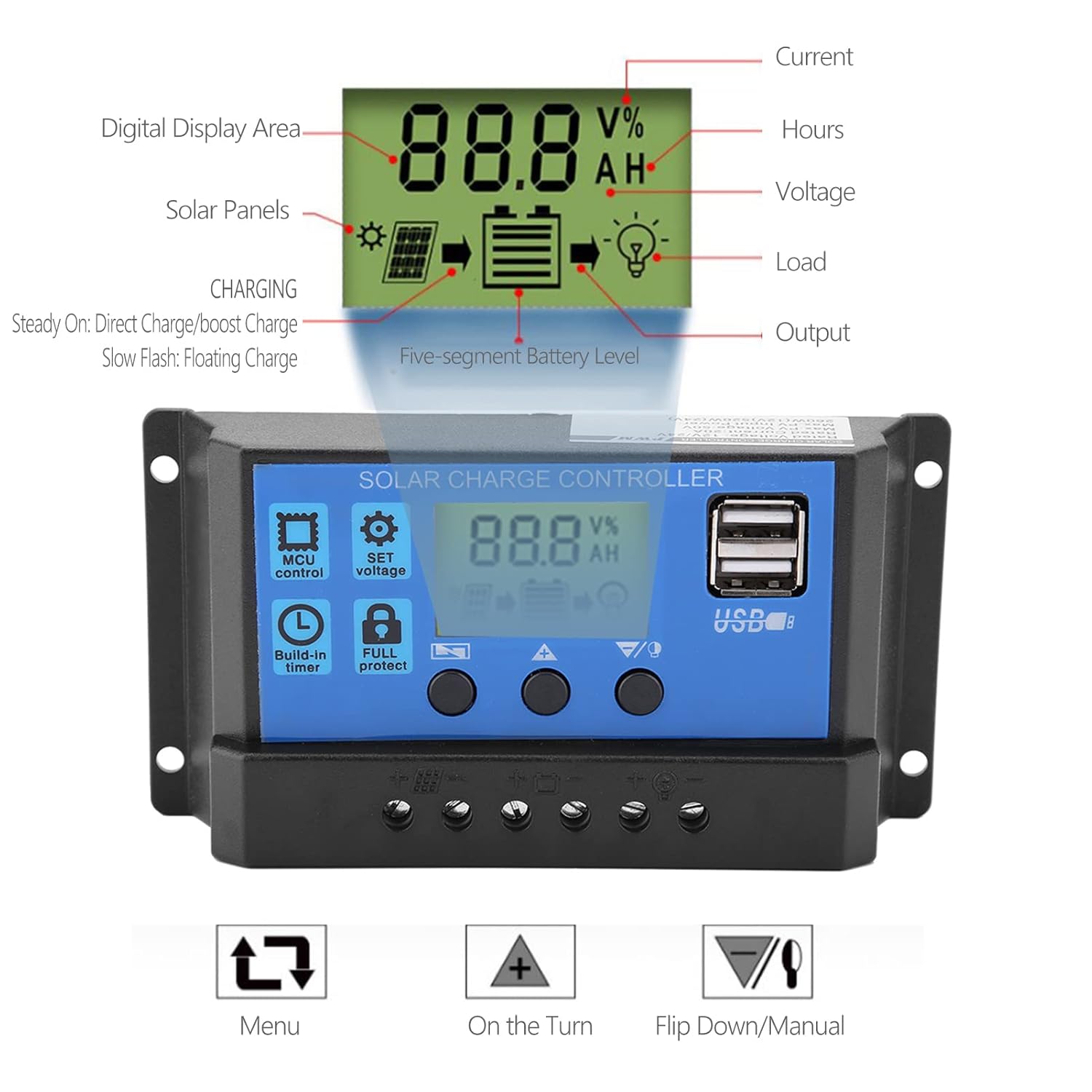

Display LCD Screen with real-time status and parameter display
Operating Temperature -35°C to +60°C
Self-Consumption ≤10mA

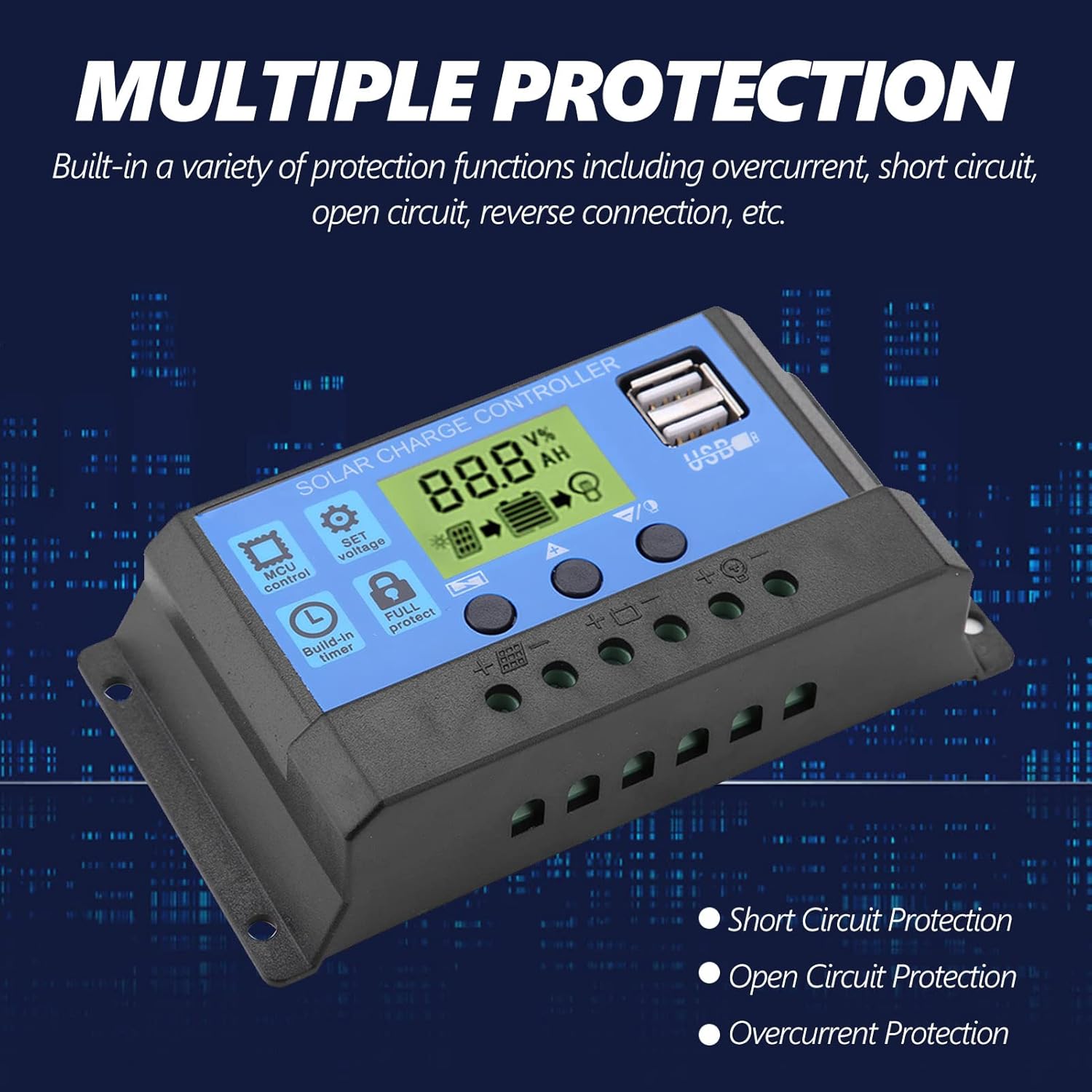

Protection Features Overload, Overcharge, Overcurrent, Short Circuit, Reverse Polarity



Features:

  • 🔄 12V/24V Auto Identification

  • 🔋 Battery Overcharge & Overdischarge Protection

  • 📱 Dual USB Ports (5V/2A) for Mobile Charging

  • 🌙 Load Control Modes: Manual / Dusk-to-Dawn / Timer

  • 🔒 Multiple Built-in Protections (reverse polarity, short-circuit, overload)

  • 📟 Real-time LCD Display of voltage, current, and battery levels

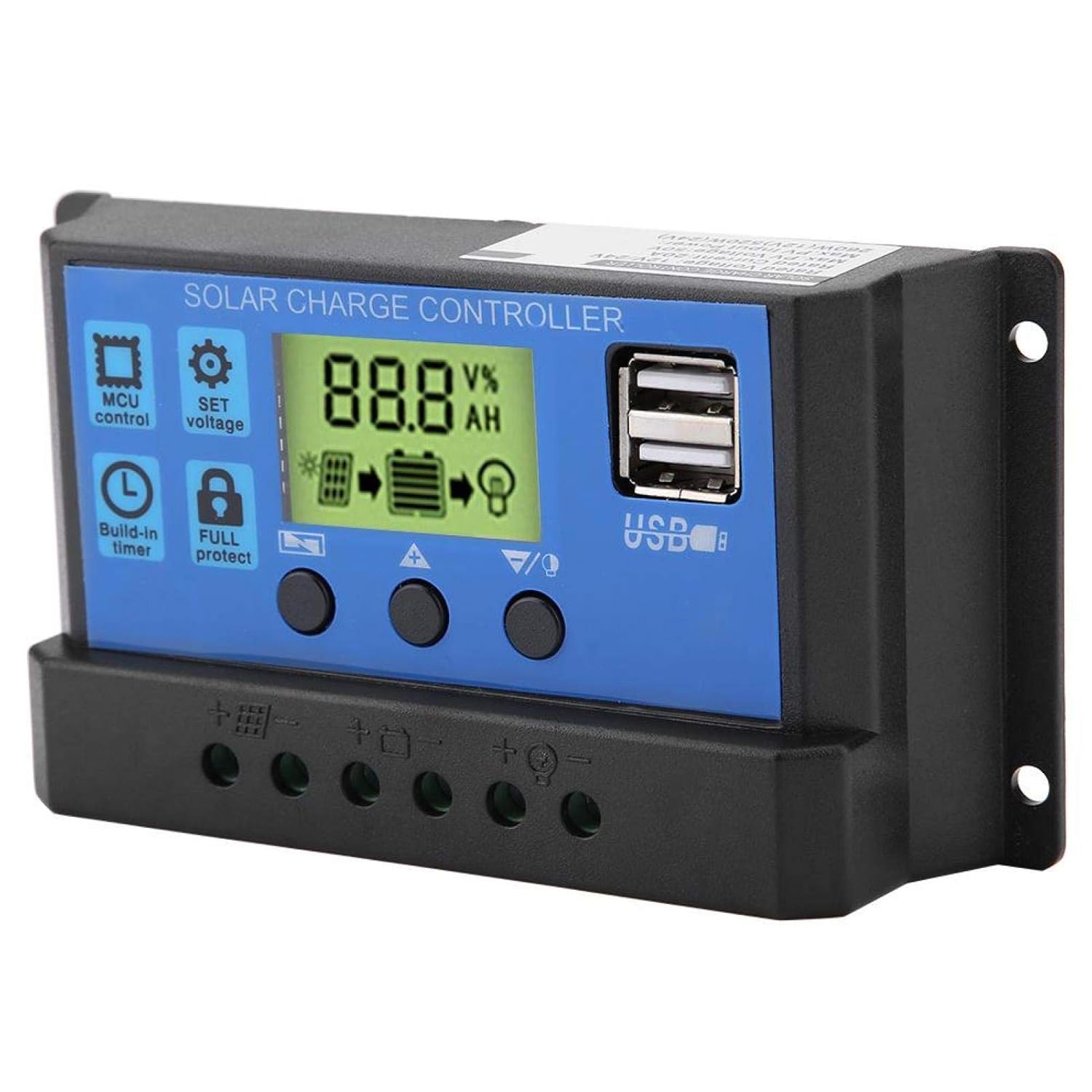

  • Solar Panel Input (+ / -)

  • Battery Connection (+ / -)

  • DC Load Output (+ / -)

Description:

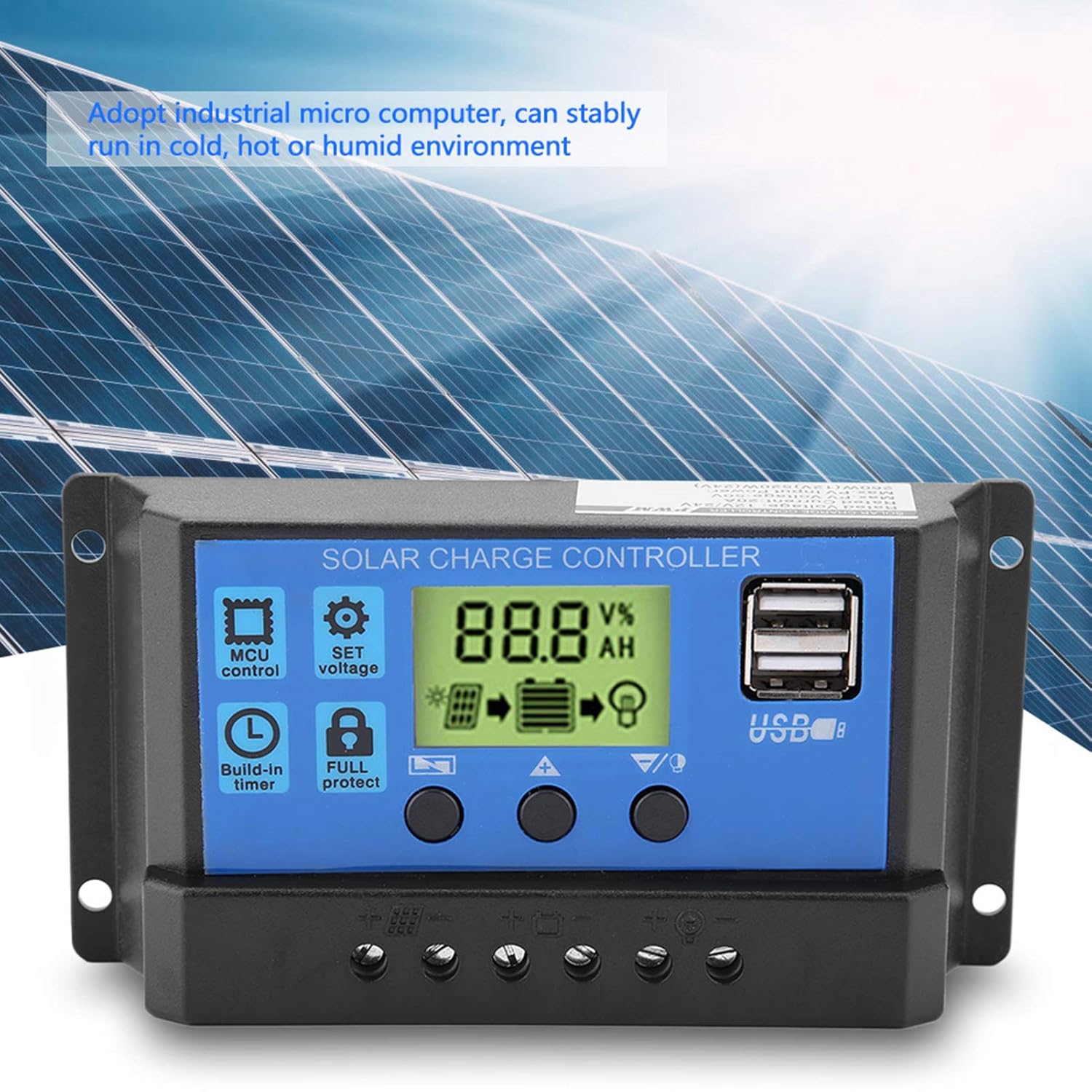

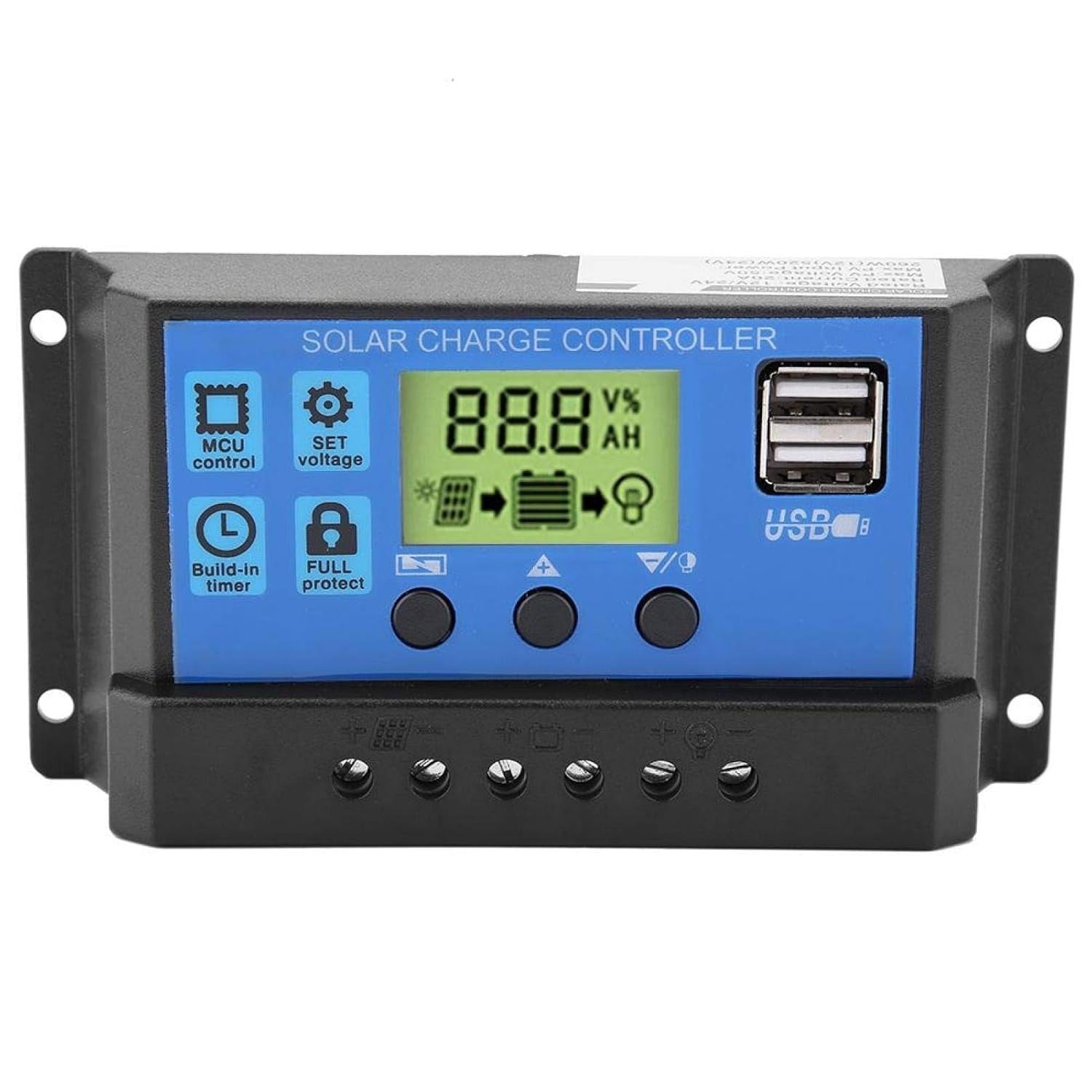

This PWM Solar Charge Controller is designed to regulate the charging and discharging of batteries from solar panels. It helps prolong battery life, prevent overcharging, and manage load automatically. Suitable for 12V and 24V systems, the controller features an intelligent auto-switch between voltages, and supports 10A / 20A / 30A current capacities.

The controller includes a backlit LCD display showing real-time data such as battery voltage, charging current, and battery status. It also features dual USB ports for 5V DC output, allowing you to directly charge phones or small devices.
