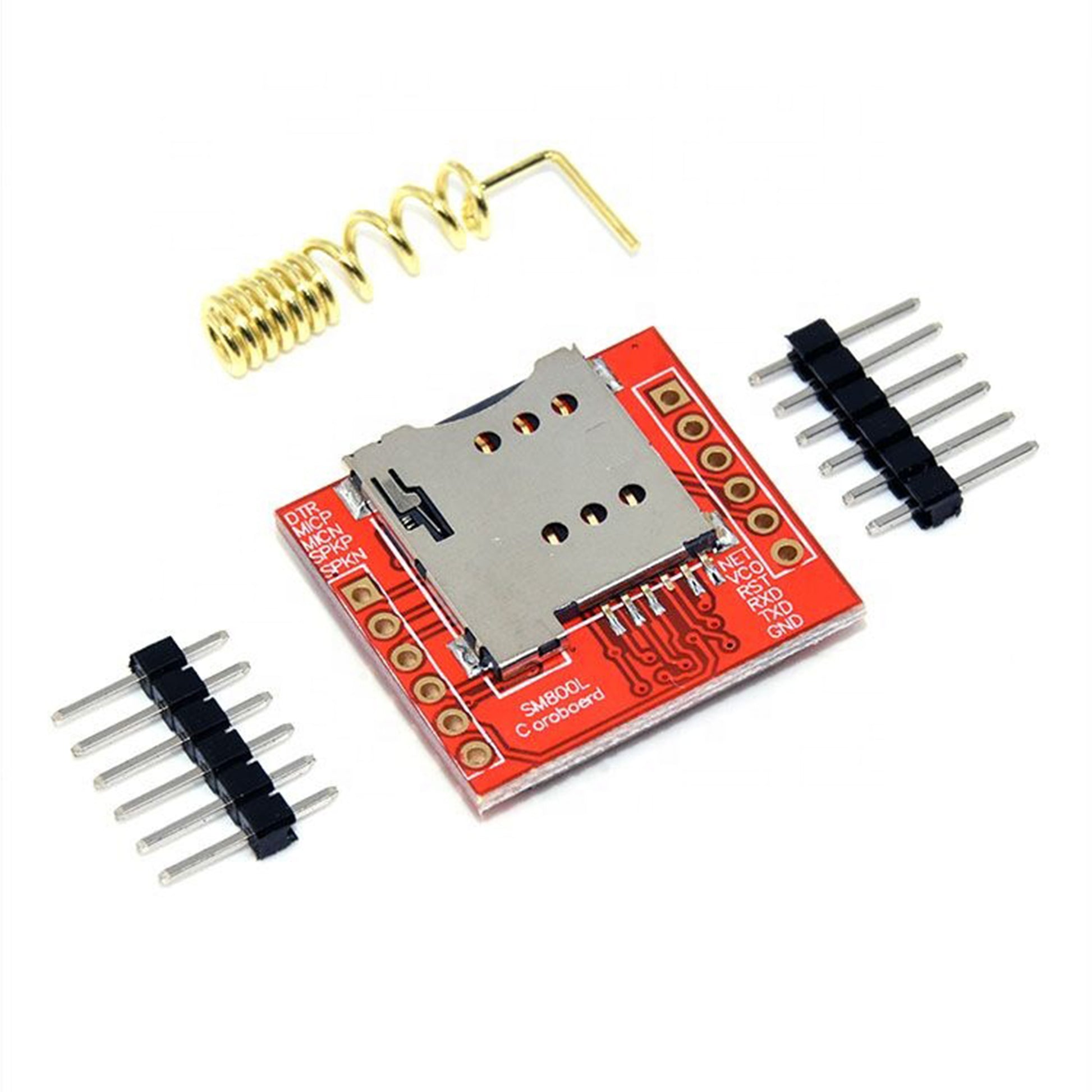

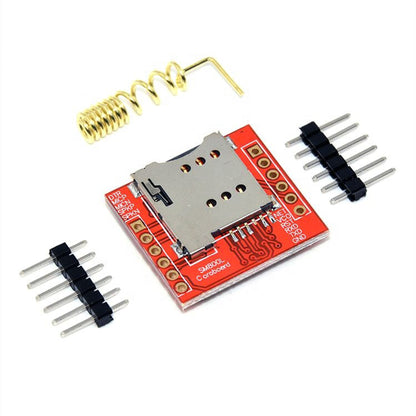

SIM800L GPRS GSM Module Core Board Quad-band TTL Serial Port with the antenna

SIM800L GPRS GSM Module Core Board Quad-band TTL Serial Port with the antenna

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Details
Chipset SIMCom SIM800L
Frequency Bands GSM 850/900/1800/1900 MHz
GPRS Class Class 12 (max. 85.6 kbps)

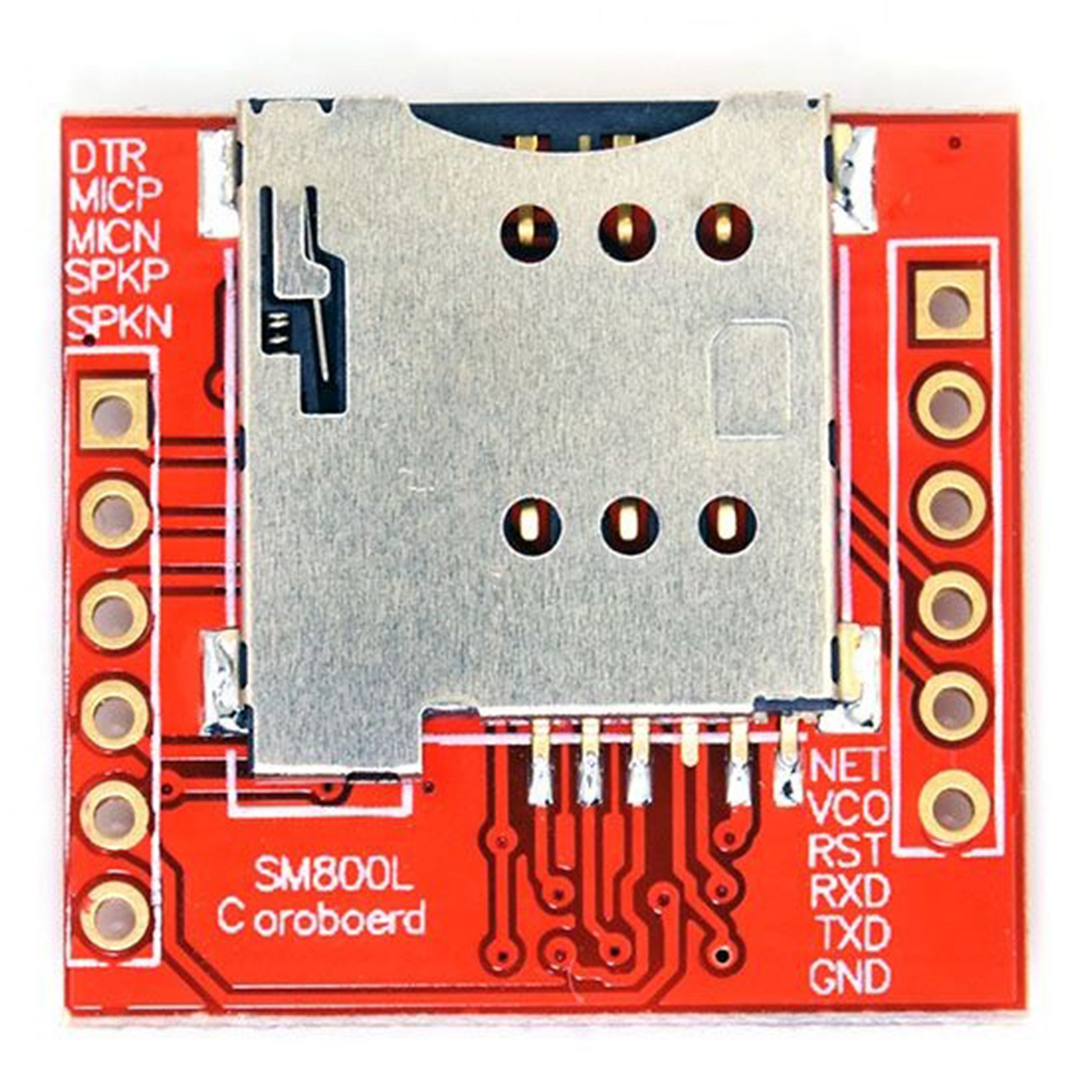

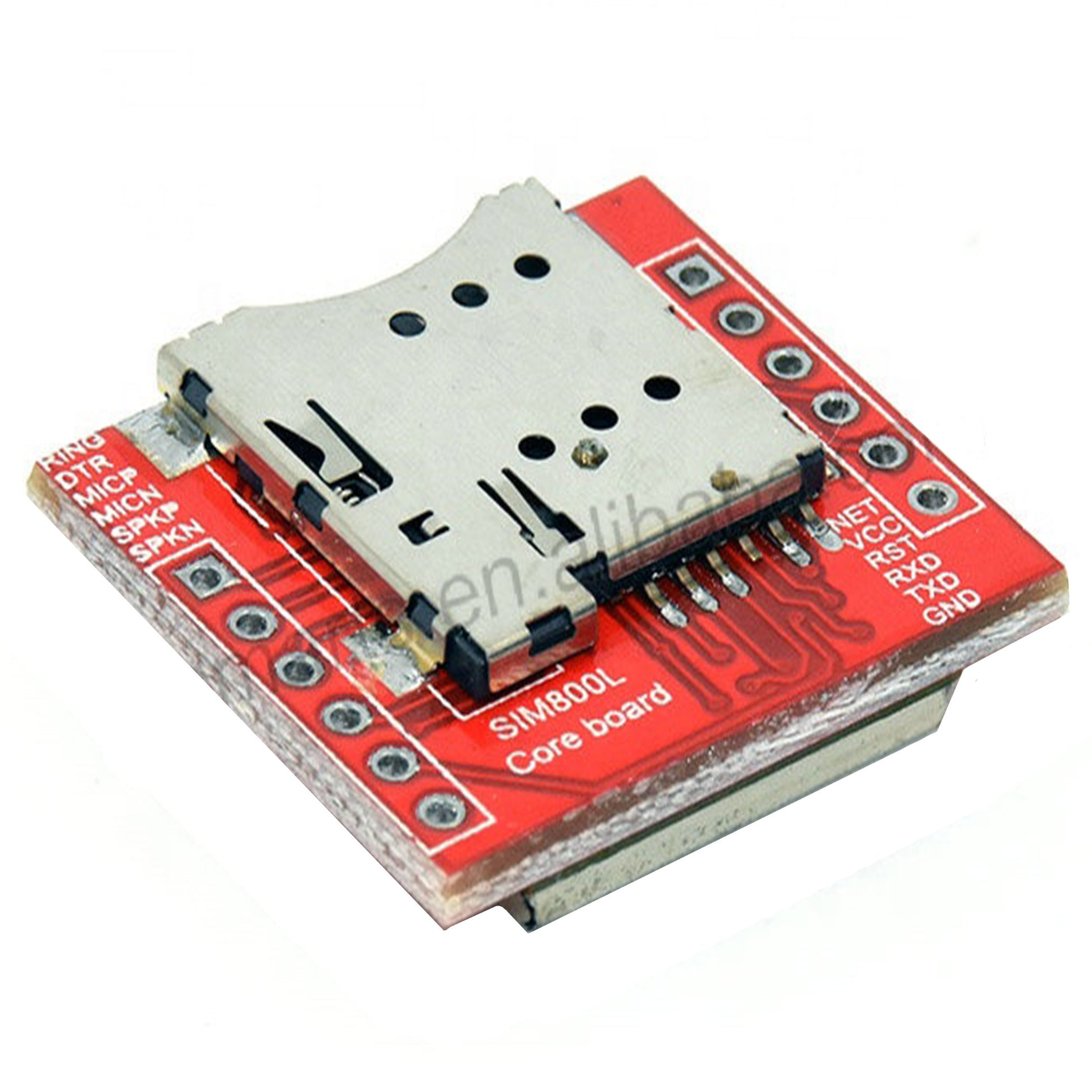

SIM Interface Micro SIM (external or onboard)
Antenna Type External (spring, IPEX, or PCB based)
Interface UART (TXD, RXD), TTL 2.8–3.3V logic
Power Supply 3.4V–4.4V DC (typically 4.0V)
Current Consumption Idle: ~1mA, Transmission: ~2A peak
AT Command Set Standard GSM 07.07, 07.05 + SIMCom extensions
Audio Interface Available (MIC, SPK – optional



Features:

  • Quad-Band GSM Support
    Operates on 850/900/1800/1900 MHz – works globally.

  • GPRS Connectivity
    Supports Class 12 GPRS for basic internet data communication (TCP/IP, HTTP).

  • SMS & Call Functionality
    Send/receive SMS, make/receive voice calls via AT commands.

  • TTL Serial Interface
    Easy communication with microcontrollers using standard 2.8–3.3V UART.

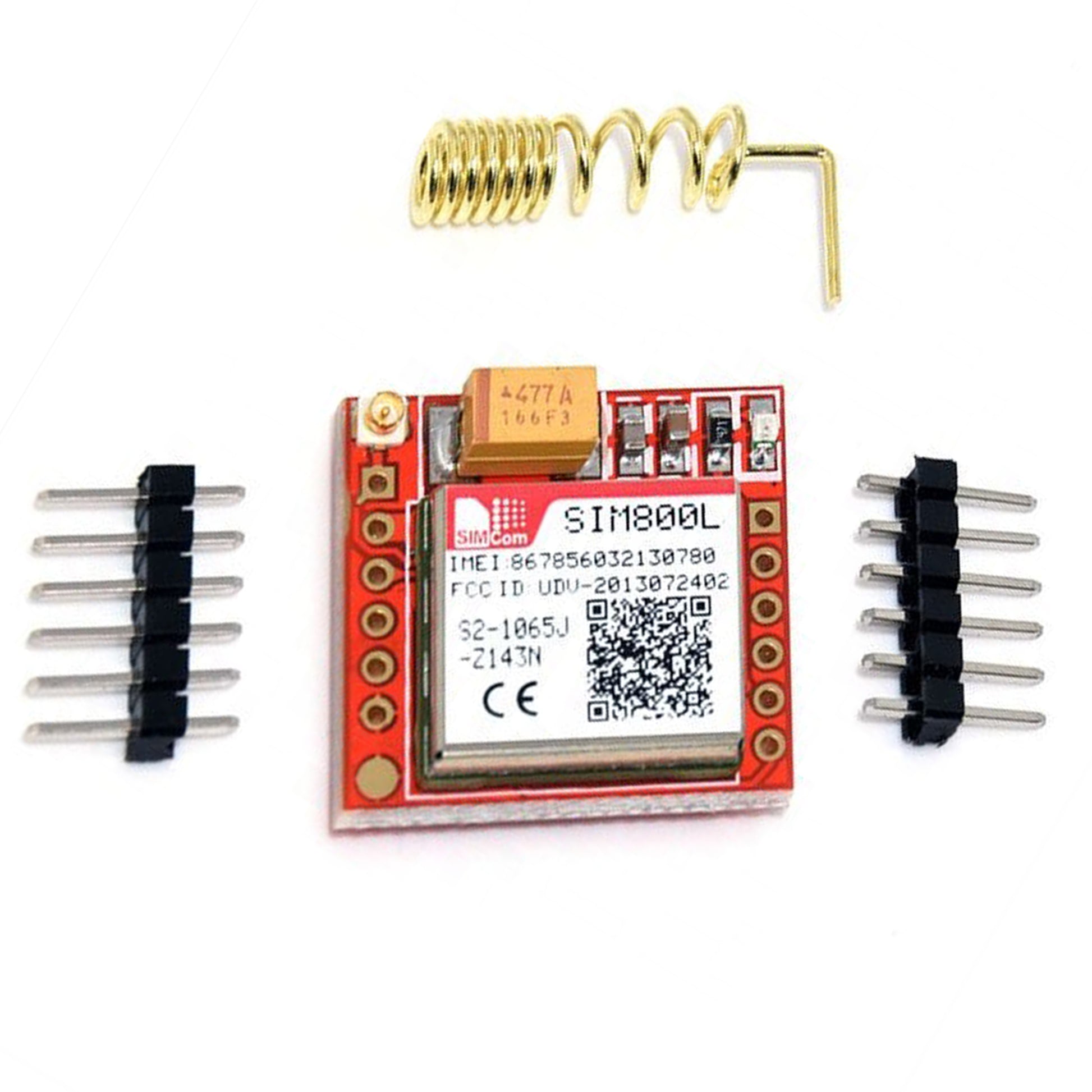

  • External Antenna Included
    Improves signal reception in indoor or remote installations.

  • Low Power Operation
    Ideal for battery-powered IoT projects (with proper power supply).

Description:

Compact GSM/GPRS Communication Module for SMS, Calls, and Internet – Ideal for , IoT & Embedded Projects

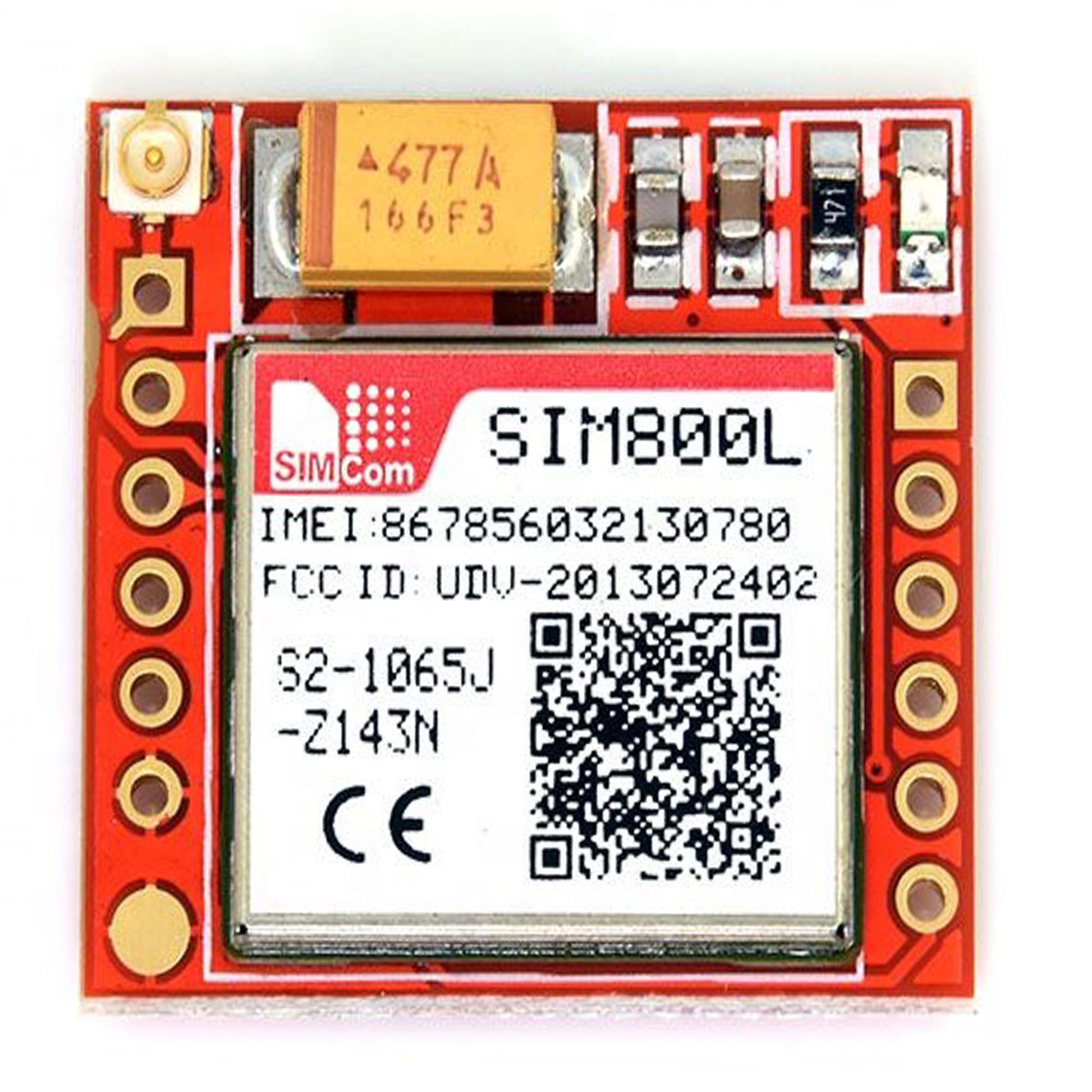

The SIM800L GSM GPRS Module is a compact and powerful GSM/GPRS core board based on the SIM800L chip, designed for adding cellular communication capability to your embedded systems. It supports quad-band GSM network frequencies, making it compatible with cellular networks worldwide. Featuring a TTL serial interface, it's easily compatible with ESP32, Pi, STM32, and other microcontrollers.

The module comes with an external antenna (spring, PCB, or IPEX depending on version) for improved signal reception, and supports functions such as voice calls, SMS, GPRS internet, and DTMF.
