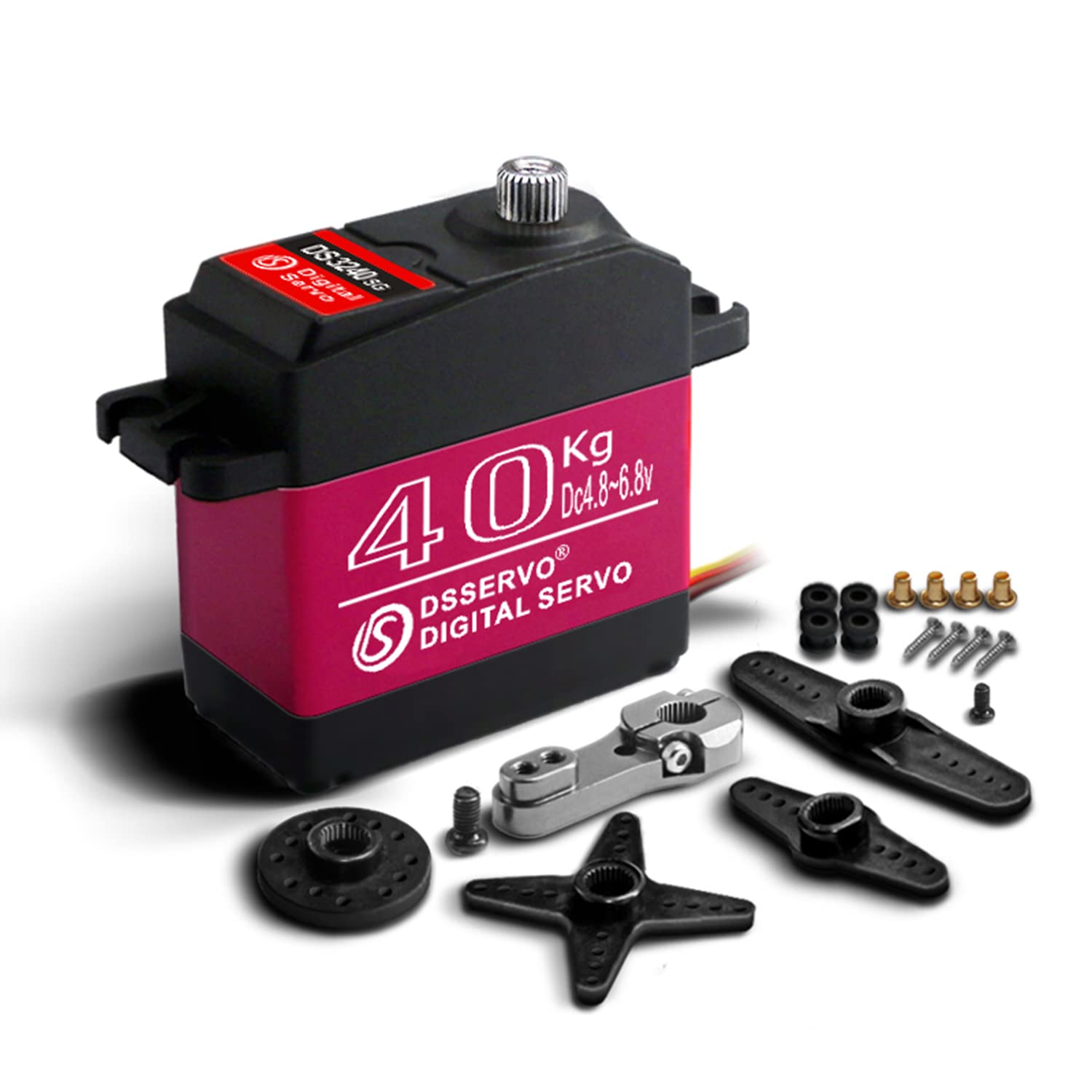

Servo Motor 40Kg High Speed servo Metal Gear Digital Servo RC Baja Servo for 1/8 1/10 Scale RC Cars (270 Degree)

Servo Motor 40Kg High Speed servo Metal Gear Digital Servo RC Baja Servo for 1/8 1/10 Scale RC Cars (270 Degree)

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification

Parameter Details
Model 40Kg 270° Digital Servo
Torque 36kg·cm @ 6.0V / 40kg·cm @ 7.4V
Rotation Range 0°–270°
Operating Voltage 6.0V to 8.4V
Speed 0.16 sec/60° @ 6.0V0.14 sec/60° @ 7.4V
Gear Type Full Metal Gears
Motor Type Coreless Motor

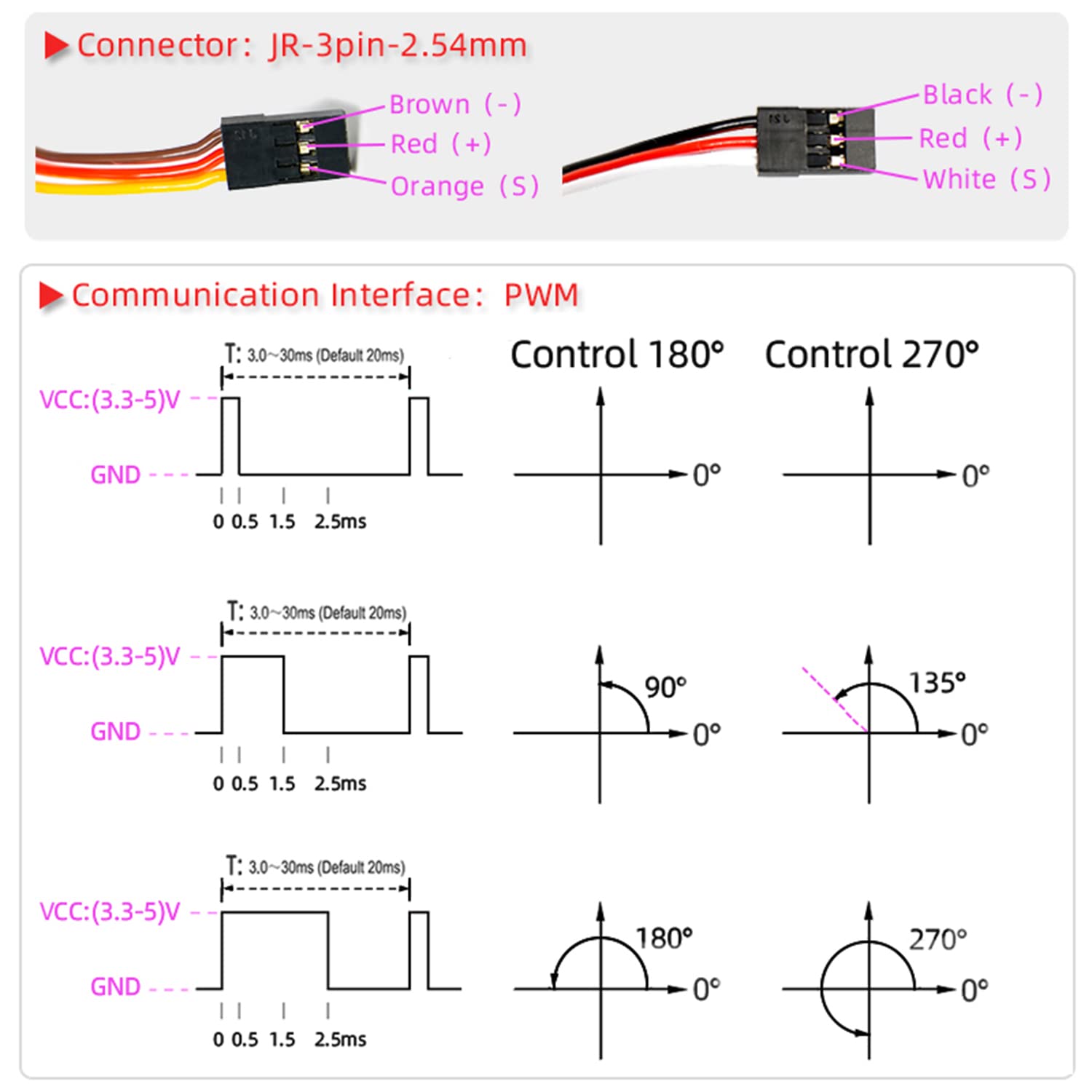

Control Signal PWM (Pulse Width Modulation)
PWM Range 500–2500 μs
Dead Band Width ≤

Features:

  • High Torque Output:
    Delivers a massive 40 kg·cm torque at 7.4V, capable of handling heavy loads with ease.

  • Wide Rotation Angle:
    Supports 270° rotation, ideal for extended range applications requiring broader motion than standard 180° servos.

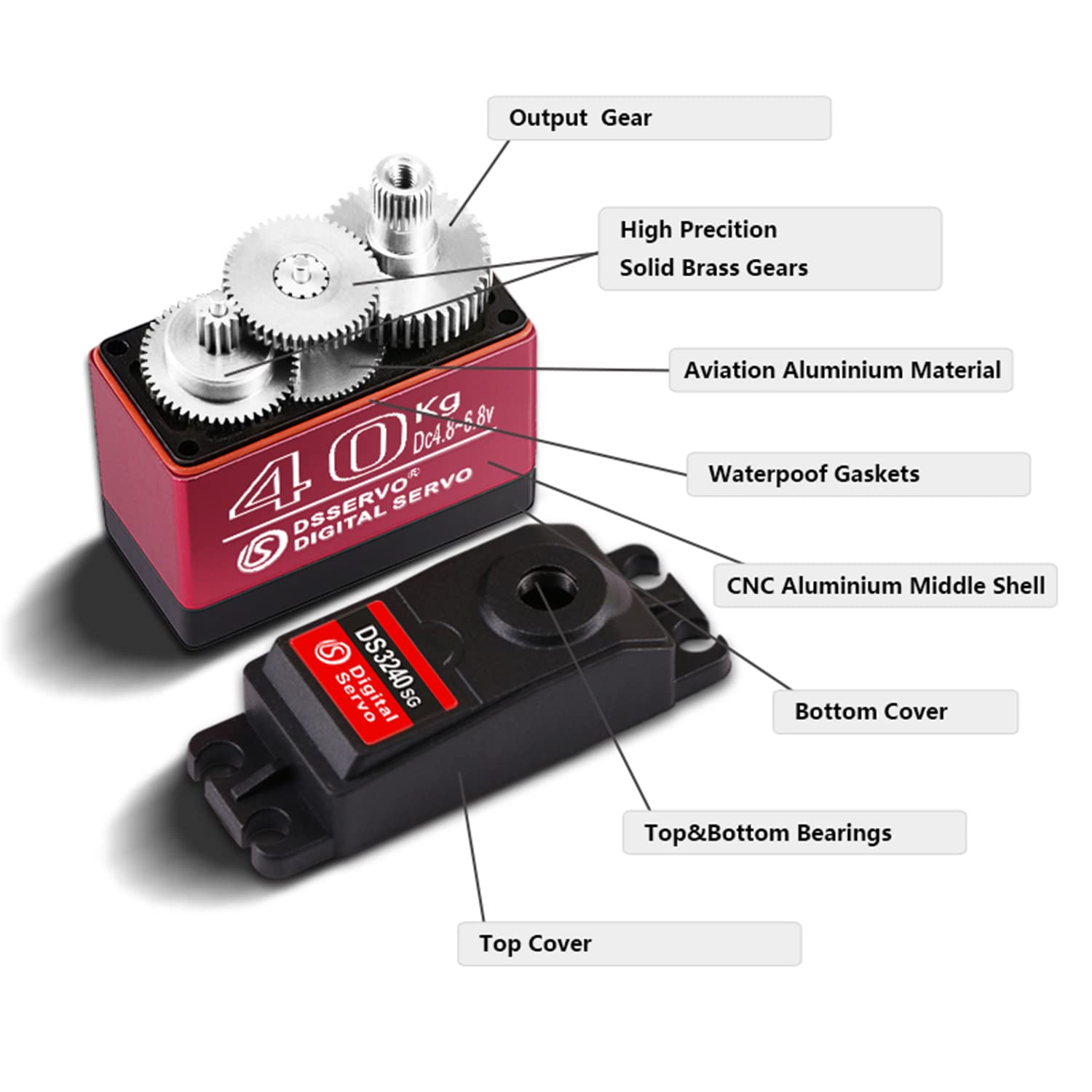

  • Metal Gear Construction:
    High-strength CNC aluminum alloy metal gears provide superior wear resistance and improved durability under high loads.

  • Digital Precision Control:
    Uses a digital control circuit for accurate positioning, faster response, and stronger holding power.

  • High-Quality Servo Case:
    Features an aluminum middle shell for efficient heat dissipation and a strong, vibration-resistant build.

  • Ball Bearing Design:
    Dual ball bearings on the output shaft ensure smooth rotation and long operational life.

  • PWM Control Compatible:
    Compatible with standard PWM signals, works with Arduino, RC transmitters, and most servo controllers.

Description:

The 40Kg 270° High Torque Digital Servo Motor is a powerful, precision-controlled servo designed for demanding applications such as robotics, industrial automation, and large-scale RC models. Built for performance, durability, and wide-angle rotation, this servo motor delivers exceptional torque and stable motion control.
