S8050-C-Foshan Blue Rocket Elec-25V 625mW 120@100mA,1V 800mA NPN TO-92(TO-92-3) Bipolar (BJT) ROHS

S8050-C-Foshan Blue Rocket Elec-25V 625mW 120@100mA,1V 800mA NPN TO-92(TO-92-3) Bipolar (BJT) ROHS

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Value
Transistor Type NPN BJT
Package TO-92 (TO-92-3)
Collector-Emitter Voltage (Vceo) 25 V
Collector-Base Voltage (Vcbo) 40 V
Emitter-Base Voltage (Vebo) 6 V
Collector Current (Ic) 800 mA
Base Current (Ib) 100 mA (max)
Collector Dissipation (Pc) 625 mW
DC Current Gain (hFE) 40 to 400 (typical: 120 @ Ic=100 mA)
Saturation Voltage (Vce(sat)) 1V max @ Ic = 800 mA
Transition Frequency (fT) 100 MHz (typical)
Operating Temp. Range -55°C to +150°C

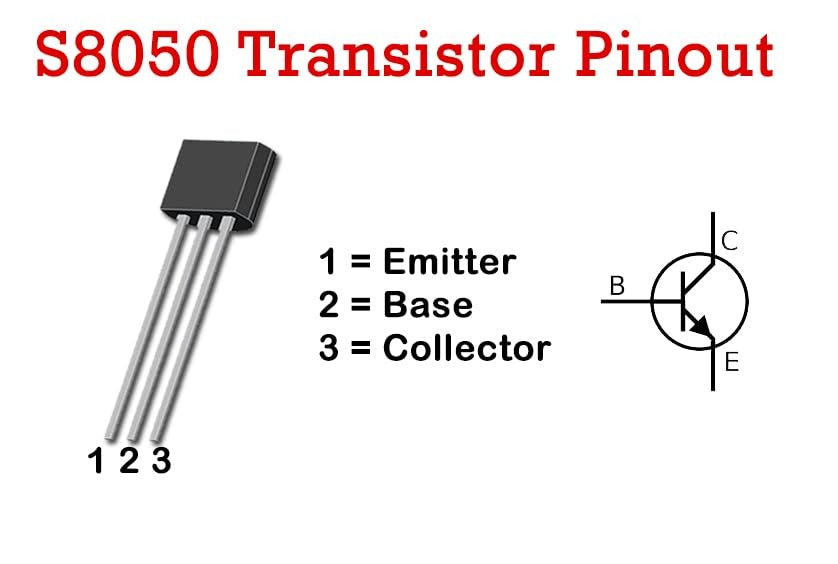

Lead Configuration 1: Emitter, 2: Base, 3: Collector



Features:

  • NPN Bipolar Junction Transistor (BJT) – Suitable for switching and amplification

  • Collector Current (Ic) up to 800 mA – Ideal for driving loads such as LEDs, relays, etc.

  • Low Collector-Emitter Saturation Voltage – As low as 1V at 800 mA for efficient switching

  • Gain (hFE) up to 120 @ 100 mA – Decent current gain for signal applications

  • RoHS Compliant – Environmentally safe and lead-free.

Description:

Foshan Blue Rocket Electronics | 25V | 800mA | 625mW | General Purpose NPN Transistor | ROHS Compliant

The S8050-C is a general-purpose NPN bipolar junction transistor (BJT), ideal for low-voltage switching, signal amplification, and general electronics applications. This transistor is manufactured by Foshan Blue Rocket Electronics, offering reliable performance in a compact TO-92 package and is compliant with RoHS environmental standards.

It can handle collector currents up to 800 mA, has a maximum collector-emitter voltage of 25V, and provides a power dissipation rating of 625 mW, making it suitable for low-to-medium power circuit designs.
