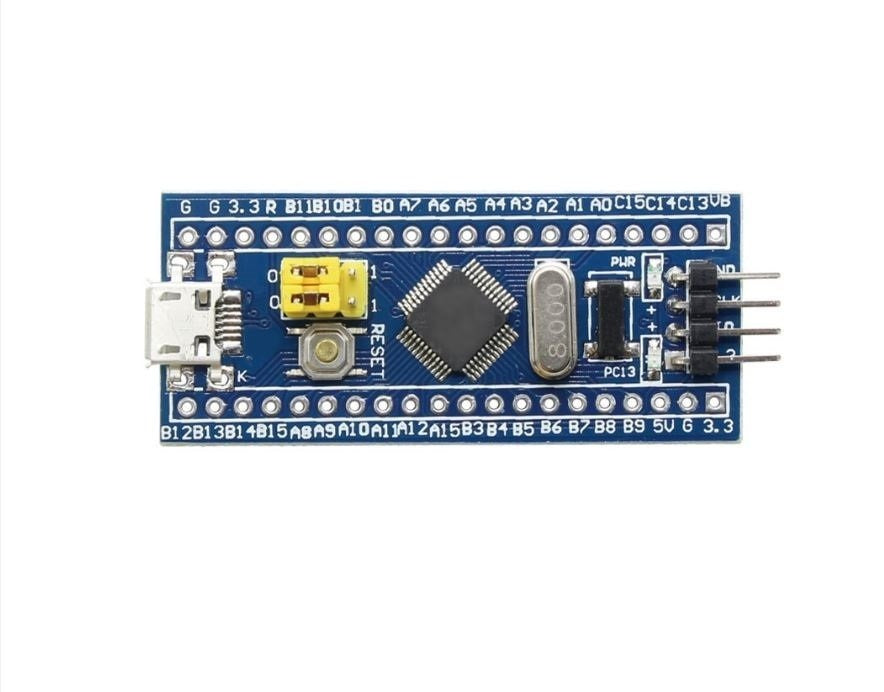

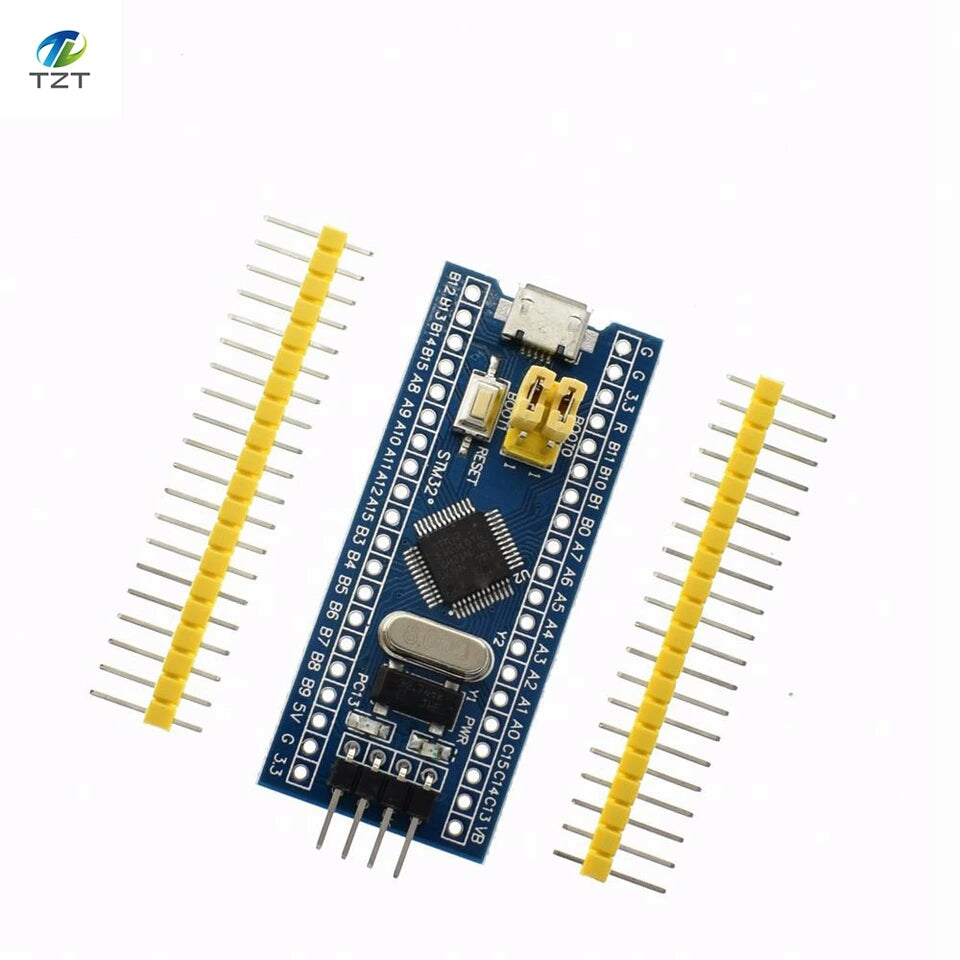

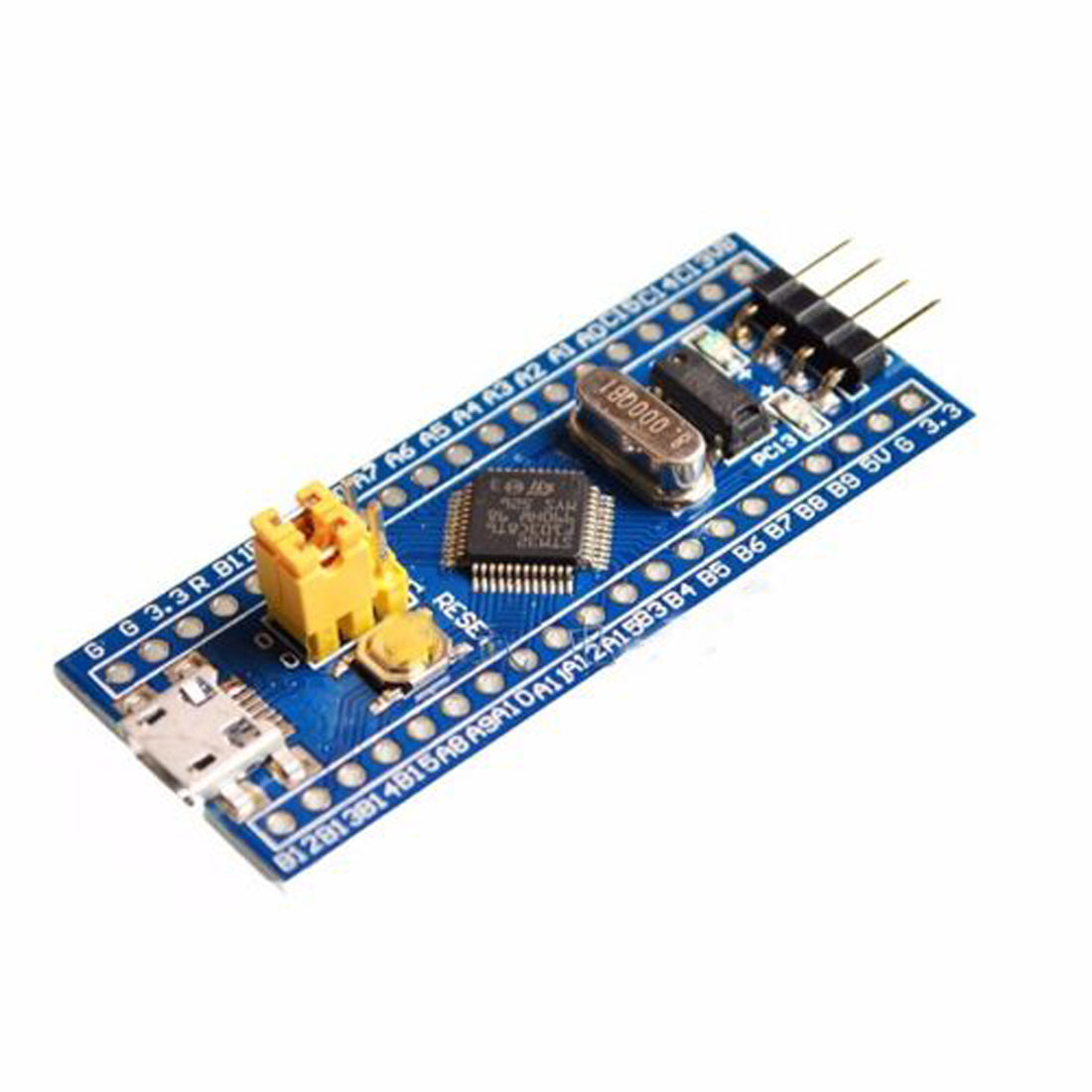

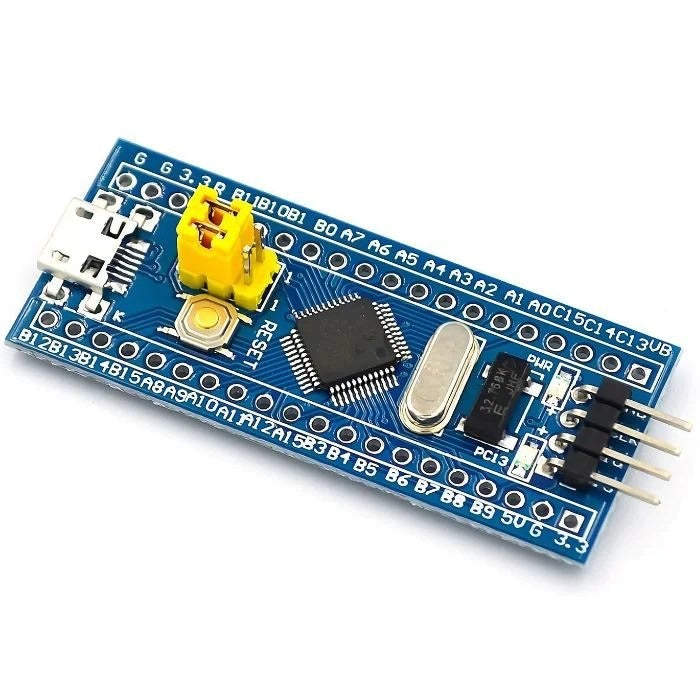

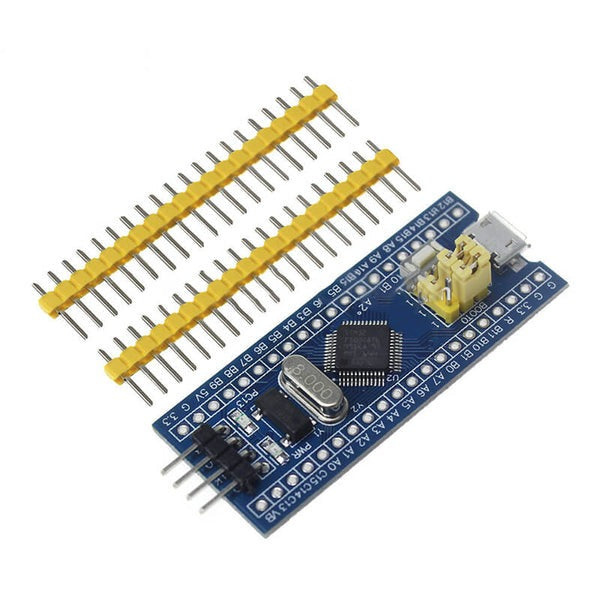

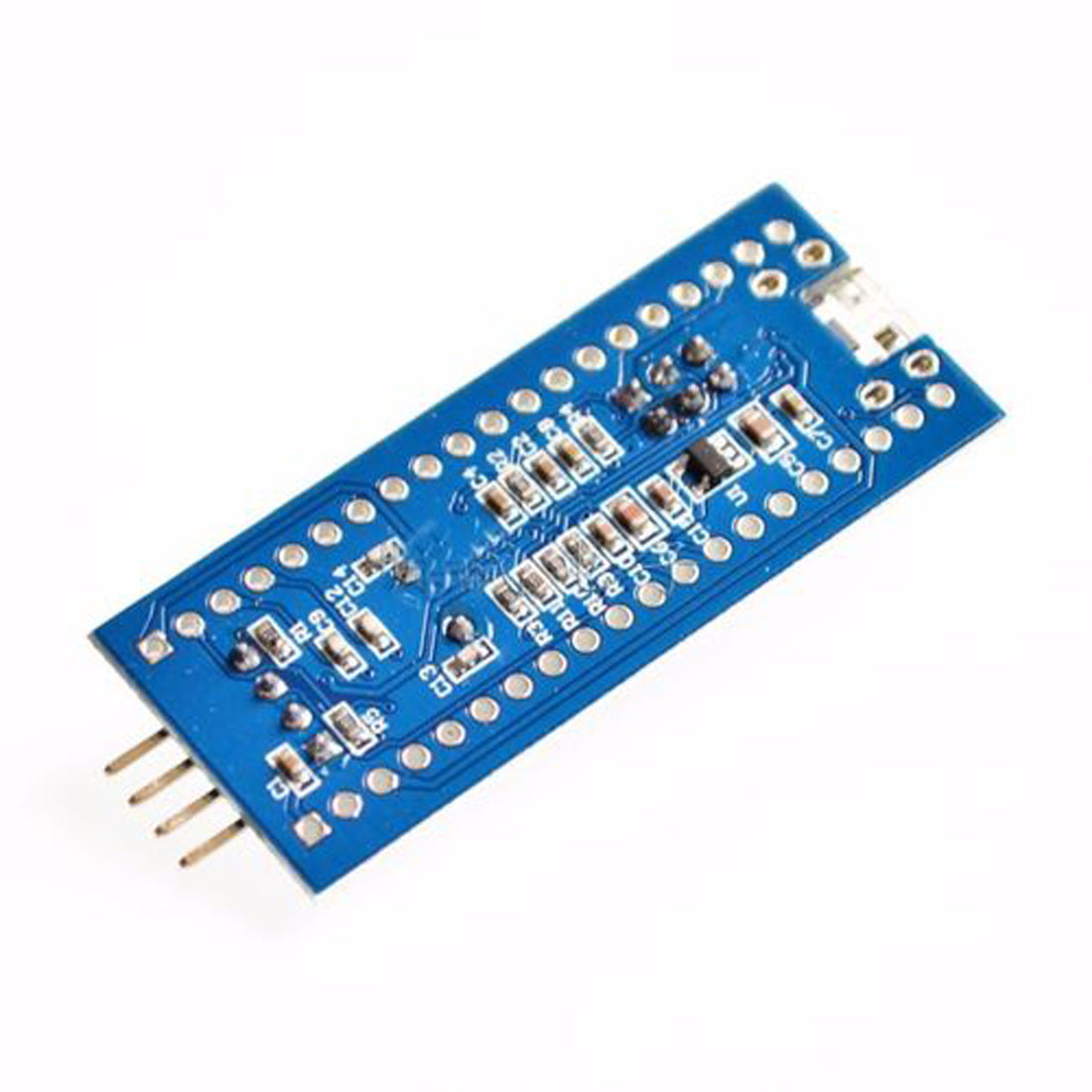

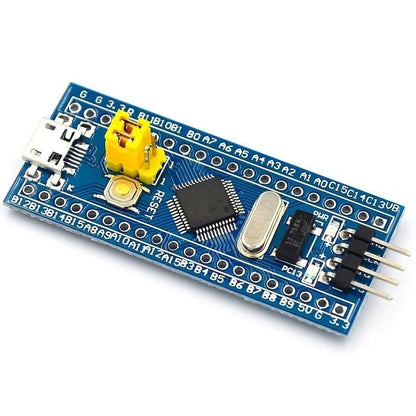

Pre-Soldered Authentic STM32F103C8T6 ARM STM32 Minimum System Development Board Module STM32F103C8T6 Core Learning Board
Pre-Soldered Authentic STM32F103C8T6 ARM STM32 Minimum System Development Board Module STM32F103C8T6 Core Learning Board
Regular price
₹ 0.00
Regular price
Sale price
₹ 0.00
Unit price
per
Shipping calculated at checkout.
- Safe Secure Delivery
- 10 Days Returnable
- Secure Payment Transaction
Out of stock
Couldn't load pickup availability
For bulk orders or B2B inquiries, email us: support@uglandindia.com
Bulk order on WhatsApp
| Parameter | Specification |
|---|
| Microcontroller | STM32F103C8T6 (ARM Cortex-M3, 32-bit MCU) |
| Core Architecture | ARM Cortex-M3 |
| Operating Voltage | 3.3V (5V tolerant I/O) |
| Input Voltage (via USB) | 5V (regulated to 3.3V on board) |
| Flash Memory | 64 KB (some chips may have 128 KB unofficially) |
| SRAM | 20 KB |
| Clock Speed | 72 MHz |

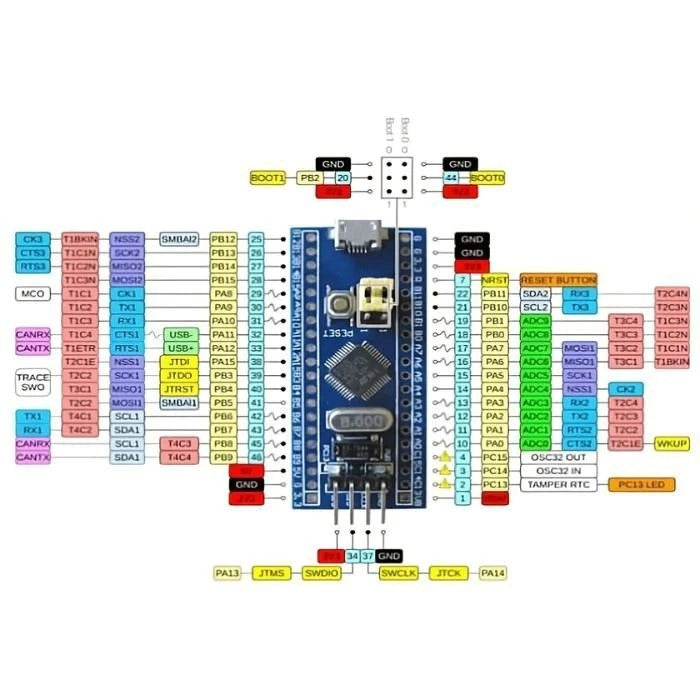

| Digital I/O Pins | Up to 37 GPIO pins |
| Communication Interfaces | 2x USART, 2x I2C, 3x SPI, 1x CAN, USB 2.0 FS (Device only) |
| Analog Inputs | 10 channels of 12-bit ADC |
| PWM Outputs | Available on multiple timers |
| Timers | 3 x 16-bit Timers, 1 x SysTick Timer, 1 x Watchdog |
| Programming Interface | USB (via USB to Serial), SWD (Serial Wire Debug), or ST-Link |
| USB Connector Type | Mini USB (for power only unless USB bootloader installed) |
| Reset & Boot Buttons | Onboard Reset and BOOT0 button |
| Crystal Oscillators | 8 MHz main crystal and 32.768 kHz RTC crystal |

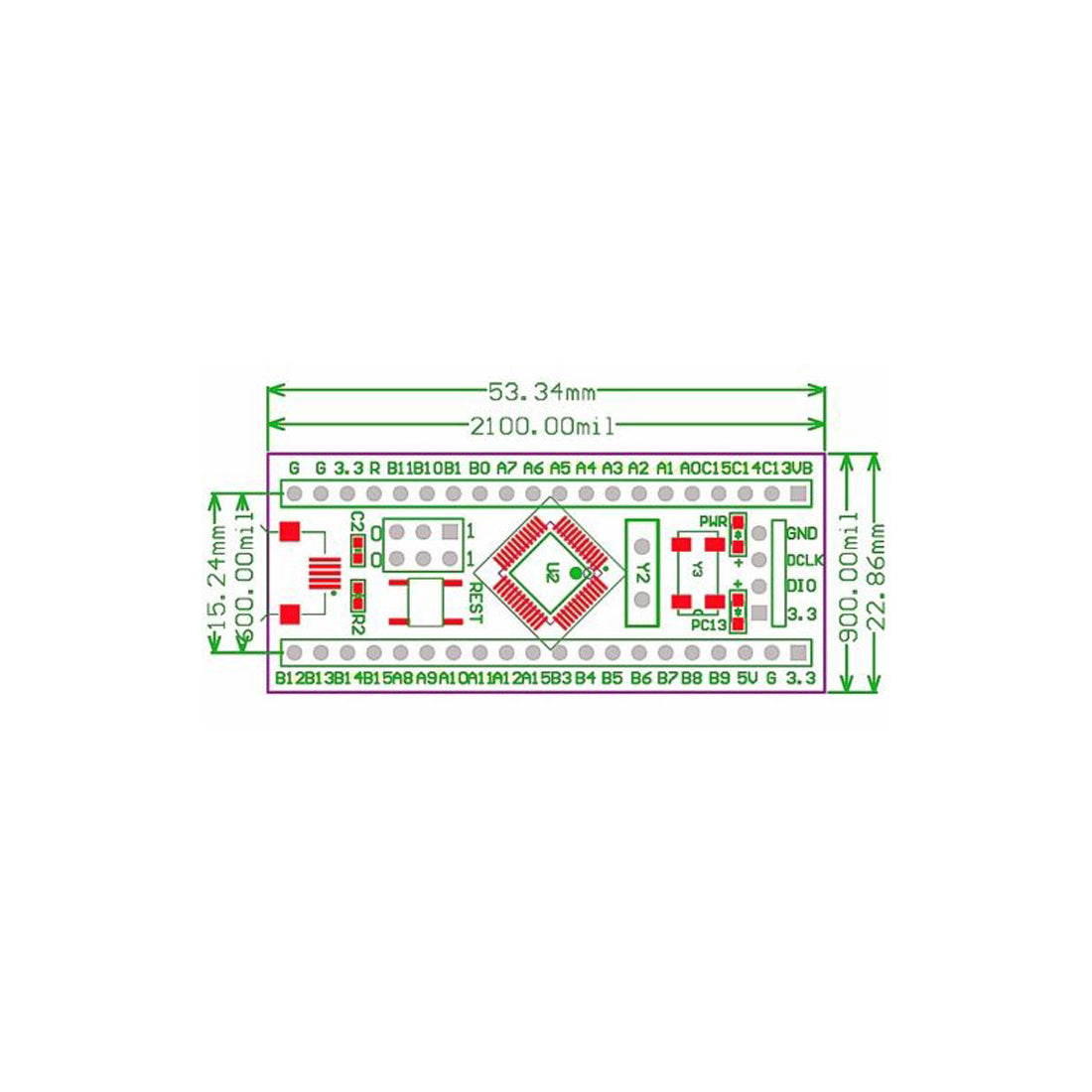

| Board Dimensions | Approx. 52mm x 22mm |

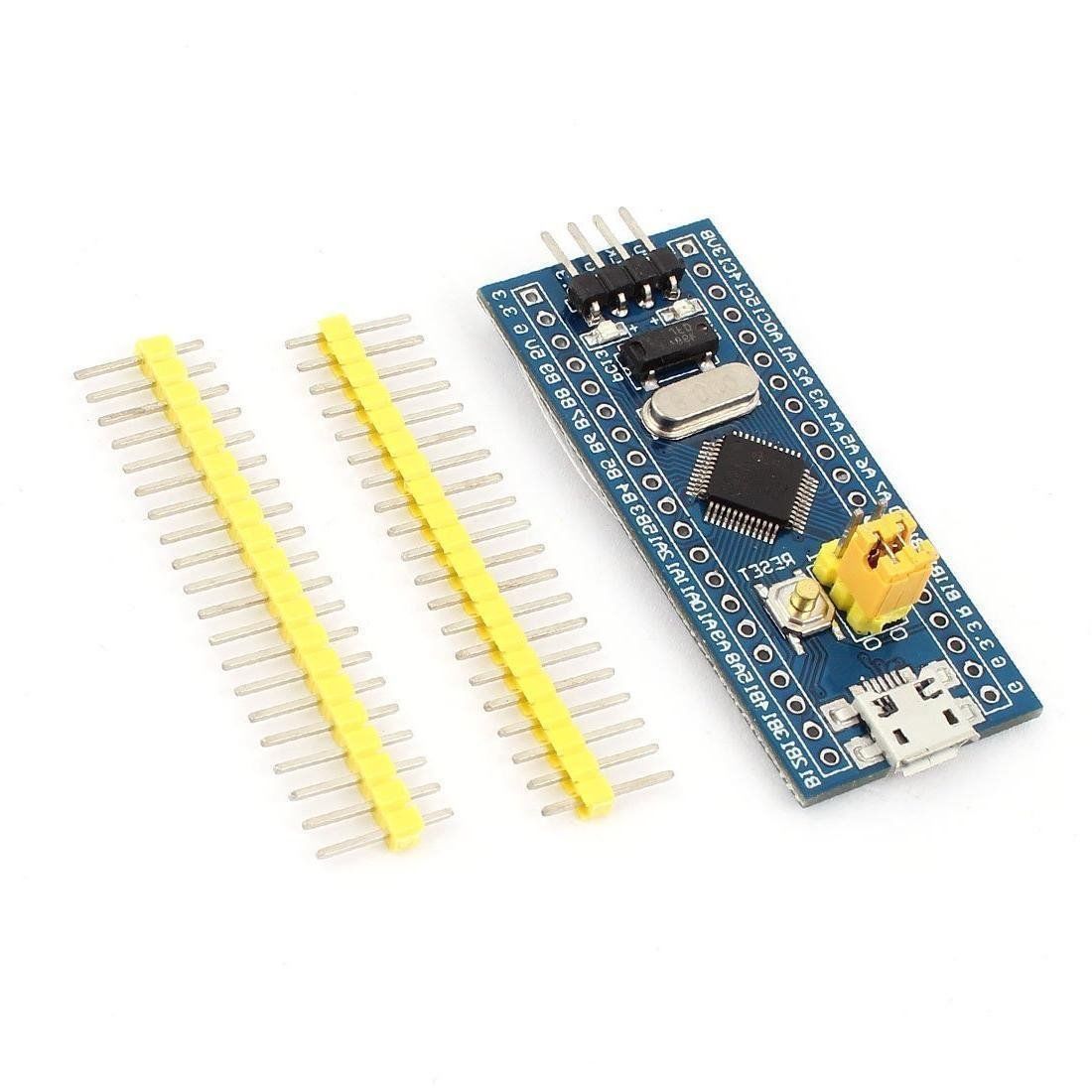

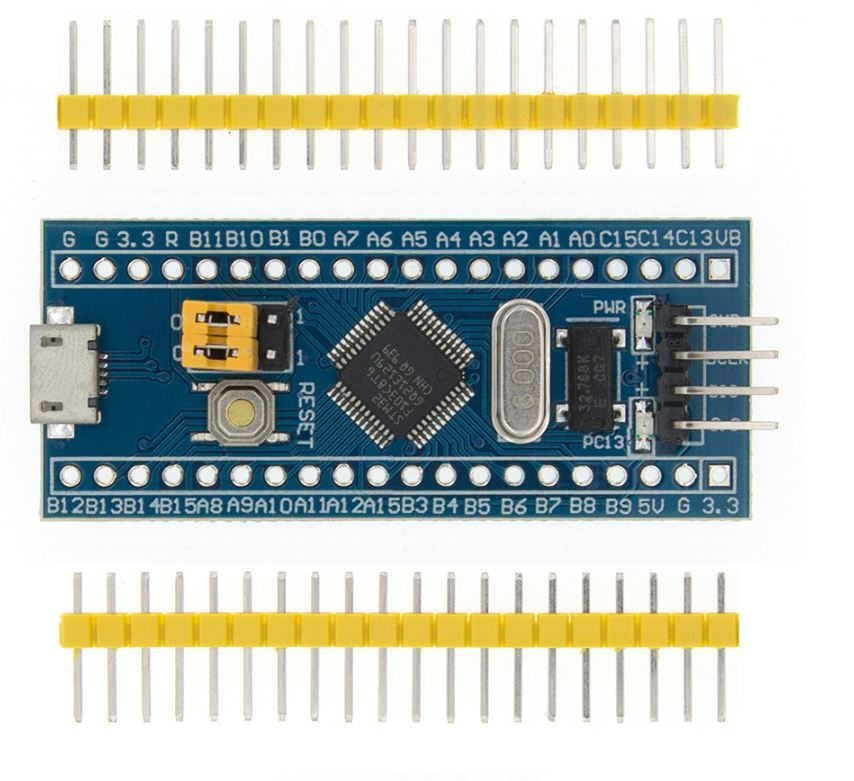

| Pin Headers | Pre-soldered 2.54mm pitch male headers (2x20 pins) |
| LED Indicators | Power (PWR) LED and User-programmable LED on PC13 |
| Compatible with | Arduino IDE (via STM32duino), PlatformIO, Keil, STM32CubeIDE, etc. |
| Boot Modes | BOOT0 jumper allows switching between Flash, SRAM, and System Memory boot modes |
Features:
- HIGH-QUALITY PINS: Equipped with high-quality 1*40/2.54mm spacing single row pins for excellent conductive contact, ensuring reliable and stable connections.
- POWERFUL FOR SIZE: The STM32F103C8T6 features a 32-bit ARM Cortex-M3 processor that can run up to 72 MHz, providing robust performance in a compact form factor.
- COMPATIBILITY: Compatible with Arduino, making it a versatile choice for both beginners and advanced developers. Extensive software support ensures ease of use.
- DIMENSIONS: Compact size, making it ideal for space-constrained applications and projects where size matters.
- VOLTAGE: Operates at a working voltage of 3.3V. Ensure not to apply voltage higher than 3.3V to the I/O pins to avoid damaging the chip. Can also be powered via a 5V external power supply through the USB connection.
Description:
- PRE-SOLDERED & READY: The board comes pre-soldered, providing convenience and saving time.
- FULL I/O ACCESS: The board provides access to all I/O resources, ensuring versatile functionality.
- COMPLETE CIRCUITS: Features essential MCU-based circuits, including a crystal oscillator circuit, USB interface, and USB power management circuits.
- USB POWER & COMMUNICATION: Utilizes the Micro USB interface common in current smartphones, simplifying USB communication and power supply.
- SWD DEBUG INTERFACE: Download and debug using the SWD interface, requiring a minimum of just 3 wires to complete tasks.
