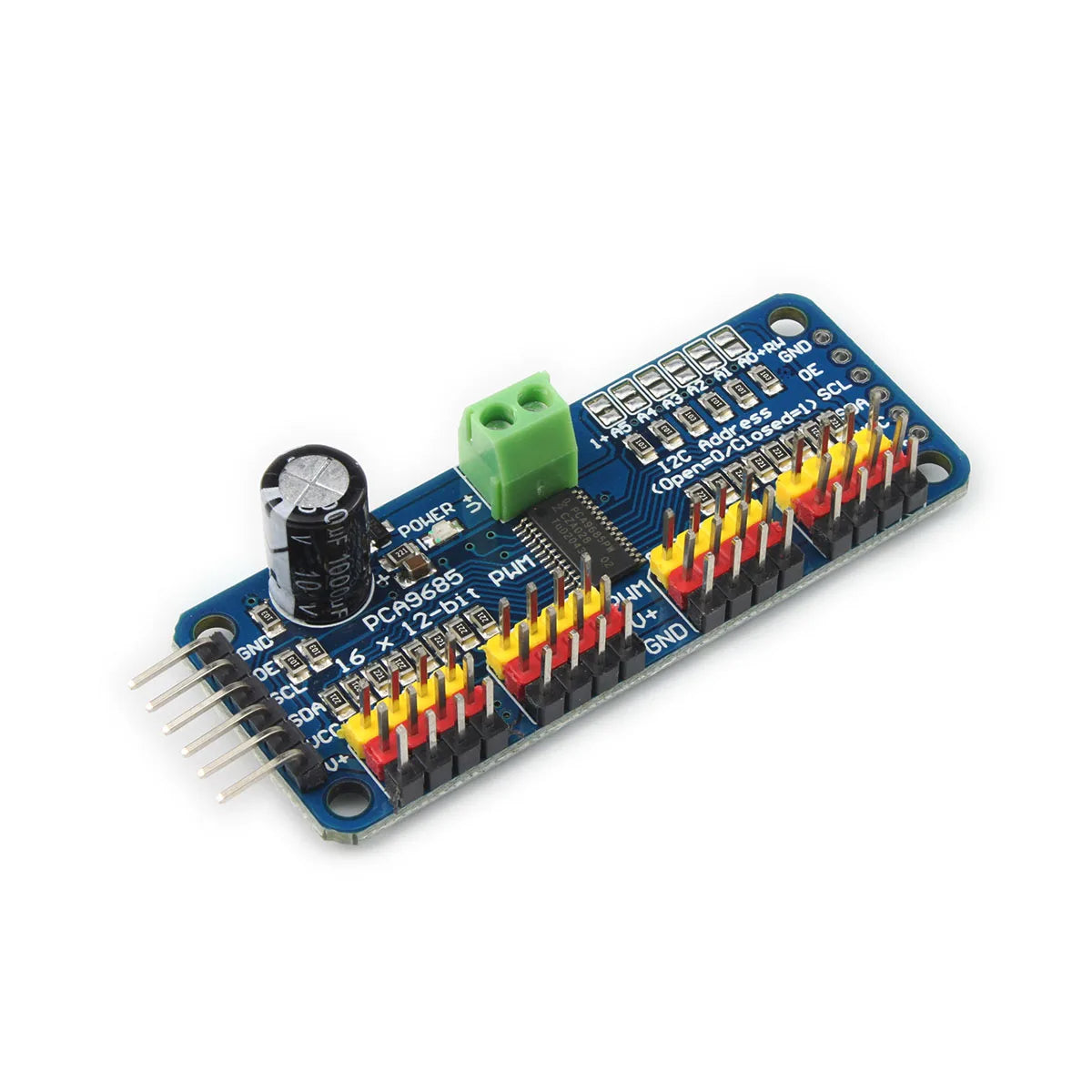

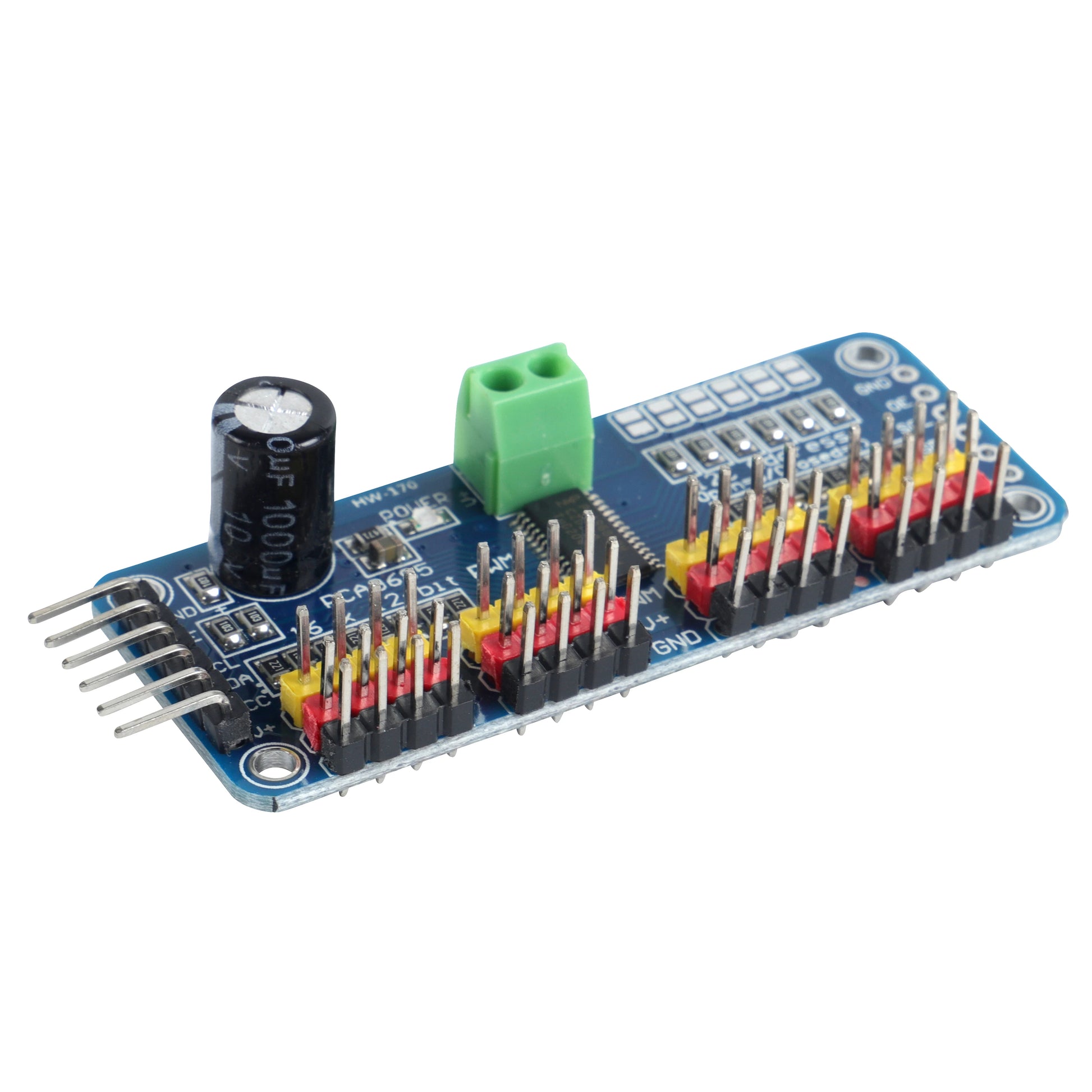

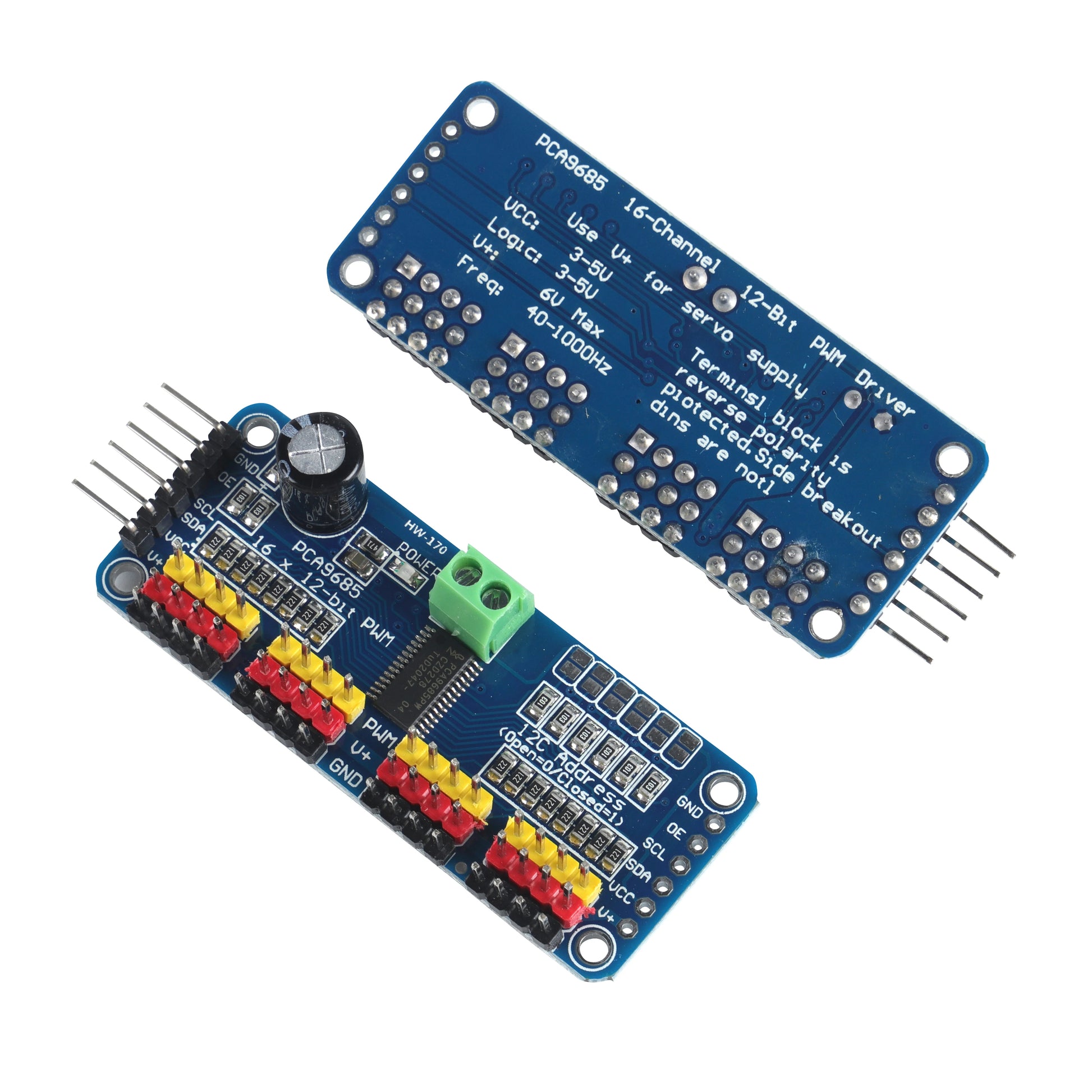

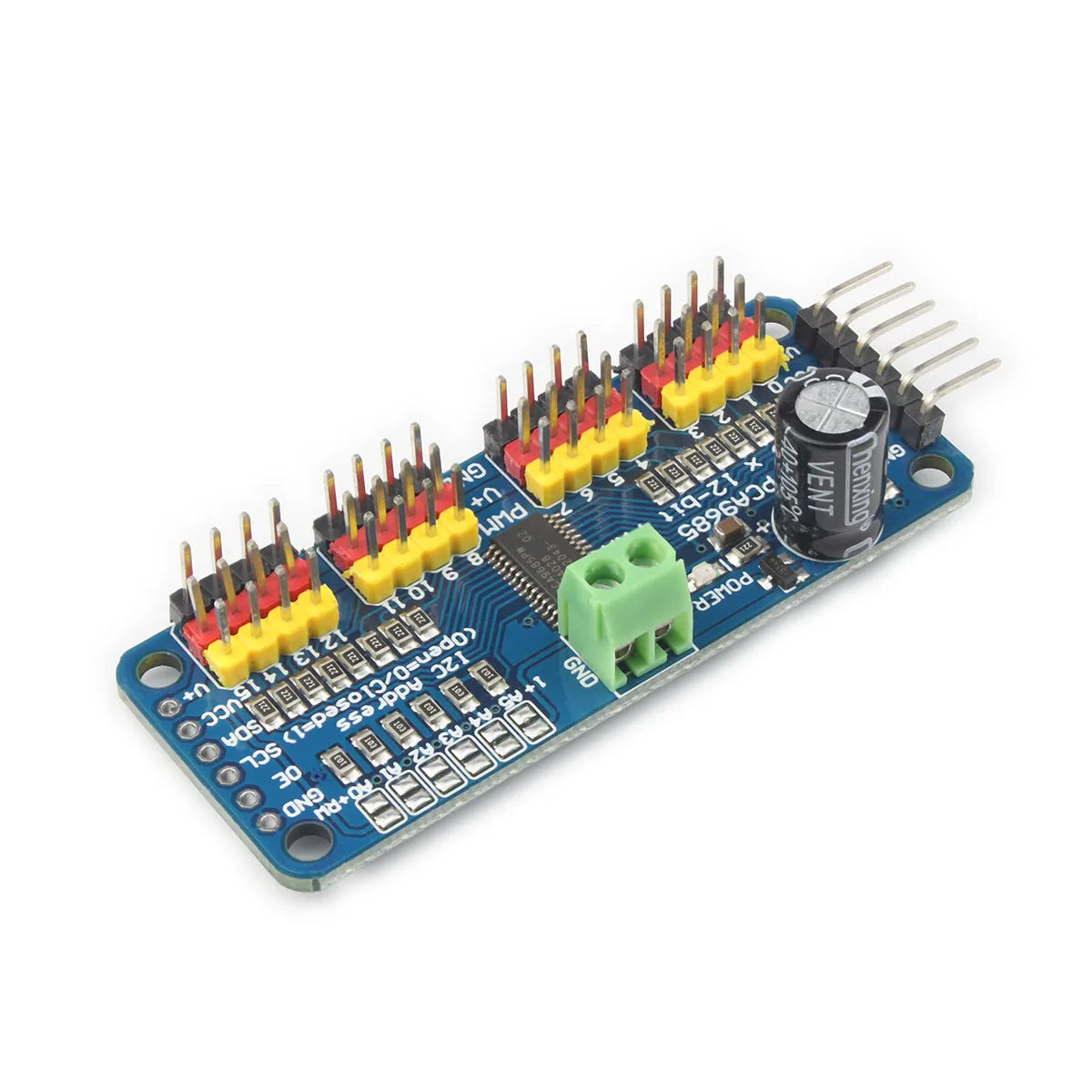

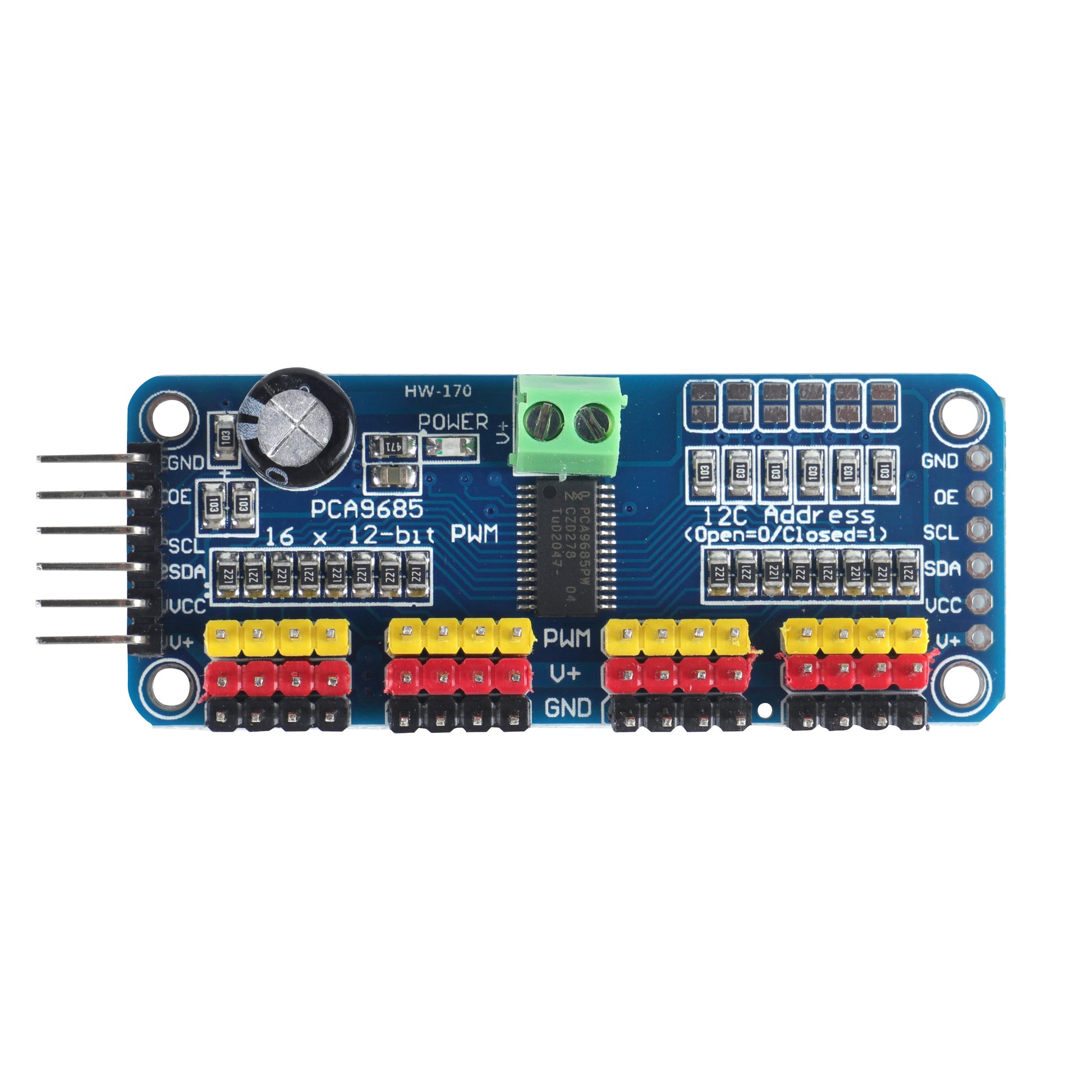

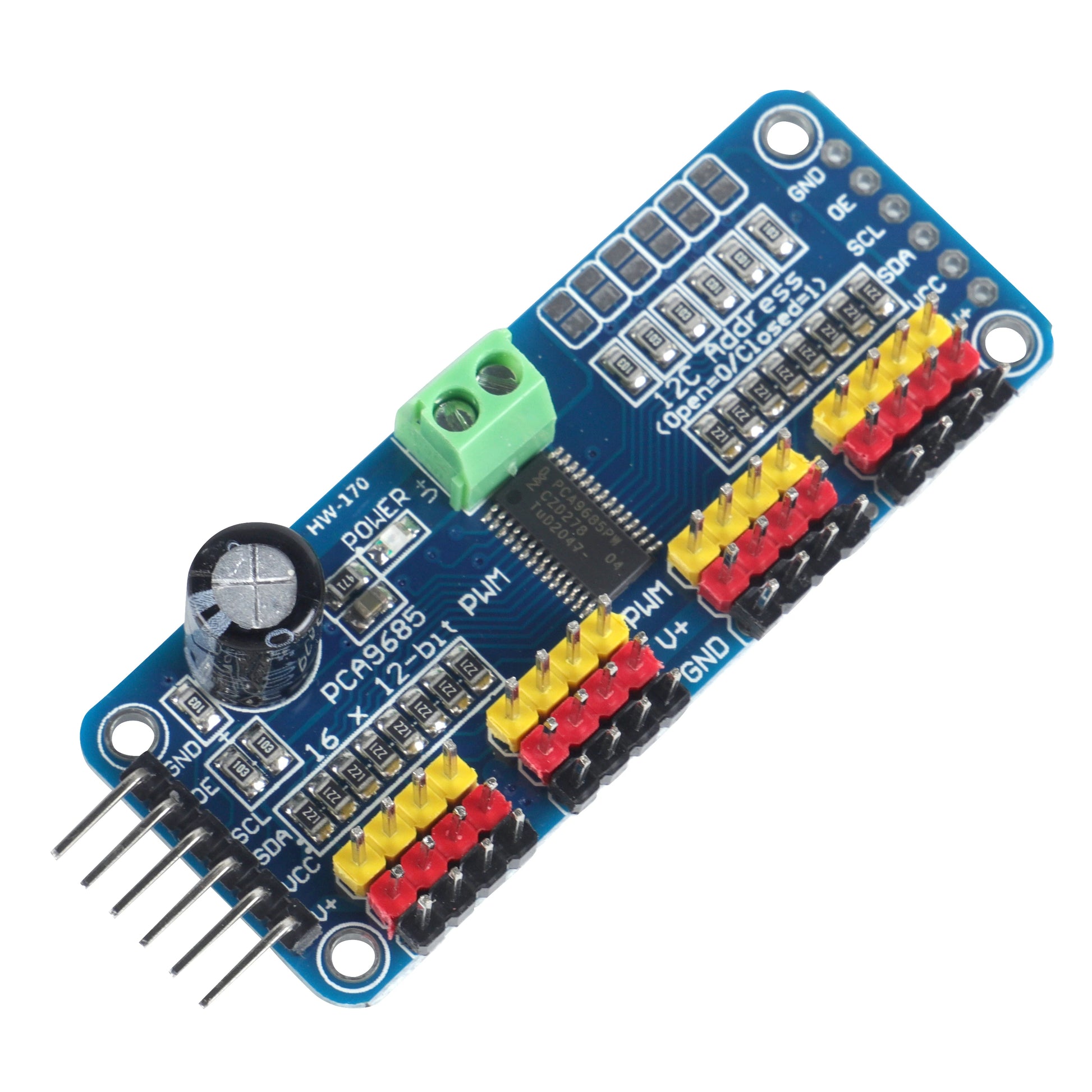

PCA9685 16 Channel 12-bit PWM Servo Driver-I2C Interface Module for Pi Shield for DIY Kit

PCA9685 16 Channel 12-bit PWM Servo Driver-I2C Interface Module for Pi Shield for DIY Kit

₹ 210.00
₹ 210.00
Sale Sold out
Shipping calculated at checkout.
  • Express Delivery FedEx
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • On Time Delivery
  • Worldwide Order Delivery
  • Delivery Location

Specification:

Parameter Details
Chipset PCA9685 (NXP)
PWM Channels 16 independent channels
PWM Resolution 12-bit (4096 steps per cycle)
Control Interface I2C (SDA, SCL)
I2C Address Default 0x40 (configurable with A0–A5 address pins, up to 62 devices)
PWM Frequency Range 24Hz to 1526Hz
Output Type Open-drain PWM output
Supply Voltage (VCC) 3.3V to 5V (logic level)
Servo Power Supply (V+) 5V to 6V (recommended for servos)
Current Per Channel Up to 500mA (depends on external power supply)
Communication Protocol I2C, up to 1MHz fast-mode
Dimensions ~62mm × 26mm × 13mm
Mounting Holes 4 mounting holes for M2.5 or M3 screws
Typical Devices Controlled Servo motors (e.g., SG90, MG996R), LEDs, motors, solenoids
Compatibility Pi, ESP32, STM32, BeagleBone, etc.



Features:

  • Controls 16 PWM outputs independently from just 2 I2C pins.

  • 12-bit resolution for high precision (4096 steps).

  • Onboard oscillator and hardware-driven PWM – does not burden the main controller.

  • Chainable via I2C – control up to 992 servos (with multiple boards).

  • Dedicated power input for servo motors (5–6V, not tied to logic VCC).

  • Fully compatible with Adafruit PWM Servo Driver library.

  • Excellent for robot arms, hexapods, animatronics, and LED displays.

  • Compatible with both 3.3V and 5V logic – ideal for Pi.

Description:

The PCA9685 16-Channel PWM Servo Driver is a powerful I2C-based PWM controller that enables precise control of up to 16 channels of servos or LEDs with 12-bit resolution. It’s perfect for projects where you need to control multiple PWM devices (such as servo motors in robotics, animatronics, or LED dimming systems) using just two I2C pins.

The module uses the PCA9685 IC from NXP and supports a frequency range of 24Hz to 1526Hz. It includes an onboard oscillator and is designed to work independently of the host microcontroller’s timers. This means you can offload PWM control from your Pi, or ESP board, leaving the CPU free for other tasks.

The board includes a dedicated power terminal block for driving servos at 5–6V and features daisy-chaining support to control even more channels via the same I2C bus.
