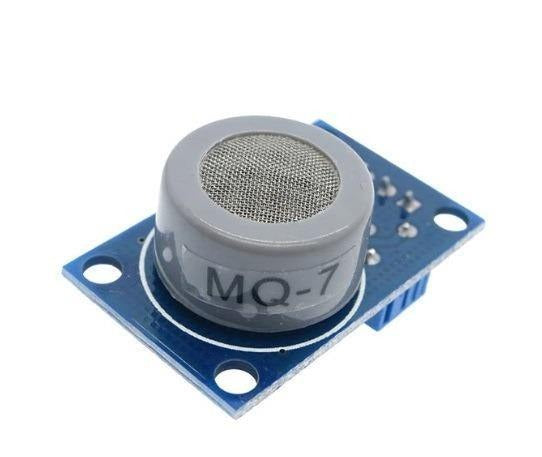

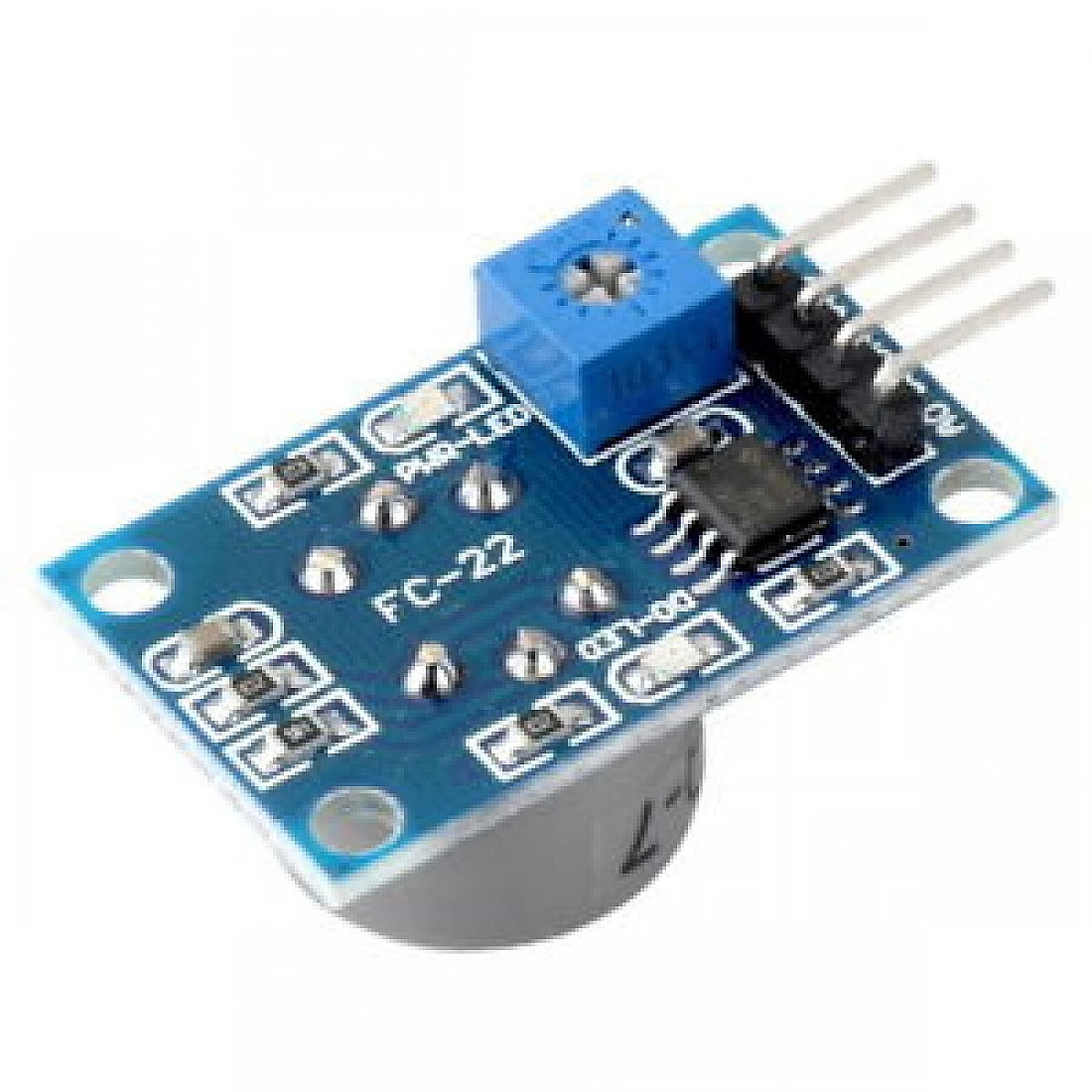

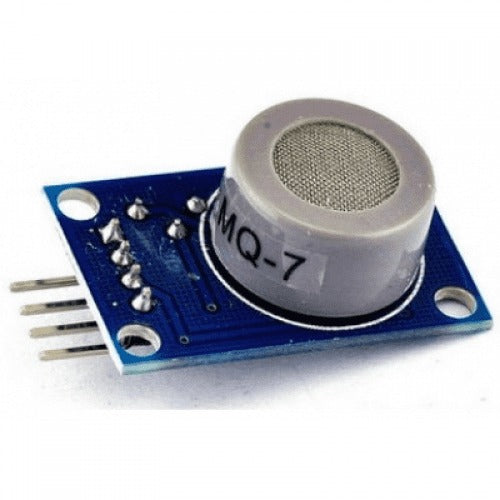

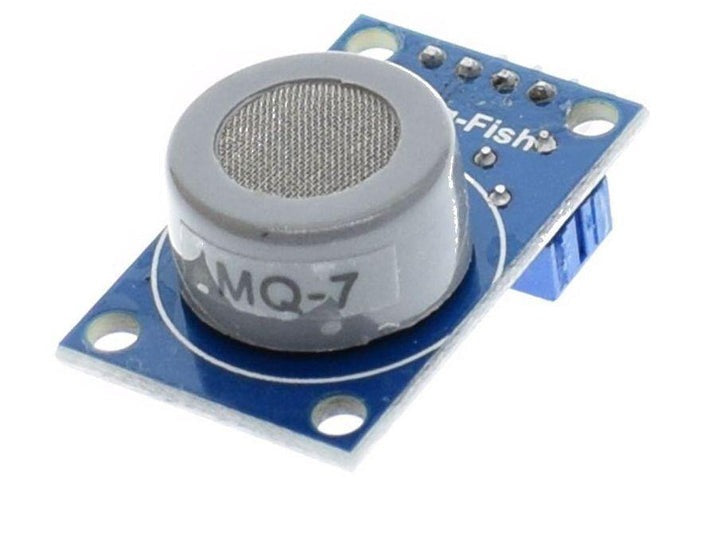

MQ-7 Gas Sensor Module For Carbon Monoxide Detector Module

MQ-7 Gas Sensor Module For Carbon Monoxide Detector Module

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Model  MQ7
Gas Sensibility  Carbon Monoxide
Operating voltage 5V (DC)
Range 10 ~ 1000 ppm
Return time ≤ 30 sec
Heating resistance ± 31 Ω
Sensitivity ≥ 3%.
Charachteristic Gas  100 ppm CO
Dimension  3.5 x 2 x 1.1cms
Weight  5 grams



Features:

  • Target Gas:
    Detects Carbon Monoxide (CO) in the air.

  • High Sensitivity & Selectivity:
    Very sensitive to CO, with minimal interference from alcohol, smoke, and other gases.

  • Dual Heater Cycle Operation:
    Utilizes a two-phase heating cycle (high-temp cleaning and low-temp sensing) for better CO selectivity.

  • Detection Range:
    ~10 to 1000 ppm of CO gas.

  • Fast Response & Recovery Time:
    Responds quickly to gas presence and clears fast after gas removal.

  • Analog & Digital Output:

    • Analog Output (AO): Proportional to gas concentration.

    • Digital Output (DO): Activated when CO level exceeds a set threshold (adjustable via potentiometer).

  • Onboard Potentiometer:
    For setting the CO concentration threshold level for digital output.

  • Power Supply:
    Operates at 5V DC.

  • Preheat Time:
    Requires approximately 60 seconds warm-up after power-on for stable readings.

  • LED Indicators:
    Built-in power and signal LEDs for visual status monitoring.

  • Compatibility:
    Easily interfaces with microcontrollers like ESP32, Pi, and more.

Description:

The MQ-7 gas sensor module is a device that can detect the presence of carbon monoxide (CO) gas in the air. It is commonly used in applications such as gas leak detectors, safety devices, and industrial control systems. The MQ-7 sensor operates by using a chemical reaction between the CO gas and a conductive metal oxide to produce a current. The magnitude of the current is proportional to the concentration of CO gas in the air. The gas sensor can be used to detect CO gas concentrations in the range of 20-2000 ppm. It is important to note that CO is a poisonous gas that can be dangerous at high concentrations. It is recommended to use the MQ-7 sensor with caution and to take appropriate safety measures when working with it.

This module provides both digital and analog outputs. The threshold level for digital output can be easily adjusted using the preset on the board. The MQ-7 sensor module can be easily interfaced with microcontrollers,and etc.

Read our blog MQ sensor where we explained what is a gas sensor, what is 1ppm equal to, MQ sensor list of different series and their features.
