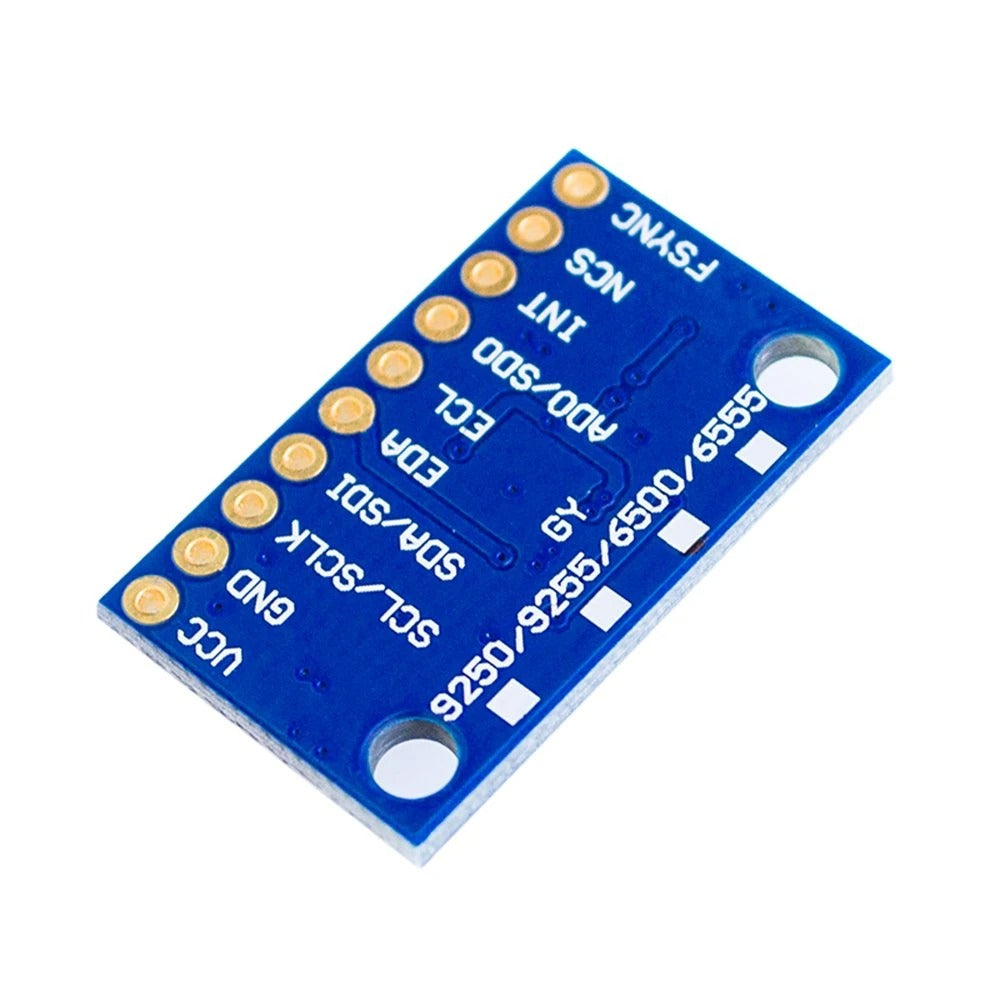

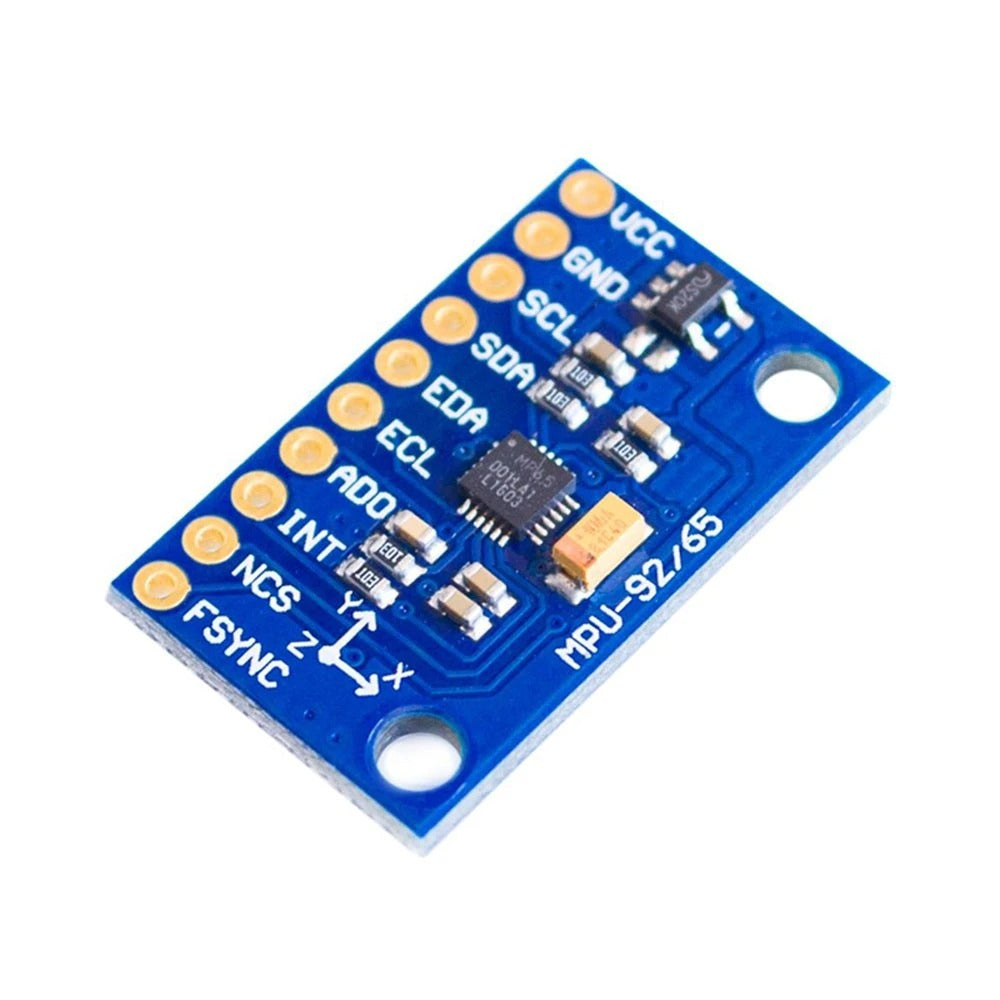

MPU6500 GY-6500 6DOF 6 Axis Accelerometer Gyro Sensor

MPU6500 GY-6500 6DOF 6 Axis Accelerometer Gyro Sensor

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Details
Sensor IC MPU-6500 (by InvenSense / TDK)
Accelerometer Range ±2g / ±4g / ±8g / ±16g (selectable)
Gyroscope Range ±250 / ±500 / ±1000 / ±2000 °/s (selectable)
Output Resolution 16-bit ADC for both accel and gyro
Operating Voltage 3.3V (regulator onboard accepts 3.3V to 5V input)
Interface I2C (Default), SPI supported
I2C Address 0x68 (or 0x69 with AD0 pulled high)
Sampling Rate Up to 1000Hz
Communication Speed Up to 400kHz (I2C), up to 1MHz (SPI)
Temperature Sensor Range -40°C to +85°C
Operating Temperature -40°C to +85°C
Dimensions (Module) ~15mm x 20mm



Features:

  • 6 Degrees of Freedom (6DOF):
    Integrated 3-axis gyroscope + 3-axis accelerometer for complete motion sensing.

  • I2C and SPI Interface Support:
    Flexible communication protocols with configurable addresses and data rates.

  • Digital Motion Processor (DMP):
    Built-in DMP offloads complex motion processing from the host MCU.

  • Ultra-Low Power Consumption:
    Optimized for battery-powered applications.

  • High-Speed Data Output:
    Fast sampling rate up to 1kHz, ideal for real-time motion tracking.

  • Built-In Temperature Sensor:
    Provides environmental monitoring and compensation.

  • Onboard Voltage Regulator:
    Operates at 3.3V internally, compatible with 5V input via onboard LDO.

Description:

High-Precision Motion Tracking Module for Drones, Robotics, and Embedded Systems

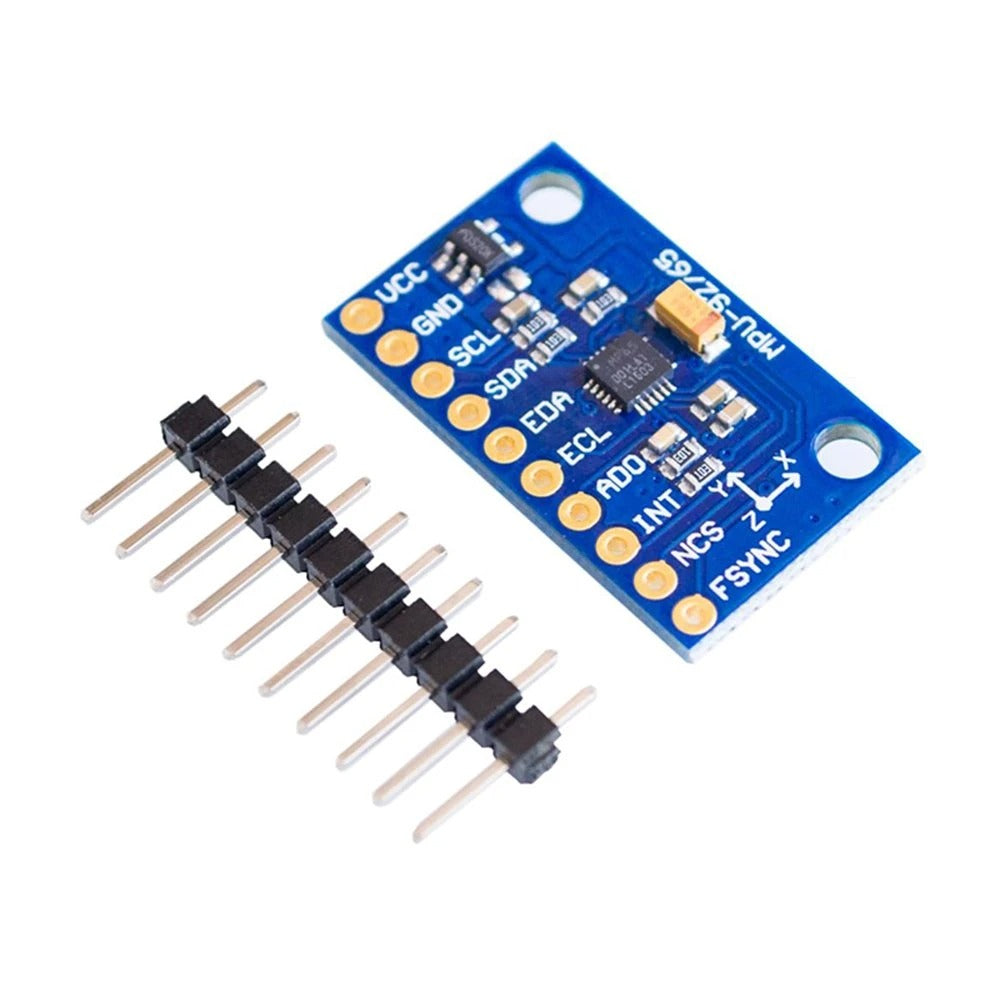

The MPU6500 (GY-6500) module is a 6-axis (6DOF) motion sensor that combines a 3-axis accelerometer and a 3-axis gyroscope in a compact, low-power form factor. Designed for precise motion detection, attitude estimation, and orientation tracking, it is widely used in drones, robots, wearable electronics, game controllers, and IoT applications.

Built using MEMS (Micro-Electro-Mechanical Systems) technology, the MPU6500 offers high accuracy, low drift, and fast response. The module communicates with microcontrollers via the I2C or SPI interface, making it compatible with ESP32, STM32, and Pi systems.
