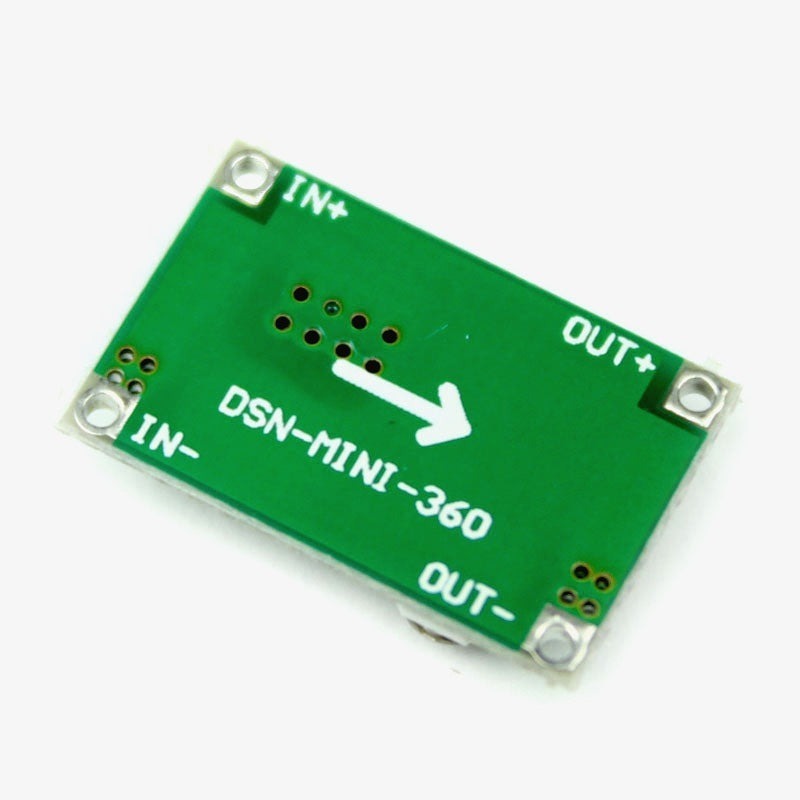

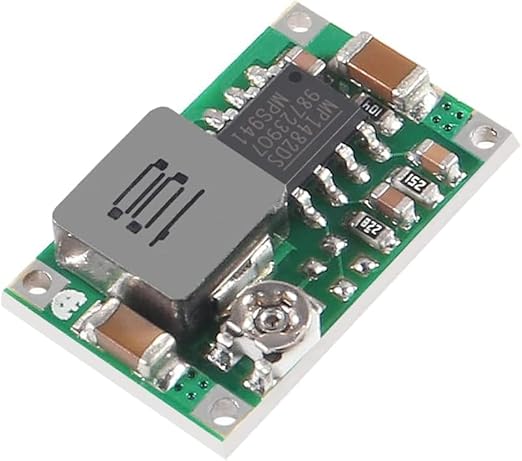

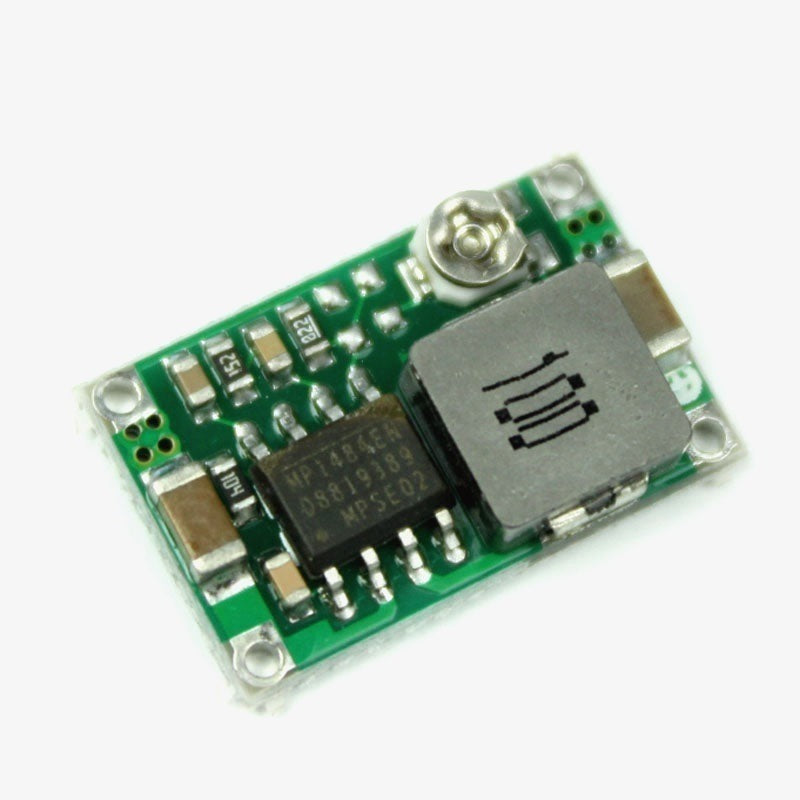

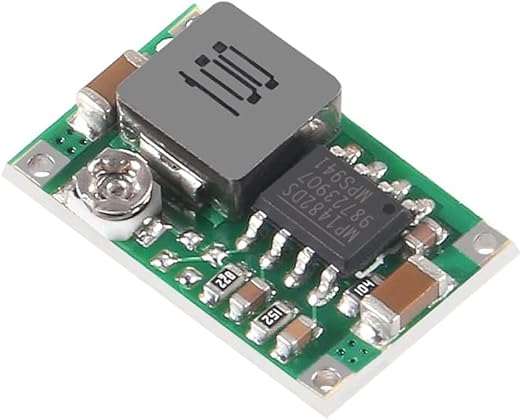

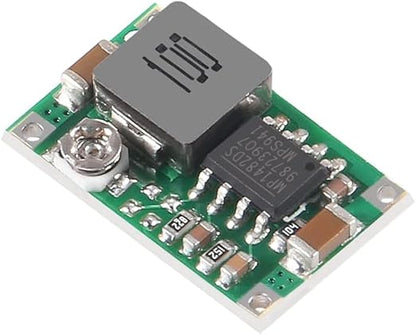

Mini360 Mini-360 DC-DC Buck Converter Step Down Power Supply Module 4.7V-23V to 1V-17V

Mini360 Mini-360 DC-DC Buck Converter Step Down Power Supply Module 4.7V-23V to 1V-17V

₹ 32.00
₹ 32.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

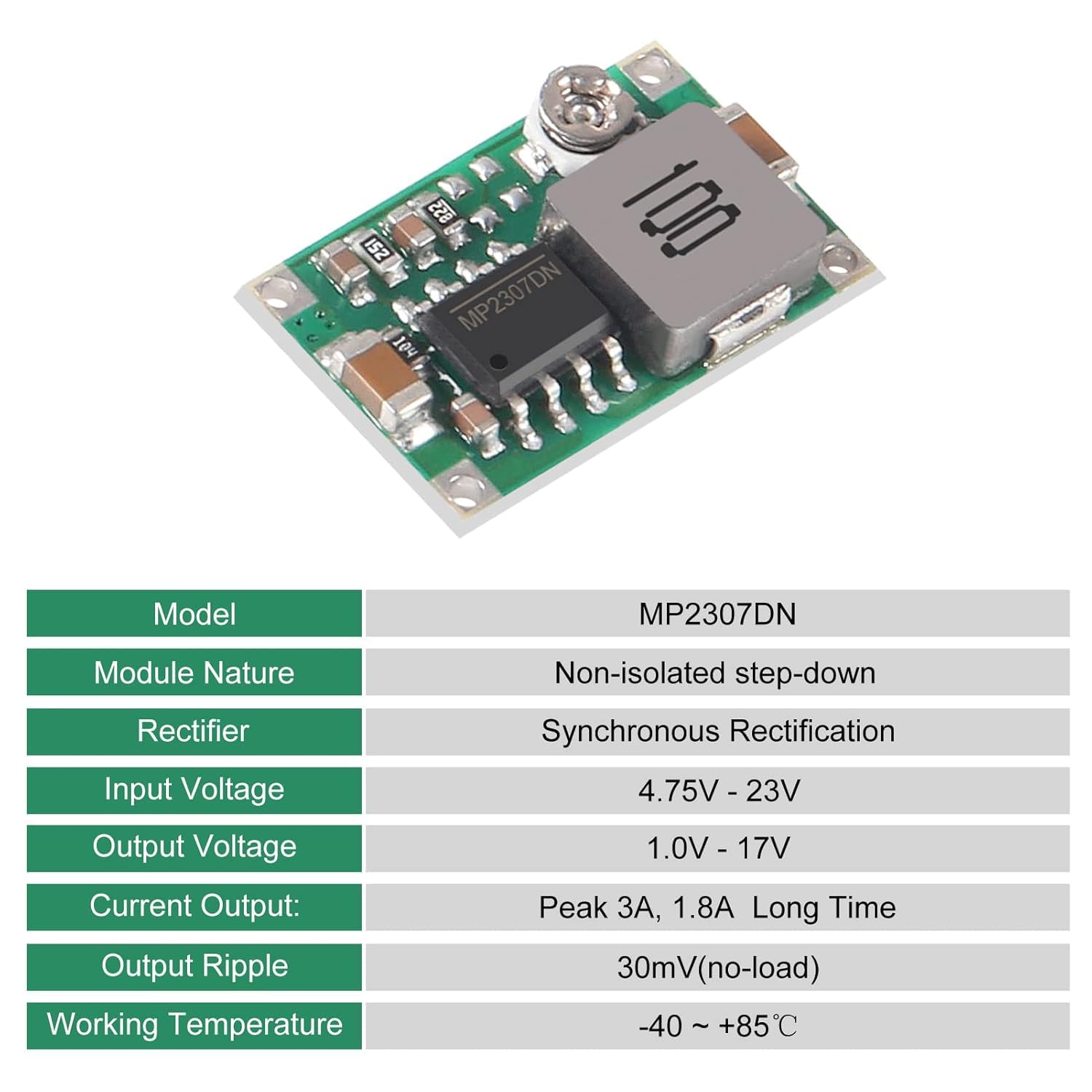

Specification:

Parameter Details
Model Name Mini360 (or Mini-360)
Converter Type Buck (Step-down) DC-DC Converter
Input Voltage Range 4.7V – 23V DC
Output Voltage Range 1V – 17V DC (adjustable via potentiometer)
Output Current (Typical) 1.8A (continuous with cooling)
Output Current (Max) 2A peak (short duration, limited by heat)
Output Power (Max) ~10W – 15W (depends on input/output and cooling)
Conversion Efficiency Up to 96% (varies with load and voltage delta)
Switching Frequency ~340kHz

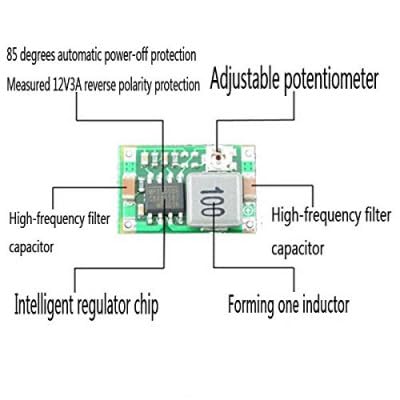

Voltage Adjustment Via onboard multi-turn potentiometer
Protection Features No built-in overcurrent/thermal protection (add externally if needed)

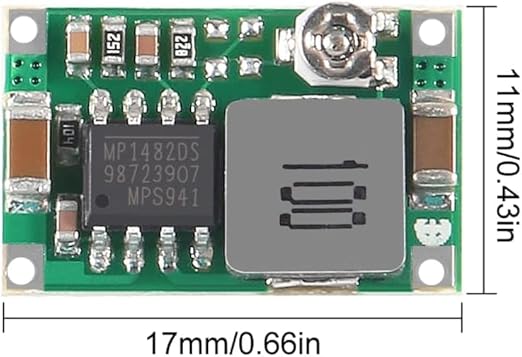

Dimensions Approx. 17mm × 11mm × 3.8mm
Weight ~1.5g
Operating Temperature -40°C to +85°C
Mounting Solderable header pins (2.54mm pitch)
Recommended Load ≤ 1.2A continuous for safety without additional cooling
Use Cases  ESP32, IoT, battery projects, low-power devices



Features:

  • Ultra-compact and lightweight — perfect for tight enclosures.

  • Wide input voltage support: 4.7V to 23V DC.

  • Adjustable output voltage from 1V to 17V.

  • High conversion efficiency up to 96%.

  • Ideal for battery charging, MCU power regulation, sensor modules, and DIY circuits.

  • Plug-and-play — just connect input, adjust output, and power your load.

Description:

The Mini360 DC-DC Buck Converter Module is a high-efficiency step-down voltage regulator based on the MP2307 chip, capable of converting a DC input voltage of 4.7V to 23V down to a stable output voltage between 1V and 17V. It is designed for compact applications where space and power efficiency are critical.

With a maximum output current of 1.8A (typical) and peak up to 2A (with proper heat dissipation), this module is suitable for powering microcontrollers, sensors, communication modules, and low-power electronics. The output voltage is adjustable via a multi-turn potentiometer, allowing fine-tuned voltage regulation.

Despite its small size, the Mini360 offers excellent load regulation, conversion efficiency, and thermal performance, thanks to its efficient switching design. It is widely used in /ESP32/ Pi projects, battery-powered systems, and portable devices.
