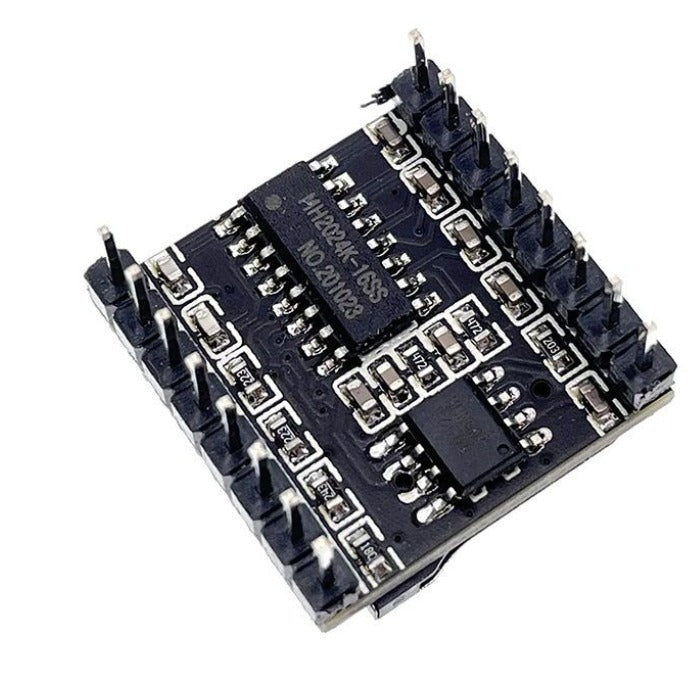

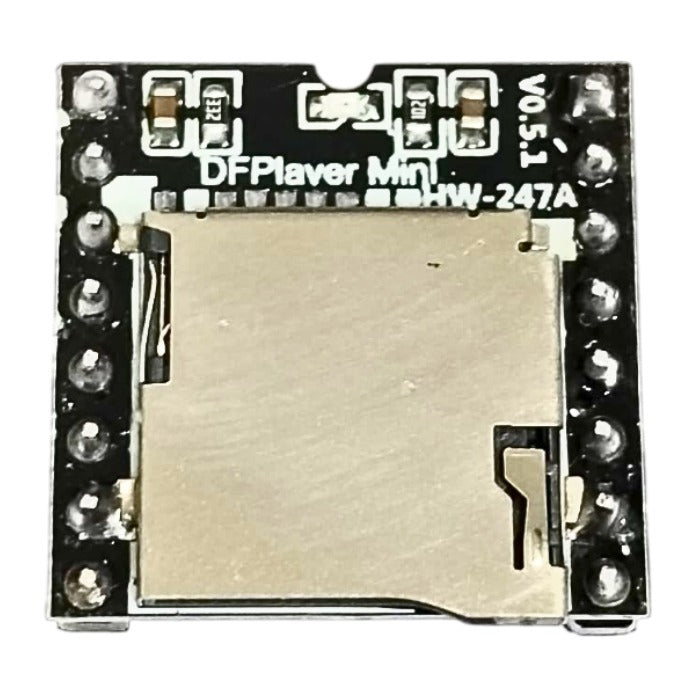

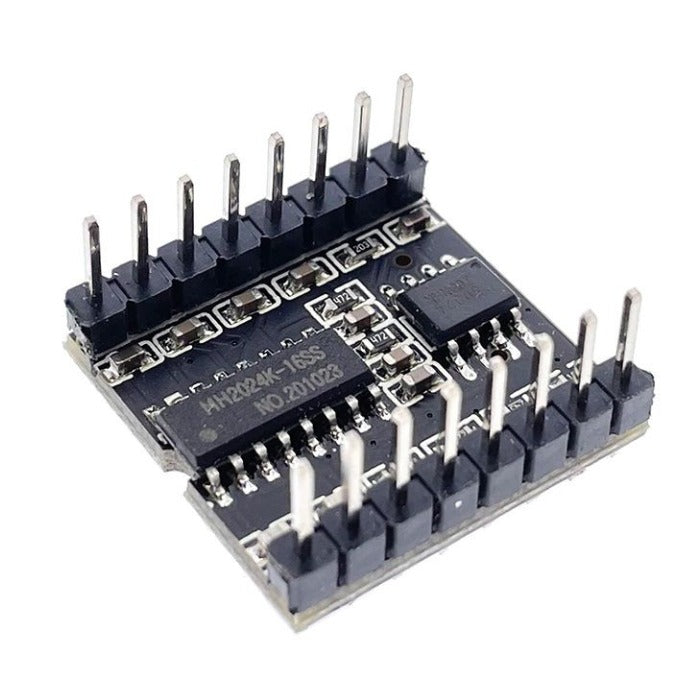

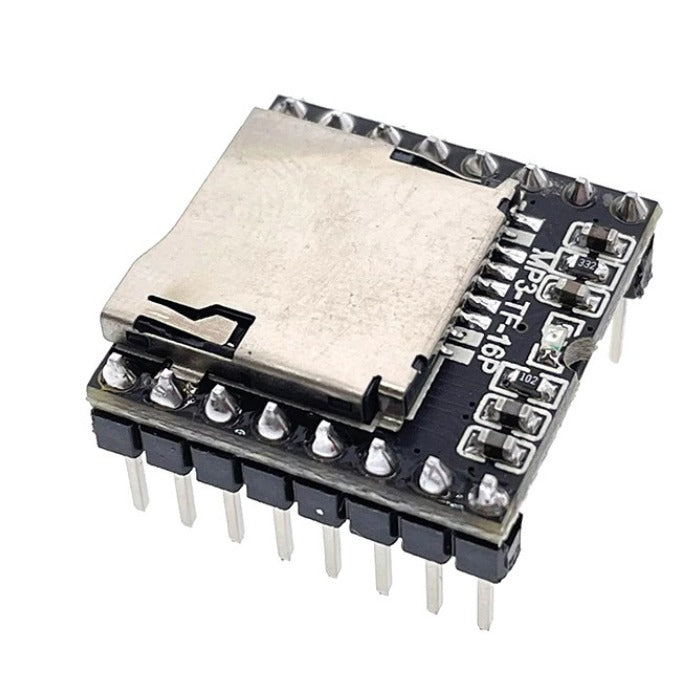

Mini DF MP3 Player Module MP3-TF-16P

Mini DF MP3 Player Module MP3-TF-16P

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specifications:

Input Supply voltage (V)

3.2 ~ 5
DAC output

24-bit
SNR

85 dB
Supports sampling rates (KHz)

8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48
Operating Temperature (°C)

-40 ~ +70
Humidity Range

5% ~ 95%
Length (mm)

21
Width (mm)

21
Height (mm)

10
Weight (gm)

5

Features:

  • Compact Design

    • Ultra-small form factor, ideal for embedded audio playback in compact projects.

  • TF Card Support

    • Supports microSD cards (TF cards) up to 32GB formatted in FAT16/FAT32.

  • Built-in Audio Decoding

    • Supports MP3, WAV, and WMA audio file formats with hardware decoding.

  • Multiple Control Modes

    • Can be controlled via serial (UART), AD key (analog buttons), or IO triggers.

  • Onboard Amplifier

    • Integrated 3W mono amplifier (can directly drive a speaker under 4Ω/3W).

  • Adjustable Volume Control

    • 30 levels of volume control via serial commands.

  • UART Serial Interface

    • Communicates at 9600 baud rate using simple serial commands (compatible with Arduino, ESP32, etc.).

  • Low Power Consumption

    • Energy-efficient design, suitable for battery-powered applications.

  • Easy Integration

    • Compatible with Arduino and other microcontrollers for easy audio project integration.

  • GPIO Support

    • Can trigger play/pause/next/prev via buttons connected to IO pins.

Description:

The compact Mini DF Player can connect to the speaker directly It integrates perfectly with hard-decision decoding of DF, wav, wma it supports tf card driver, support fat16, fat32 file system.

Supports sampling rates (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48 24-bit DAC output, dynamic range support: 90dB, SNR support: 85dB Fully supports FAT16, FAT32 file system

 Maximum support 32G TF card Support U disk to 32G, 64M bytes of NORFLASH A variety of control modes are available. IO control mode, serial mode, AD key control mode.
