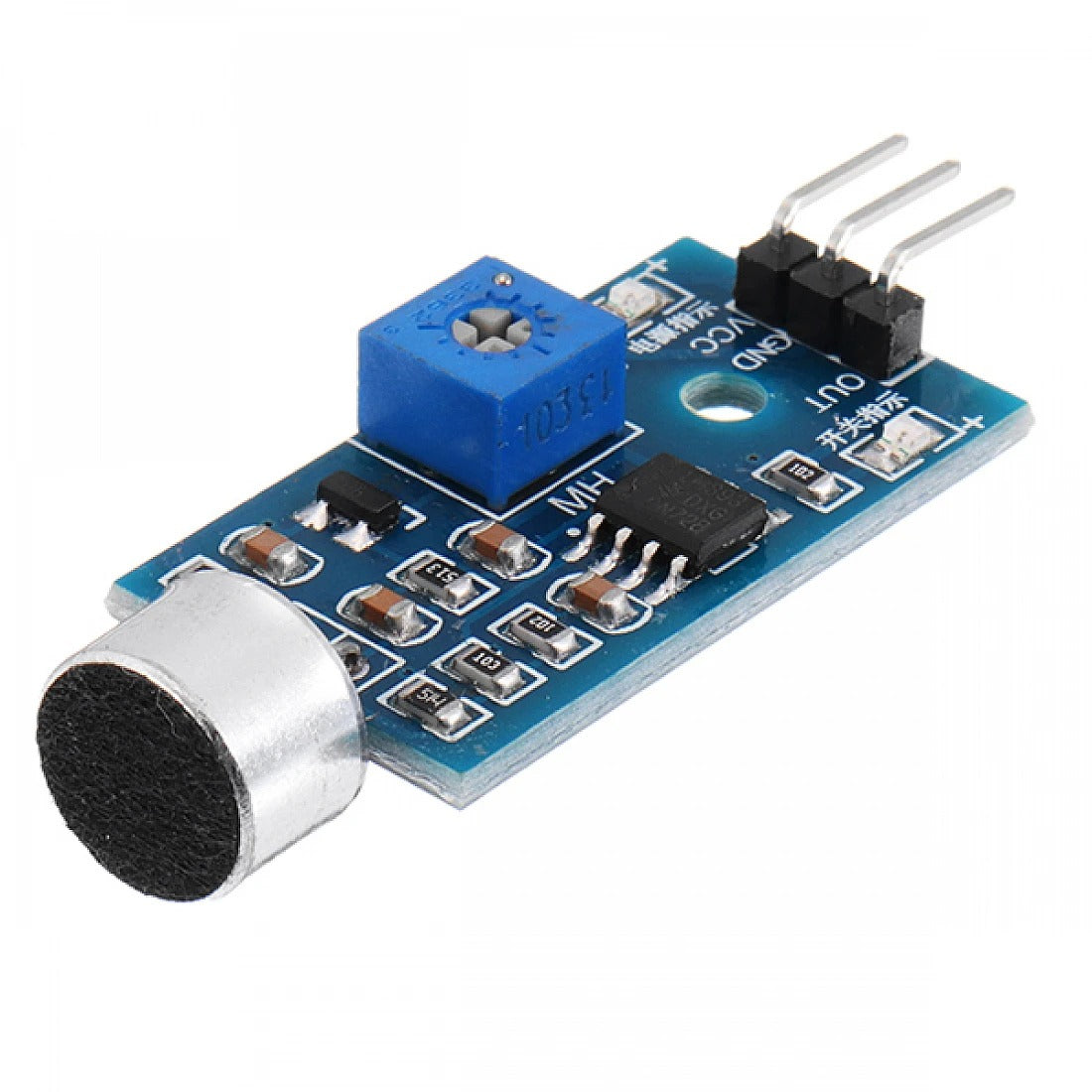

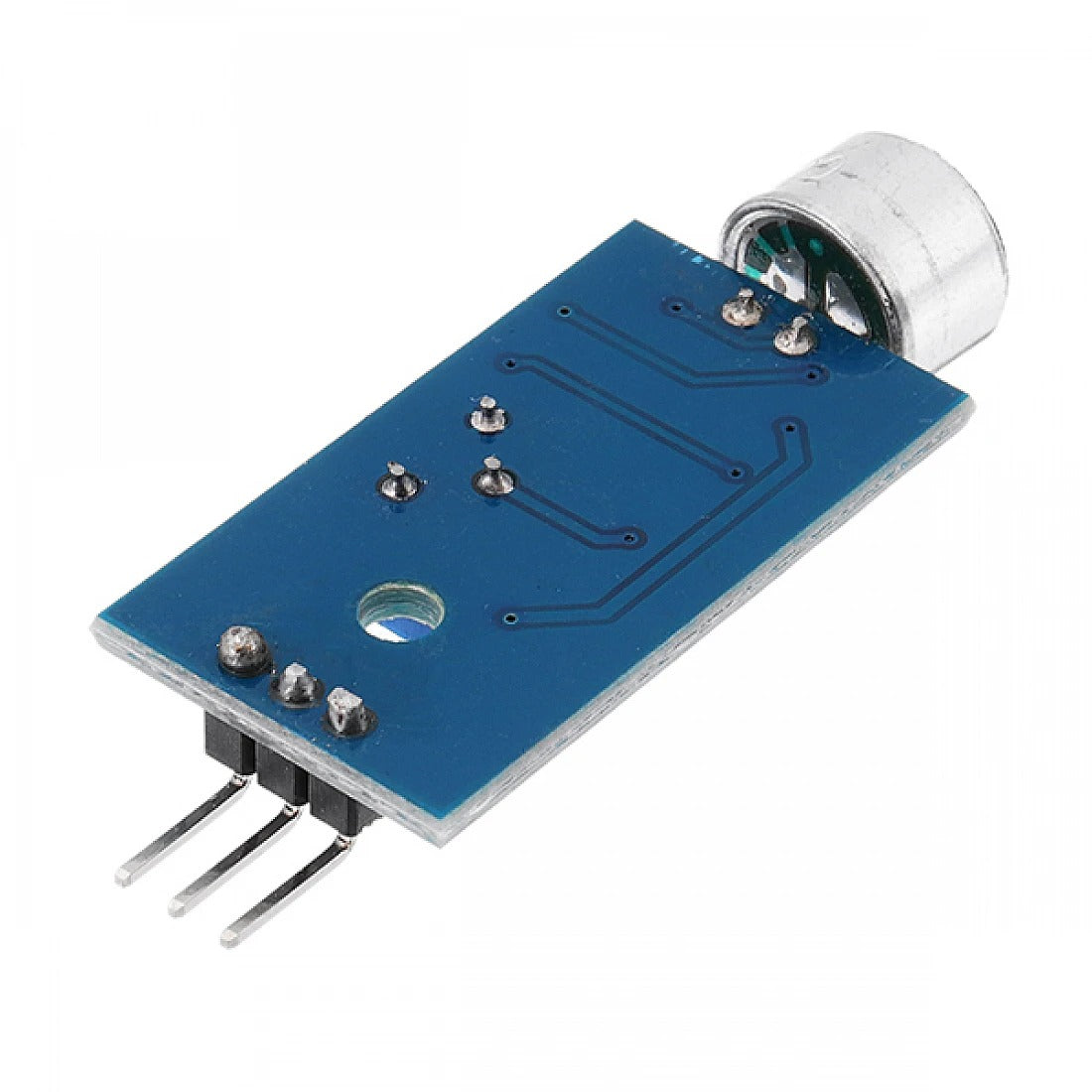

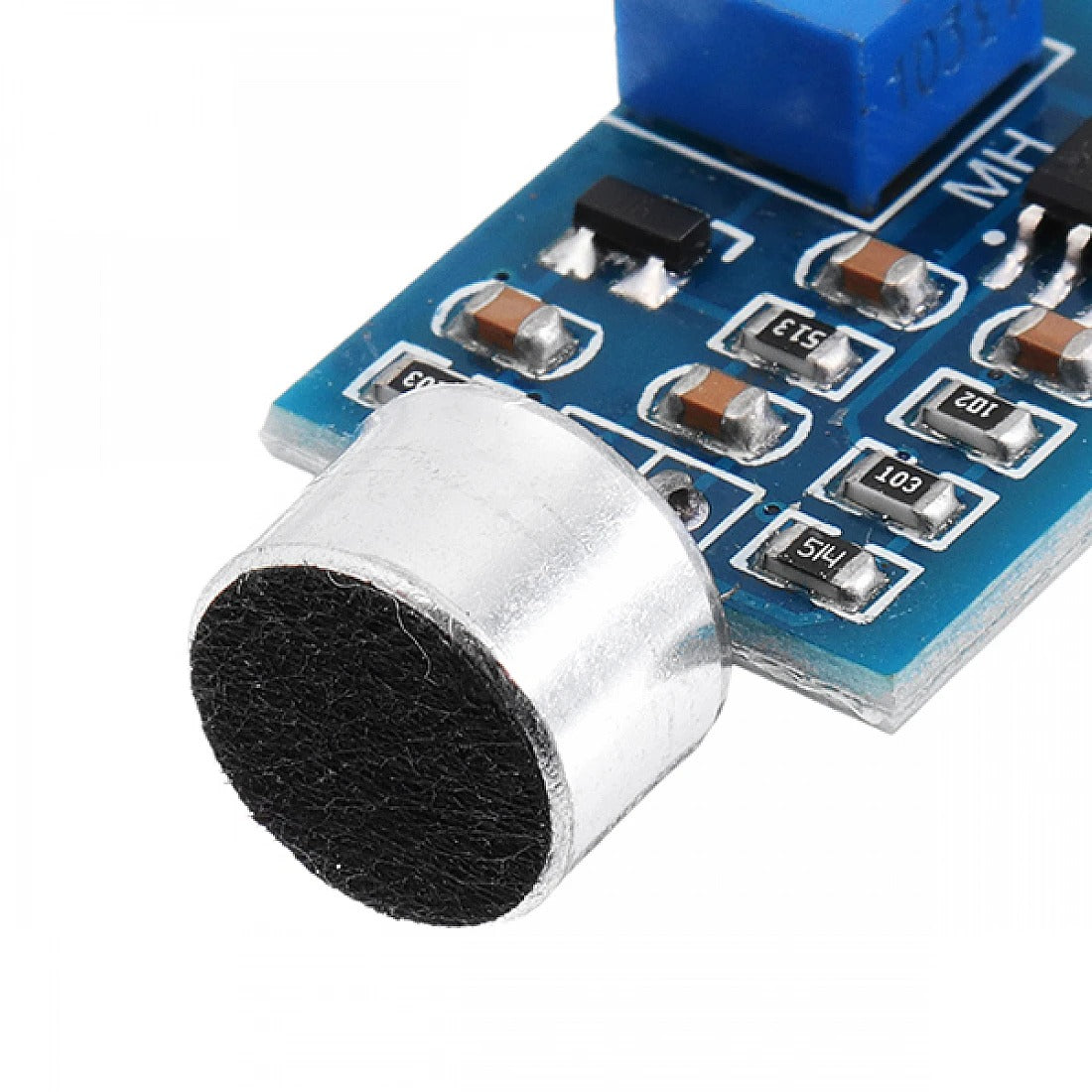

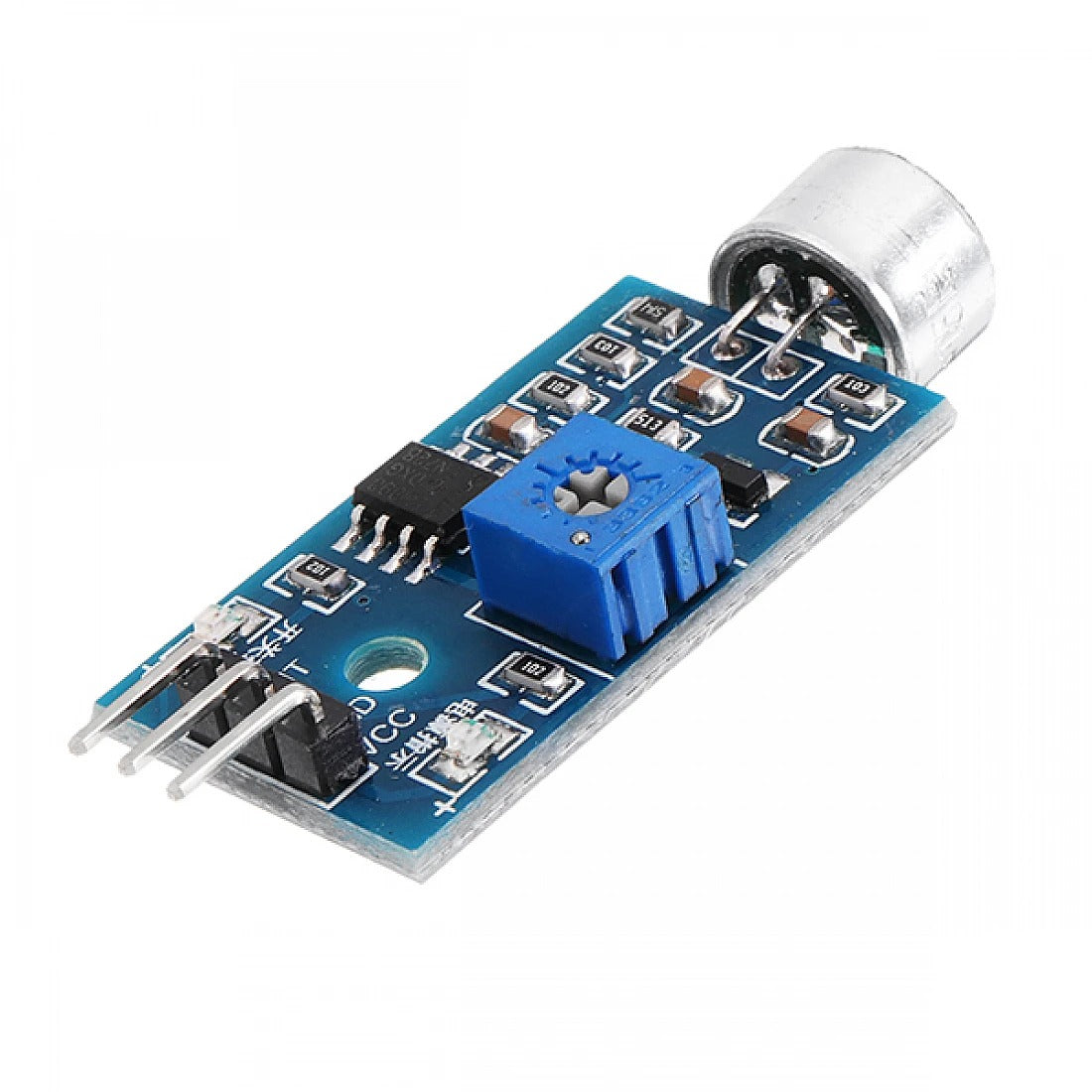

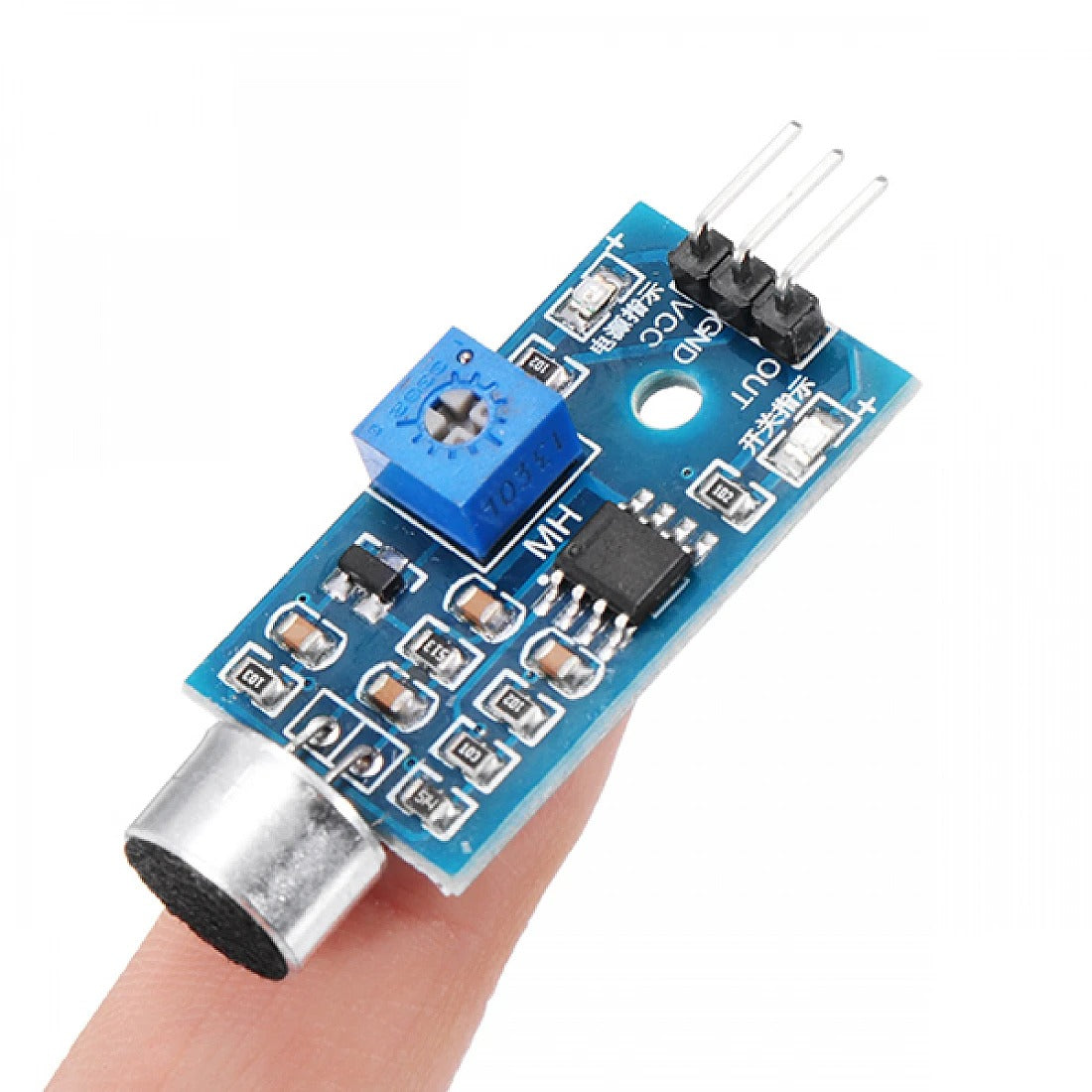

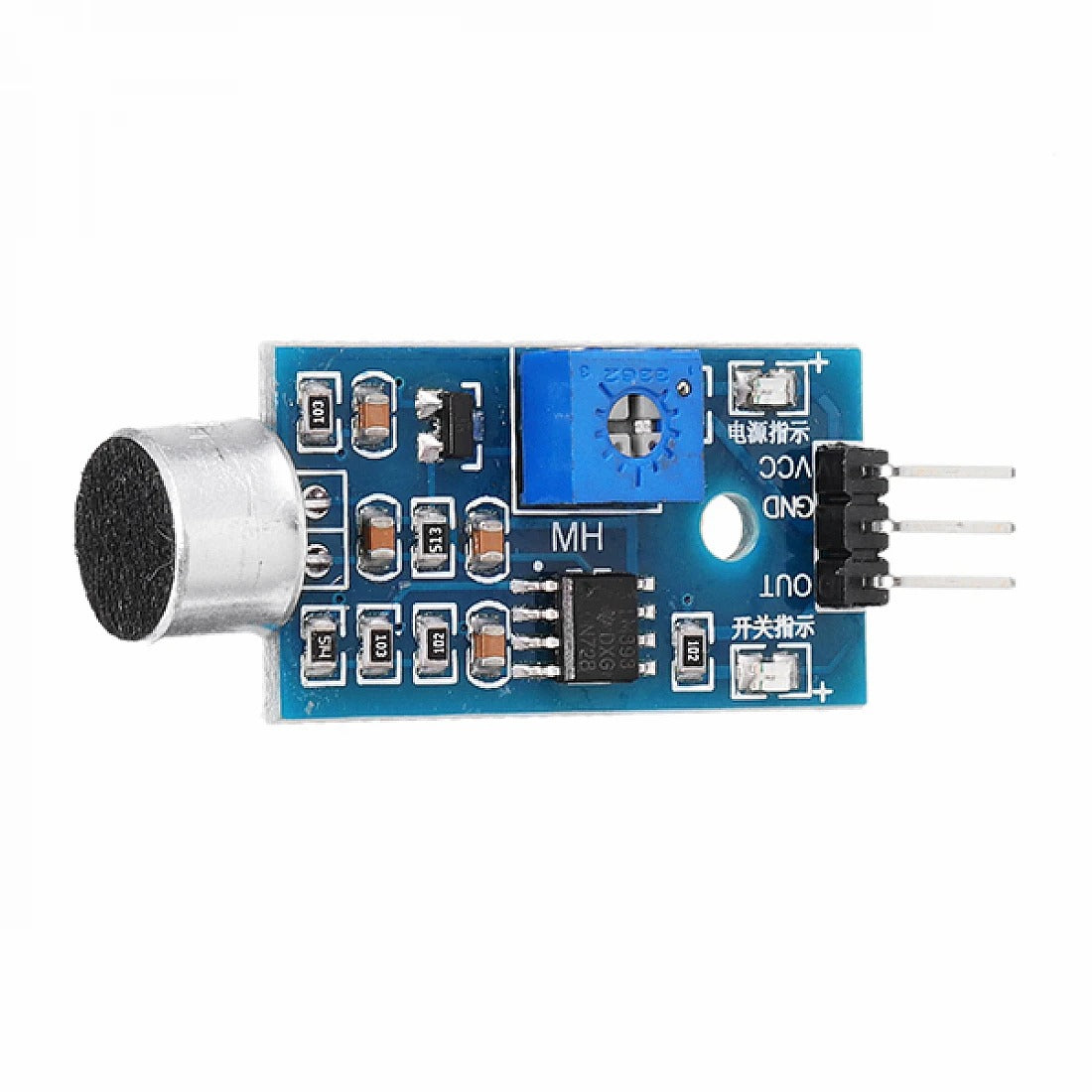

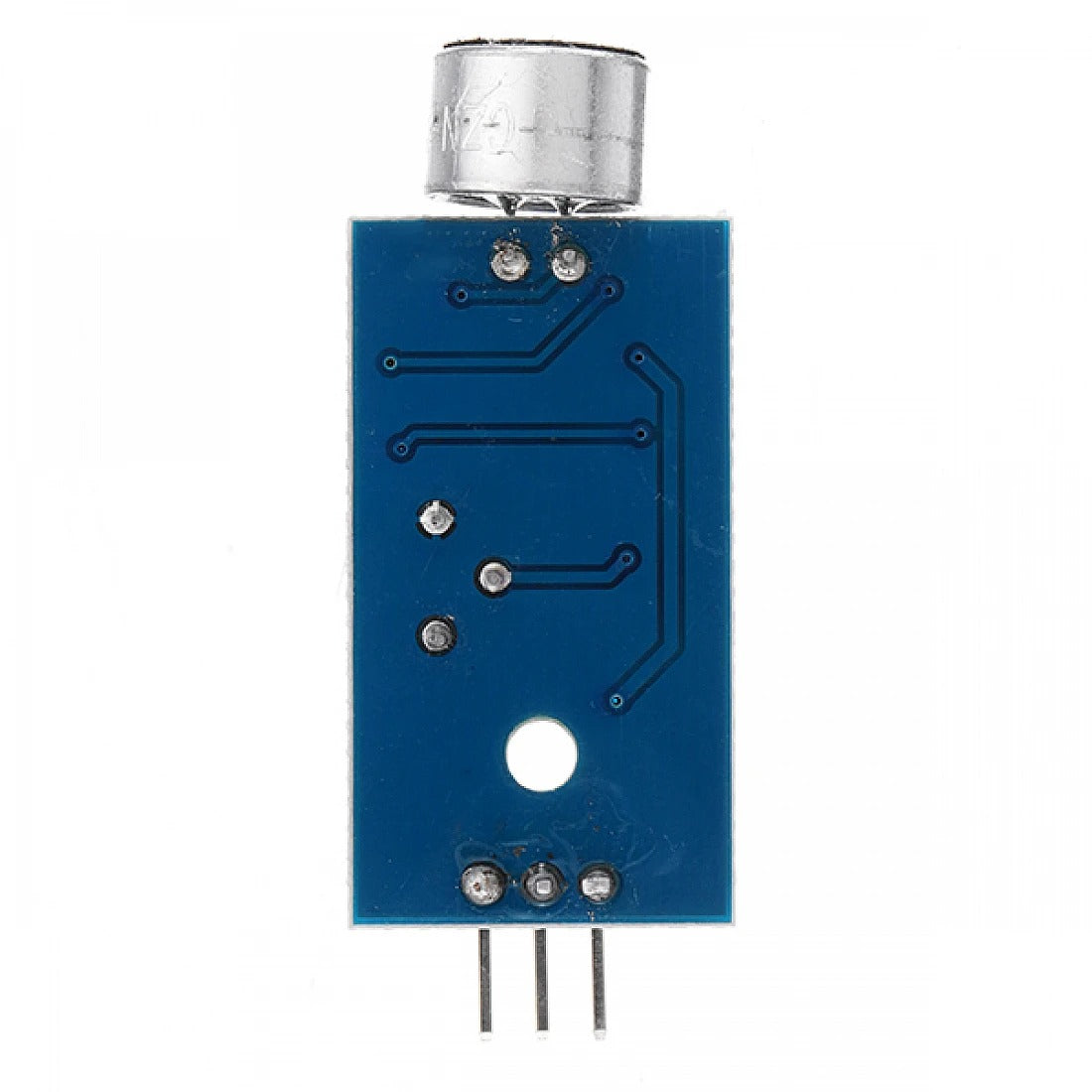

Microphone Sound Sensor Module Voice Sensor High Sensitivity Sound Detection Module Whistle Module

Microphone Sound Sensor Module Voice Sensor High Sensitivity Sound Detection Module Whistle Module

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Description:

The sound module is the most sensitive to the environment sound intensity, commonly used to detect the intensity of the sound of the surroundings. When module in the intensity of the sound environment can not reach a set threshold, the OUT will output a high level, when the intensity of the sound from the outside environment more than a set threshold, the module OUT output a low level; Small digital output board OUT can be direct to the microcontroller, through single-chip microcomputer to detect the high and low level, thus to detect sound environment.

FEATURES:

  • Can detect the intensity of the sound environment,
  • working voltage 3.3-5V
  • Output form: digital switch output (0 and 1)
  • Has a fixed bolt hole,
  • convenient installation

Module wiring:

 VCC voltage is 3.3 V to 5 V converter (which can be directly connected to 3.3 V or 5 V single-chip microcontroller)
GND external to GND
OUT of small plate switch output interface (0 and 1)

Specification:

Technical
IC Chip

LM393
Operating Voltage

3.3-5V
Output form

digital output (0 and 1)
Parameter Specification
Sensor Type Electret Microphone
Operating Voltage 3.3V to 5V DC
Output Type Digital (High/Low) and Analog Output
Sensitivity High sensitivity for sound detection
Detection Range Up to 3 meters (depending on environment)
Response Time < 1 ms
Signal Output Digital signal indicates sound detection; analog output proportional to sound amplitude
Interface 3 pins: VCC, GND, Output
Operating Current Approx. 3-5 mA
Size Approx. 30mm x 20mm
Working Temperature -20°C to +80°C
Applications Voice recognition, sound-triggered projects, whistle detection, noise monitoring, alarm systems
