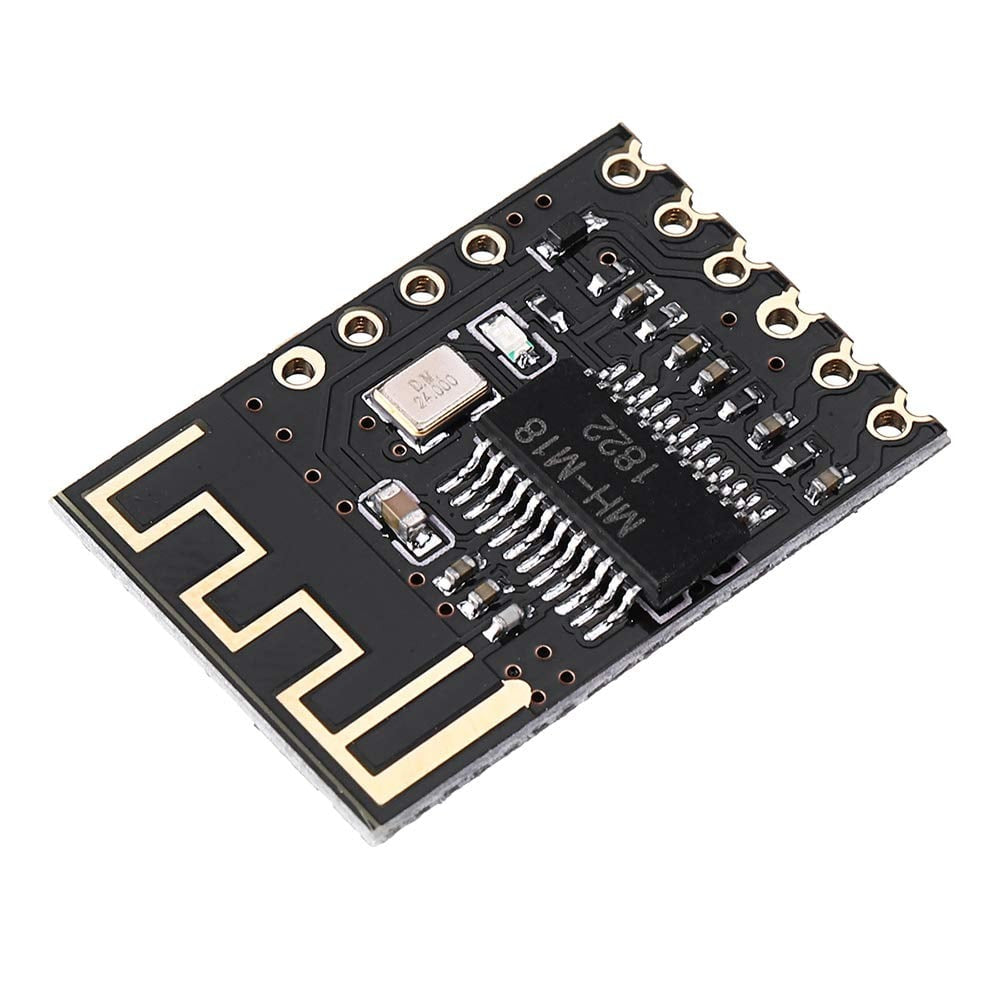

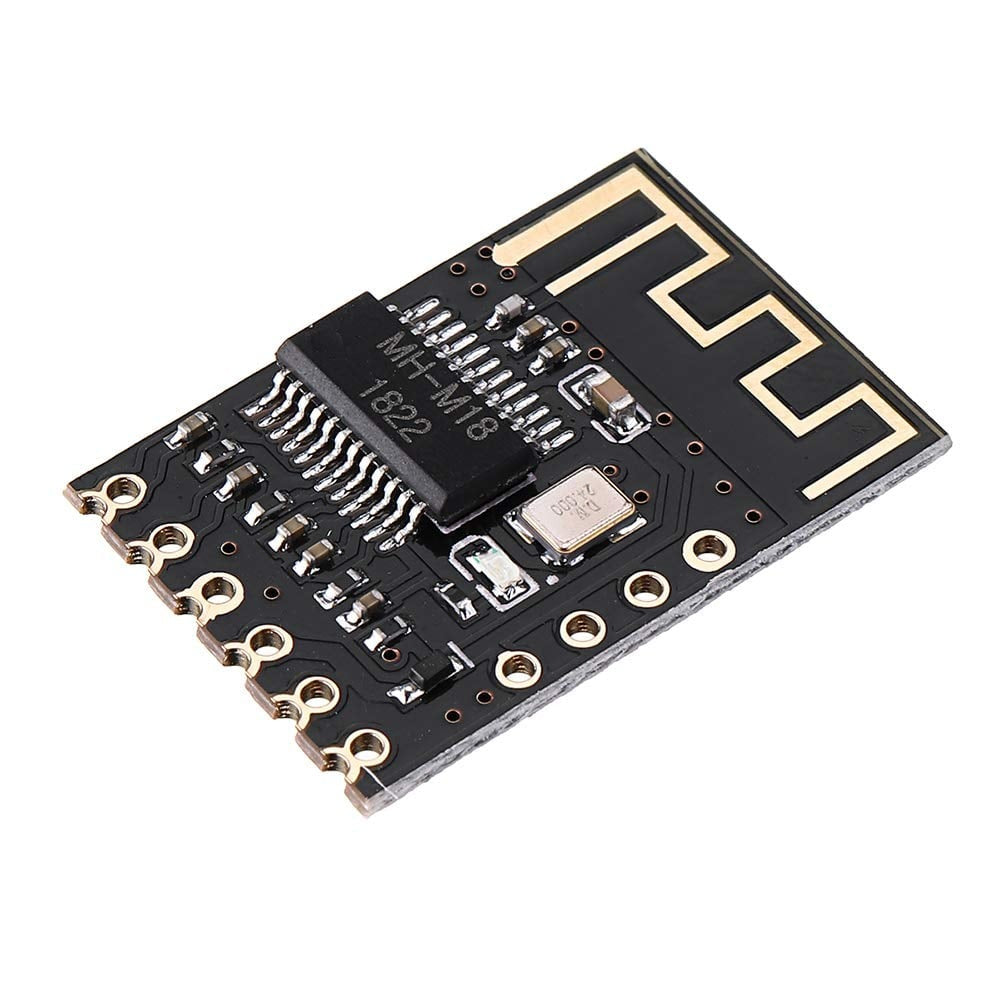

MH-M18 Wireless Bluetooth Audio Receiver Board Module BLT 4.2 mp3 lossless decode

MH-M18 Wireless Bluetooth Audio Receiver Board Module BLT 4.2 mp3 lossless decode

₹ 80.00
₹ 80.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Details
Model MH-M18
Bluetooth Version Bluetooth 4.2 (Backward compatible with 4.0, 3.0, 2.1)
Bluetooth Chipset JL AC6925A or similar
Supported Profiles A2DP (Advanced Audio Distribution Profile)
Audio Format MP3 (lossless decode support)
Operating Voltage DC 3.7V – 5V
Operating Current ~20mA (idle), up to 50mA during audio streaming
Bluetooth Range 10–15 meters (open space)
Audio Output Type Stereo analog (Left, Right, GND)
Audio Output Level ~1V peak-to-peak (line level)
Control Interface Play/Pause, Next/Prev, Volume +/-, Mute (button pads)
Status Indicators Onboard LED for Bluetooth connection status
Power Supply Interface VCC and GND pads

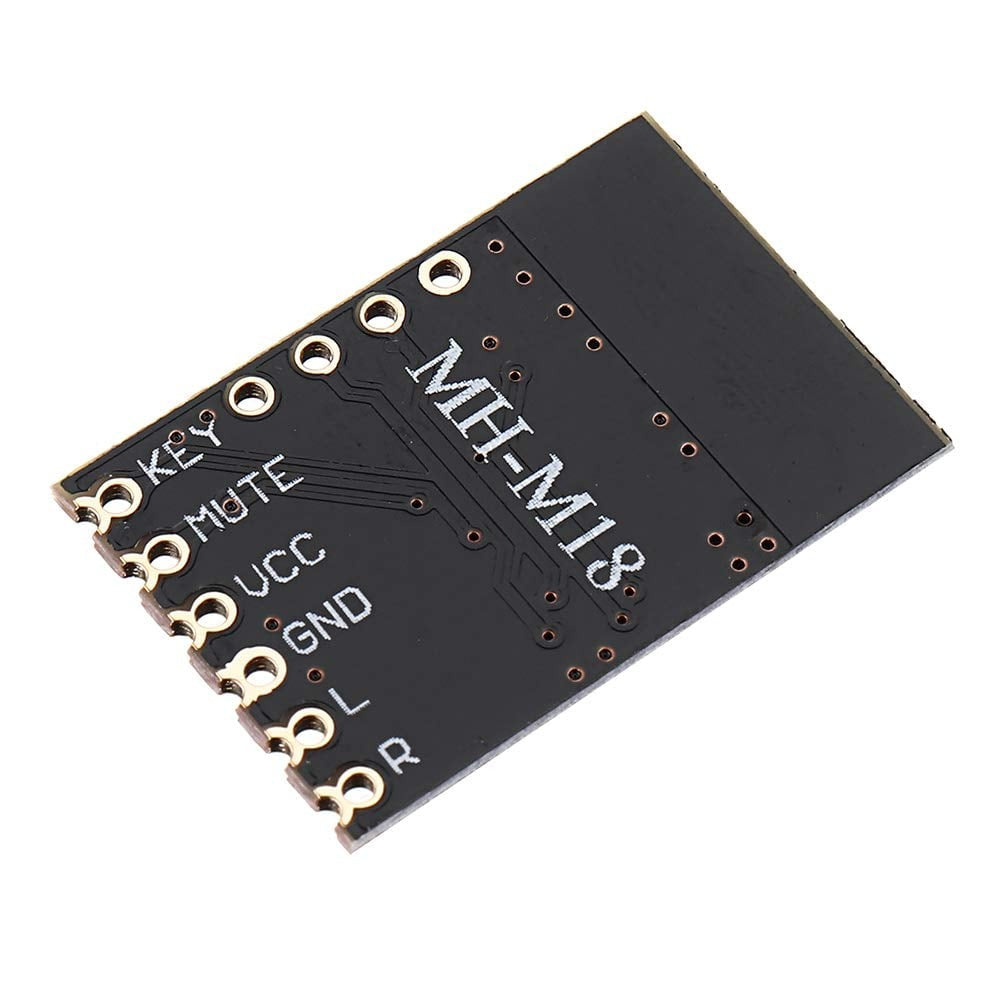

Output Interface L, R, GND pads
Mounting Solderable module, ~26mm × 16mm PCB
Operating Temperature -40°C to +85°C
Applications DIY wireless speakers, Bluetooth headphones, car audio, retro audio conversion, projects



Features:

  • Bluetooth 4.2 with fast connection and stable transmission.

  • Supports high-quality MP3 audio decoding with stereo output.

  • Simple 3.7V–5V power supply, compatible with USB or Li-ion.

  • Compact design – easily integrates into custom enclosures.

  • Onboard control pads for media and volume control.

  • Onboard LED shows Bluetooth pairing and connection status.

  • Compatible with all Bluetooth audio source devices: smartphones, tablets, laptops, Pi, etc.

  • Ideal for lossless wireless audio streaming in embedded systems.

Description:

The MH-M18 is a Bluetooth 4.2 audio receiver module designed for wireless audio streaming applications. It receives audio signals wirelessly from Bluetooth-enabled devices such as smartphones, tablets, or computers and outputs stereo audio signals that can be connected to amplifiers, speakers, or headphones.

Featuring Bluetooth 4.2 technology, the MH-M18 ensures low power consumption, faster pairing, and stable transmission over a range of up to 10–15 meters. It supports MP3 audio format decoding and delivers lossless stereo audio output with excellent fidelity.

It integrates essential components such as a Bluetooth chipset, voltage regulator, filter capacitors, and onboard audio output pins (L, R, GND). Additionally, it includes control pins for play/pause, next/previous, and volume control, making it ideal for DIY wireless speaker projects, car audio upgrades, home audio retrofits, and more.
