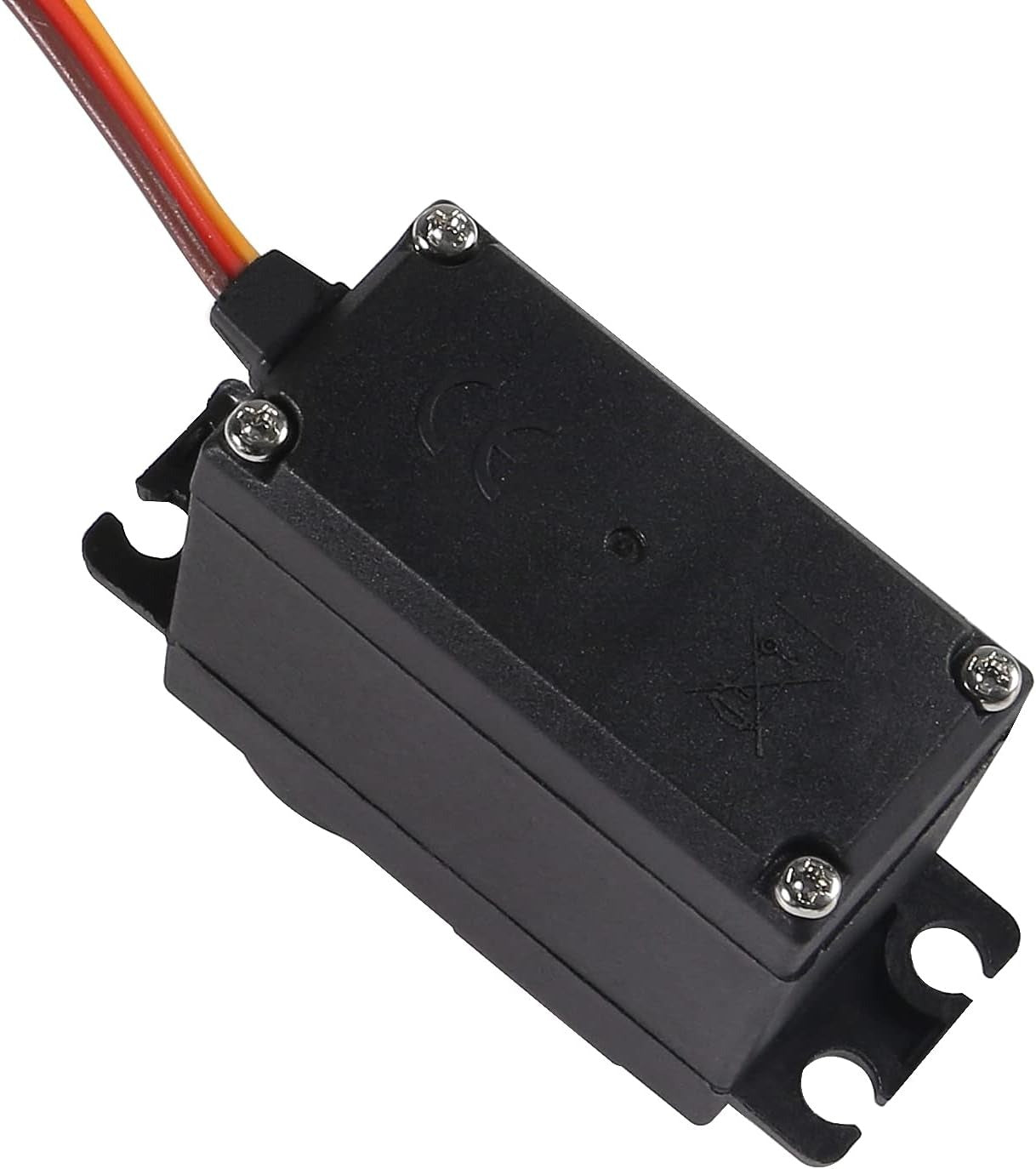

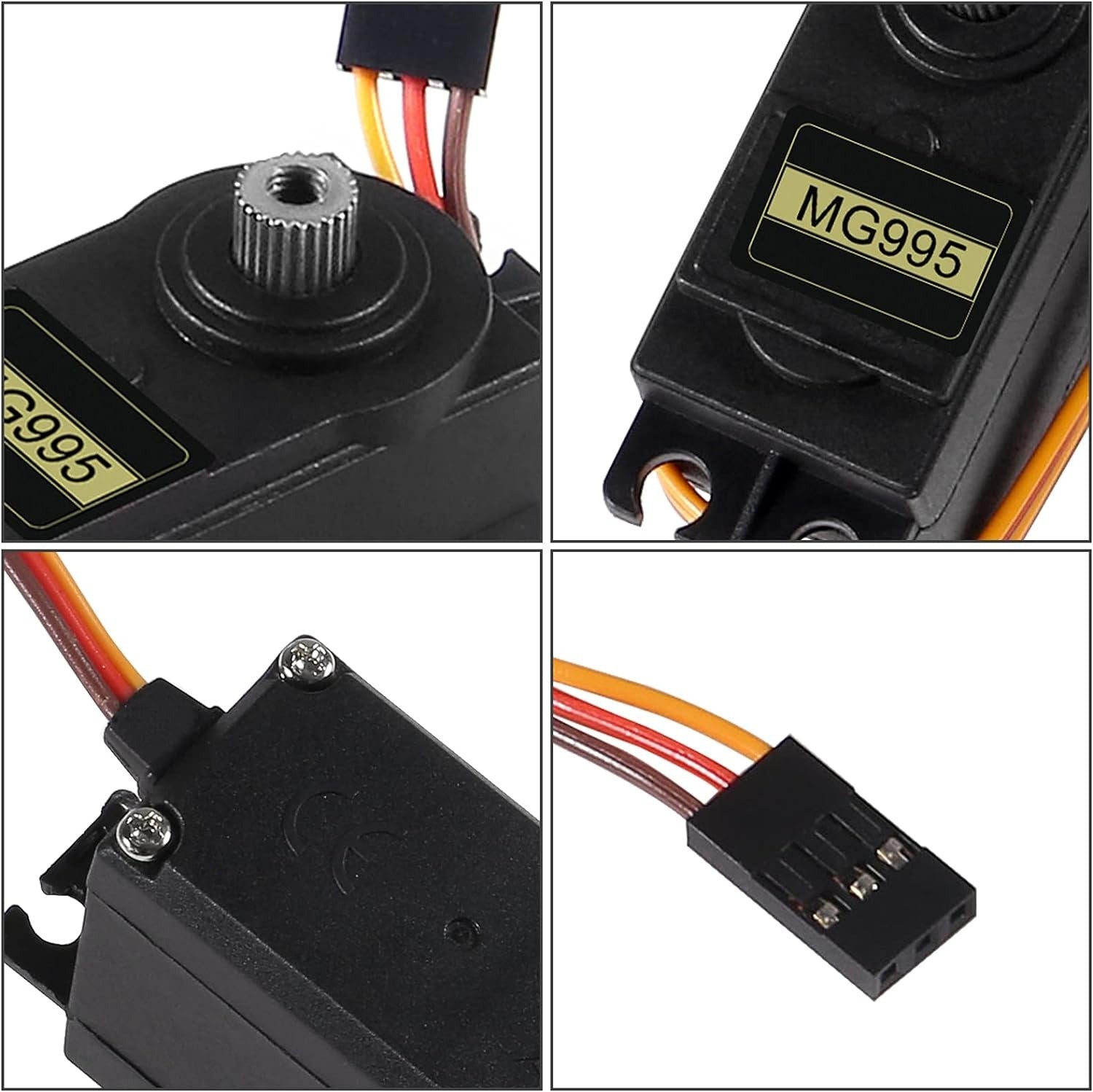

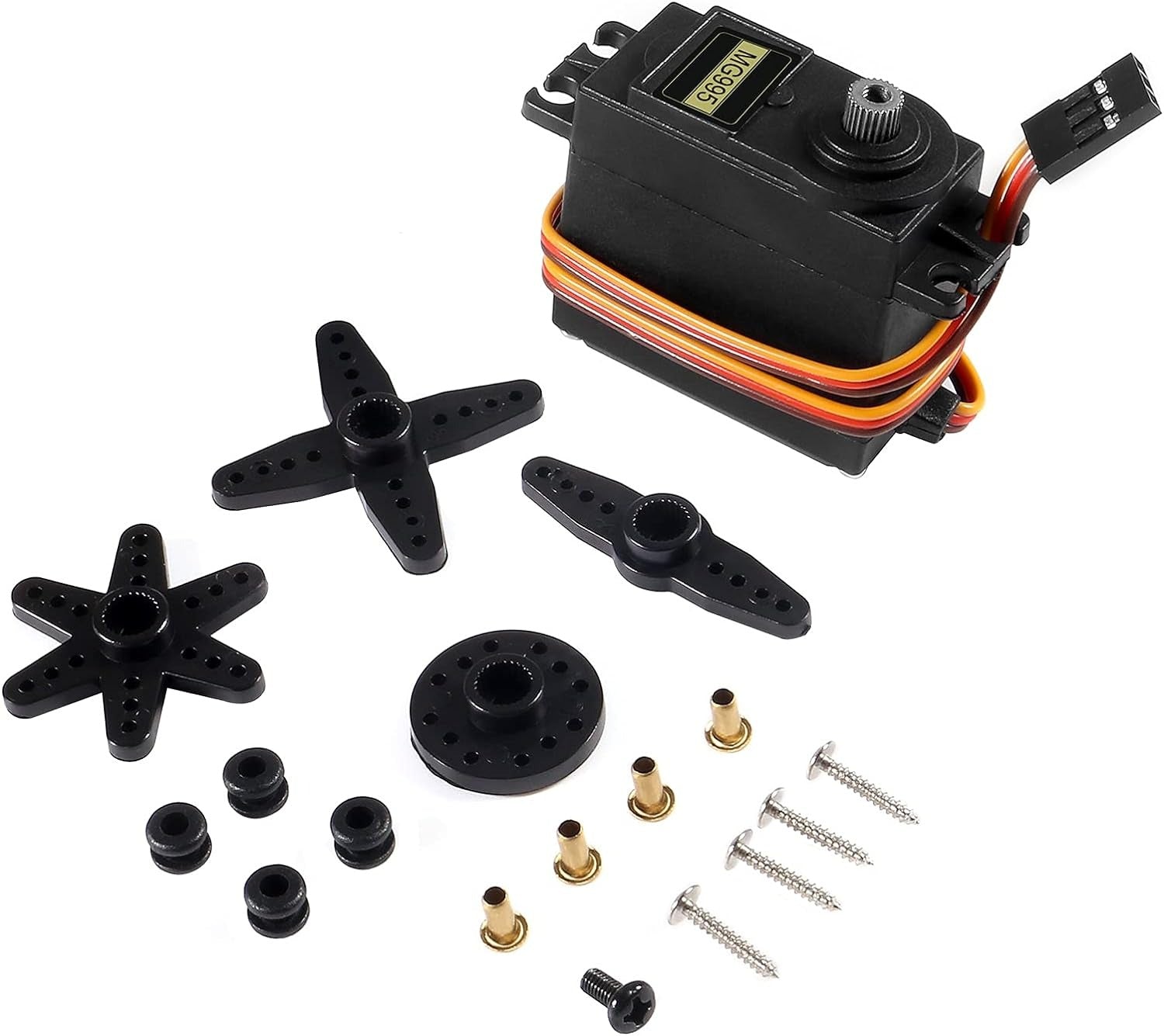

MG995 High Speed Servo Motor(360 Degree) Metal-Gear

MG995 High Speed Servo Motor(360 Degree) Metal-Gear

₹ 330.00
₹ 330.00
Sale Sold out
Shipping calculated at checkout.
  • Express Delivery FedEx
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • On Time Delivery
  • Worldwide Order Delivery
  • Delivery Location

Specification:

Parameter Details
Model MG995 Continuous Rotation
Motor Type Modified Standard Servo Motor (Continuous Rotation)
Operating Voltage 4.8V to 7.2V DC
Stall Torque 9.4 kg·cm @ 6V
Operating Speed ~0.17 sec/60° @ 6V (reference for torque class, not rotation angle)
Rotation Type Continuous 360° rotation (clockwise & counterclockwise)
Control Method PWM Signal
PWM Range 1 ms – 2 ms (1.5 ms = stop; <1.5 = one direction, >1.5 = opposite)
Motor Core Core motor with carbon brushes
Gear Material Full Metal Gear Train (for strength and durability)
Bearing Type Dual ball bearings

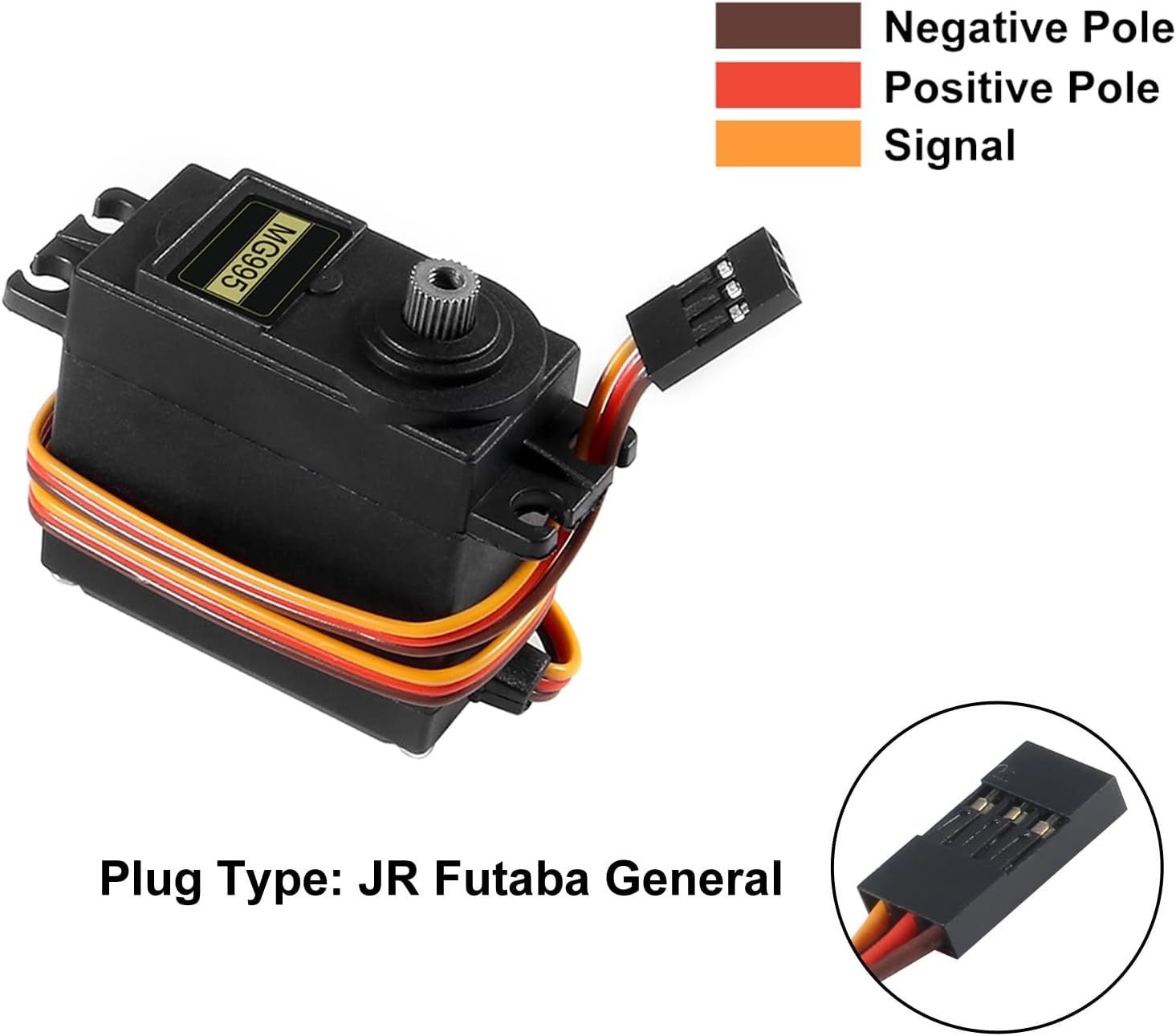

Connector Type 3-pin (Signal, VCC, GND) standard servo plug
Cable Length Approx. 30 cm

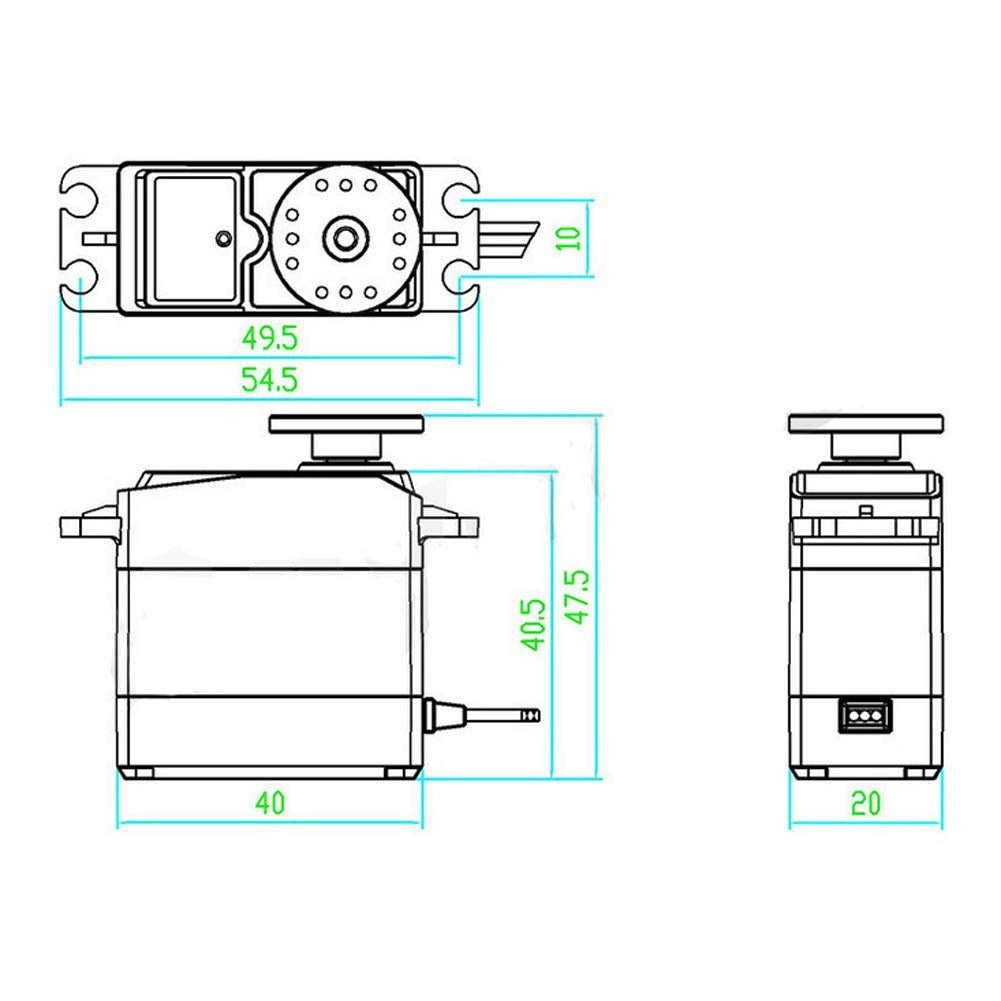

Dimensions 40.7 x 19.7 x 42.9 mm (L x W x H)
Weight ~55 grams
Idle Current ~10 mA
Running Current 500–900 mA
Stall Current ~2.5 A @ 6V
Operating Temperature -10°C to +60°C



Features:

🔁 True Continuous 360° Rotation

  • Modified for unlimited rotation in both directions.

  • Speed and direction controlled via PWM pulse width.

💪 High Torque Performance

  • Delivers up to 9.4 kg·cm torque at 6V — suitable for moving heavier loads, robot wheels, or mechanical arms.

⚙️ All-Metal Gear Train

  • Made with hardened steel gears for maximum durability and wear resistance.

  • Ideal for demanding mechanical operations and long-term usage.

🧠 PWM Speed & Direction Control

  • Controlled by:

    • 1.5 ms pulse = Stop

    • <1.5 ms = Rotate in one direction (speed increases as pulse shortens)

    • >1.5 ms = Rotate in opposite direction (speed increases as pulse lengthens)

🧲 Dual Ball Bearings

  • Ensures smooth rotation and reduced friction, extending operational lifespan under load.

🔌 Plug-and-Play Compatibility

  • 3-wire interface supports standard microcontroller servo libraries.

  • Compatible with Arduino, Raspberry Pi, ESP32, STM32, and robotics kits.

🛠️ Rugged & Reliable

  • Suitable for mobile robot wheels, robotic claws, pan/tilt heads, lifting systems, and more.

🚀 Ideal Applications:

  • Mobile robotic drive systems (rover wheels, tracked bots)

  • Robotic arms or claws (when torque and rotation are needed)

  • Conveyor belts or continuous rotating platforms

  • RC car modifications or automated camera mounts

  • Heavy-duty automation or mechanical toys

Description:

The MG995 360° Continuous Rotation Servo Motor is a high-speed, heavy-duty servo designed for applications that demand both strength and full-circle rotation. Unlike standard 180° servos, this continuous rotation version of the MG995 rotates endlessly in either direction and is controlled by PWM signals to vary speed and direction.

Equipped with a high-torque motor and durable metal gears, the MG995 is ideal for robotic mobility platforms, tracked robots, pan-tilt systems, and large-scale automation setups. Its strong holding torque, fast rotation, and rugged build quality make it suitable for medium- to heavy-load projects requiring long-lasting, reliable performance.

This servo is a favorite among enthusiasts, roboticists, and DIY builders due to its affordability, rugged construction, and compatibility with Pi, and other microcontrollers.
