MG958 Servo Motor

MG958 Servo Motor

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Description:

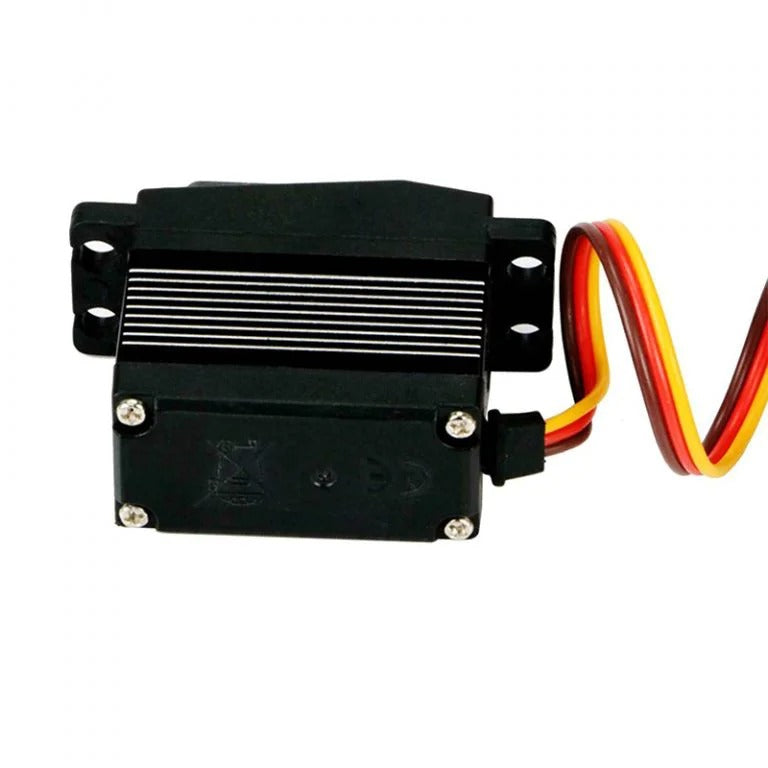

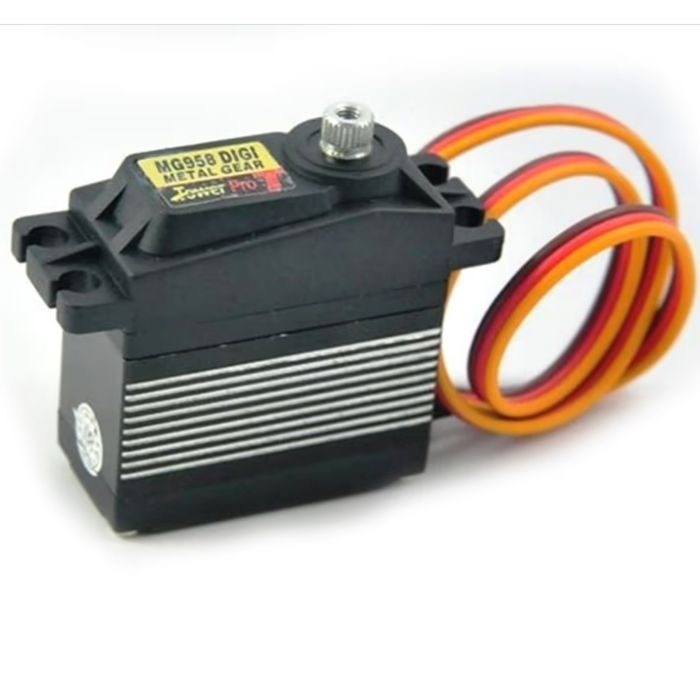

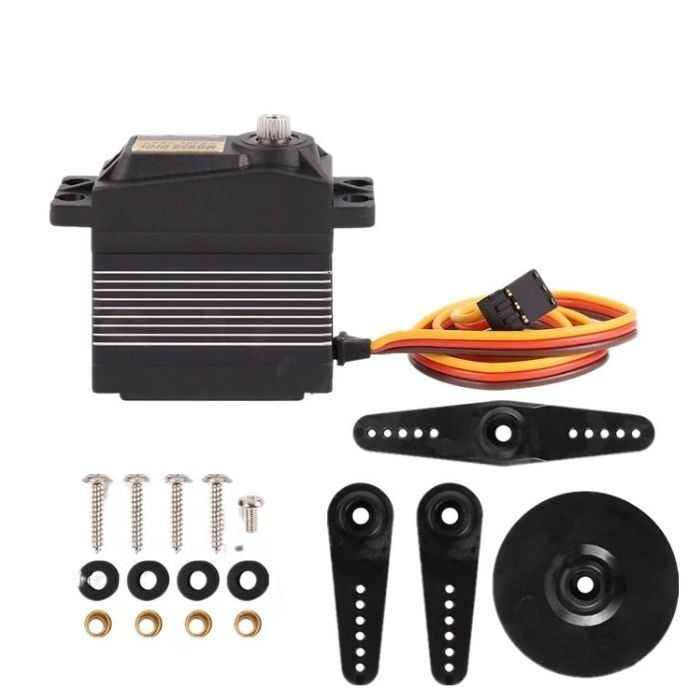

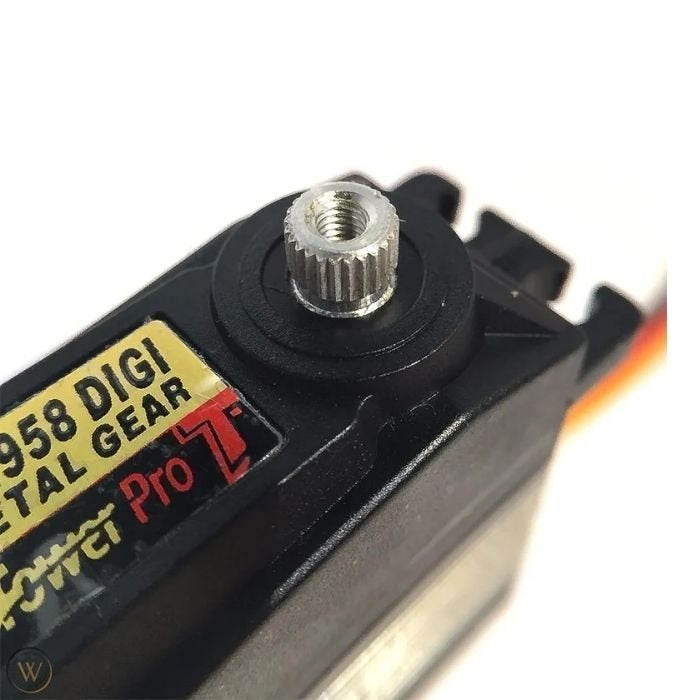

MG958 Servo Motor

The TowerPro MG958 High-Speed Digital Servo Motor, It is a Digital Servo Motor that receives and processes PWM signals faster and better. You can control this servo motor with Arduino which is connect by jumper wires and powered by battery.

MG958 Servo Motor equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces. These TowerPro MG958 Metal Gear Servo Motors are high-speed servo motors with a mighty torque of 18 kg/cm.

This high torque servo motor is packed within a tight sturdy plastic case which makes them water and dust-resistant which is a very useful feature in RC planes, Boats, RC Monster Trucks, etc. It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.

Features:

  • High resolution
  • Accurate positioning
  • Fast control response
  • Constant torque throughout the servo travel range
  • Excellent holding power

Applications:

  • RC robot
  • Airplane control
  • Robot arm
  • Remote Control toys

Specifications:

Parameter Specification
Model MG958
Type Digital Servo Motor
Torque (4.8V) 18kg.cm
Torque (6.6V) Up to 20kg.cm
Operating Voltage 4.8V – 6.6V DC
Speed (4.8V) ~0.18 sec/60°
Speed (6.6V) ~0.15 sec/60°
Motor Type Coreless Motor
Gear Material Full Metal Gears
Bearings Dual Ball Bearings
Control System Digital (PWM Control)
Connector Type 3-pin (Signal, VCC, GND) – standard JR/Futaba plug
PWM Pulse Range 500 – 2500 μs
Dead Band Width ≤5 μs
Size Approx. 40 x 20 x 38 mm
Weight ~60g
Rotation Range 180° (can be modified for 360° continuous)
