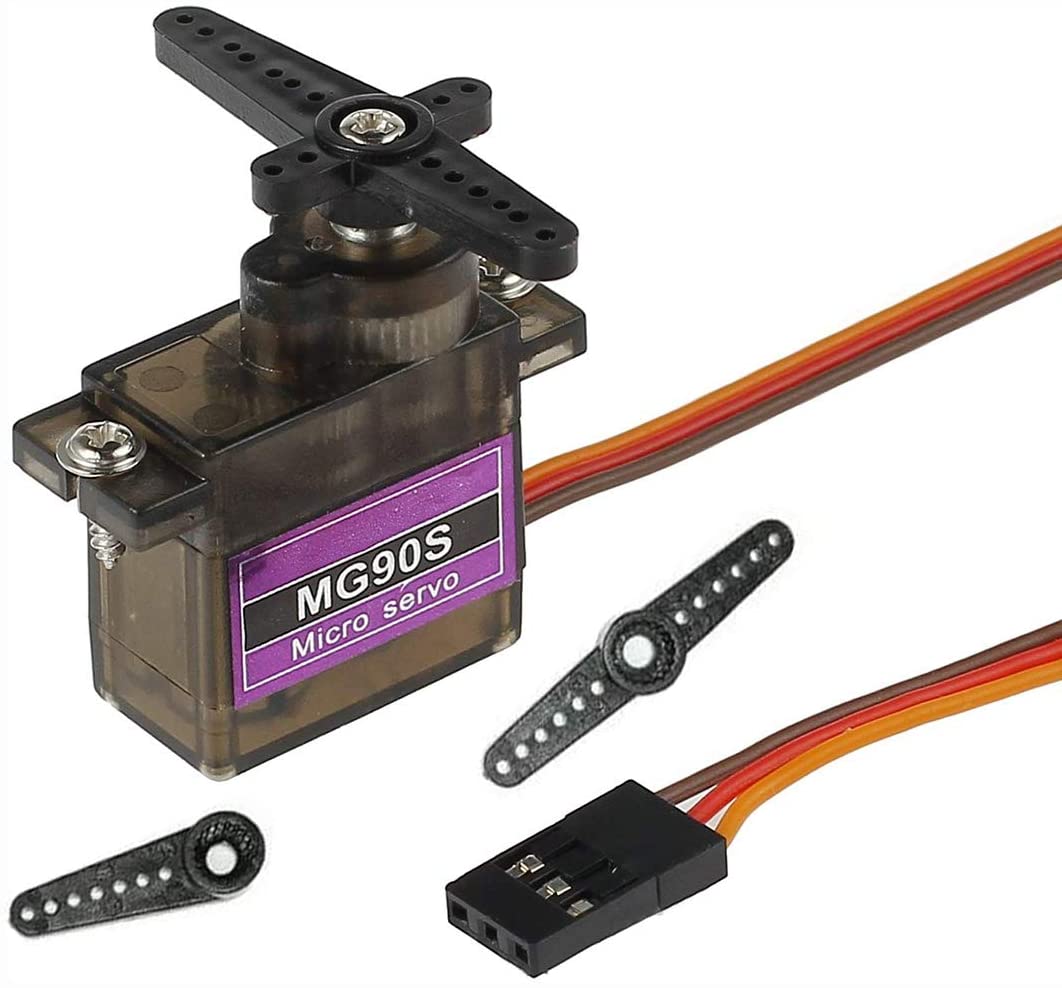

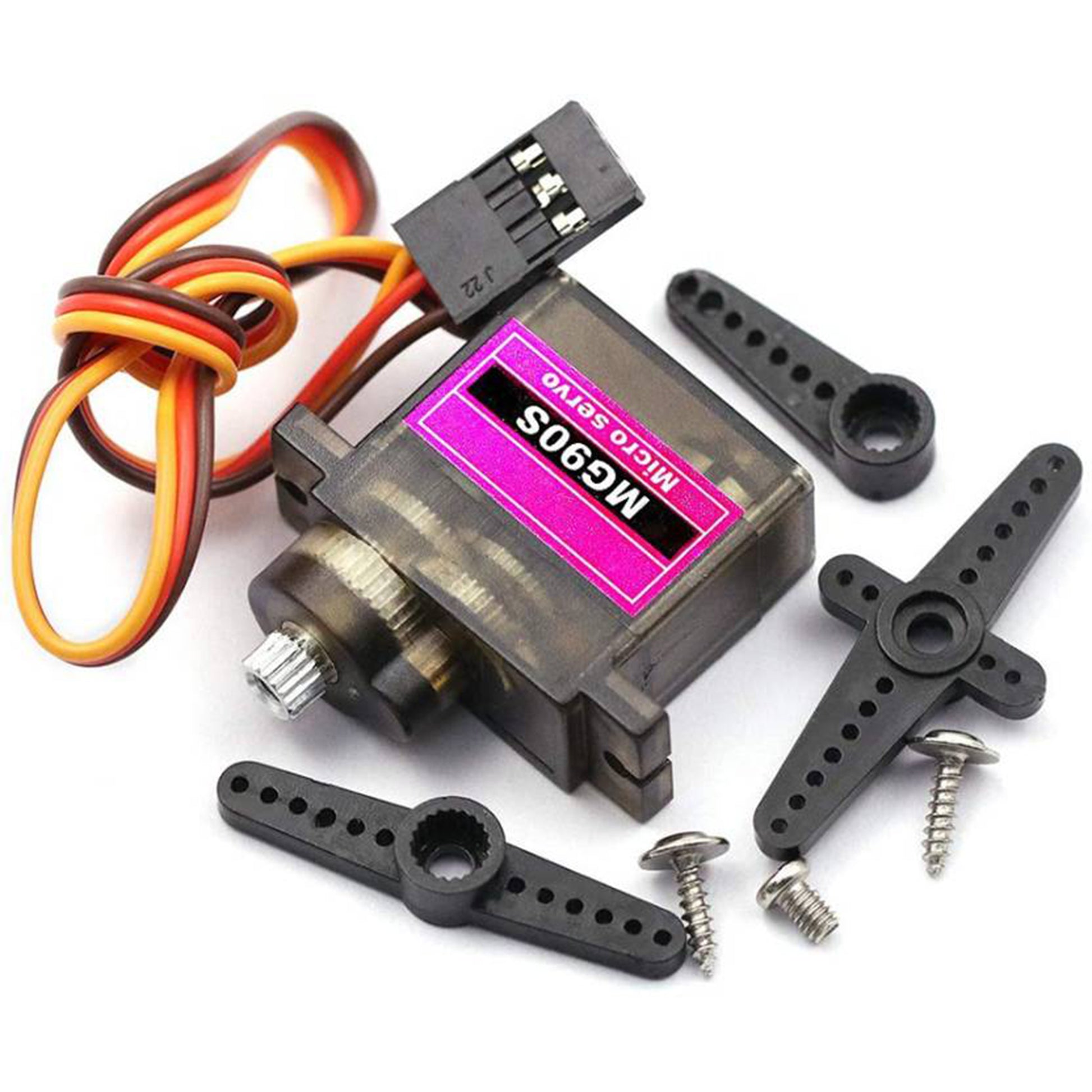

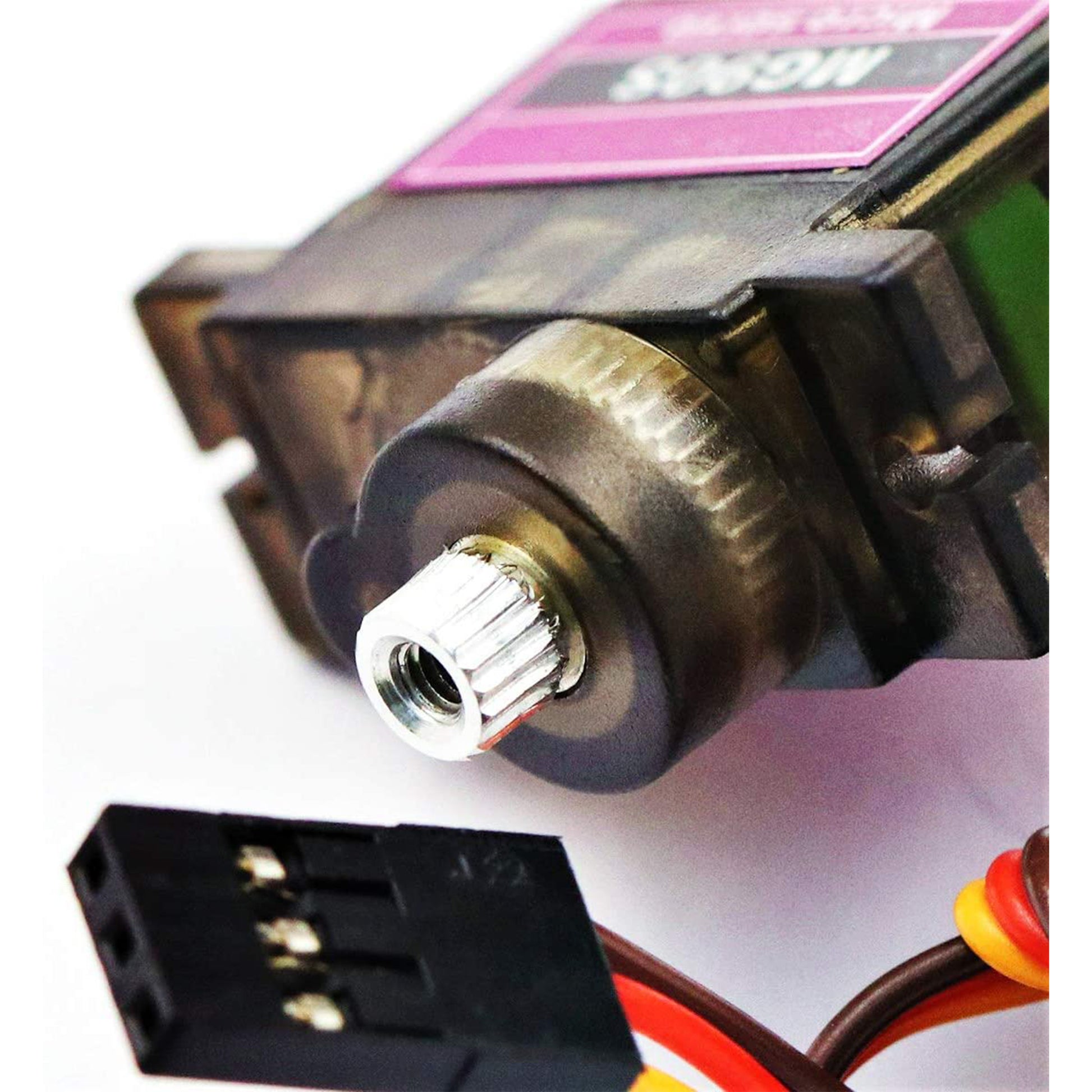

MG90S Micro Digital Servo Motor (360° Continuous Rotation)

MG90S Micro Digital Servo Motor (360° Continuous Rotation)

₹ 170.00
₹ 182.00 ₹ 170.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Details
Model MG90S Continuous Rotation Servo
Type Digital Servo Motor (Continuous Rotation)
Rotation Type 360° Continuous Rotation
Gear Material Full Metal Gear
Motor Type Coreless DC Motor
Voltage Range 4.8V to 6.0V DC
Stall Torque - 1.8 kg·cm at 4.8V- 2.2 kg·cm at 6.0V
Speed Control Variable Speed via PWM
Control Signal Standard PWM (Pulse Width Modulation)
Neutral (Stop) Pulse ~1500 µs (typical)
CW/CCW Range Below 1500 µs = CWAbove 1500 µs = CCW
Dead Band Width Approx. 5µs

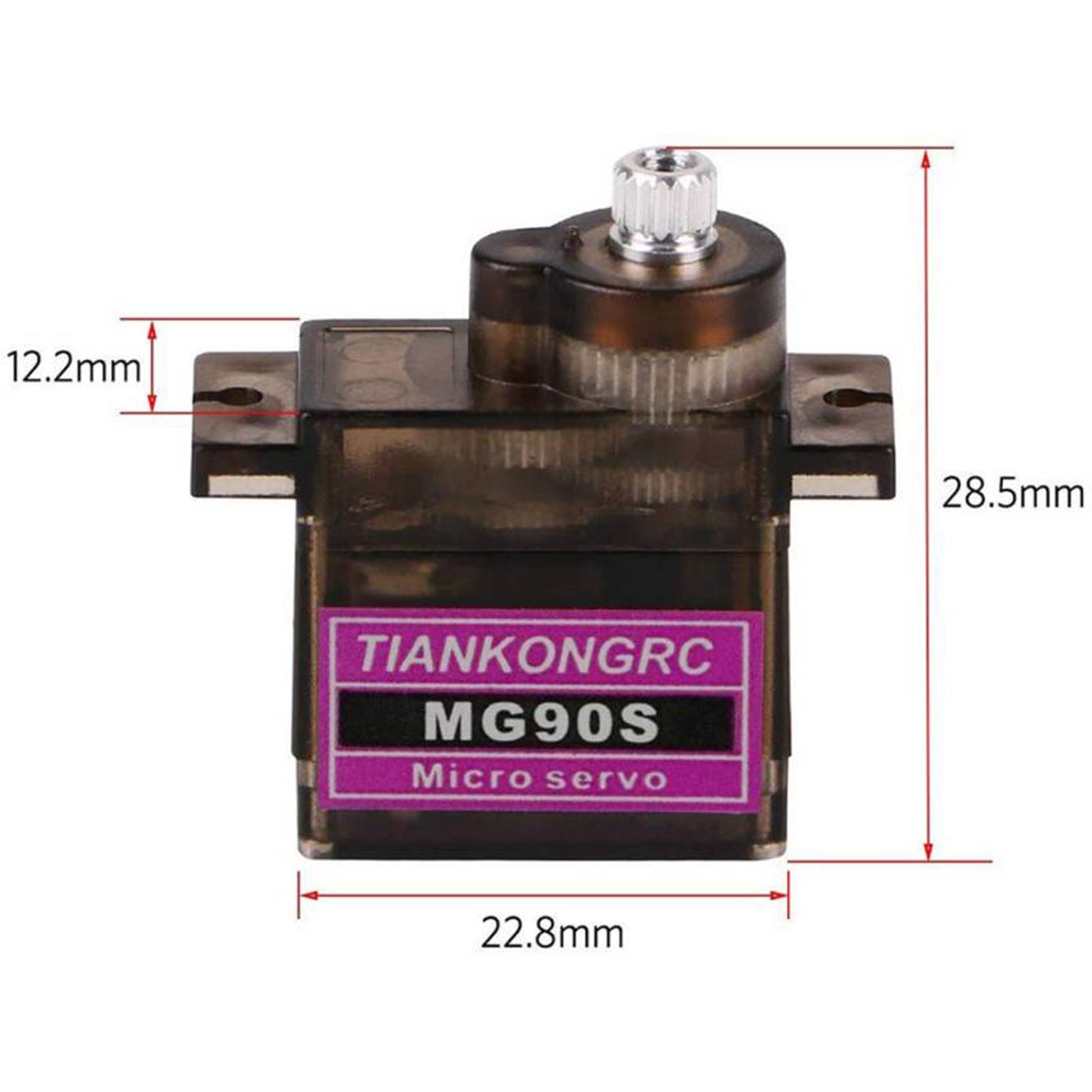

Dimensions 22.8 mm × 12.2 mm × 28.5 mm
Weight Approx. 13.4 grams

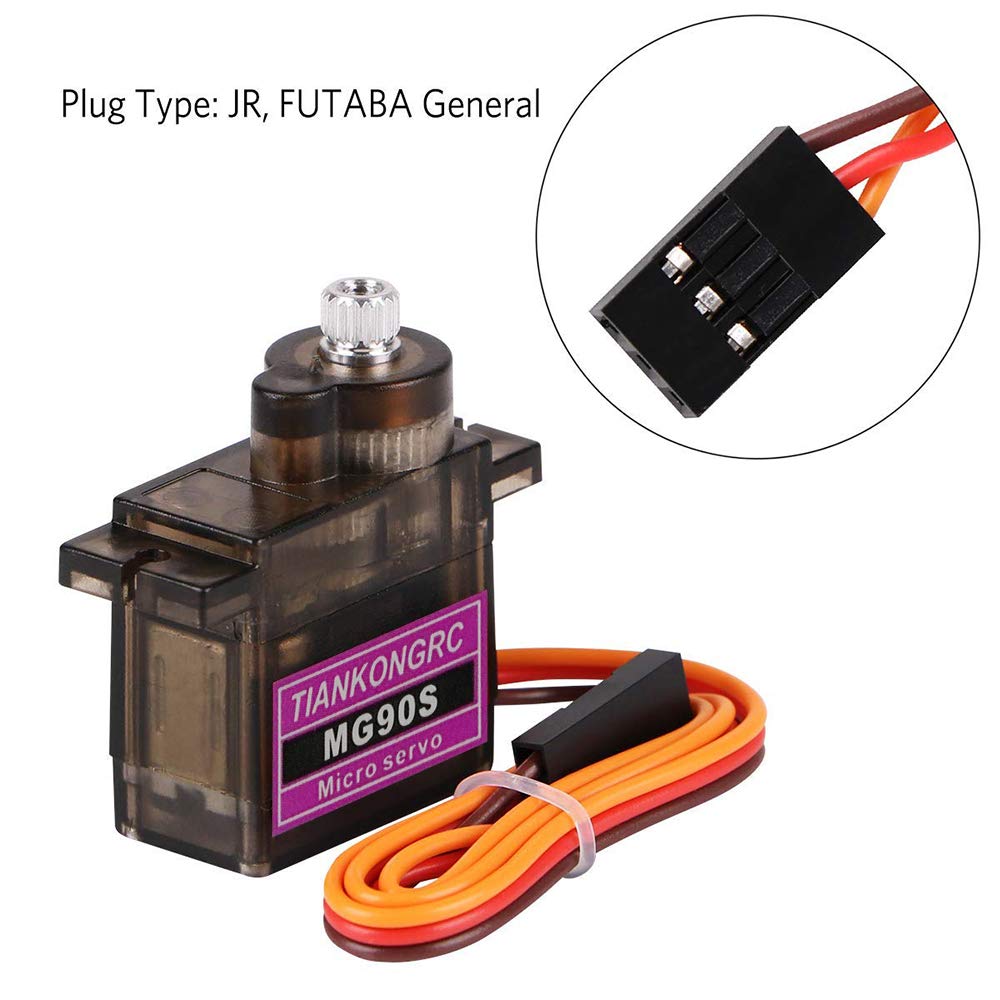

Connector 3-pin Female Header (Signal, VCC, GND)
Wire Length ~25 cm



Features:

  • 🔄 360° Continuous Rotation: Ideal for driving wheels or performing constant motion in robotic platforms.

  • ⚙️ Metal Gear Mechanism: Offers improved durability, longer life, and better torque transfer compared to plastic gear variants.

  • ⚡ Digital Control: Supports more accurate and stable response via digital pulse input.

  • ⚖️ High Torque in Compact Size: Delivers up to 2.2 kg·cm torque while weighing just 13.4g — perfect for mobile robot applications.

  • 🔧 Precise Speed & Direction Control: Easily controllable direction (CW/CCW) and speed via standard PWM signals.

  • 🧩 Universal Compatibility: Plug-and-play interface with common development boards (Pi, ESP32, STM32, etc.)

  • 🎯 Coreless Motor: Provides smoother motion and higher efficiency.

  • 🔌 Standard 3-Pin Connector: Compatible with most RC and embedded systems.

Description:

The MG90S 360° Continuous Rotation Servo is a compact and high-performance servo motor specially modified to allow continuous rotation in both directions. Unlike standard 180° servos, which are used for precise angular positioning, this continuous rotation version acts more like a geared DC motor with integrated speed and direction control, making it ideal for robotic drive systems, wheels, and automation platforms.

Built with metal gears for enhanced durability and strength, the MG90S 360° servo provides a robust solution for lightweight mobile robots and motion systems where both size and reliability are key. It accepts a standard PWM signal to control the speed and direction of rotation—varying the signal pulse allows you to spin the servo clockwise, counterclockwise, or stop it entirely.
