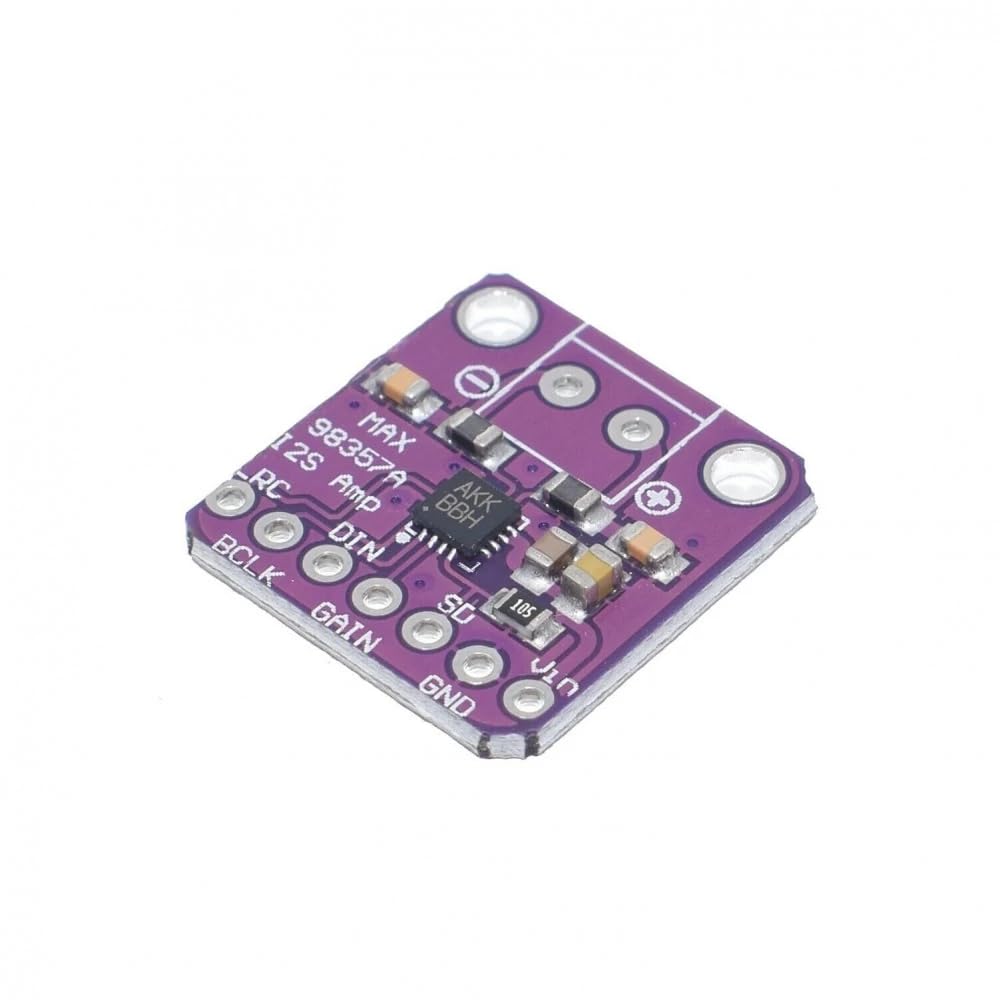

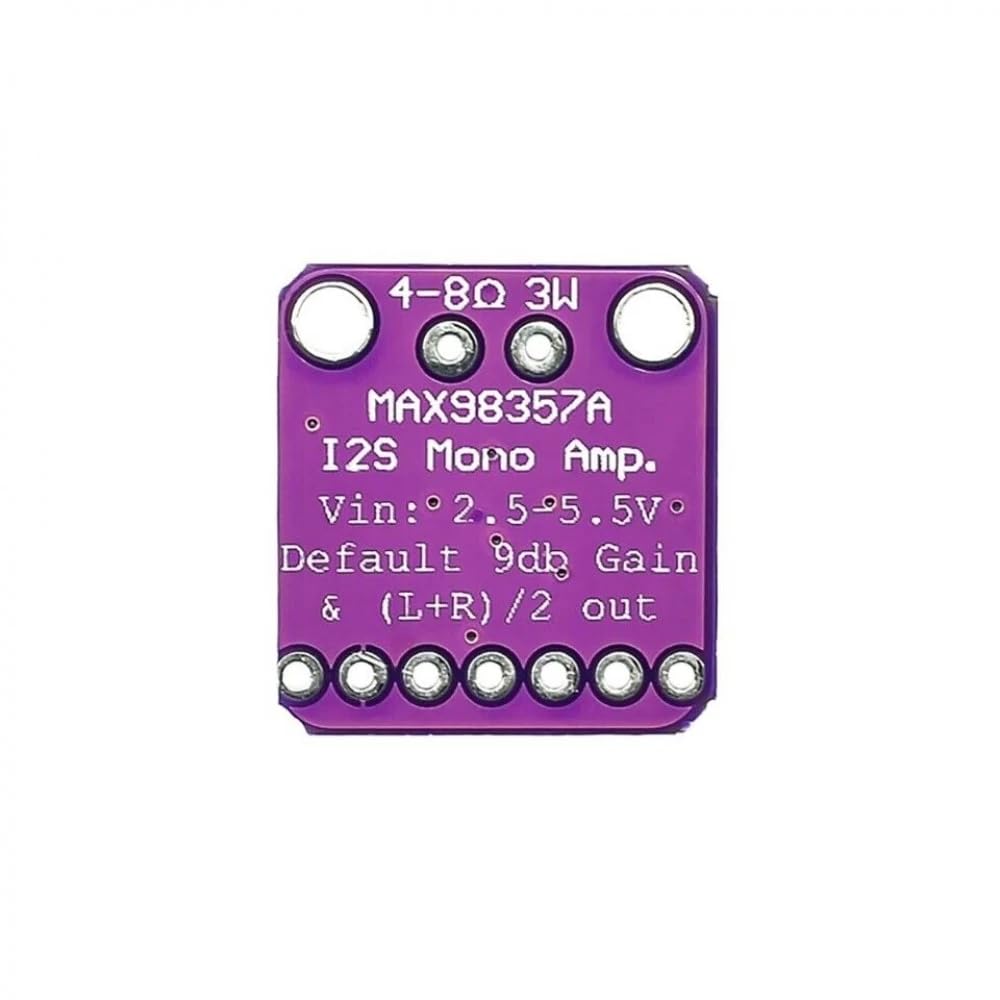

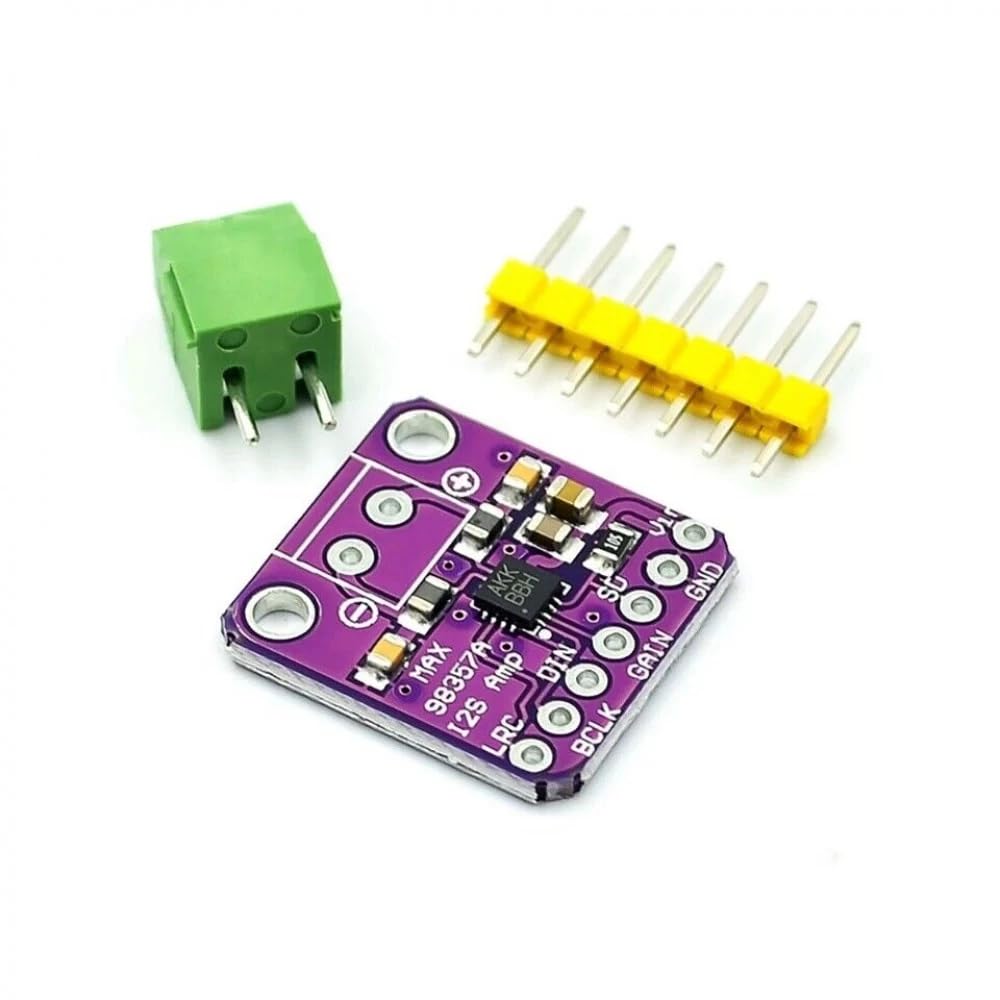

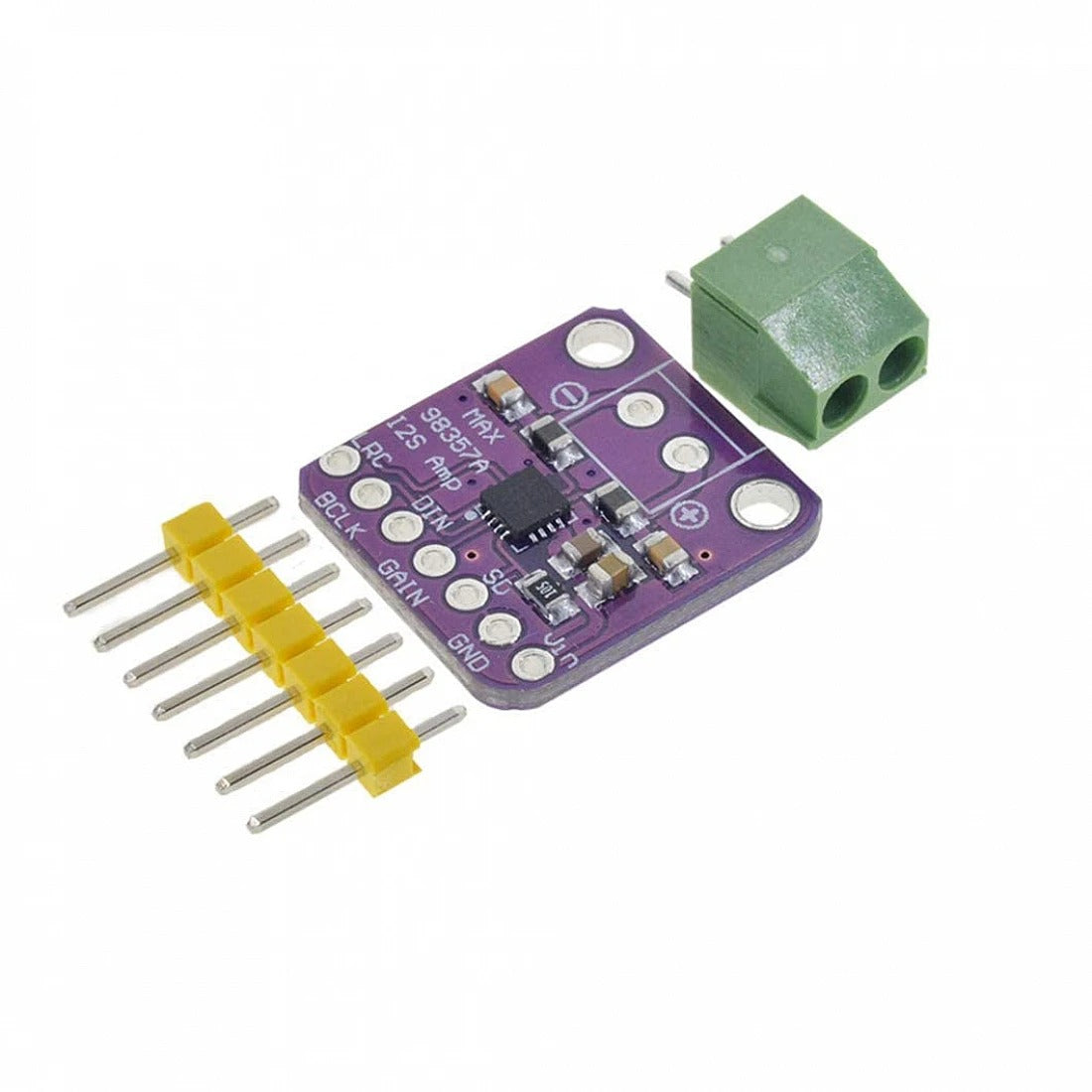

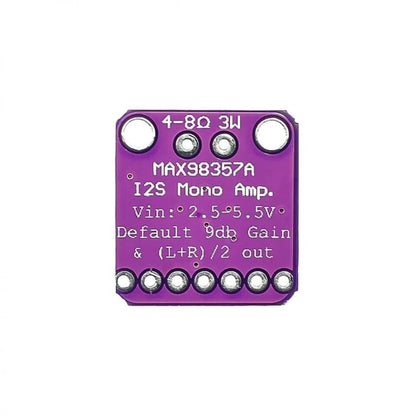

MAX98357 I2S 3W Class D Amplifier Interface Audio Decoder Module Filterless Board

MAX98357 I2S 3W Class D Amplifier Interface Audio Decoder Module Filterless Board

₹ 125.00
₹ 125.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Details
IC Used MAX98357A (by Maxim Integrated)
Amplifier Type Class D, mono, digital input
Audio Input Interface I2S (3-wire: BCLK, LRCLK, DIN)
Output Power Up to 3W @ 4Ω load, 5V supply
Output Type Mono (can be configured for Left, Right, or Mixed output)
Operating Voltage 3.0V to 5.5V (typically powered at 5V for full output)
Current Consumption ~20mA idle, higher during playback (depending on volume/load)
Output Load Impedance 4Ω – 8Ω speaker recommended
SNR (Signal-to-Noise Ratio) > 90 dB
THD+N (Distortion) < 0.1%
Efficiency > 85% (highly power-efficient, suitable for battery-powered use)
I2S Sampling Rates 8kHz to 96kHz supported
Channel Select Pins LRC and Gain pins (for configuring left/right/mixed modes)

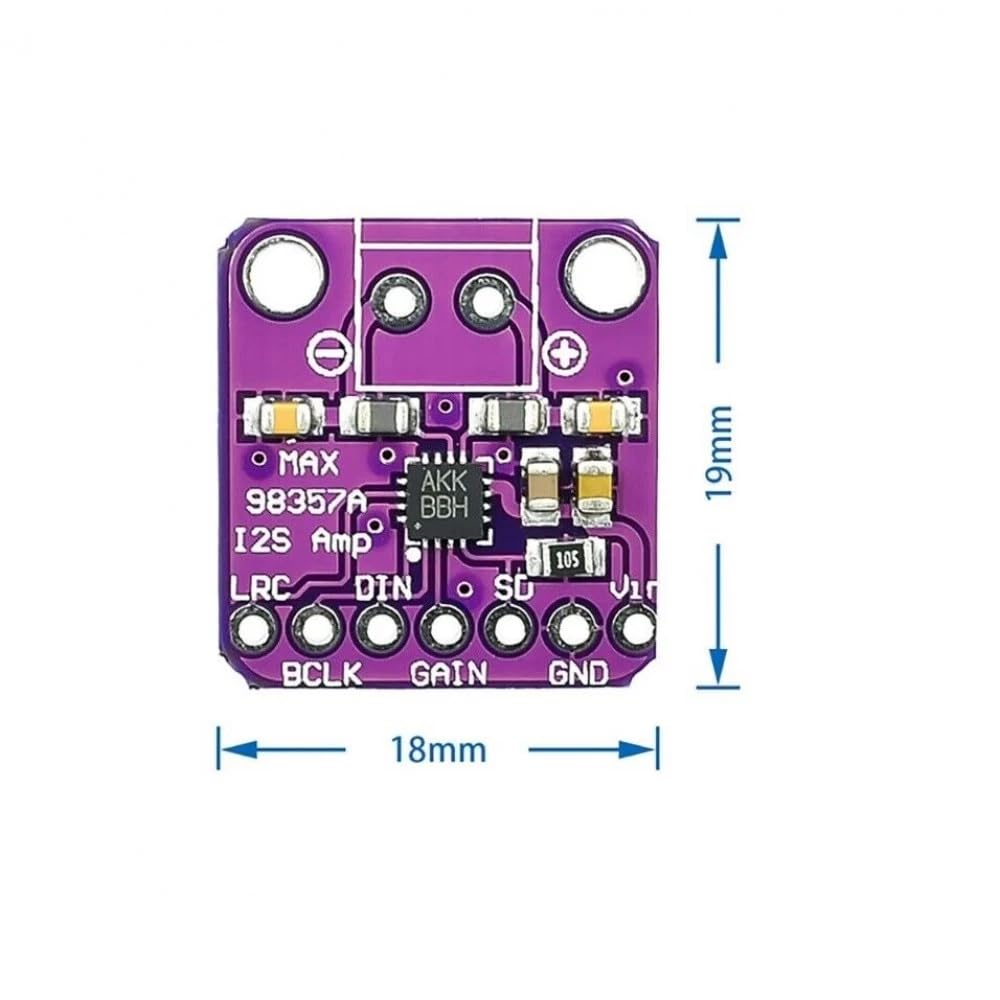

Dimensions ~16mm × 14mm × 4mm
Mounting Type Header pins (2.54mm pitch)
Protection Features Thermal overload, short circuit protection
Applications Smart speakers, voice assistants, IoT alarms, portable media players, speech synthesis projects



Features:

  • Digital audio amplifier with I2S input – ideal for ESP32, Pi, and others.

  • Delivers up to 3W of clean audio output to 4Ω speakers.

  • Filterless Class D design — no external filter caps or inductors required.

  • Ultra-low noise and high efficiency — perfect for battery-powered systems.

  • Configurable mono channel output: Left, Right, or L+R mix.

  • Compact and lightweight – perfect for space-constrained projects.

  • Excellent audio fidelity, minimal distortion, and reliable performance.

Description:

The MAX98357 I2S DAC Amplifier Module is a compact digital-to-analog audio decoder and amplifier that uses the I2S (Inter-IC Sound) protocol to directly receive digital audio signals from microcontrollers or development boards. It then amplifies the audio to drive a small speaker — up to 3W output power — using Class D filterless architecture, which is highly power-efficient and requires no external output filtering components.

The onboard MAX98357A IC by Maxim Integrated decodes I2S audio streams and provides mono output, with the ability to configure left/right/mixed channel output via onboard pin settings. The module is perfect for adding high-quality audio to compact, low-power projects such as smart speakers, IoT devices, talking gadgets, or media players.
