Specification:

Features:

• Internal integrated cold junction compensation circuit.

• Temperature signals can be converted into 12-bit digital.

• Embedded thermocouple break detection circuitry.

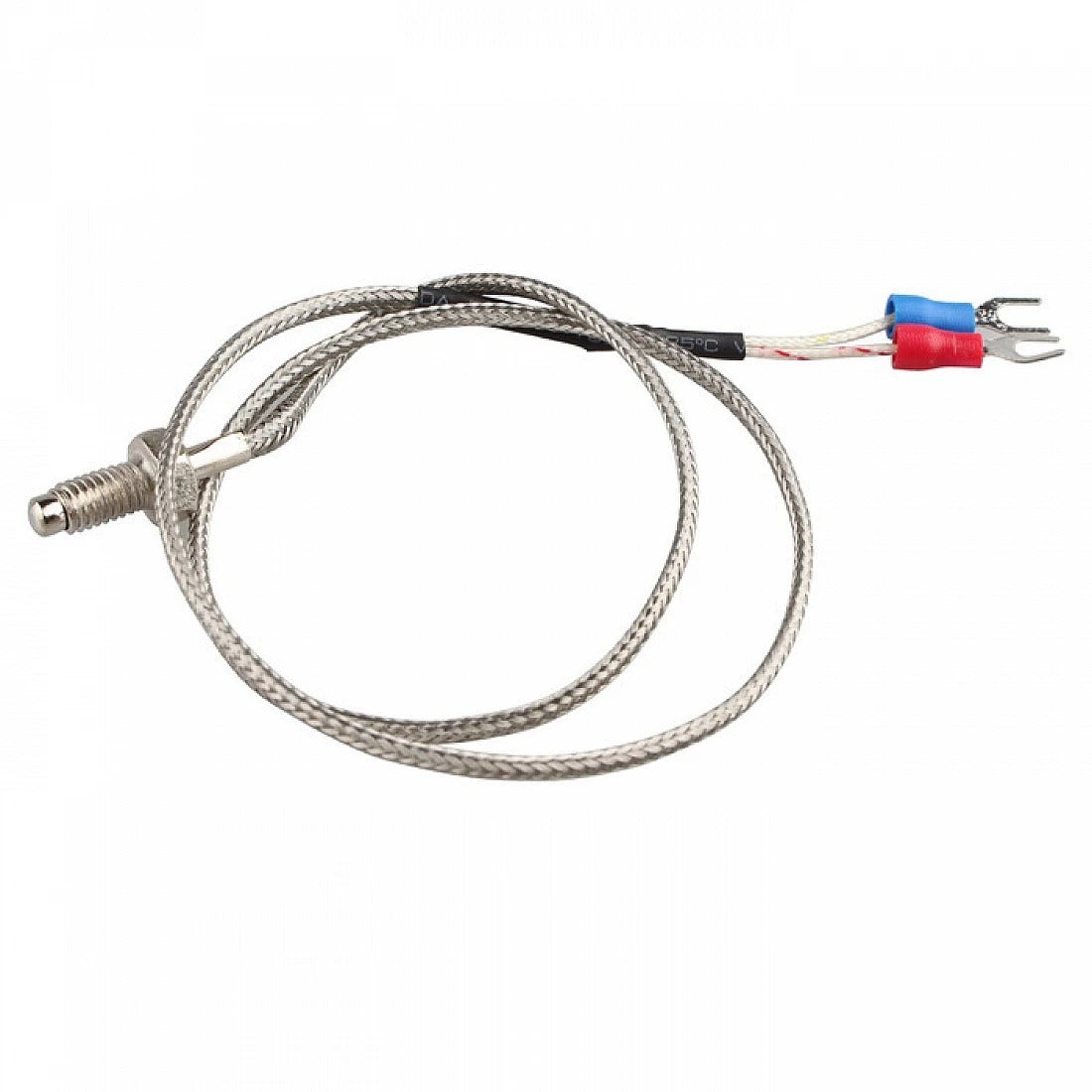

• K-type temperature probe.

• Simple SPI serial output temperature.

• High impedance differential inputs.

• Thermocouple break detection.

• 2000V of ESD signal.

• with fixed mounting holes for easy fixed installation.



  • Temperature measuring range: -2°C to 800 °C [Test procedure for 2-800 °C]



  • Temperature measurement accuracy: ± 1.5 °C



  • Storage temperature: -20 ~ 80 °C



  • Temperature resolution: 0.25 °C



  • The output mode: SPI digital signal



  • Working voltage: 3 ~ 5.5 V



• Operating Current: 50mA

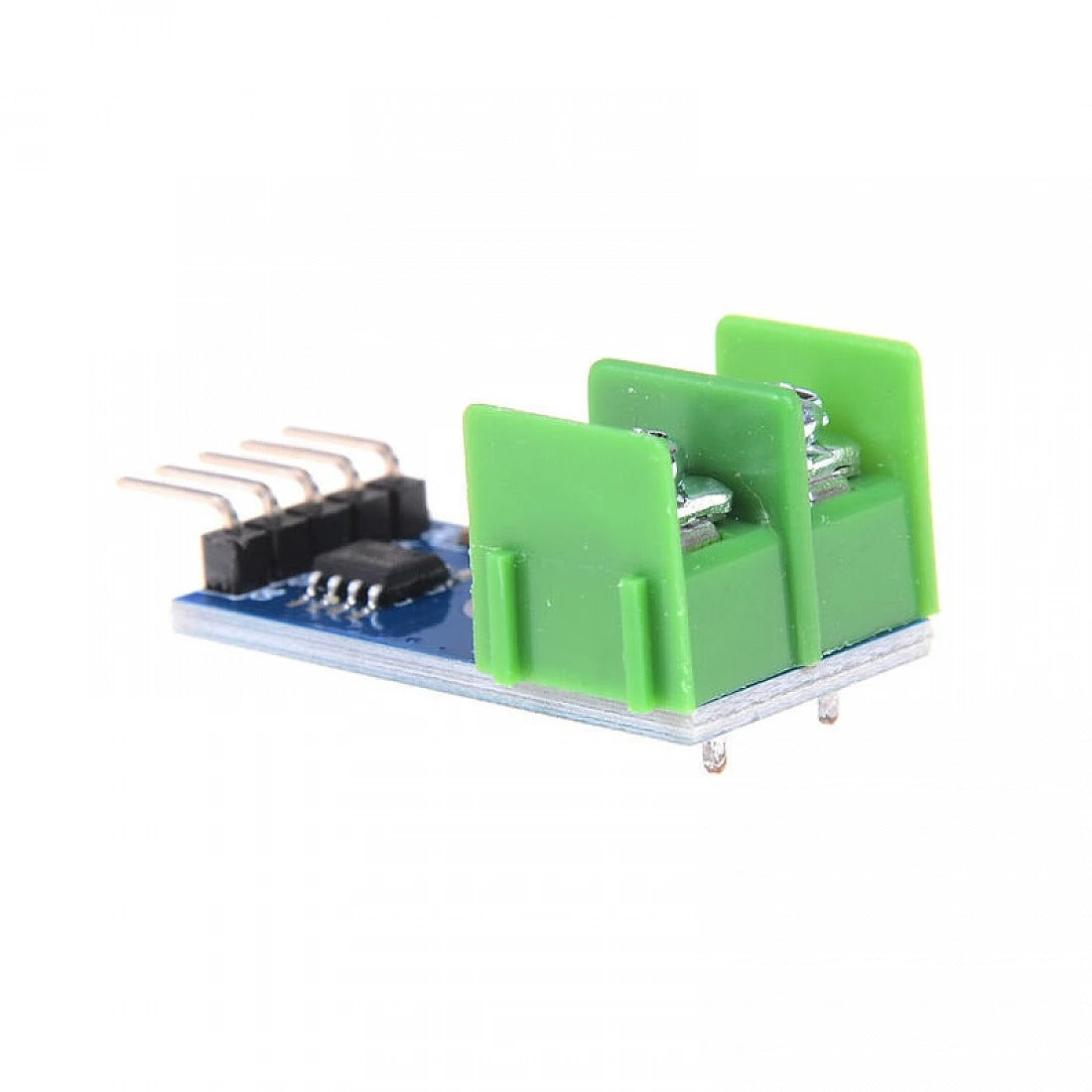

Description:

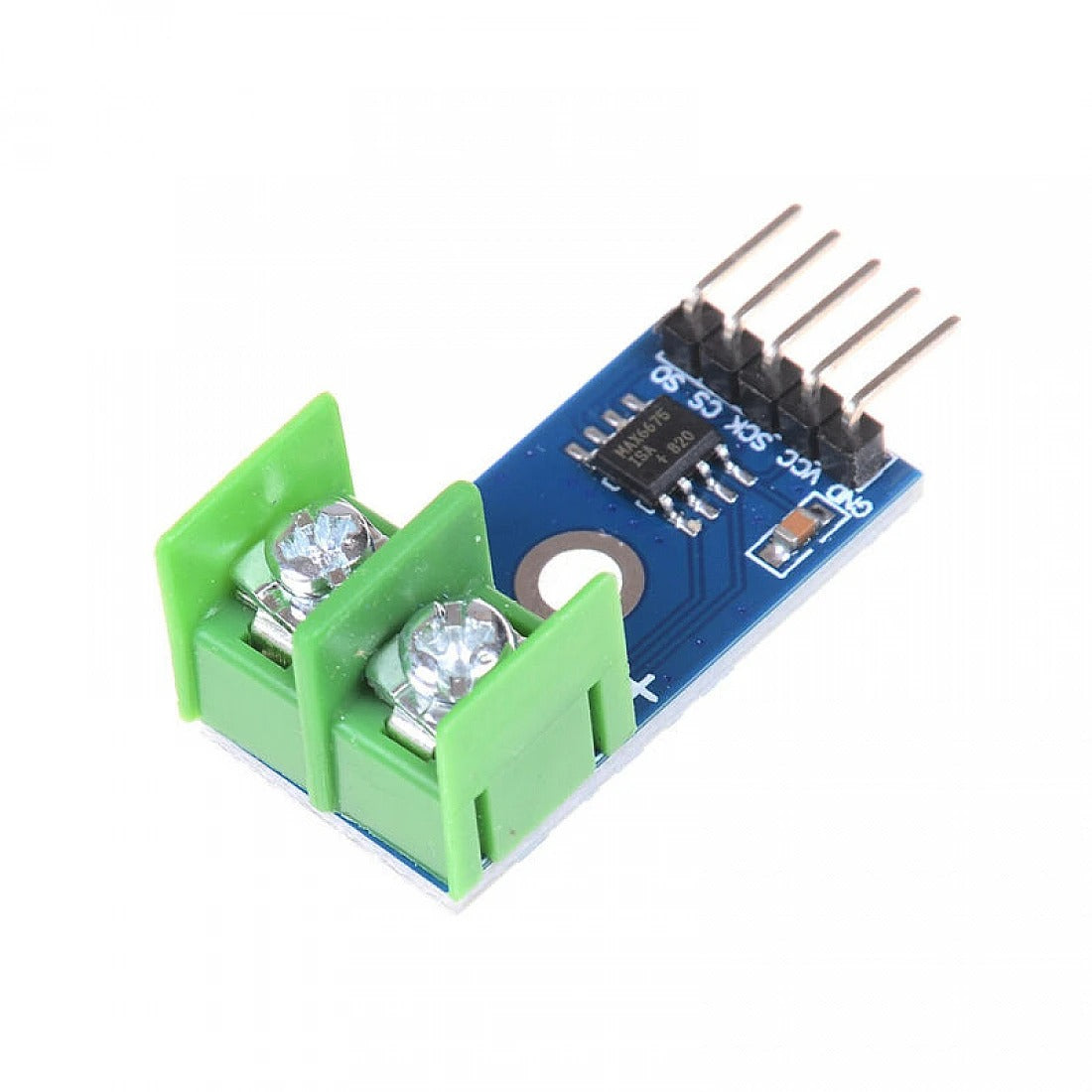

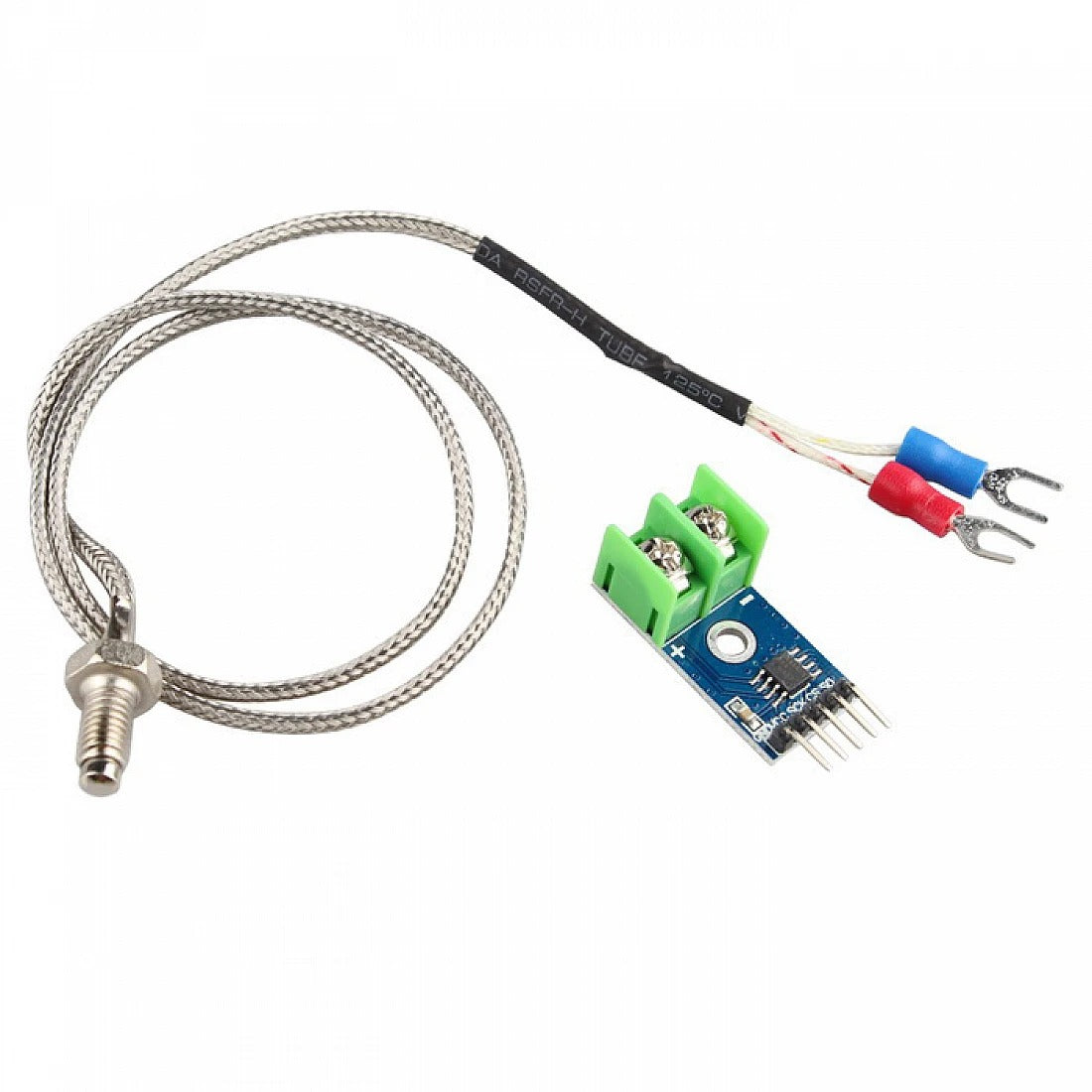

The MAX6675 module is a precise digital thermocouple temperature sensor module designed to measure high temperatures using a K-Type thermocouple. It combines the MAX6675 thermocouple-to-digital converter IC with a standard K-Type thermocouple probe, offering high accuracy and a wide temperature measurement range ideal for industrial and laboratory applications.

This module converts the analog signal from the thermocouple into a digital signal that can be easily read by microcontrollers like Arduino, ESP32, and Raspberry Pi via the SPI (Serial Peripheral Interface) protocol. It features a cold-junction compensation mechanism and a built-in 12-bit analog-to-digital converter (ADC) that provides reliable and stable readings without external calibration.

The MAX6675 module supports temperature measurements from 0°C to 1024°C (32°F to 1875°F) with a resolution of 0.25°C, making it ideal for high-temperature monitoring in furnaces, 3D printer hotends, heaters, or other thermal control systems.
