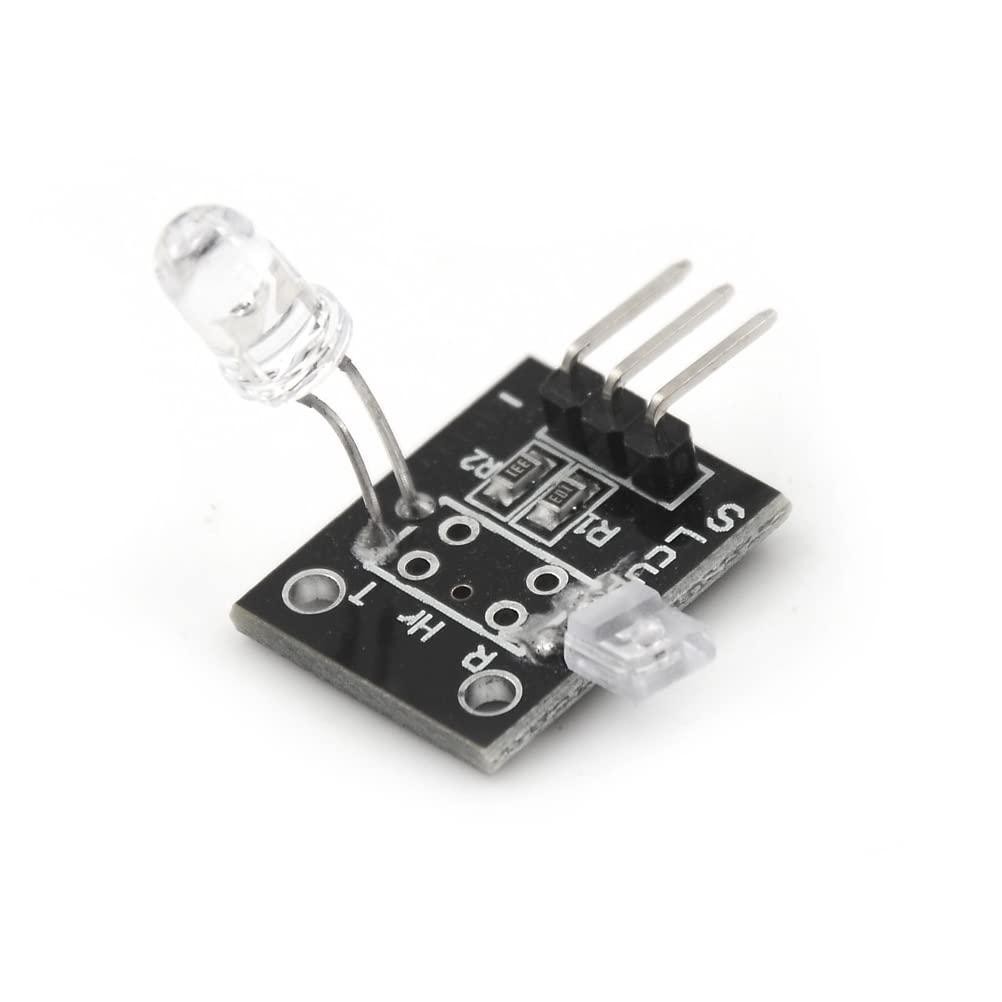

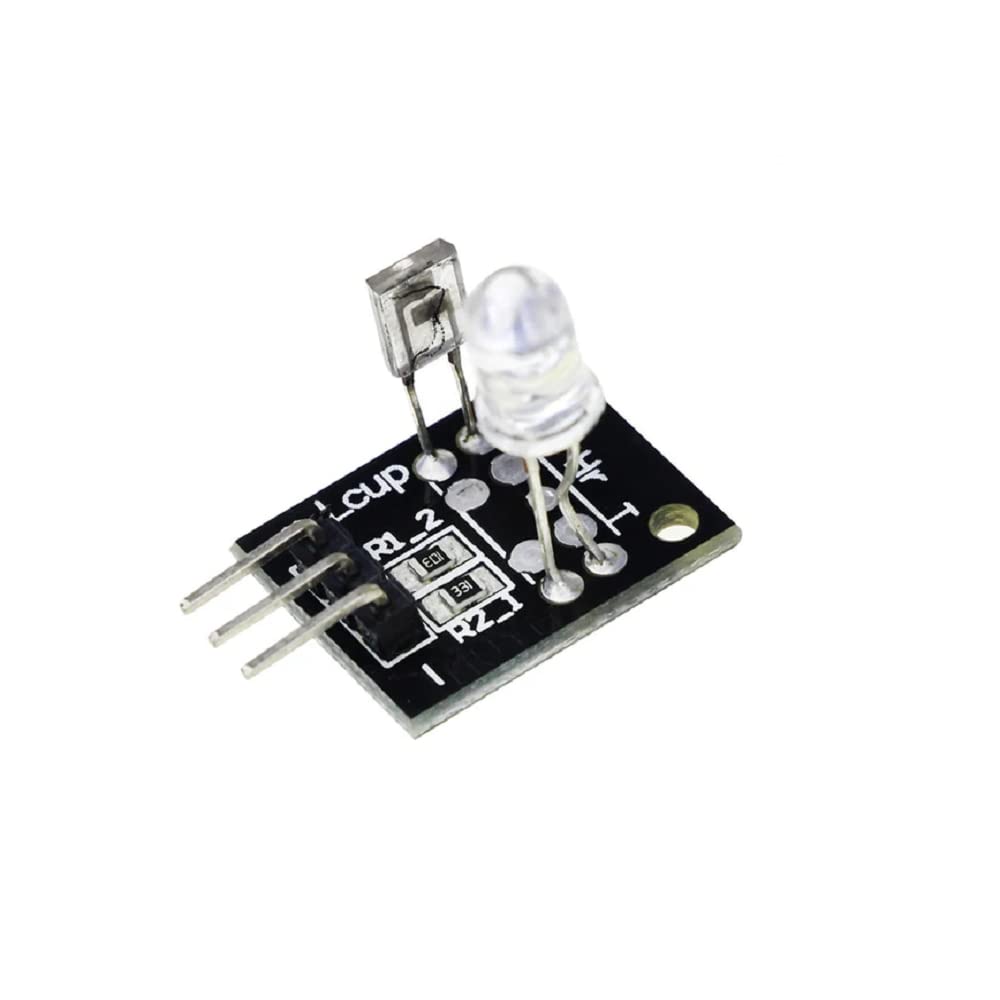

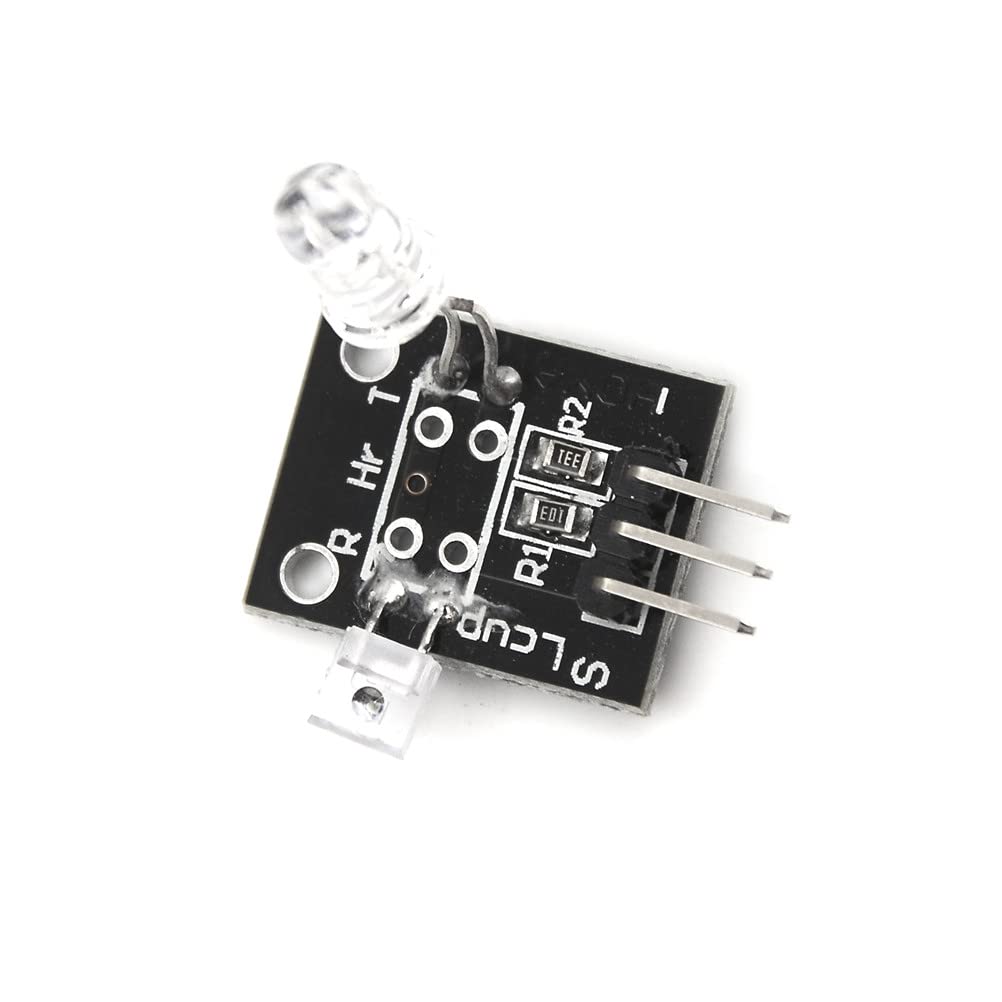

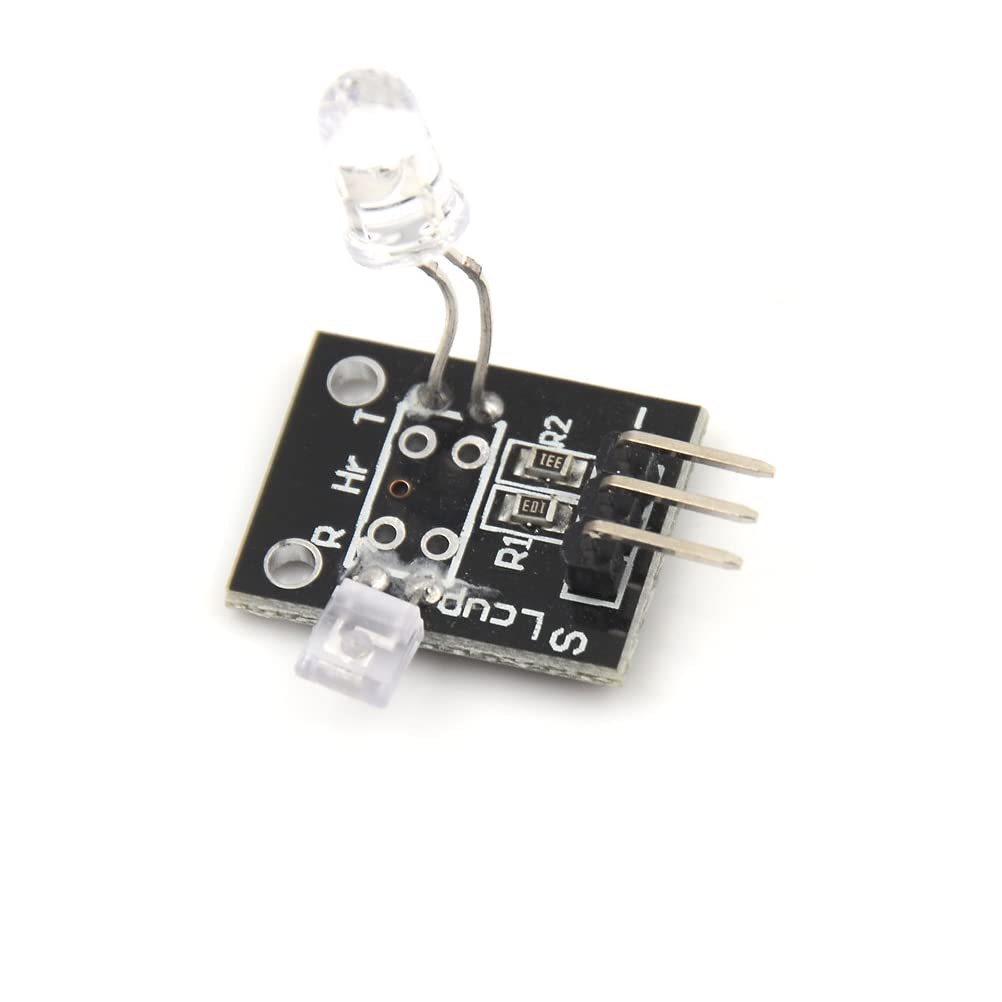

KY-039 KY039 Sensor Finger Heartbeat Measurement Sensor Module

KY-039 KY039 Sensor Finger Heartbeat Measurement Sensor Module

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Specification
Model KY-039
Sensor Type Finger Pulse Heartbeat Detection Sensor
Working Principle Photoplethysmography (PPG) – Uses IR Light Emission and Detection
Main Components IR LED (transmitter), Phototransistor (receiver)
Operating Voltage 3.3V to 5V DC
Output Type Analog Output (Voltage varies with heartbeat signal)
Interface Type 3-pin header (VCC, GND, Signal OUT)
Typical Use Detects pulse via changes in blood flow in finger
Signal Response Time Real-time (limited by microcontroller sampling rate)
Board Dimensions Approx. 18mm x 15mm
Mounting Type Through-hole module, suitable for breadboard use
Compatibility Arduino, Raspberry Pi, ESP8266/ESP32, and other microcontrollers
Applications Heartbeat monitoring, wearable devices, DIY biomedical electronics
Precautions



Features:

  • Use IR LED and an optical transistor to detect pulsation in fingers
  • Small and Compact module
  • Easy to use
  • M2 Mounting holes (centres 10mm apart)
  • Designed to be compatible with standard 2.54mm sockets

Description:

  • This KY-039 Finger Detection Heartbeat Measuring Sensor Module uses bright infrared (IR) LED and a phototransistor to detect the pulse of the finger, a red LED flashes with each pulse
  • The LED is the light side of the finger, and the phototransistor on the other side of the finger, phototransistor used to obtain the flux emitted, when the blood pressure pulse by the finger when the resistance of the phototransistor will be slightly changed.
  • We chose a very high resistance resistor R1, because most of the light through the finger is absorbed, it is desirable phototransistor sensitive enough. Resistance can be selected by experiment to get the best results.
  • The most important is to keep the shield stray light into the phototransistor. For home lighting that is particularly important because the lights at home mostly based 50HZ or 60HZ fluctuate, so faint heartbeat will add considerable noise.
