INMP441 Omnidirectional High Precision MEMS Microphone Module I2S Support

INMP441 Omnidirectional High Precision MEMS Microphone Module I2S Support

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Specification
Microphone Type MEMS (Micro-Electro-Mechanical Systems)
Model INMP441
Directionality Omnidirectional
Output Interface Digital I²S
Supply Voltage 3.3V (with onboard regulator)
Current Consumption 1.4 mA (typical)
Sensitivity -26 dBFS
Signal-to-Noise Ratio 61 dBA
Dynamic Range 100 dB
Frequency Response 60 Hz – 15 kHz
I²S Format 24-bit, 2’s complement, MSB first
Clock Type Master Clock not required (uses Bit Clock & Word Select)
Channel Selection Selectable Left / Right / Stereo (via L/R pin)
Operating Temperature -40°C to +85°C
Board Dimensions Approx. 15 mm × 13 mm

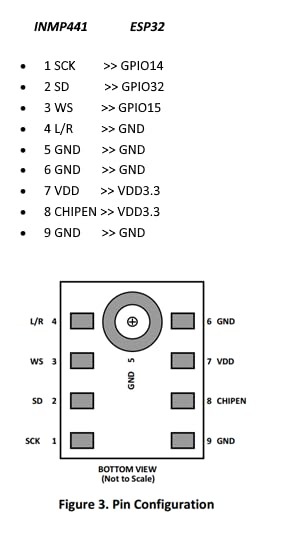

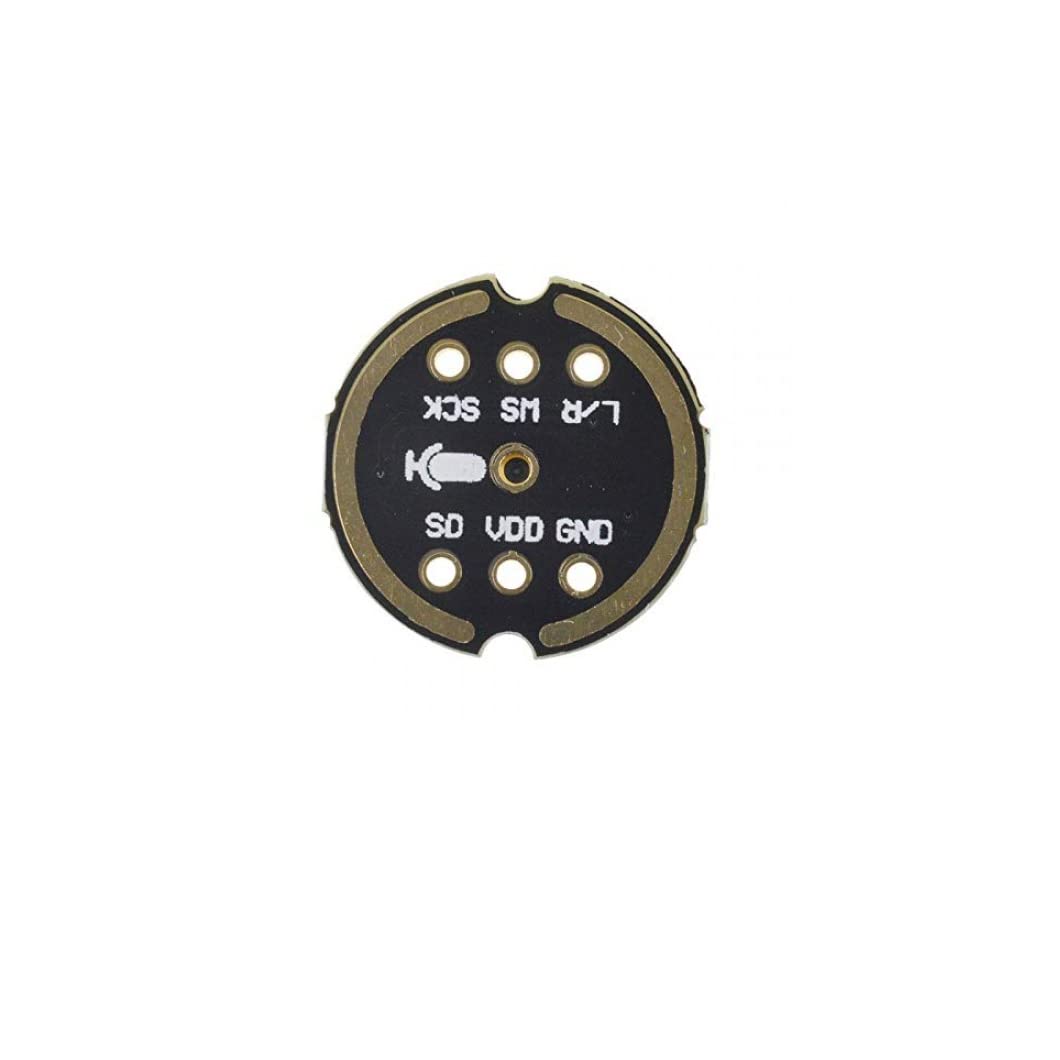

Pinout VCC, GND, WS (Word Select), SCK (Bit Clock), SD (Data), L/R



Features:

  • 🎙️ High-Precision MEMS Microphone: Based on the Analog Devices INMP441 sensor for professional-grade audio input.

  • 🔁 Omnidirectional Pickup: Captures sound from all directions, ideal for voice assistants and environmental sensing.

  • 🔊 Digital I²S Audio Output: No analog signal degradation — direct connection to microcontrollers with I²S support.

  • 🧠 Low Power, High SNR: Typical Signal-to-Noise Ratio (SNR) of 61 dBA ensures clean, high-quality audio.

  • ⚡ Voltage Compatibility: Operates at 3.3V with onboard regulation and logic-level compatibility.

  • 🔧 Configurable Channels: Selectable left/right/mono output via L/R pin configuration.

  • 📏 Small Form Factor: Easily fits into compact enclosures and wearable devices.

  • 🧰 Easy Integration: Compatible with ESP32, Raspberry Pi, Teensy, STM32, and other I²S-capable microcontrollers.

  • 🔒 Stable Operation: Robust PCB design with decoupling capacitors for noise filtering.

Description:

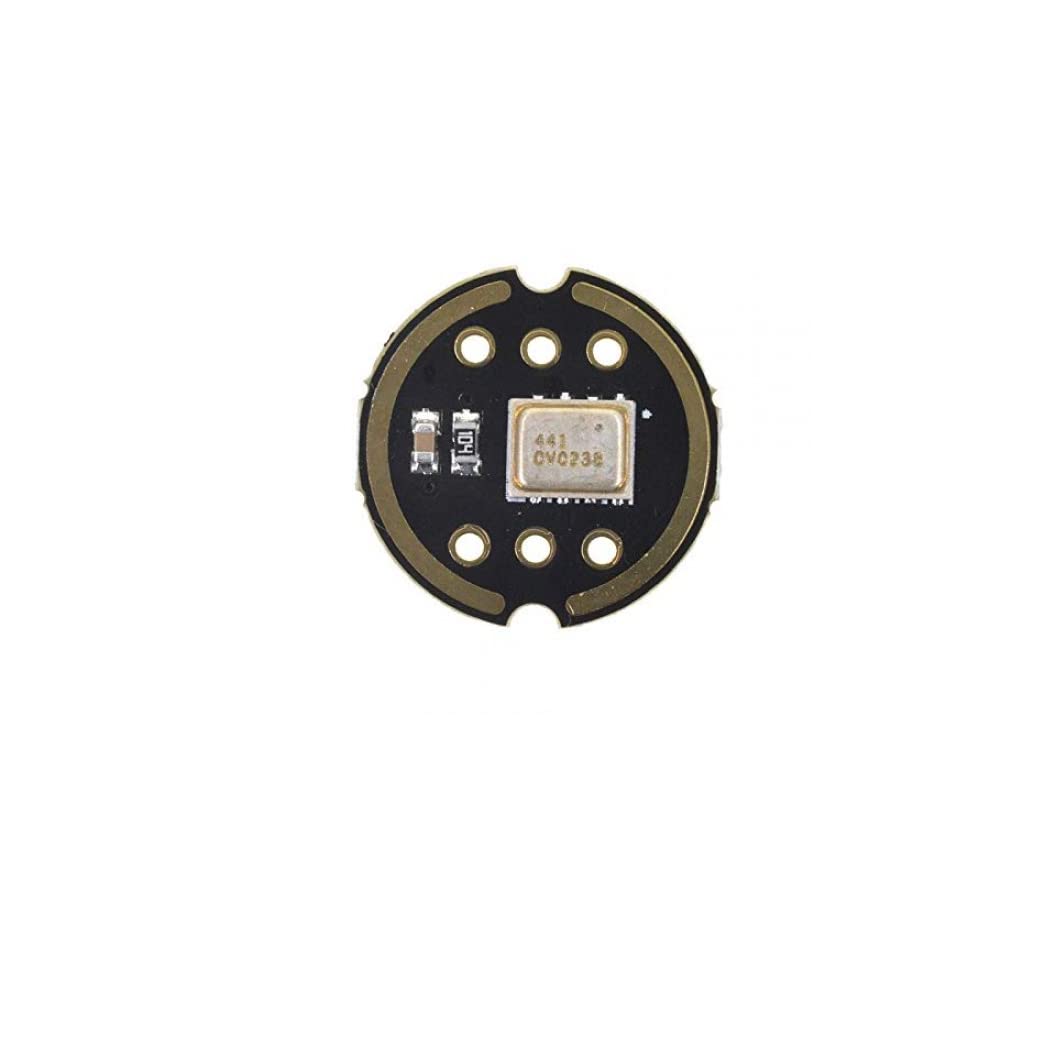

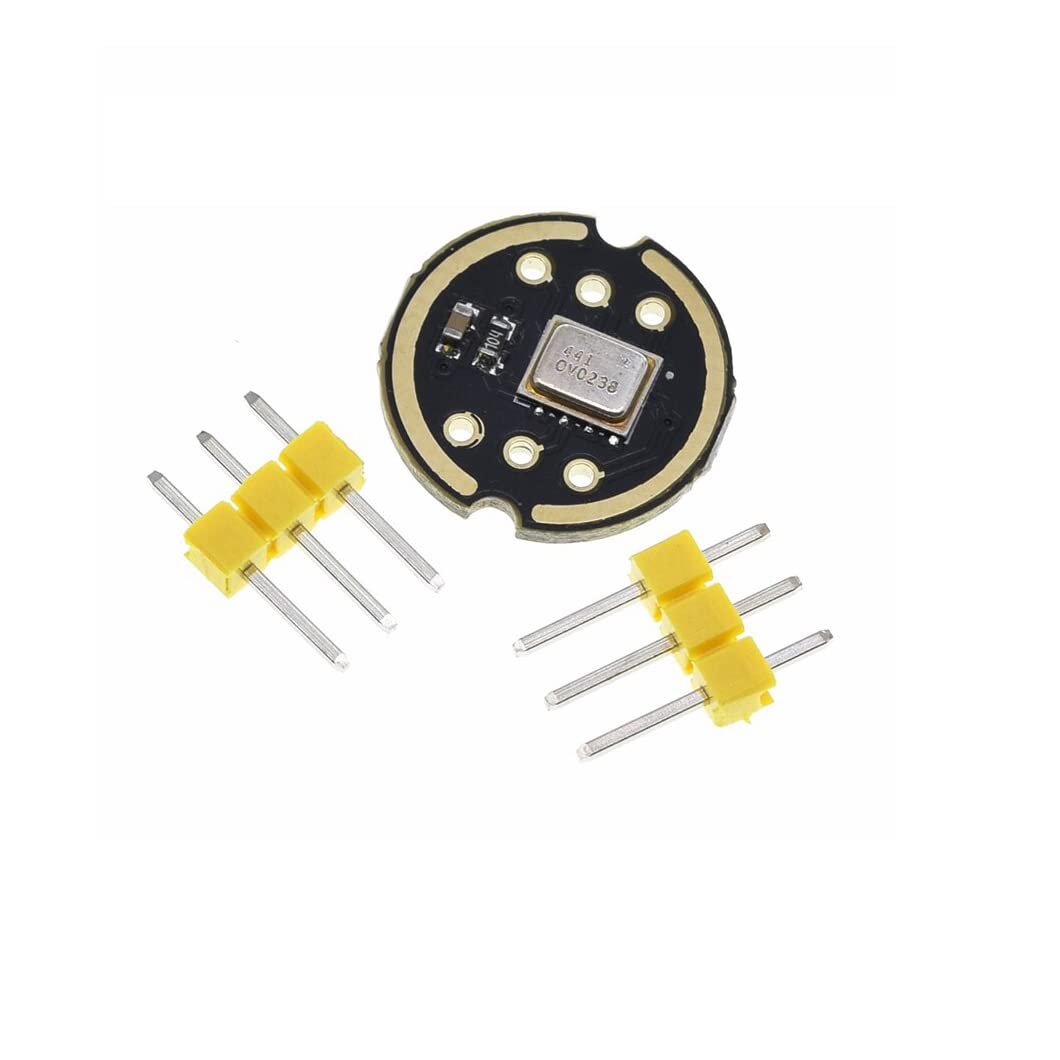

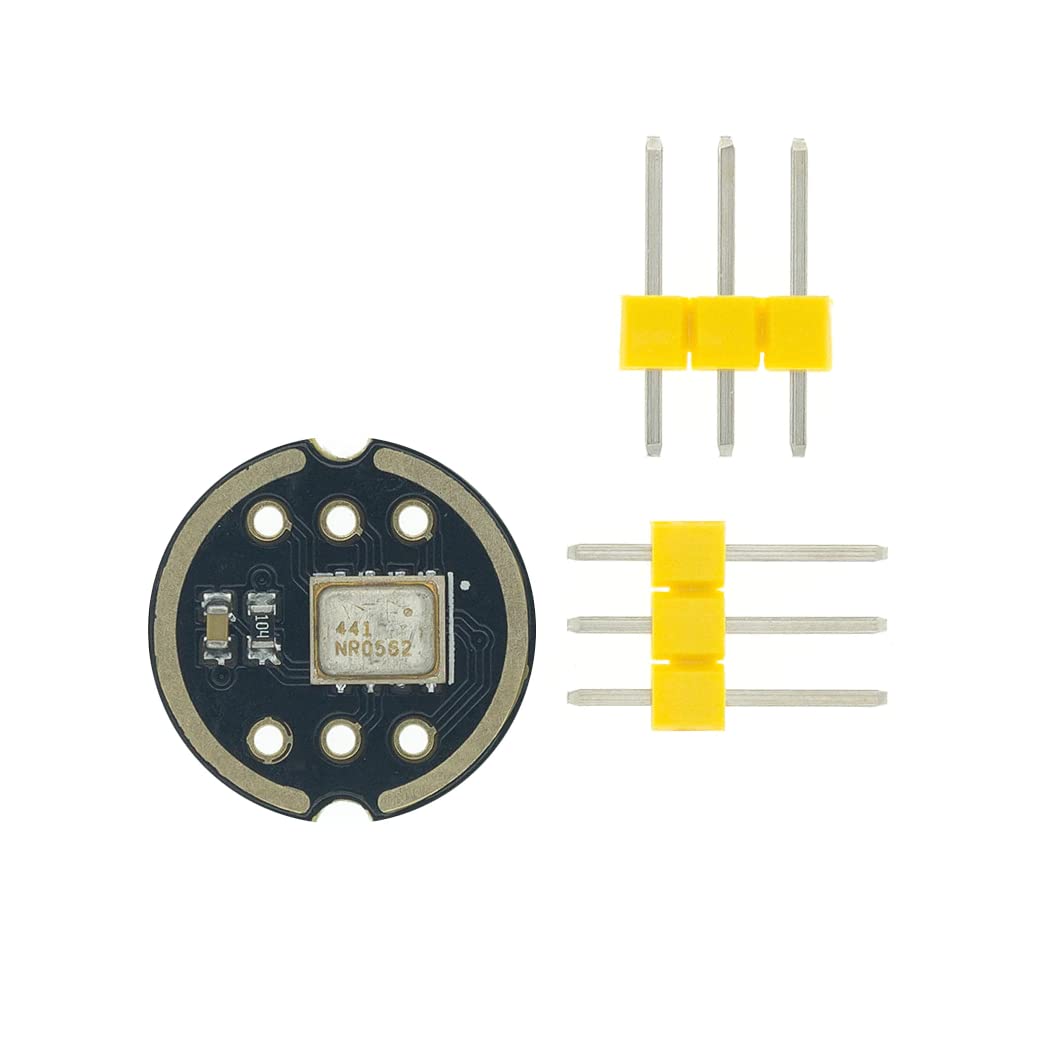

The INMP441 is a high-performance, omnidirectional MEMS microphone module designed for digital audio applications that require precise sound input and low latency. Built around the INMP441 MEMS sensor, this compact board outputs digital audio signals via the I²S (Inter-IC Sound) interface, eliminating the need for an external ADC (Analog-to-Digital Converter).

The INMP441 is highly sensitive, low-noise, and capable of capturing audio in real-time with excellent accuracy. Its omnidirectional pickup pattern makes it ideal for detecting sound from all directions, making it perfect for applications such as voice recognition, smart assistants, sound localization, audio recording, AI/ML voice analysis, and robotics.

With low power consumption, high signal-to-noise ratio, and compact form factor, the module is compatible with most modern microcontrollers and development boards, including ESP32, Raspberry Pi, STM32, and Arduino (with I²S support). The module features clearly labeled pins and onboard voltage regulation for stable 3.3V operation.
