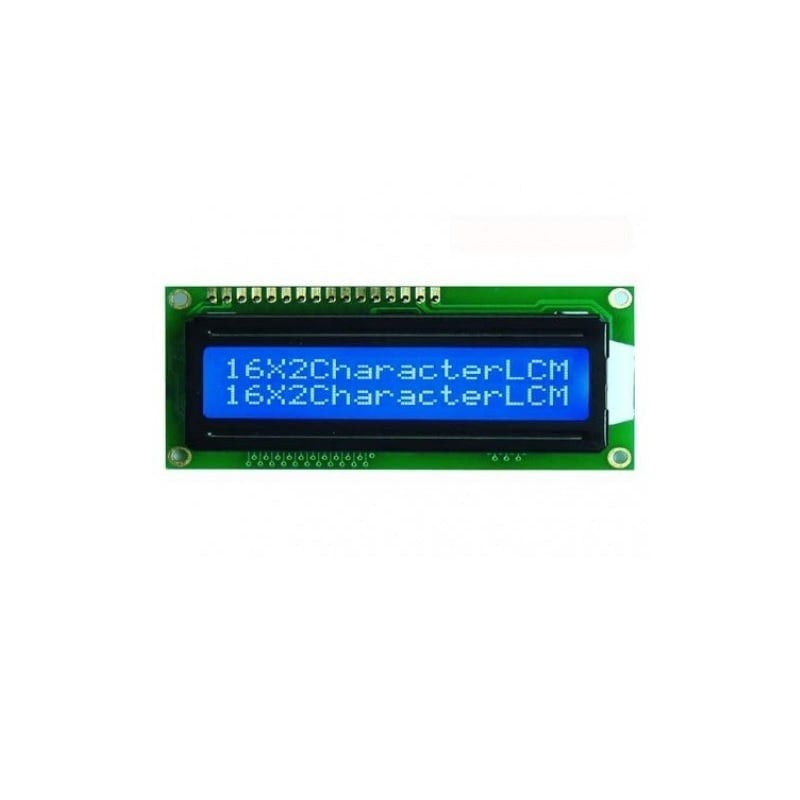

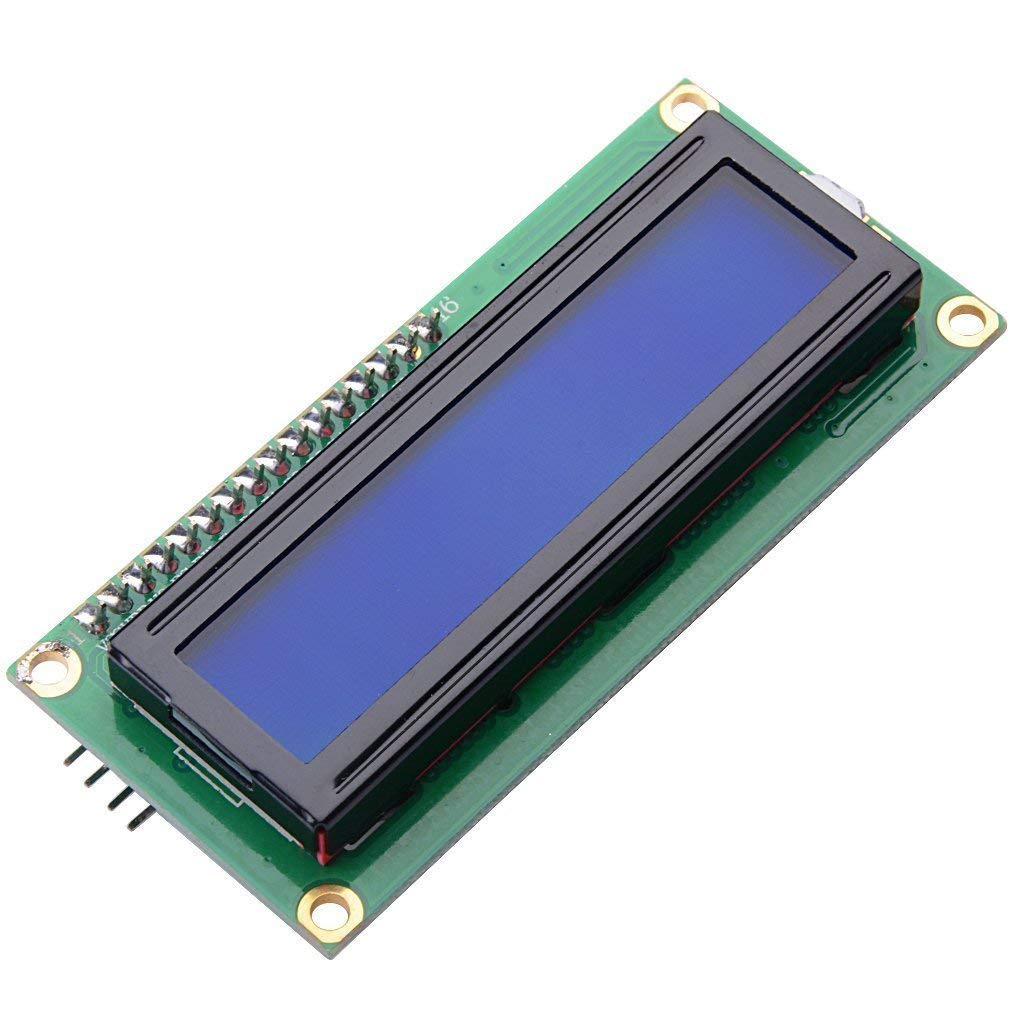

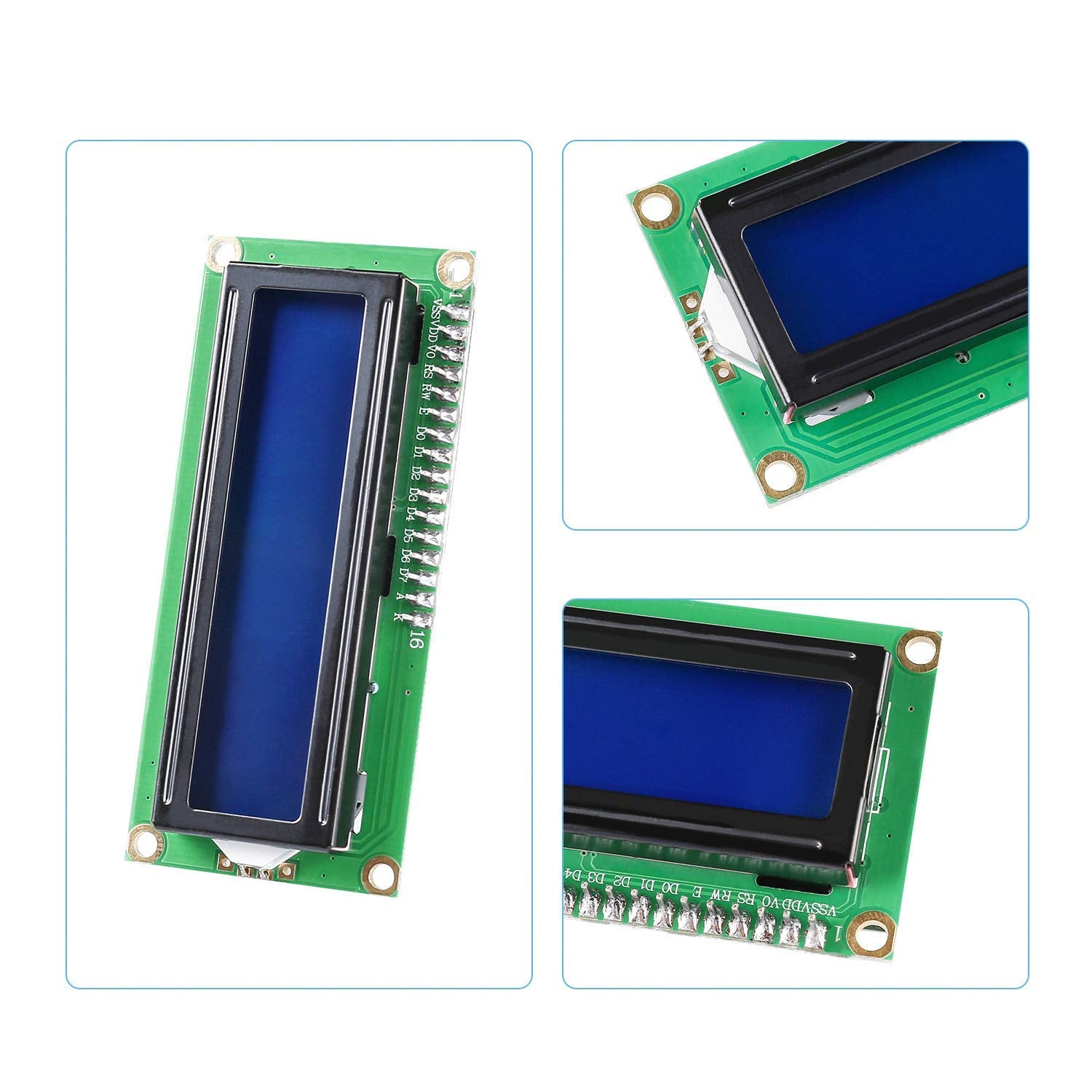

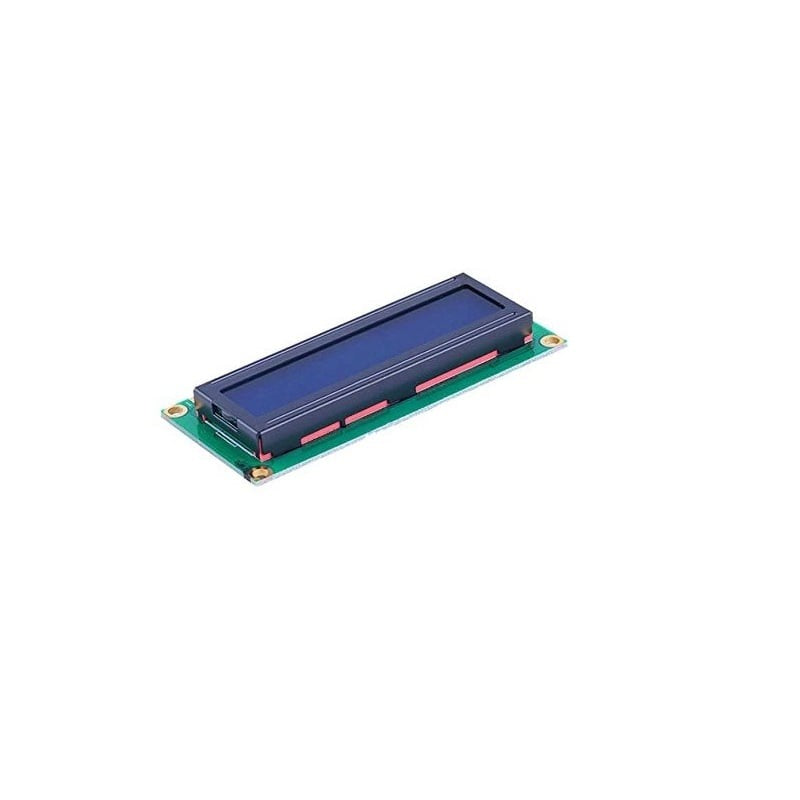

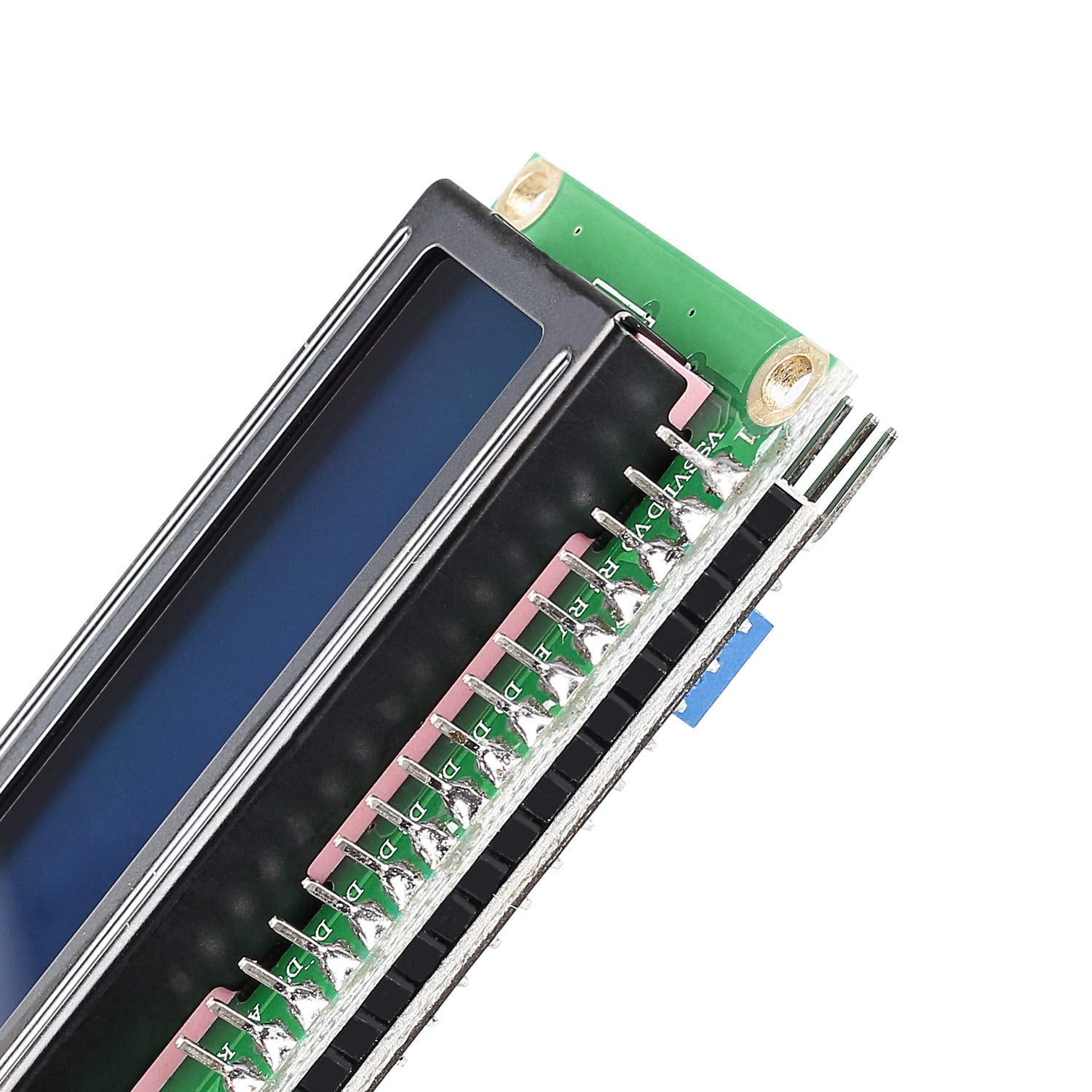

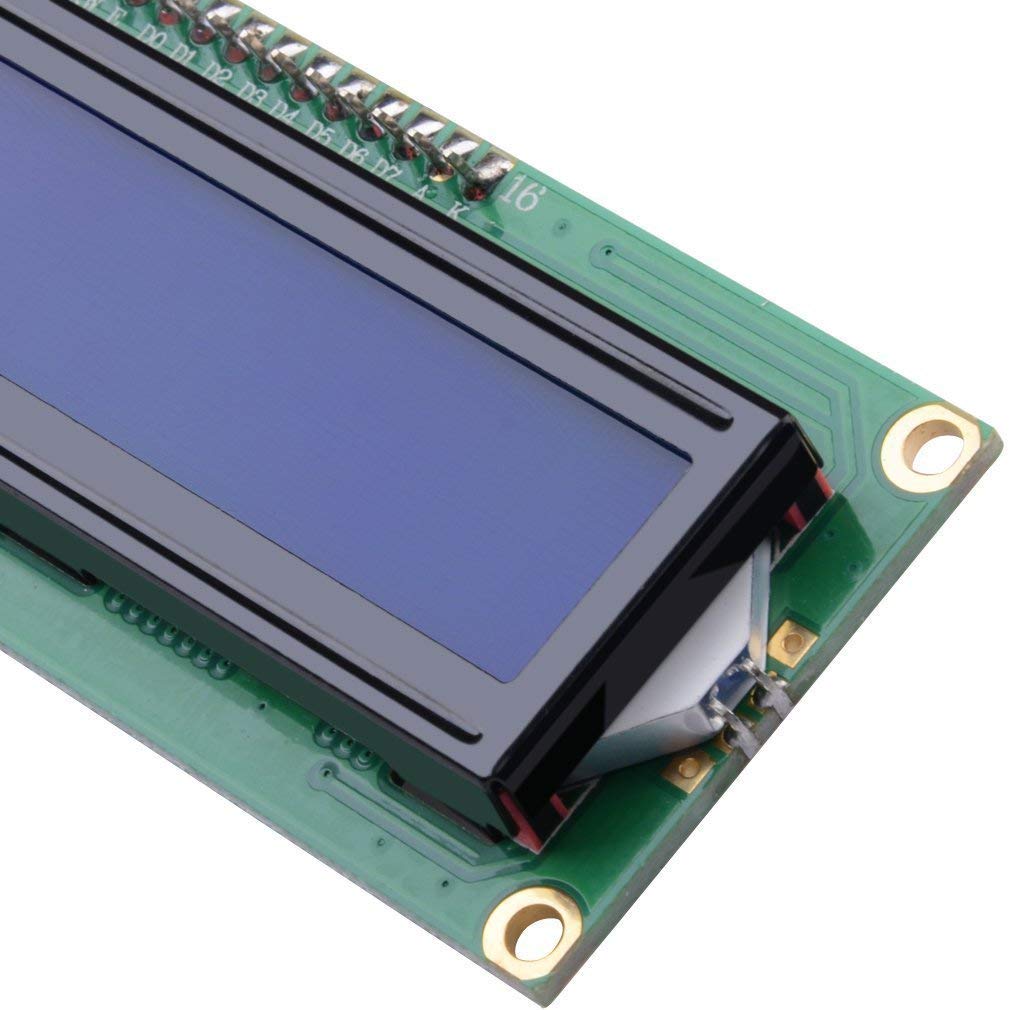

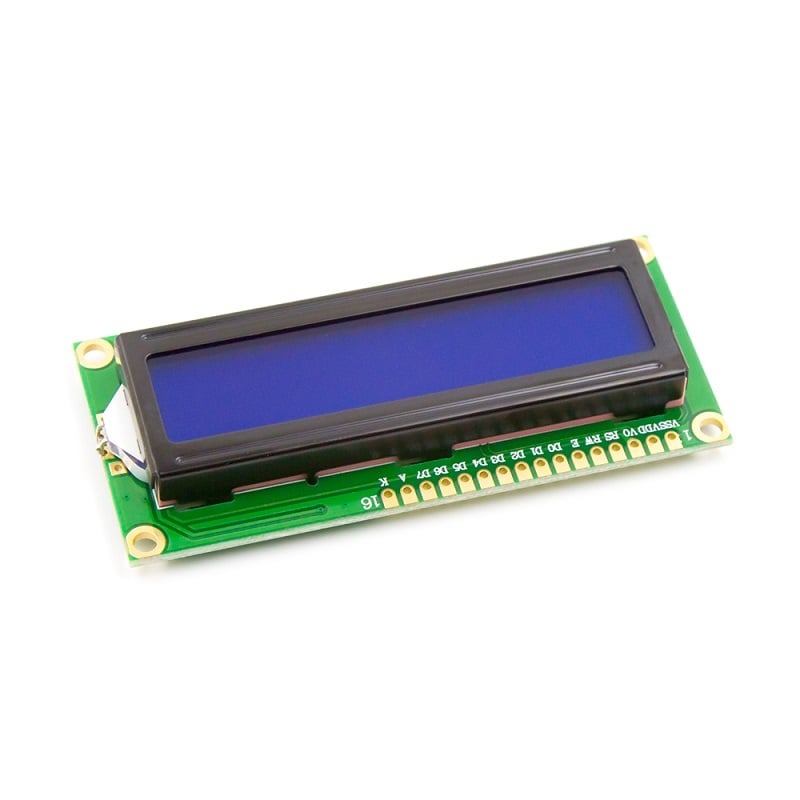

I2C TWI 1602 16x2 LCD Serial Interface Adapter Module with Blue Backlight Display Screen for Arduino R3 MEGA2560,Blue

I2C TWI 1602 16x2 LCD Serial Interface Adapter Module with Blue Backlight Display Screen for Arduino R3 MEGA2560,Blue

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Feature:

  • LCD display with i2c serial interface backpack; LCD screen can display 2-lines x 16-characters.built-in industry standard HD44780 equivalent LCD controller.
  • Working voltage: 5V; To come with a potentiometer, which is applied to adjust backlight and contrast.
  • Default Address: 0x27 for PCF8574T chip; 0x3F for PCF8574AT chip.
  • How to wire: GND—GND; VCC—VCC; SDA—A4; SCL—A5.
  • Application: LCD module is applied to display characters, letters, numbers, real time clock and temperature.

Specification:

Interface: I2C.

Display: 2-lines x 16-characters

Working Voltage: 5V

LCD controller: HD44780

Pin Definition: GND、VCC、SDA、SCL

How to wire: GND—GND; VCC—VCC; SDA—A4; SCL—A5

Default Address: 0x27 for PCF8574T chip; 0x3F for PCF8574AT chip; please check which chip you have on i2c interface.

Contrast Adjust: Potentiometer

Backlight Adjust: Jumper

Default Address: 0x27, 0x3F

Description:

The I2C 1602 LCD Display Module is a compact and energy-efficient display screen with 16 columns and 2 rows of alphanumeric characters. Featuring a built-in I2C/TWI serial interface adapter, this module significantly reduces wiring complexity by requiring only two data lines (SDA and SCL) to connect to microcontrollers like Arduino UNO, MEGA2560, Nano, ESP32, and others. Designed with a bright blue LED backlight and white characters, it is perfect for displaying text-based data such as sensor readings, time/date, system status, and debug information in embedded electronics projects. With IIC/I2C interface, it only takes two I/O port thus saving more for other usages. You can adjust the contrast by the potentiometer at its back. If you don’t want the backlight, you can also unplug the jumper cap at the LCD back.
