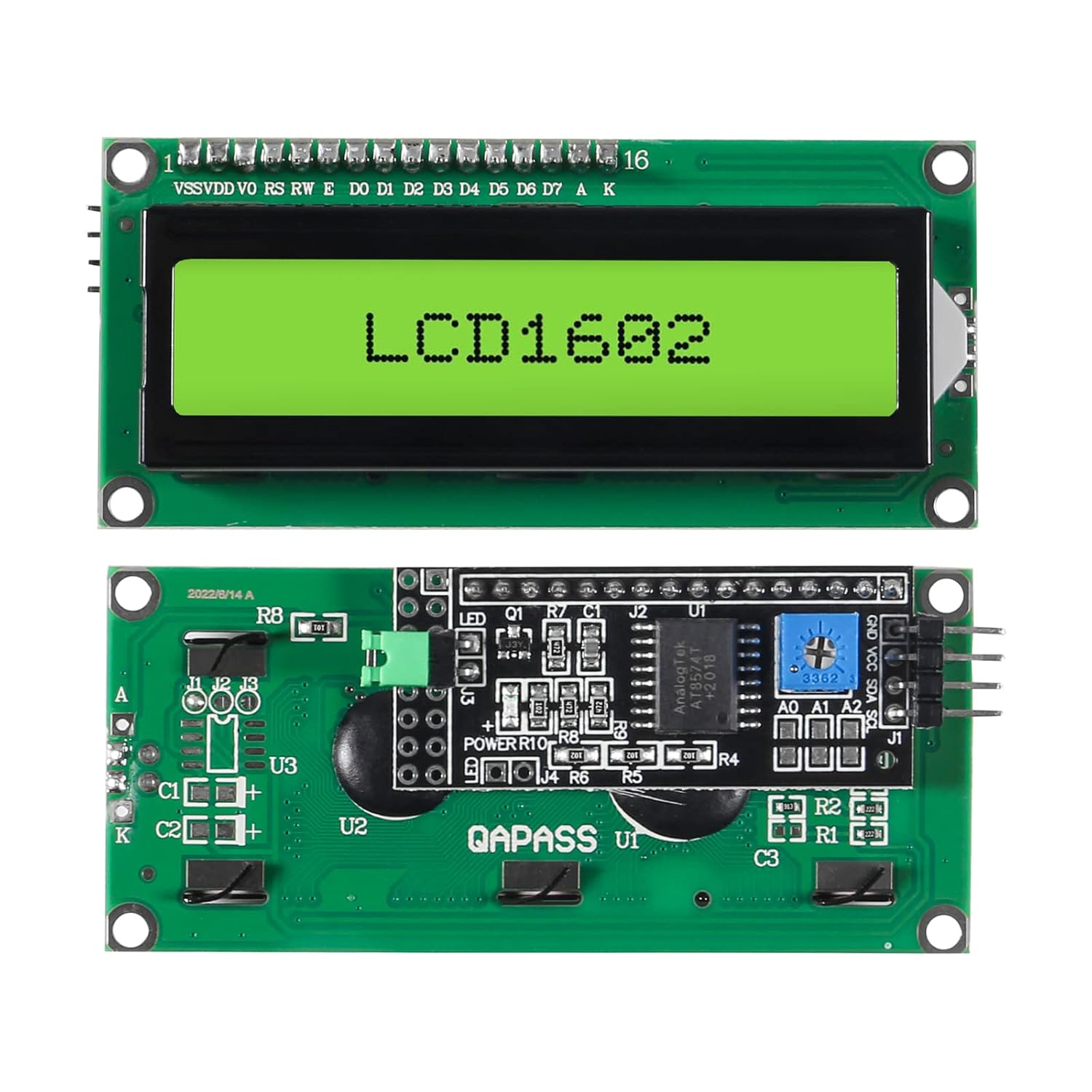

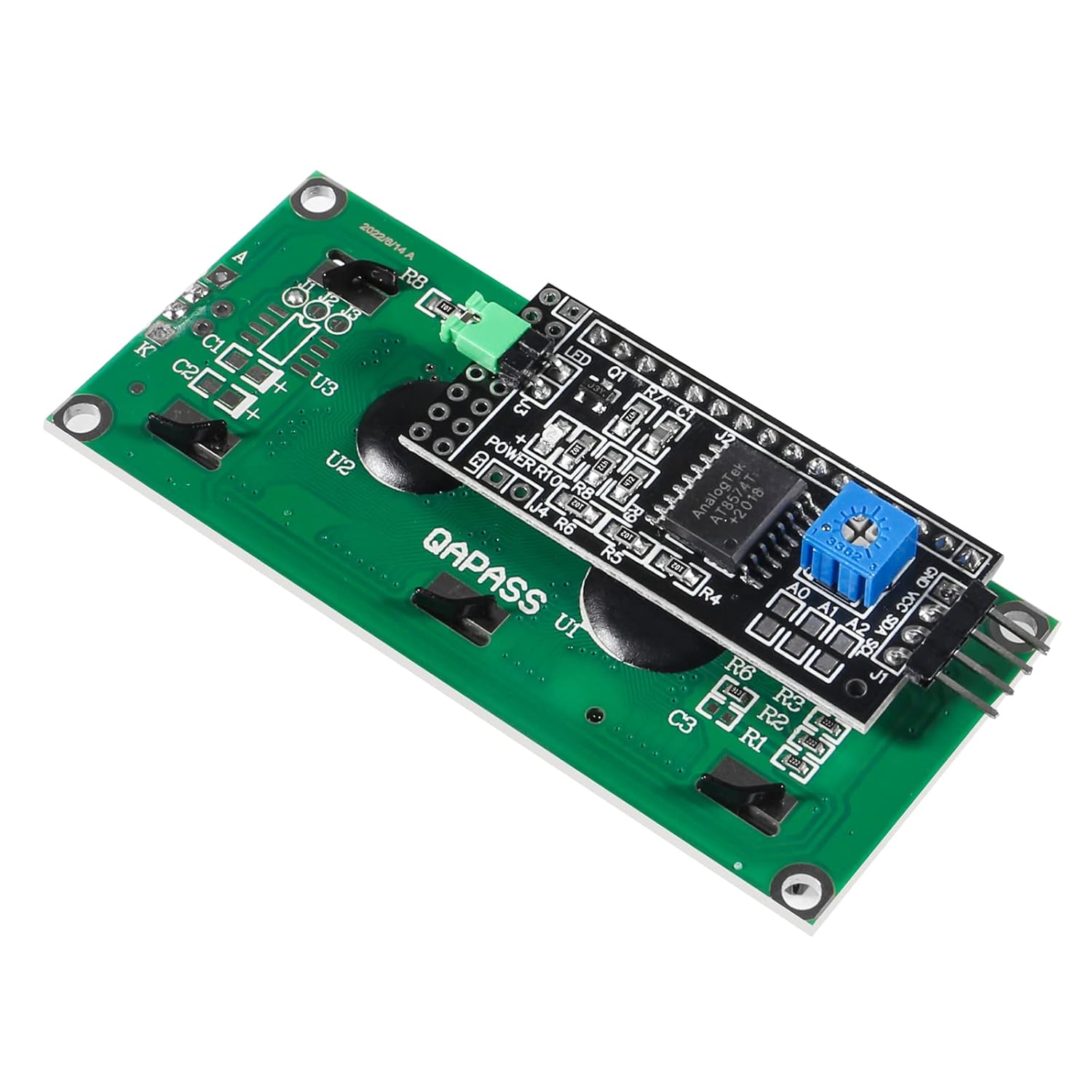

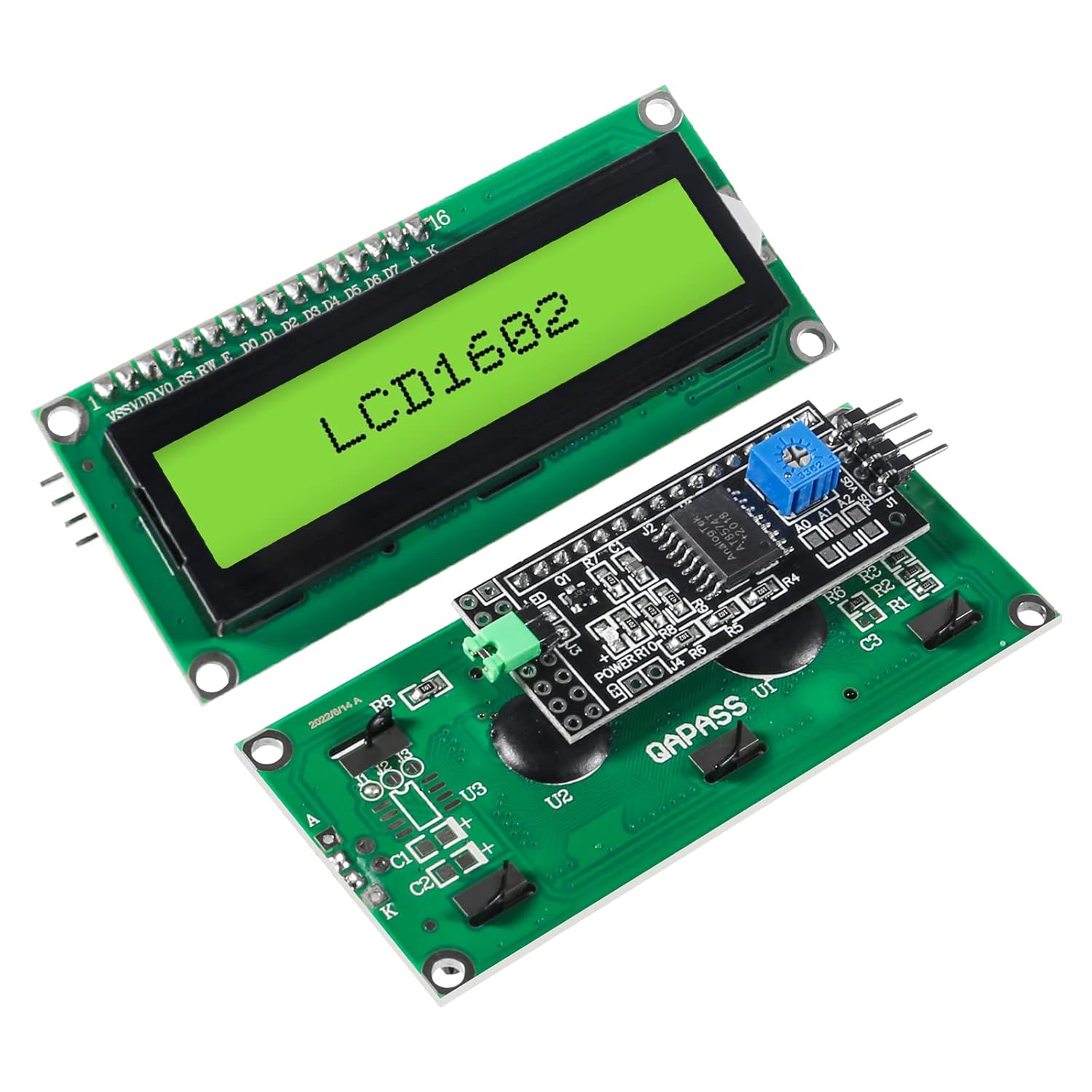

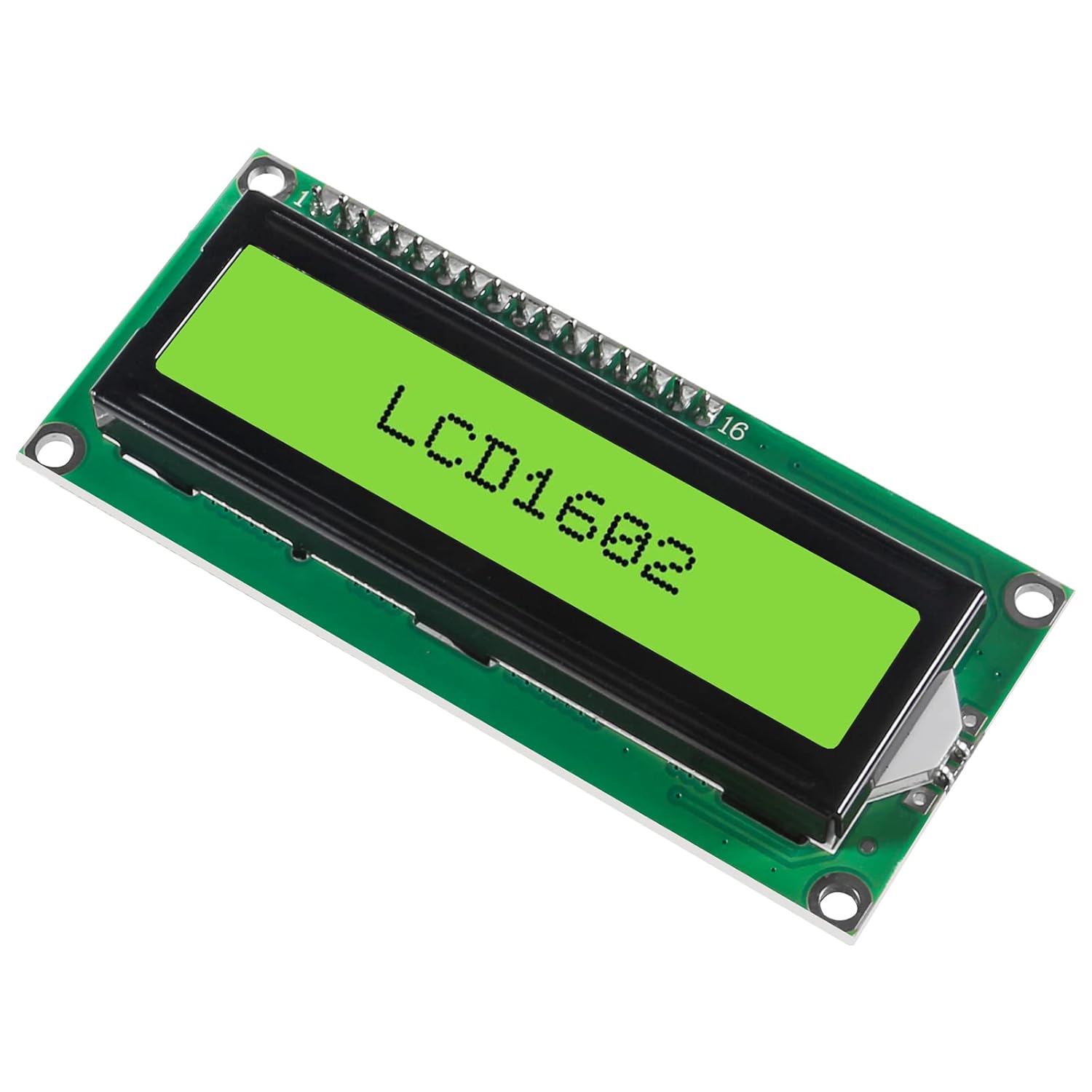

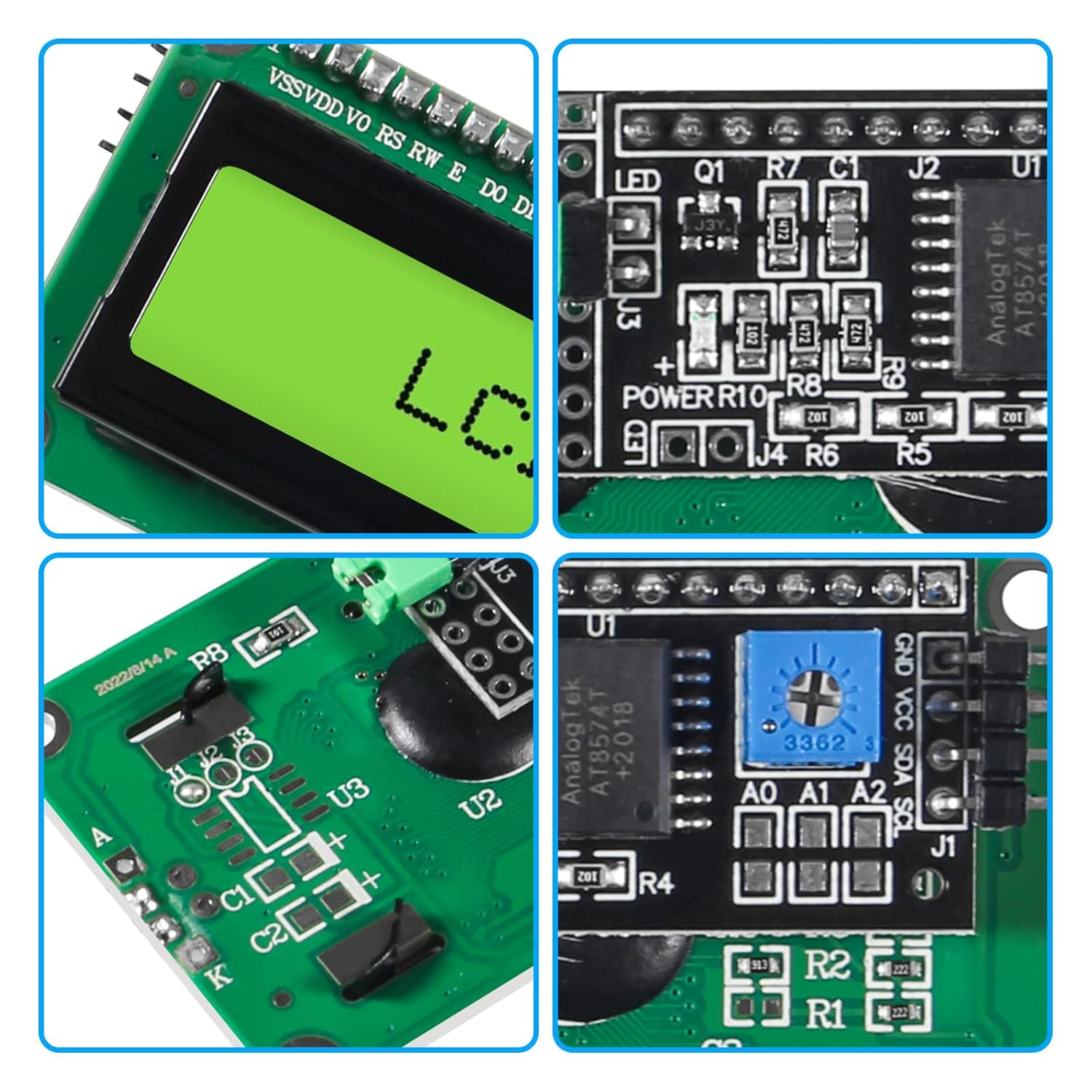

I2C 1602 LCD Display Module 16X2 Character Serial Green Screen Backlight LCD Module Compatible with Raspberry Pi Arduino STM32 R3 MEGA2560

I2C 1602 LCD Display Module 16X2 Character Serial Green Screen Backlight LCD Module Compatible with Raspberry Pi Arduino STM32 R3 MEGA2560

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp
Parameter Specification
Display Type 16x2 Alphanumeric LCD (16 characters × 2 lines)
Backlight Color Green LED with Black Characters
Interface I2C / TWI (2-wire serial interface)
I2C Chip PCF8574 I/O Expander
Default I2C Address 0x27 (may vary to 0x3F)
Operating Voltage 5V DC
Current Consumption < 20 mA (with backlight ON)
Communication Pins SDA (Data), SCL (Clock)
Adjustable Contrast Yes, via onboard potentiometer
Backlight Control Yes, via jumper or programmatically

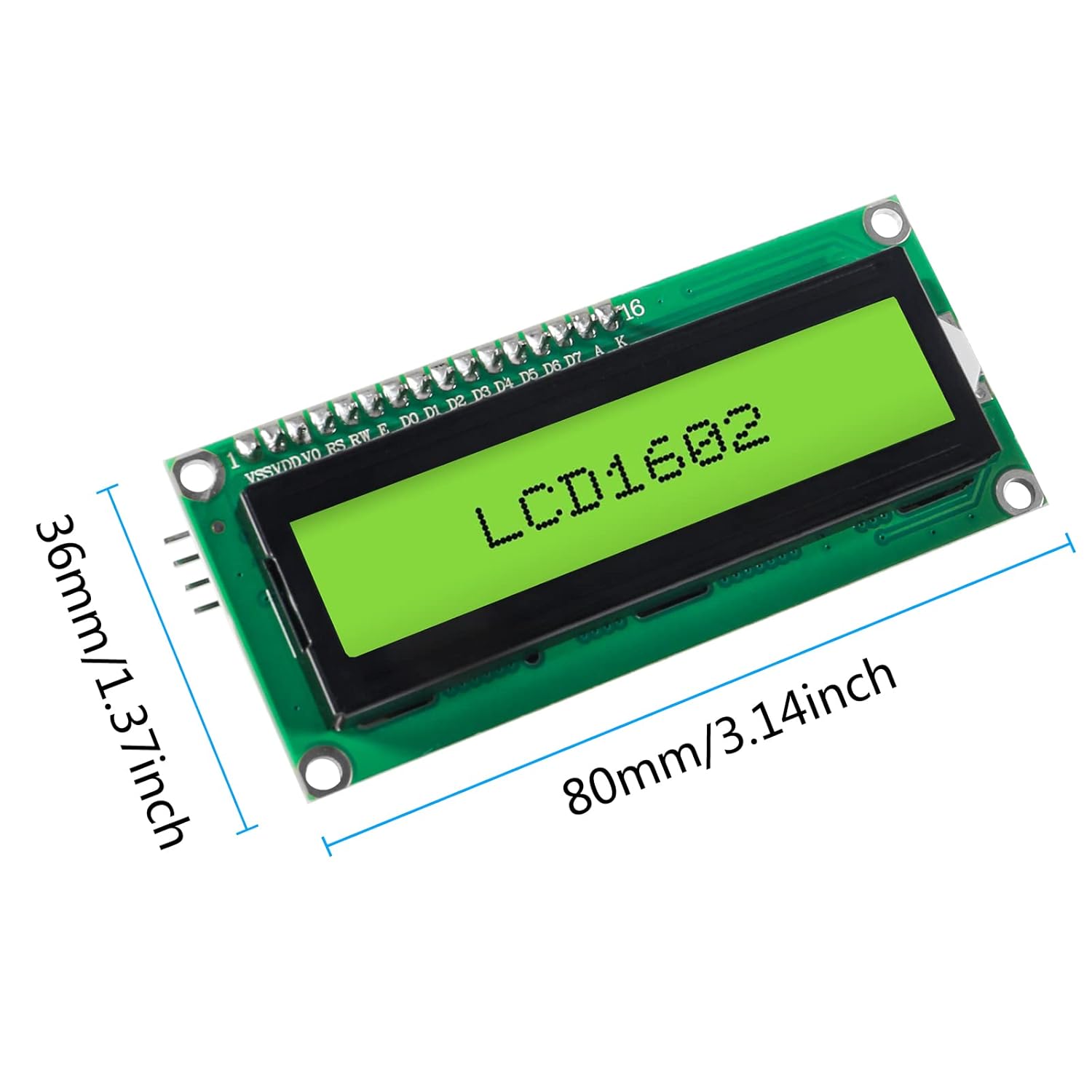

Dimensions (Approx.) 80mm x 36mm x 12mm
Mounting Holes 4 holes for M3 screws
Operating Temperature 0°C to +50°C
Compatible Microcontrollers Arduino UNO, MEGA2560, Nano, STM32, ESP32, Raspberry Pi
Library Support LiquidCrystal_I2C (Arduino), LCD library (Raspberry Pi, STM32)

Features: Easy to use:-

  • Less I/O ports are occupied;
  • Support IIC Protocol; The I2C LCD1602 library is easy to get;
  • With a potentiometer used to adjust backlight and contrast;
  • Green backlight;
  • Power supply: 5v;
  • I2C address is: 0x27.

Description:

  • 1602 LCD display with I2C serial interface is compatible with for Arduino and Raspberry pi, display function: LCD display with I2C serial interface can be applied to display real time clock, temperature, humidity and so on.
  • How to wire: GND—GND; VCC—VCC; SDA—A4; SCL—A5
  • Commonly used in: Internet of things, DIY project, home animation, smartbuilding, maker's DIY project.
  • Compatible with all current development boards, such as Compatible with Arduino, Compatible with Raspberry pi, Compatible with Nano pi, Compatible with stm32 and so on
  • 1602 icd display with I2C serial interface is compatible with for Arduino and Raspberry pi; Working voltage: 5V; To come with a potentiometer, which is applied to adjust backlight and contrast.Green LCD display with i2c serial interface backpack; LCD screen can display 2-lines x 16-characters; The i2c LCD adapter built-in industry standard equivalent LCD controller.

How to wire:

GND—GND;

VCC—VCC;

SDA—A4;

SCL—A5
