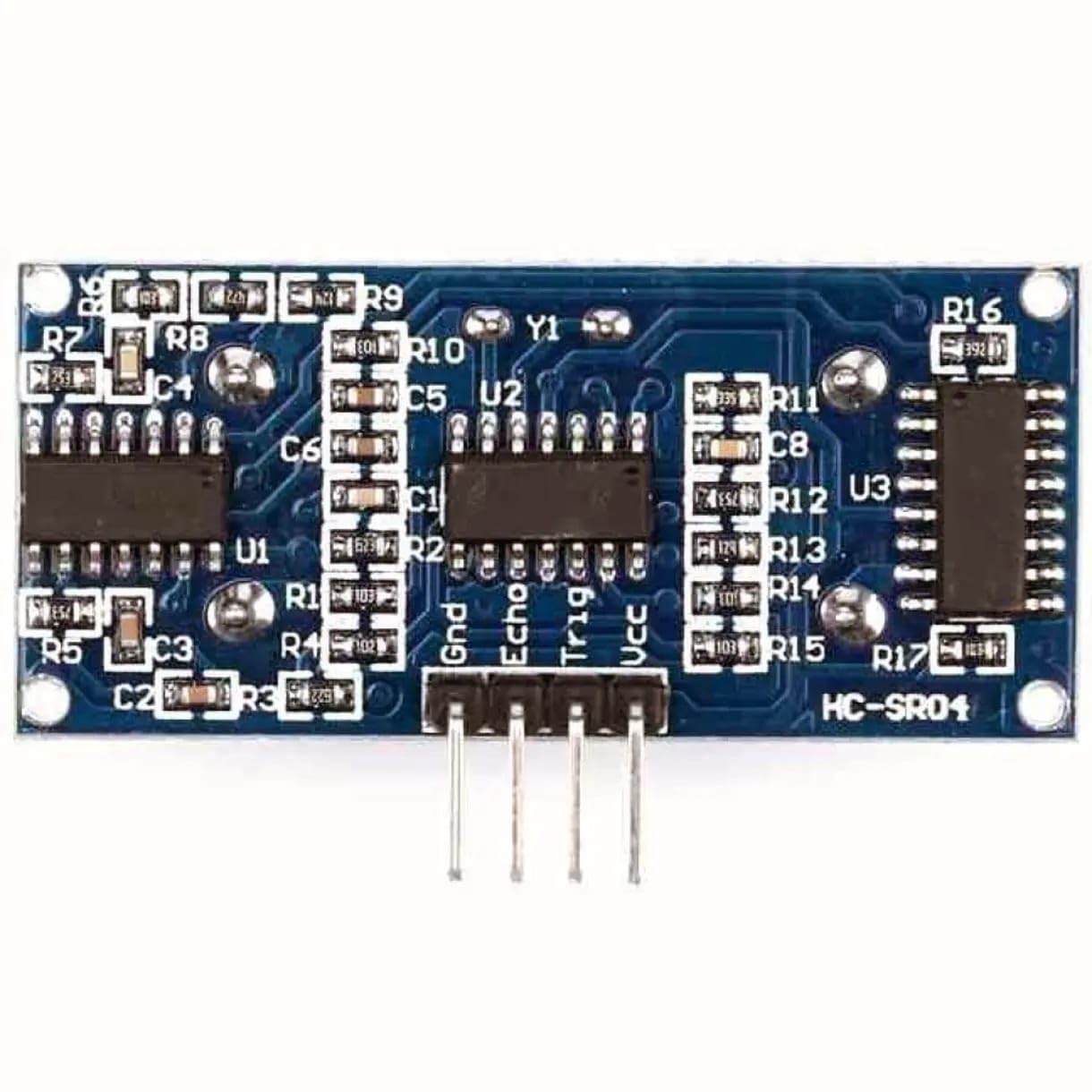

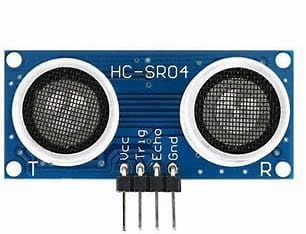

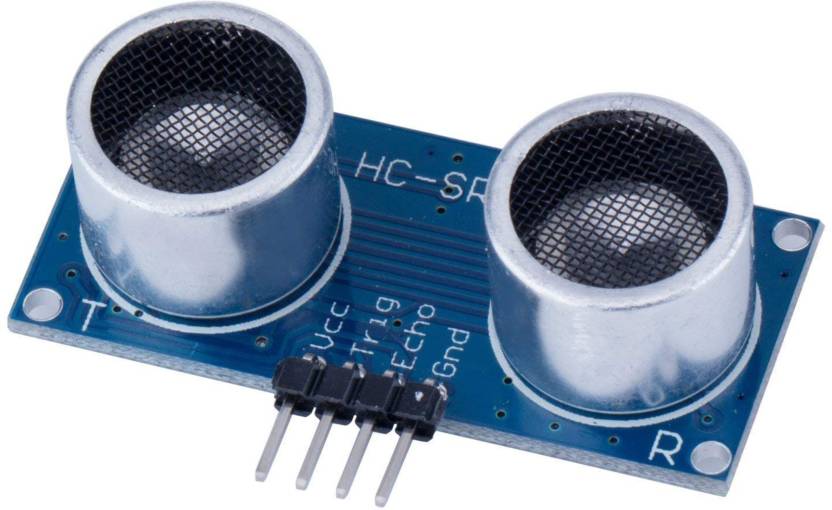

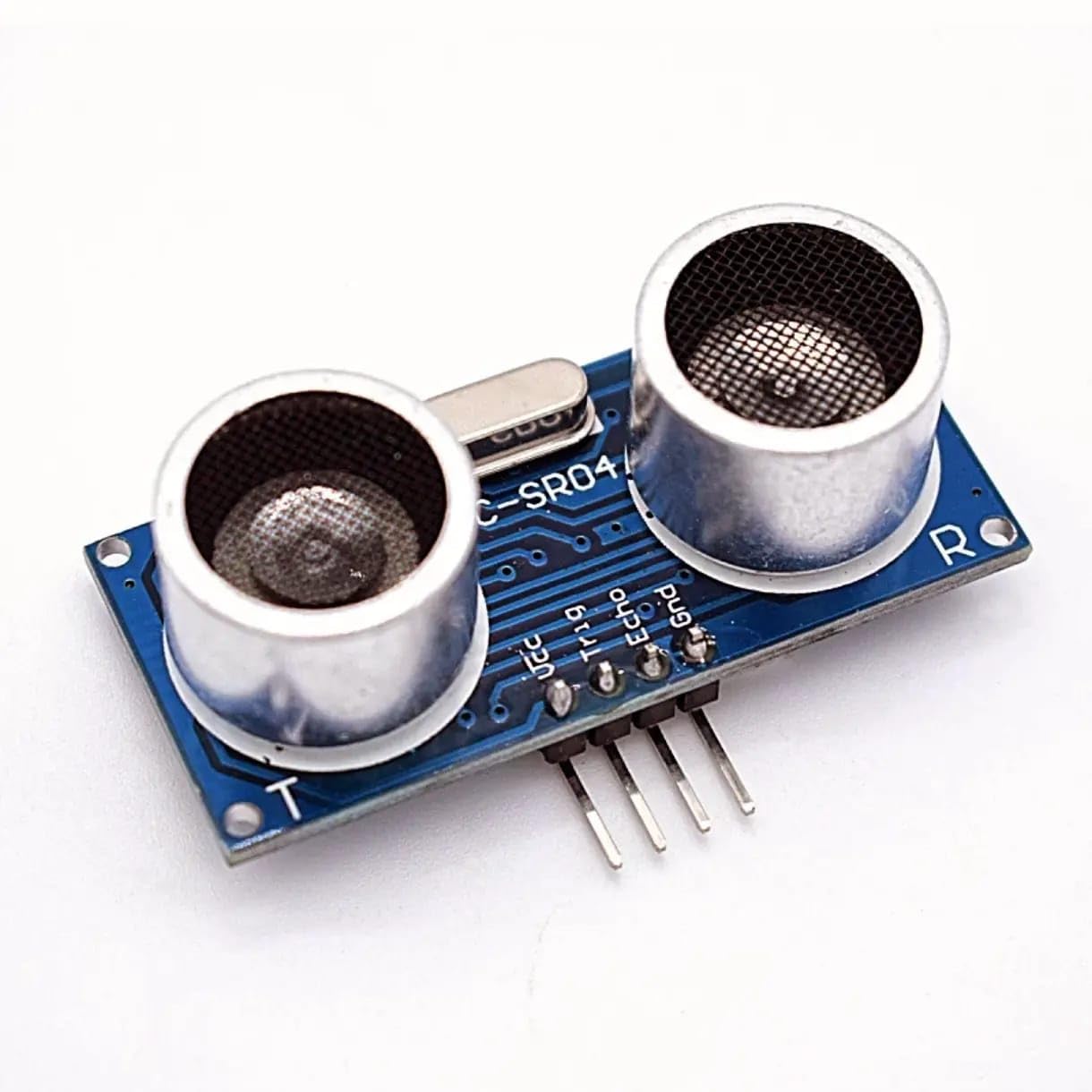

HC-SR04 DC 5V Ultrasonic Module Distance Measuring Transducer Sensor

HC-SR04 DC 5V Ultrasonic Module Distance Measuring Transducer Sensor

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Specification
Model HC-SR04
Operating Voltage DC 5V
Operating Current 15mA
Measuring Range 2cm to 400cm
Accuracy ±3mm
Resolution 1cm
Measuring Angle ≤15°
Trigger Input Signal 10µs TTL pulse
Echo Output Signal Pulse width proportional to distance
Ultrasonic Frequency 40kHz
Response Time < 50ms
Dimensions 45mm × 20mm × 15mm
Interface Pins VCC, Trig, Echo, GND



Features:

  • Accurate Distance Measurement: Measures distances from 2cm to 400cm (4 meters).

  • High Precision: Measurement accuracy up to ±3mm.

  • Simple 4-Pin Interface: Easy to connect with microcontrollers (VCC, GND, Trig, Echo).

  • Low Power Consumption: Operates efficiently on 5V DC with minimal current draw.

  • Compact Design: Lightweight and easy to mount in small or mobile platforms.

Description:

The HC-SR04 Ultrasonic Sensor Module is a reliable and widely used distance measuring device that uses ultrasonic sound waves to detect objects and calculate distance with high accuracy. Ideal for robotics, automation, and obstacle detection systems, this module operates on a simple trigger-echo mechanism and can be easily interfaced with microcontrollers like ESP32, and Pi.
