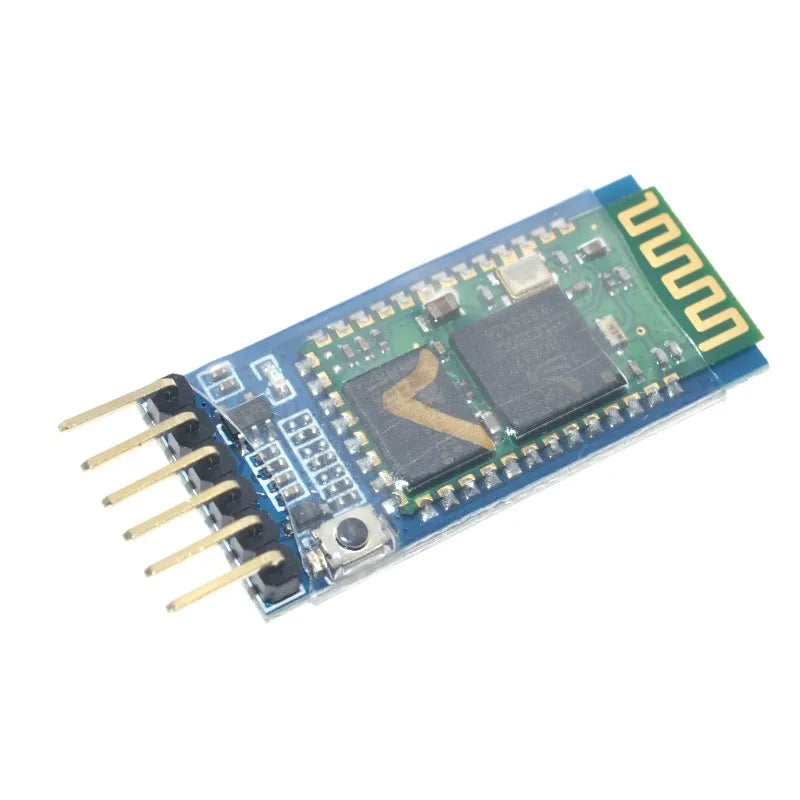

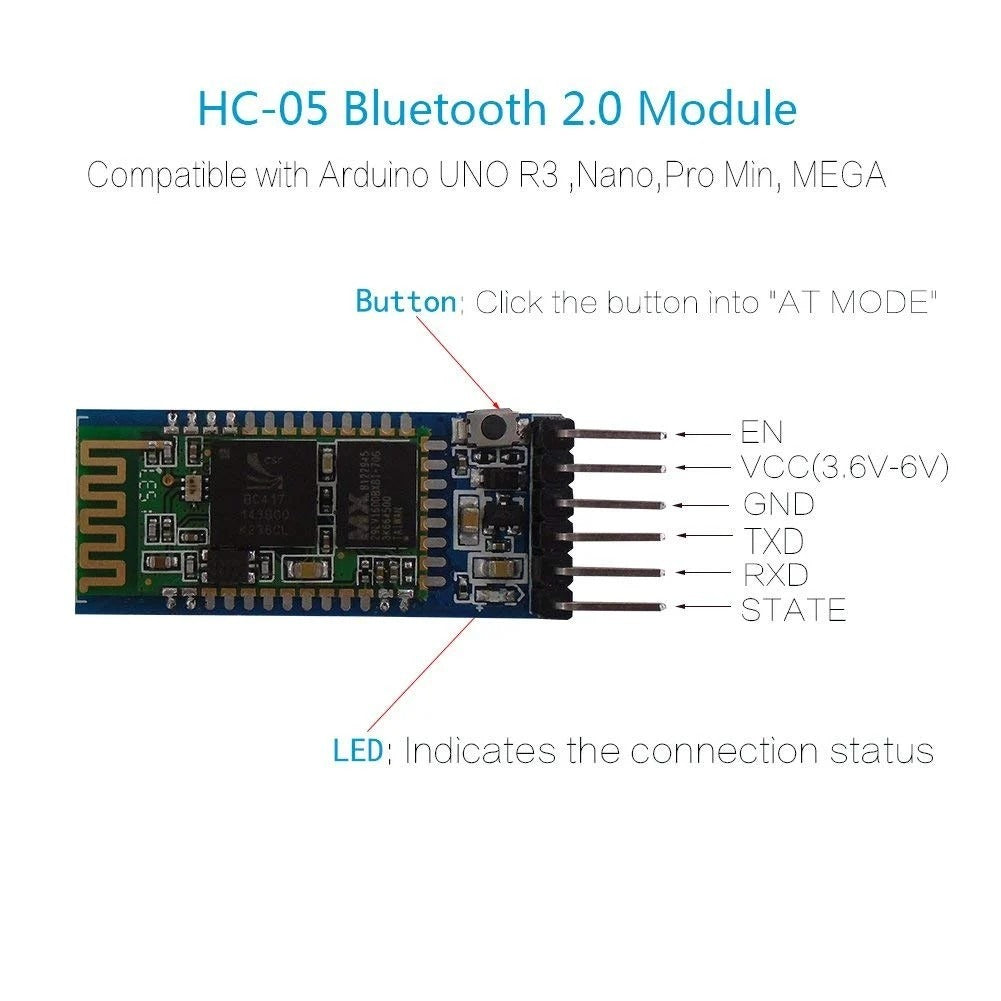

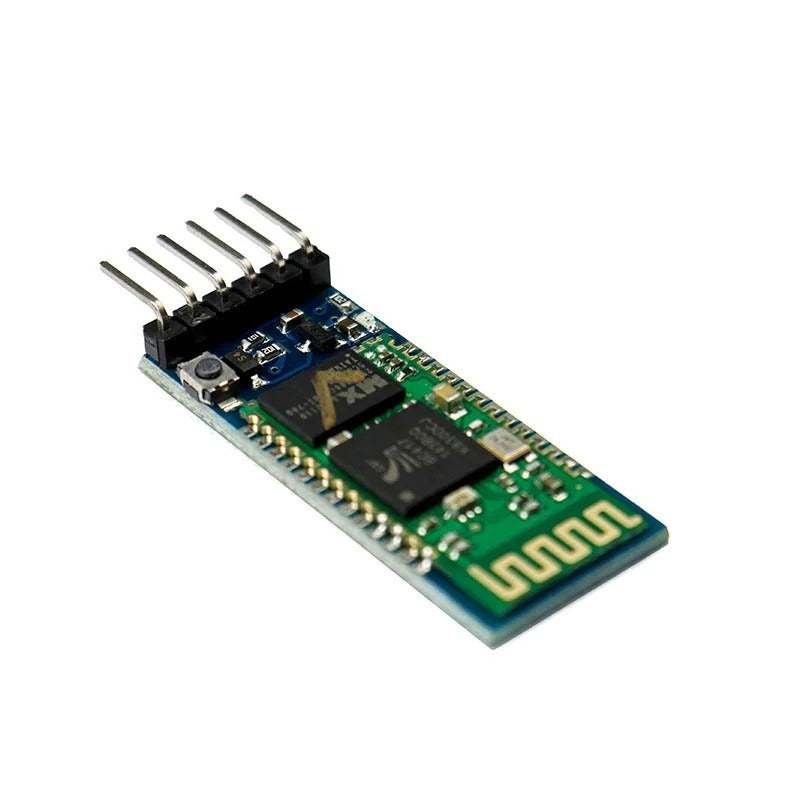

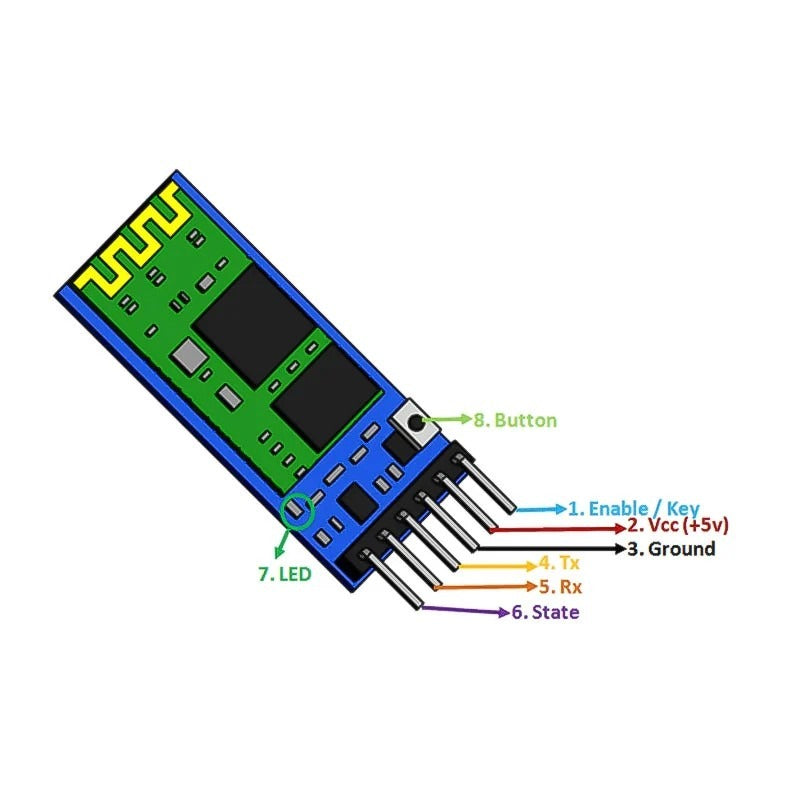

HC-05 6pin Bluetooth Module with Button

HC-05 6pin Bluetooth Module with Button

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Input Supply voltage (V) 3.6 ~ 6
Input current (mA) 50
Maximum Operating Range (m) 10
Operating Frequency 2.4GHz ISM band
Modulation GFSK (Gaussian Frequency Shift Keying)
Emission power 4dBm, Class 2
Sensitivity -84dBm at 0.1% BER
Operating Temperature (℃) -20 ~ +75
Length (mm): 43
Width (mm): 16.5
Height (mm): 7
Weight (g): 5



Features:

  • HC‐05 module is an easy-to-use Bluetooth SPP (Serial Port Protocol) module, designed for transparent wireless serial connection setup. The HC-05 Bluetooth Module can be used in a Master or Slave configuration, making it a great solution for wireless communication.
  • Typical ‐80dBm sensitivity.
  • Up to 4dBm RF transmit power.
  • 3.3 to 5 V I/O.
  • PIO(Programmable Input/Output) control.
  • UART interface with programmable baud rate.
  • With integrated antenna.
  • With edge connector

Description:

The HC-05 6 Pin Wireless Serial Bluetooth Module is designed for use with any microcontroller, utilizing the UART protocol for easy wireless data transmission.

The HC-06 module operates as a slave-only device, allowing it to connect to most Bluetooth-enabled phones and computers. However, it cannot connect to other slave devices like keyboards or other HC-06 modules. To connect with additional slave devices, a master module like the HC-05 is required, as it supports both master and slave functionalities.
