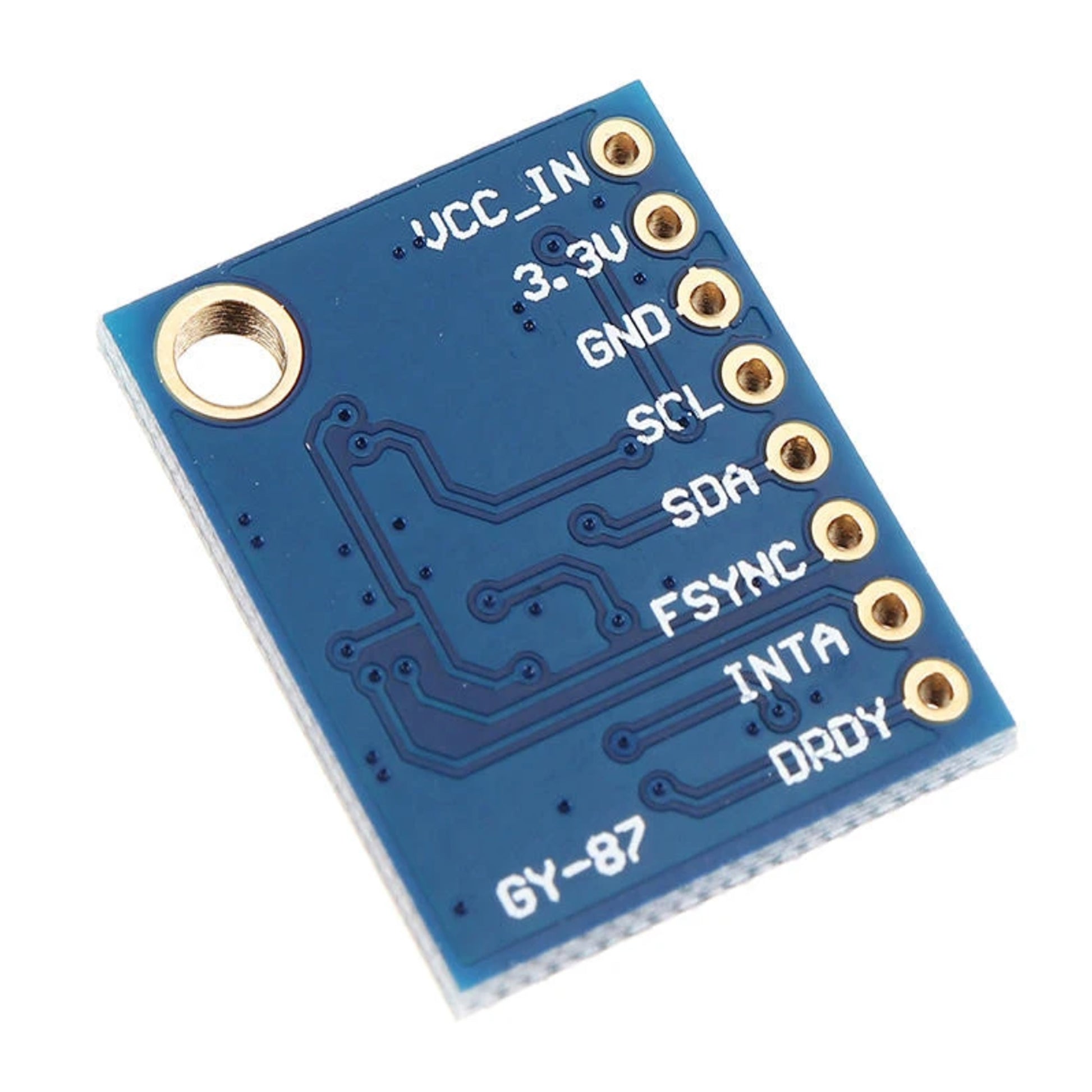

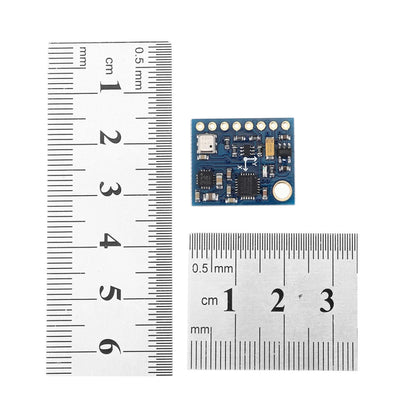

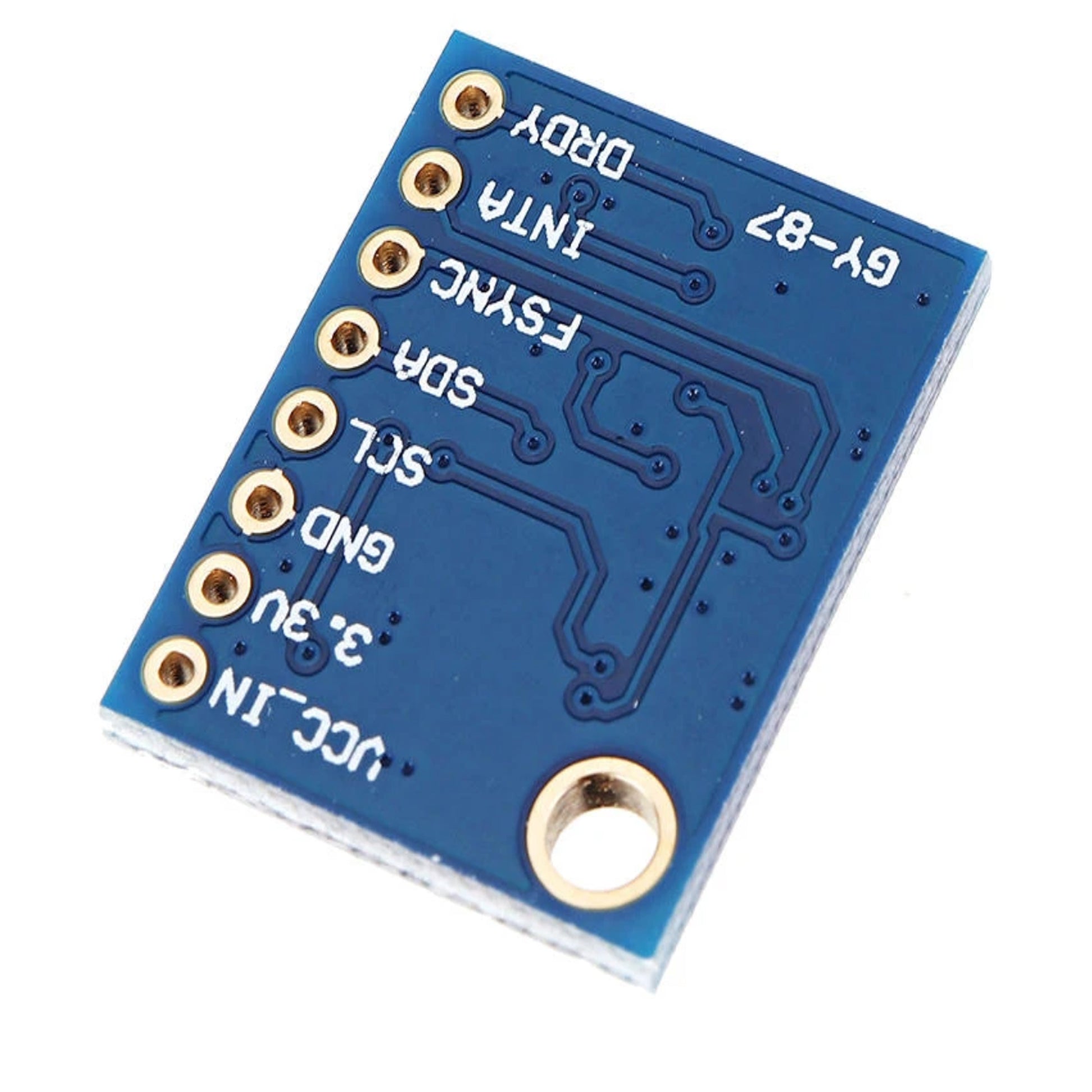

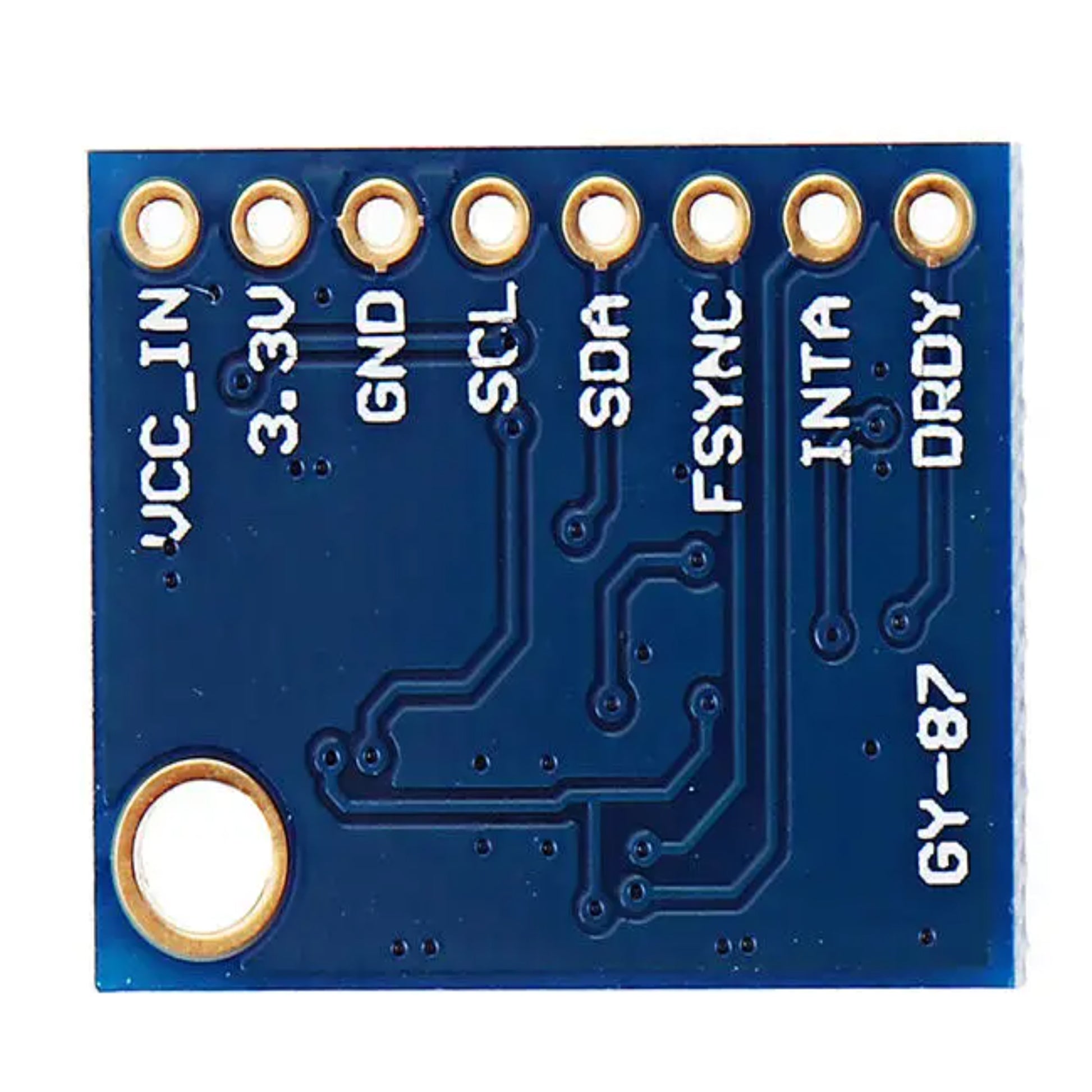

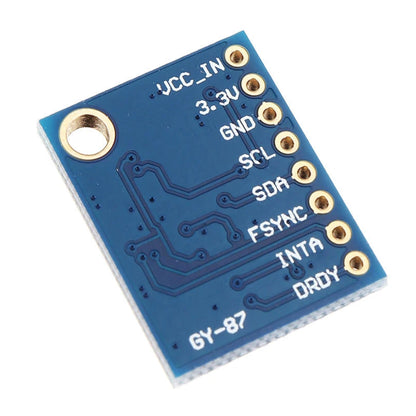

GY-87 10DOF 3-axis Gyro + 3-axis Acceleration + 3-axis Magnetic Field + Air Pressure Module

GY-87 10DOF 3-axis Gyro + 3-axis Acceleration + 3-axis Magnetic Field + Air Pressure Module

₹ 450.00
₹ 450.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification;

Parameter Details
Module Name GY-87
Total DOF 10 Degrees of Freedom
Interface I2C (SDA, SCL)
Operating Voltage 3.3V – 5V (internally regulated)
Communication Address MPU6050: 0x68, HMC5883L: 0x1E, BMP180: 0x77
Power Consumption Low power (depends on sensors active)

MPU6050 – 6DOF IMU (Accelerometer + Gyroscope):

Feature Spec
Accelerometer ±2g, ±4g, ±8g, ±16g
Gyroscope ±250, ±500, ±1000, ±2000 °/s
Resolution 16-bit
Sampling Rate Up to 1kHz
Interface I2C

HMC5883L – 3-Axis Magnetometer (Compass):

Range ±1.3 to ±8.1 Gauss
Resolution ~0.73 mG/LSB
Output Rate 0.75Hz to 75Hz
Interface I2C

BMP180 – Barometric Pressure Sensor:

Pressure Range 300 – 1100 hPa
Resolution 0.02 hPa (approx. 0.17m altitude)
Temperature Range -40°C to +85°C
Altitude Accuracy ~±1 meter (typical)
Interface I2C



Features:

  • Combines gyro, accelerometer, magnetometer, and barometer in a single module.

  • Outputs real-time orientation, acceleration, angular velocity, magnetic heading, and altitude.

  • Works with I2C interface, compatible with most microcontrollers.

  • Ideal for drones, robotic navigation, motion capture, flight control, wearables, and scientific sensing.

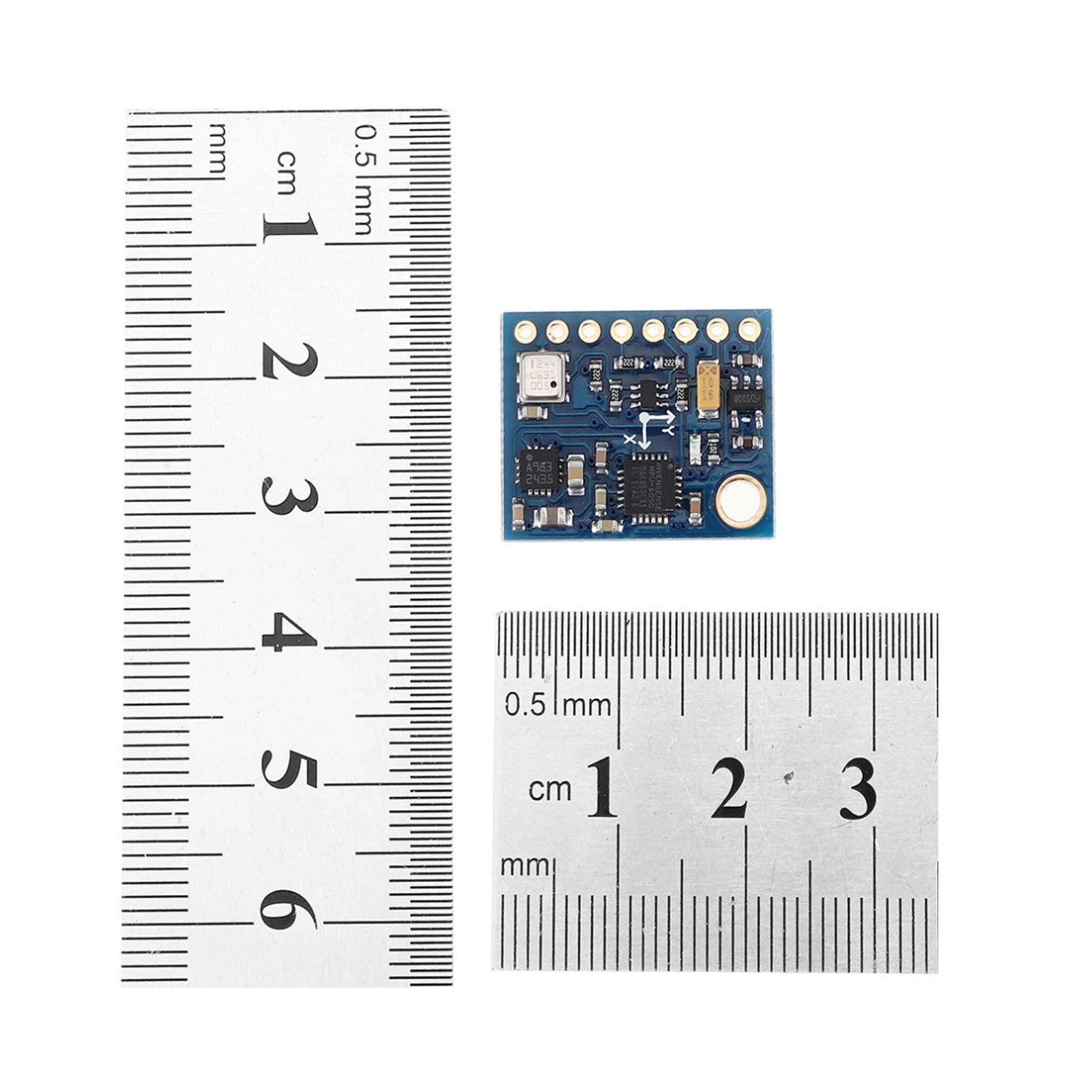

  • Small form factor for embedded and portable projects.

  • Supported by many open-source libraries in and Python (e.g., Adafruit, RTIMULib).

Description:

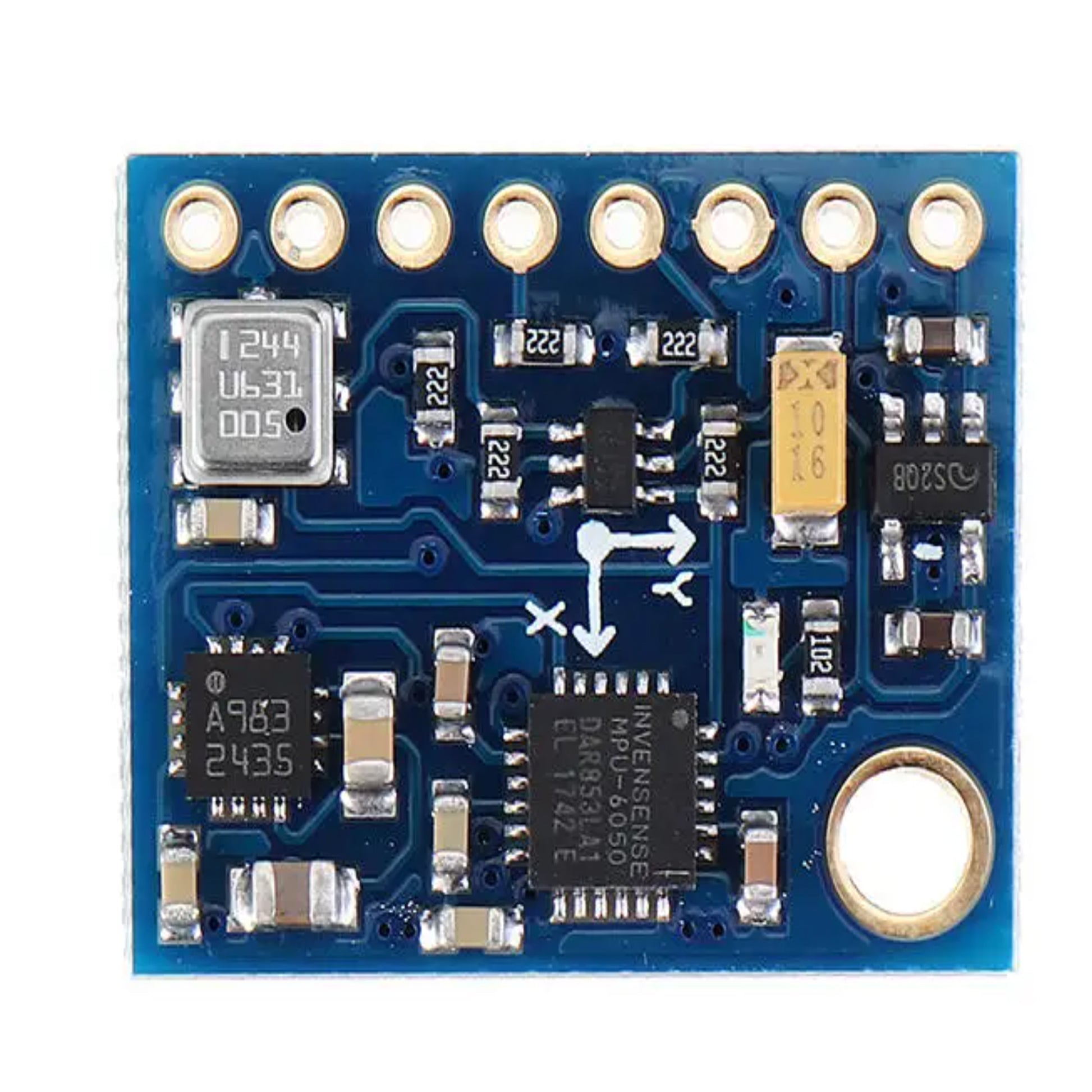

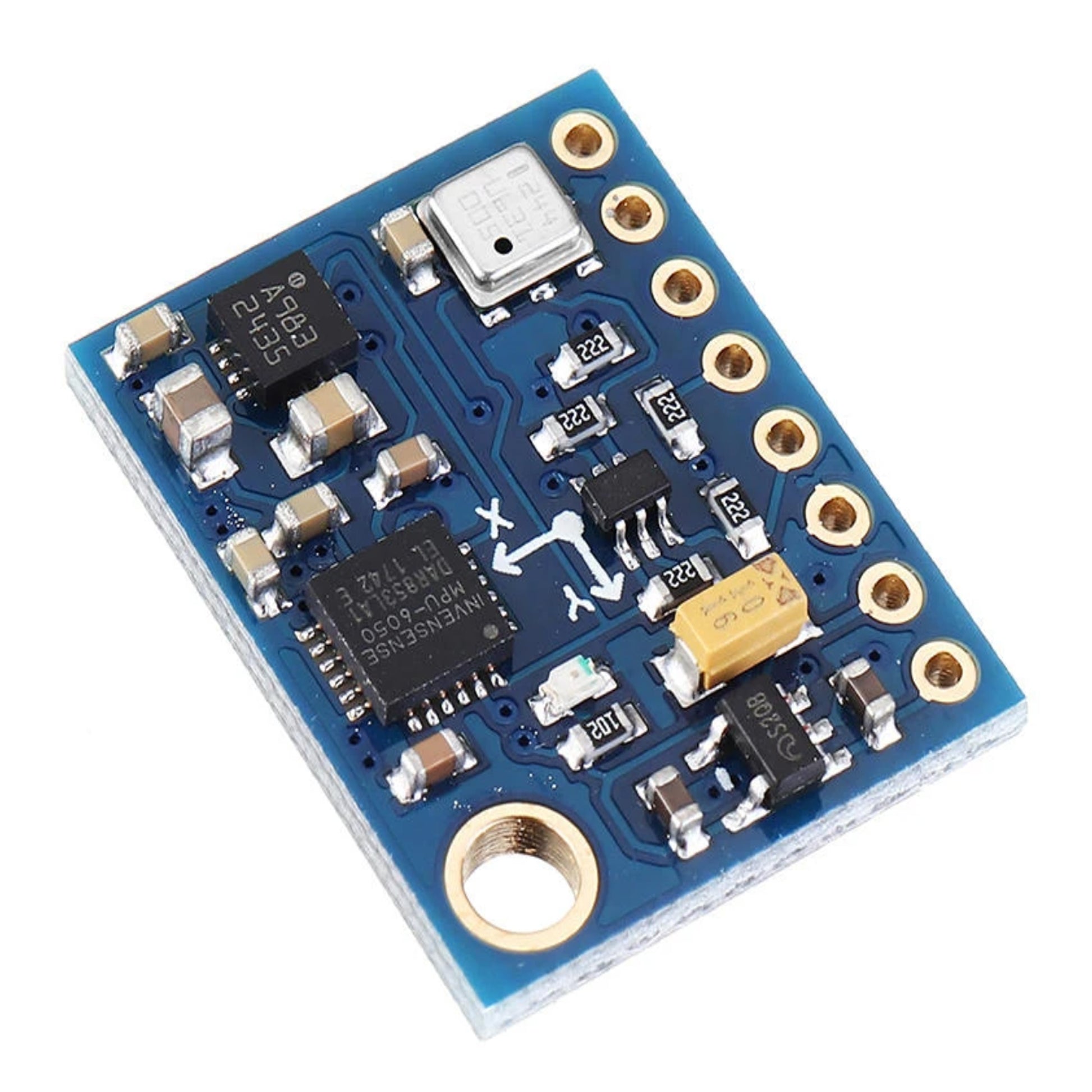

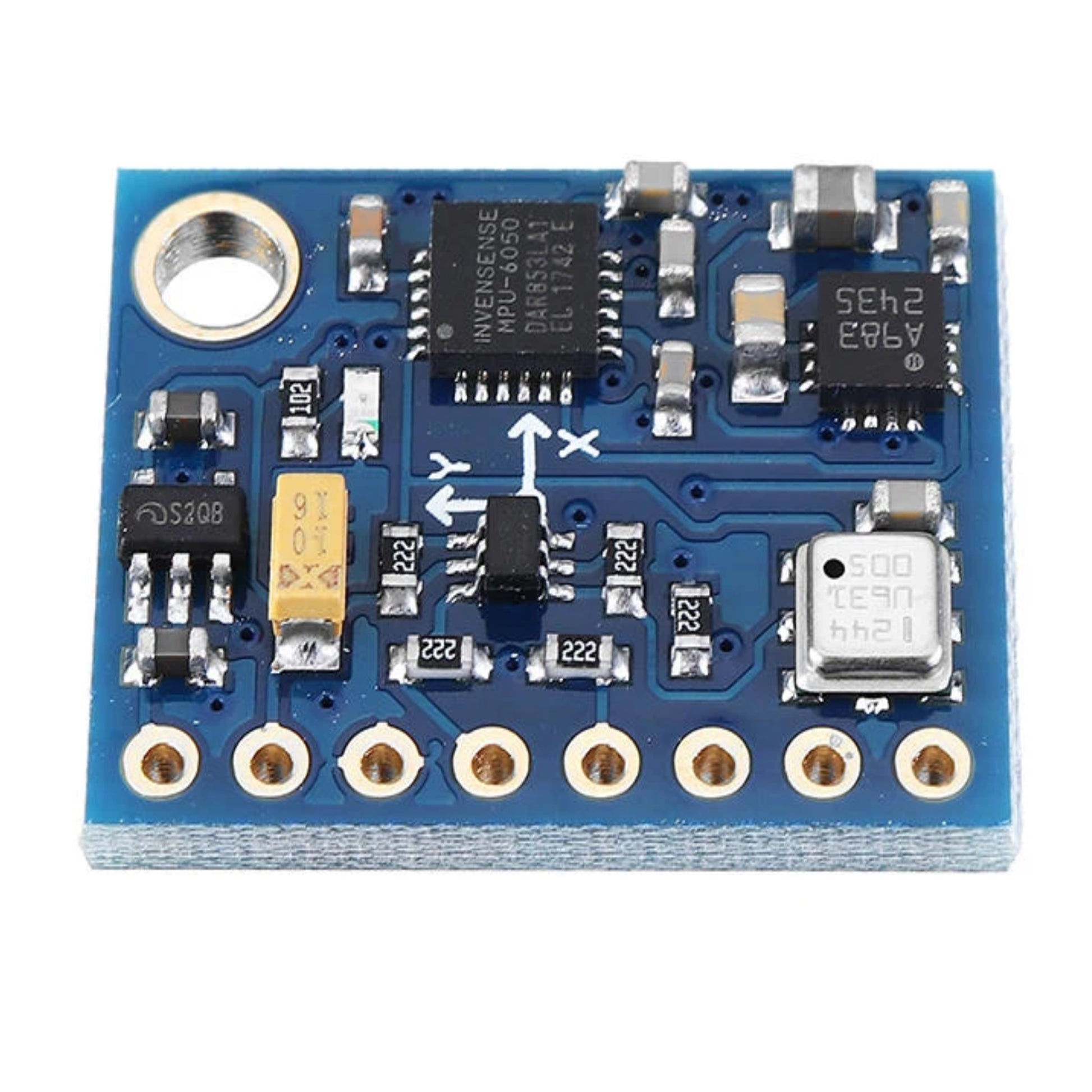

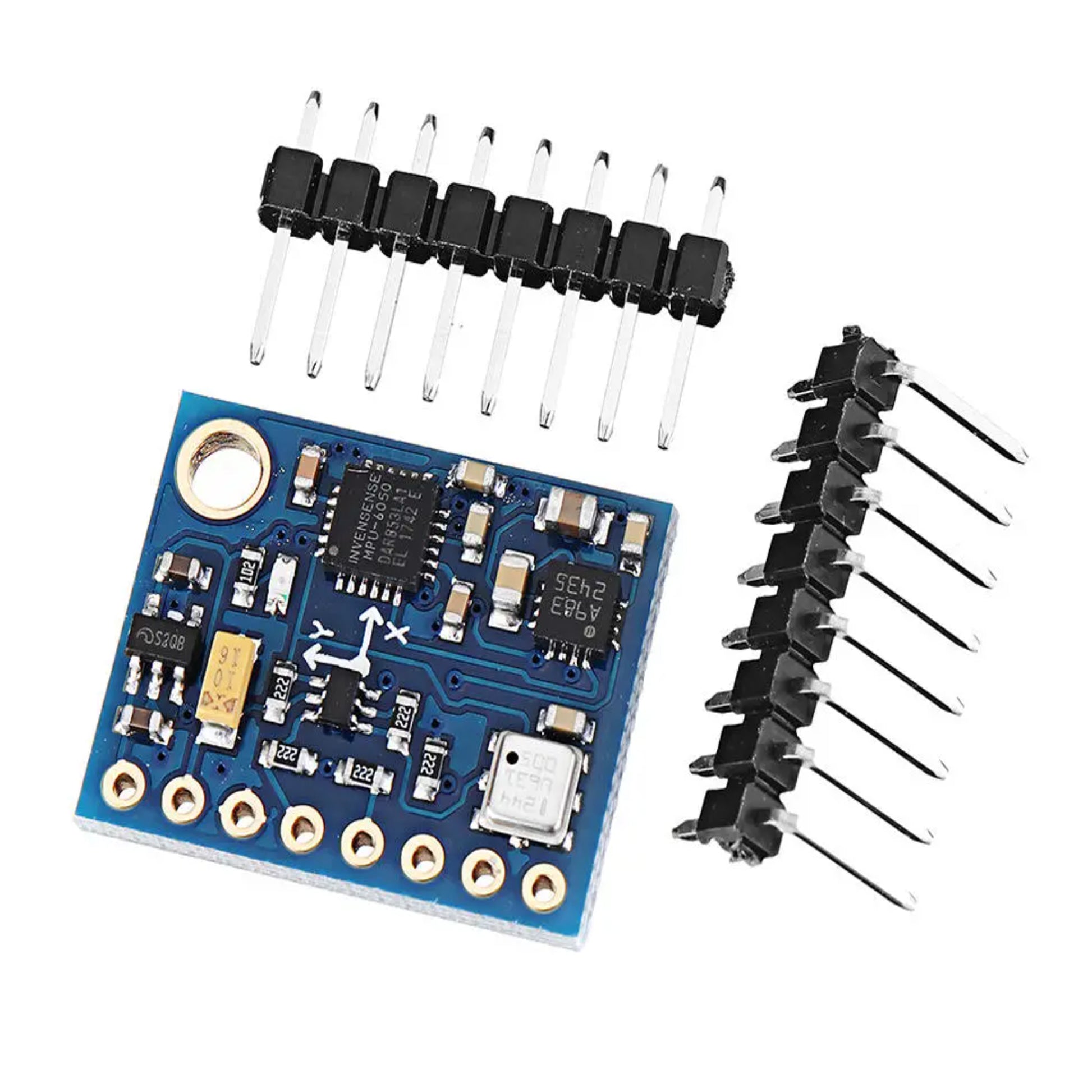

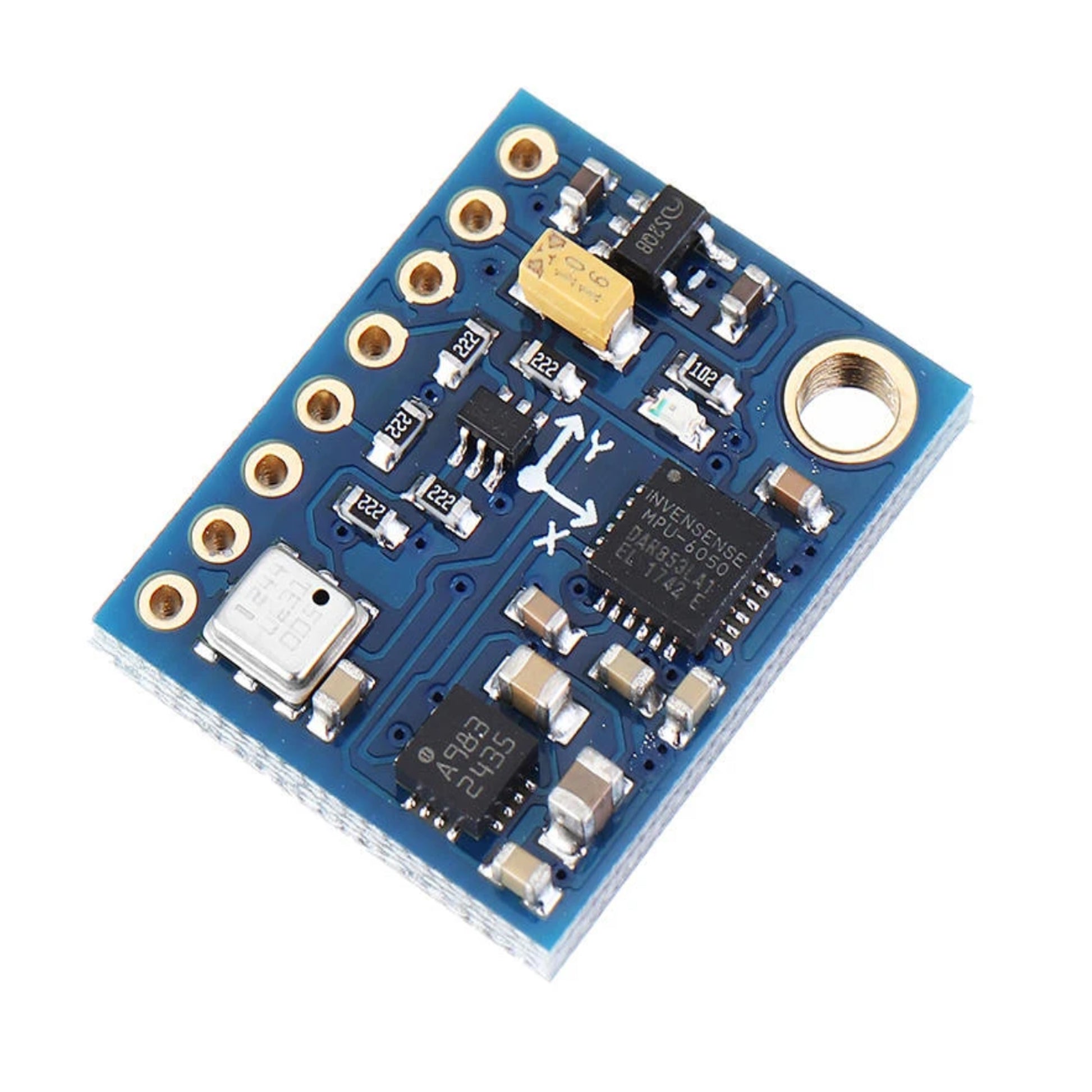

The GY-87 10DOF Sensor Module is a versatile and compact sensor breakout board that integrates multiple sensors to provide 10 Degrees of Freedom: 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer (compass), and barometric pressure sensing. It's ideal for robotics, drones, flight controllers, motion tracking, and navigation systems.

It combines the following sensors:

  • MPU6050: A 3-axis gyroscope + 3-axis accelerometer (6DOF)

  • HMC5883L: A 3-axis magnetometer (digital compass)

  • BMP180: A barometric pressure sensor (altimeter)

These sensors communicate via the I2C interface, making it easy to integrate with ESP32, STM32, Pi, and other microcontroller platforms. The combination of motion and environmental sensors makes it especially suitable for orientation, altitude estimation, and directional heading applications.
