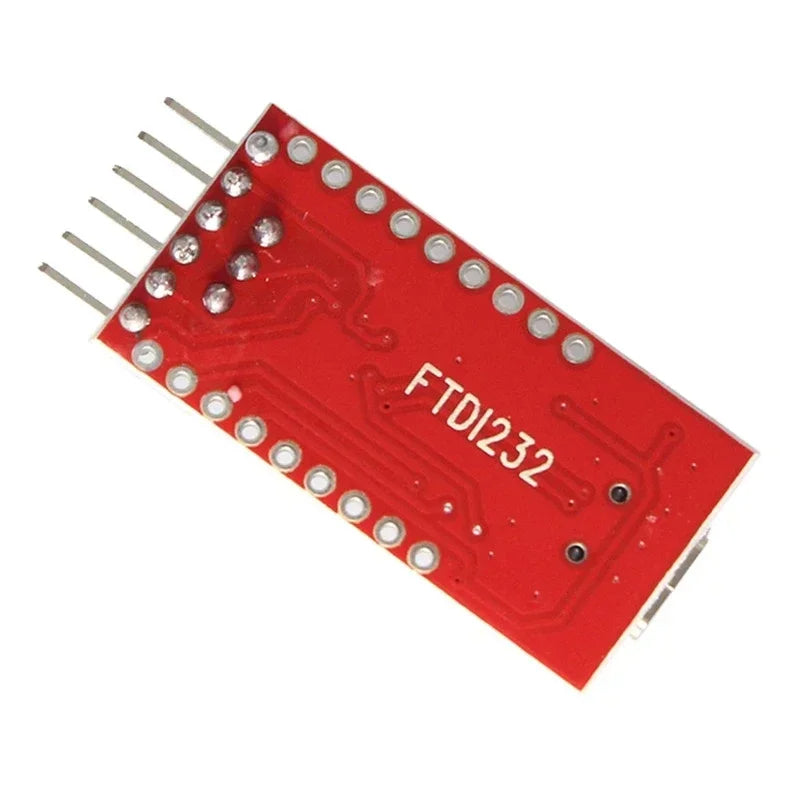

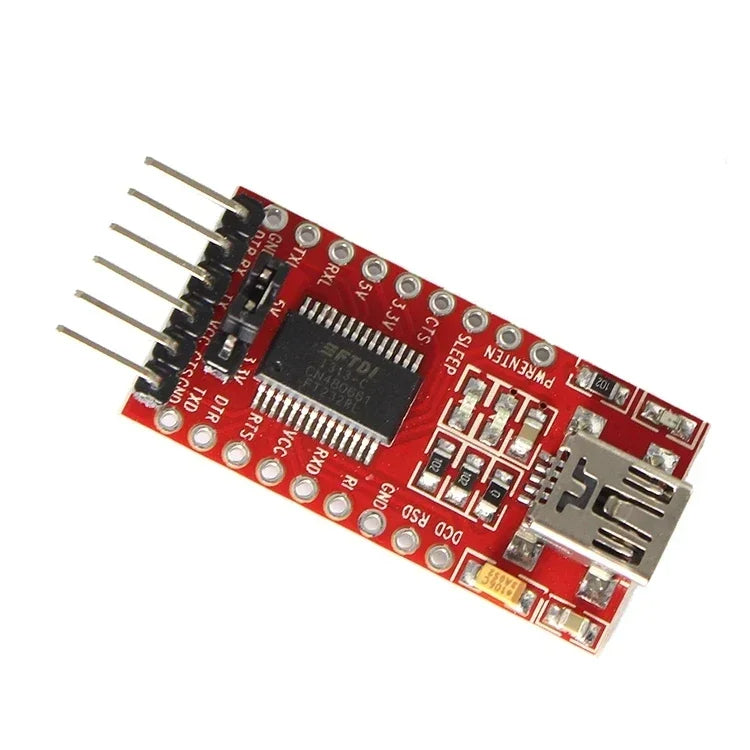

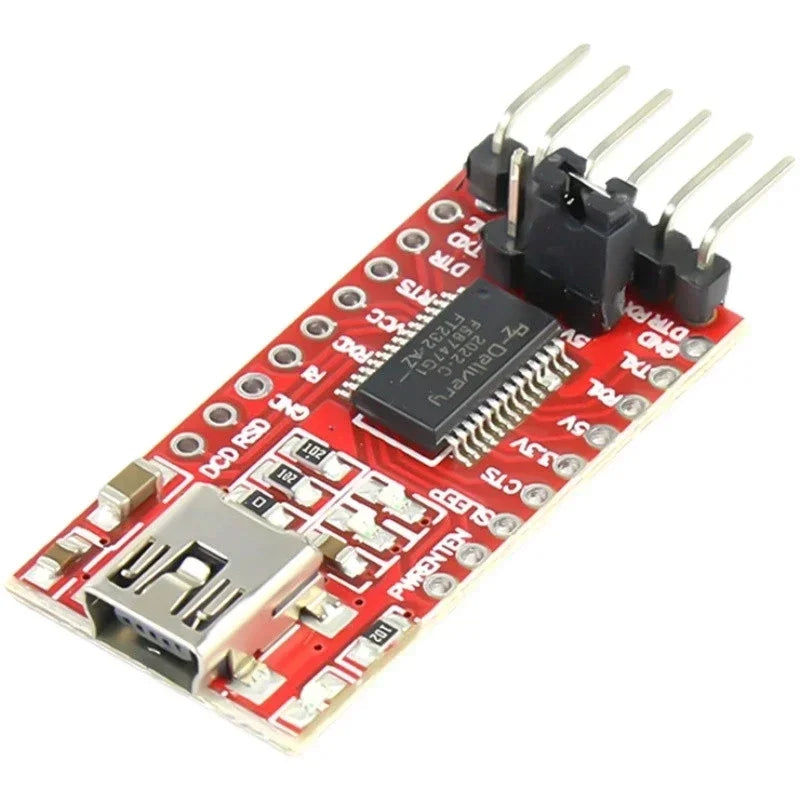

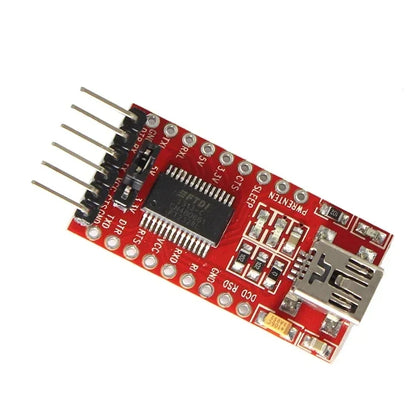

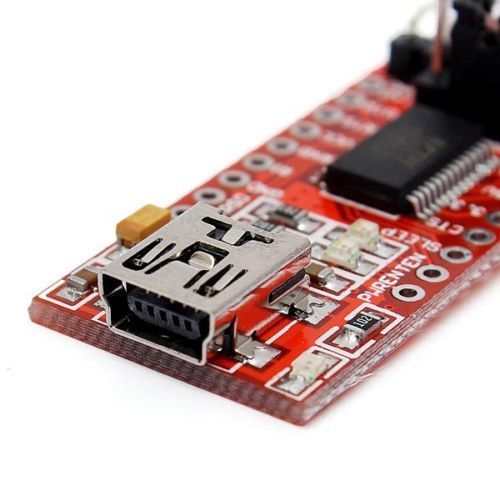

FTDI 232 Mini USB to TTL Converter

FTDI 232 Mini USB to TTL Converter

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Description:

TheFT232RL Breakout Board Mini USB to TTL Converter is a great TTL converter for board compatible with Arduino. It uses a chipset Ft232rl USB power which has over current protection. It uses 500ma Self-Restore Fuse and is integrated with Rxd/Txd Transceiver Communication Indicator.

The FTDI FT232RL features fully integrated USB terminator. Fully integrated clock generation that does not require an external crystal, plus optional clock output selection that allows seamless interfacing to an external MCU or FPGA. Data transfer rate from 300 baud to 3 Mbaud (RS422, RS485, RS232) at TTL level. A 128-byte receive buffer and a 256-byte transmit buffer (with buffer smoothing technology) provide high data throughput.

Features:

  • Chipset: FTDI FT232RL (High-quality, reliable USB-to-Serial bridge)

  • USB Interface: Mini USB (some versions use Micro USB)

  • Logic Level Support: Selectable 3.3V or 5V TTL (via onboard jumper or solder pads)

  • Baud Rate Support: Up to 3 Mbps (typical)

  • Driver Support: Works with official FTDI drivers (Windows, macOS, Linux)

  • Plug & Play: Easy USB communication with microcontrollers and development boards.

  • Compatible with: Arduino, ESP8266, ESP32, STM32, Raspberry Pi, and other UART-based microcontrollers.

  • Auto-reset support: Enables automatic reset during Arduino sketch upload (via DTR pin)

  • Compact design: Easily fits on breadboards and small enclosures.

  • Power Output: Can power external devices at 3.3V or 5V (depending on jumper)

  • LED indicators: Some versions include TX/RX LEDs for data activity.

Application:

  • Programming Arduino Pro Mini or ESP8266 (without onboard USB)

  • Debugging serial output from microcontrollers

  • USB-to-Serial communication in IoT and embedded projects

  • Serial data logging

  • Firmware flashing and bootloader uploads

Specifications:

Model  FTDI 232 Mini USB to TTL Converter
Pitch  2.54mm
Pin definition DTR,RXD,TX,VCC,CTS,GNDvvv
Supportable Devices  3.3V, 5V devices
Dimensions 36mm(length)*17.5mm(width)
Weight 5 grams
