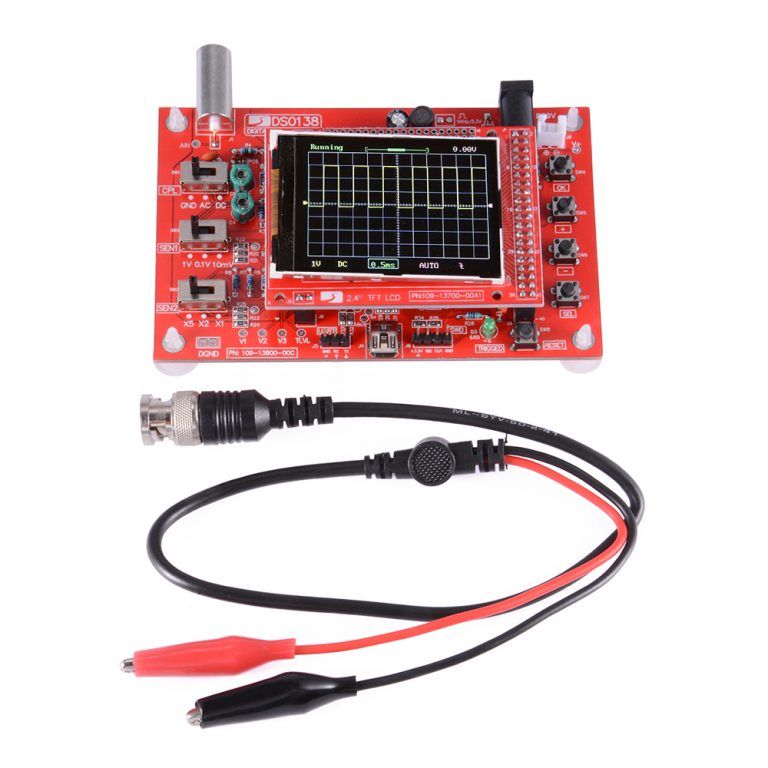

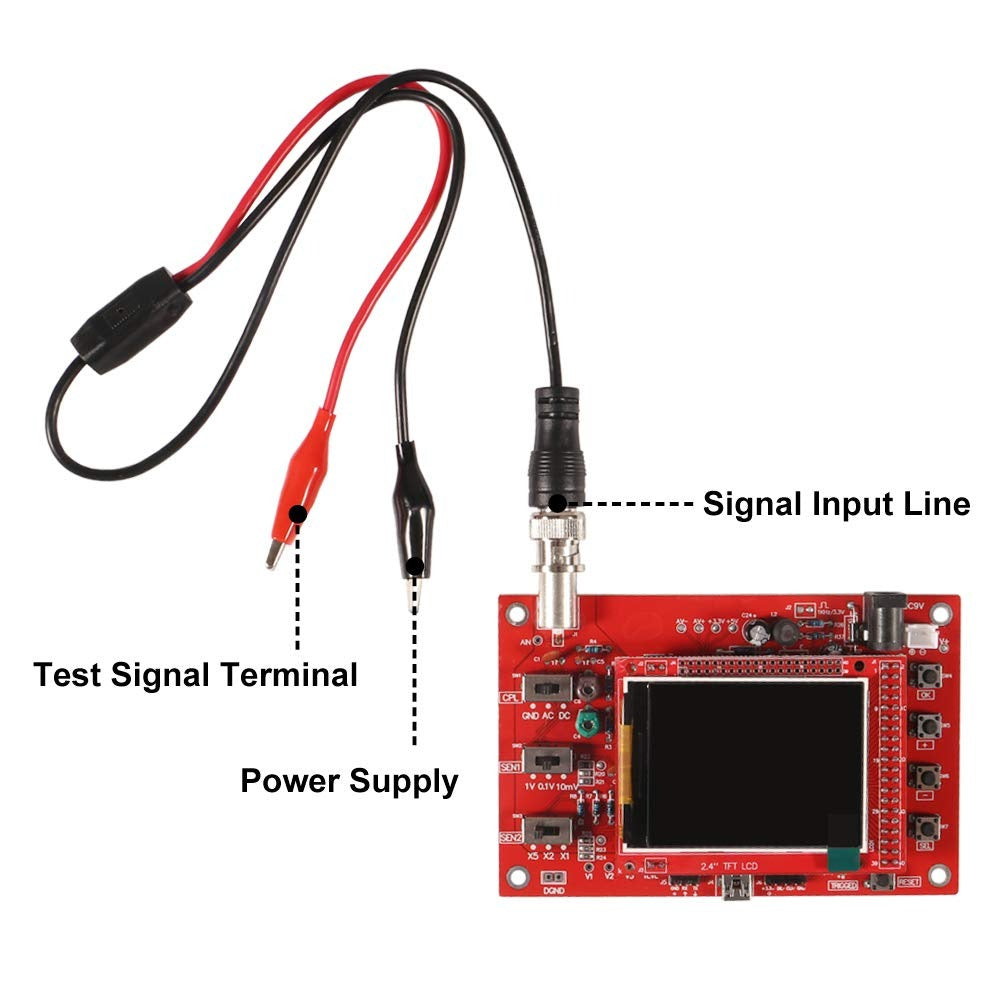

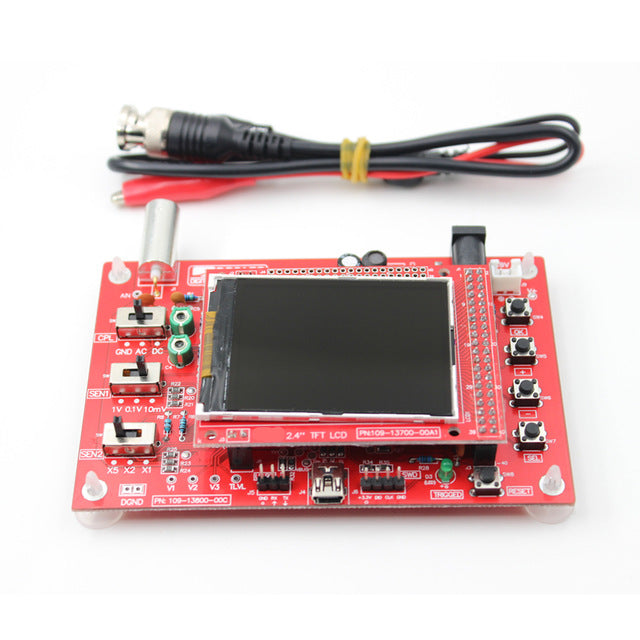

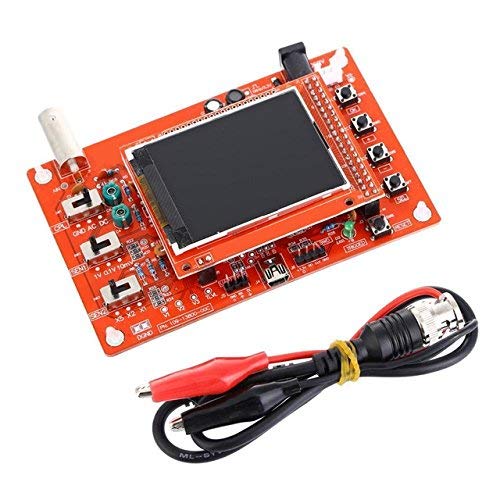

DSO138 2.4″ TFT Handheld Pocket-size Digital Oscilloscope Kit DIY Parts Electronic Learning Set Soldered

DSO138 2.4″ TFT Handheld Pocket-size Digital Oscilloscope Kit DIY Parts Electronic Learning Set Soldered

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Item Type:

Oscilloscope
Operating Voltage (VDC):

9
Model No.:

DSO138
Impedance:

1MΩ
Sampling Buffer Depth

1024 bytes
Additional Specs.:

Analog Bandwidth: 0-200KHz
Vertical Sensitivity

10mV / Div – 5V / Div (1-2-5 progressive manner)
Accuracy:

12Bit
Coupling Type

DC / AC / GND
Length (mm):

118
Width (mm):

77
Height (mm):

19
Weight (g):

130
Shipping Weight 0.14 kg
Shipping Dimensions 17 × 12 × 3 cm



Features:

  1. This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as the ARM test development board.
  2. Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
  3. Adjustable vertical displacement, and with instructions.
  4. With automatic, regular and one-shot modes, easy to capture the moment waveform.
  5. Available rising or falling edge trigger.
  6. Observable previous trigger waveform (negative delay).
  7. Can freeze at any time waveform display (the HOLD function).
  8. Comes 1Hz /3.3V square wave test signal source.
  9. With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Description:

This is DSO138 2.4″ TFT Handheld Pocket-size Digital Oscilloscope Kit. This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen.

It’s easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

This boost converter is a great match for DSO138 oscilloscope kit. It can be connected directly to the DSO138 motherboard(not included), make DSO138 oscilloscope to be a portable oscilloscope for better use.
