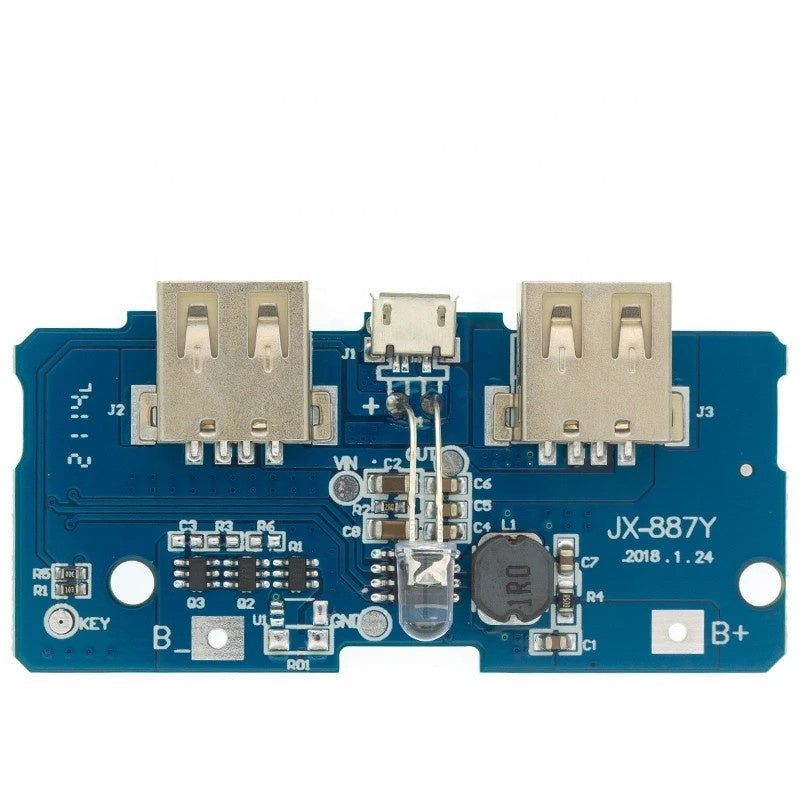

DIY Power Bank Module with Dual USB Output- 3.7V to 5V 2A with 18650 LiPo Charger

DIY Power Bank Module with Dual USB Output- 3.7V to 5V 2A with 18650 LiPo Charger

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp
Parameter Specification
Input Voltage 3.7V (Single 18650 Li-ion/LiPo battery)
Output Voltage 5V USB output (boosted from 3.7V battery voltage)
Output Current Max 2A per USB port
Number of USB Outputs 2 USB ports (Type-A)
Charging Input 5V USB micro or USB Type-C input
Battery Charging Current Typically 1A (adjustable on some modules)
Battery Type Supported 1 x 18650 Li-ion or LiPo rechargeable battery
Battery Protection Overcharge, over-discharge, short circuit protection
Charging IC TP4056 or equivalent Li-ion battery charger IC
Boost Converter DC-DC step-up converter to 5V USB output
Efficiency Typically around 85-90% efficiency
Size Approx. 50mm x 30mm (varies by manufacturer)
Indicators Charging LED, power LED
Operating Temperature 0°C to 45°C
Other Features Over-current and thermal protection



Features:

  • Input Voltage: 3.7V (single 18650 Li-ion/LiPo battery).

  • Output Voltage: Boosted to stable 5V USB output.

  • Dual USB Outputs: Two USB-A ports providing up to 2A current each for charging multiple devices simultaneously.

  • Battery Charging: Integrated 18650 battery charging circuit with overcharge, over-discharge, and short-circuit protection.

  • Charging Input: Typically supports 5V micro USB or USB Type-C input for charging the battery.

  • Battery Protection: Built-in protection circuitry to safeguard against overcurrent, overvoltage, undervoltage, and short circuit.

  • LED Indicators: Status LEDs for battery charging and power output indication.

  • Efficiency: High conversion efficiency for longer battery life and effective power delivery.

  • Compact and Portable: Small form factor ideal for DIY power bank projects or portable charging solutions.

  • Compatible Batteries: Designed primarily for 18650 Li-ion or LiPo rechargeable batteries.

  • Safe and Reliable: Ensures safe operation with multiple protection features.

  • Easy to Integrate: Suitable for DIY enthusiasts to build custom power bank solutions or portable chargers.

Description:

This DIY Power Bank Module is a versatile and compact solution for creating your own portable power bank. It is designed to boost the voltage from a single 3.7V lithium-ion or lithium-polymer battery (commonly 18650 cells) up to a stable 5V output, suitable for charging smartphones, tablets, and other USB-powered devices.

Featuring dual USB output ports, it allows simultaneous charging of two devices with a combined current output of up to 2A, providing efficient power delivery for multiple gadgets on the go. The module also integrates a built-in 18650 LiPo battery charger circuit, supporting safe and convenient charging of the battery via a standard micro USB or USB Type-C input.

Equipped with overcharge, over-discharge, over-current, and short-circuit protection, this module ensures the safety and longevity of your battery and connected devices. Its compact design and easy wiring make it ideal for DIY enthusiasts, makers, and hobbyists building custom power banks or portable charging solutions.
