DC Buck Boost Power Supply Module DC 5V-30V to DC 0.6V-30V 35W 4A CVCC Adjustable Automatic Step UP Down Voltage Converter LCD Display - RS2809

DC Buck Boost Power Supply Module DC 5V-30V to DC 0.6V-30V 35W 4A CVCC Adjustable Automatic Step UP Down Voltage Converter LCD Display - RS2809

₹ 599.00
₹ 599.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification

Parameter Details
Model RS2809
Input Voltage Range DC 5V – 30V
Output Voltage Range DC 0.6V – 30V (adjustable)
Output Current (Max) 4A (with heat sink/fan)
Output Power (Max) 35W (above 15W recommend cooling)
Output Modes Constant Voltage (CV) and Constant Current (CC)

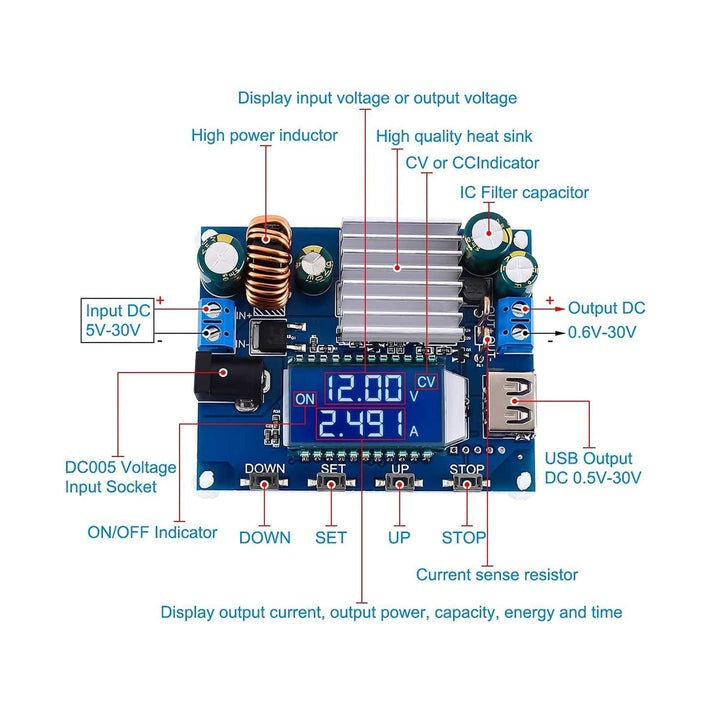

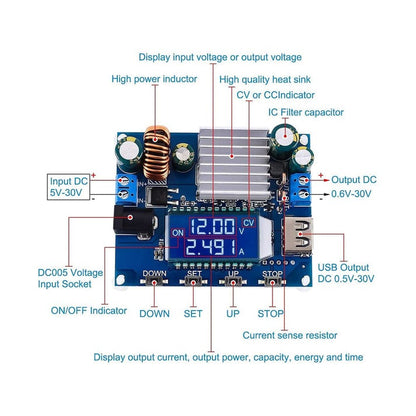

Display LCD – real-time Voltage, Current, Power
Conversion Type Buck-Boost (Step-up/Step-down automatically)
Efficiency Up to 88% (typical, depends on input/output conditions)

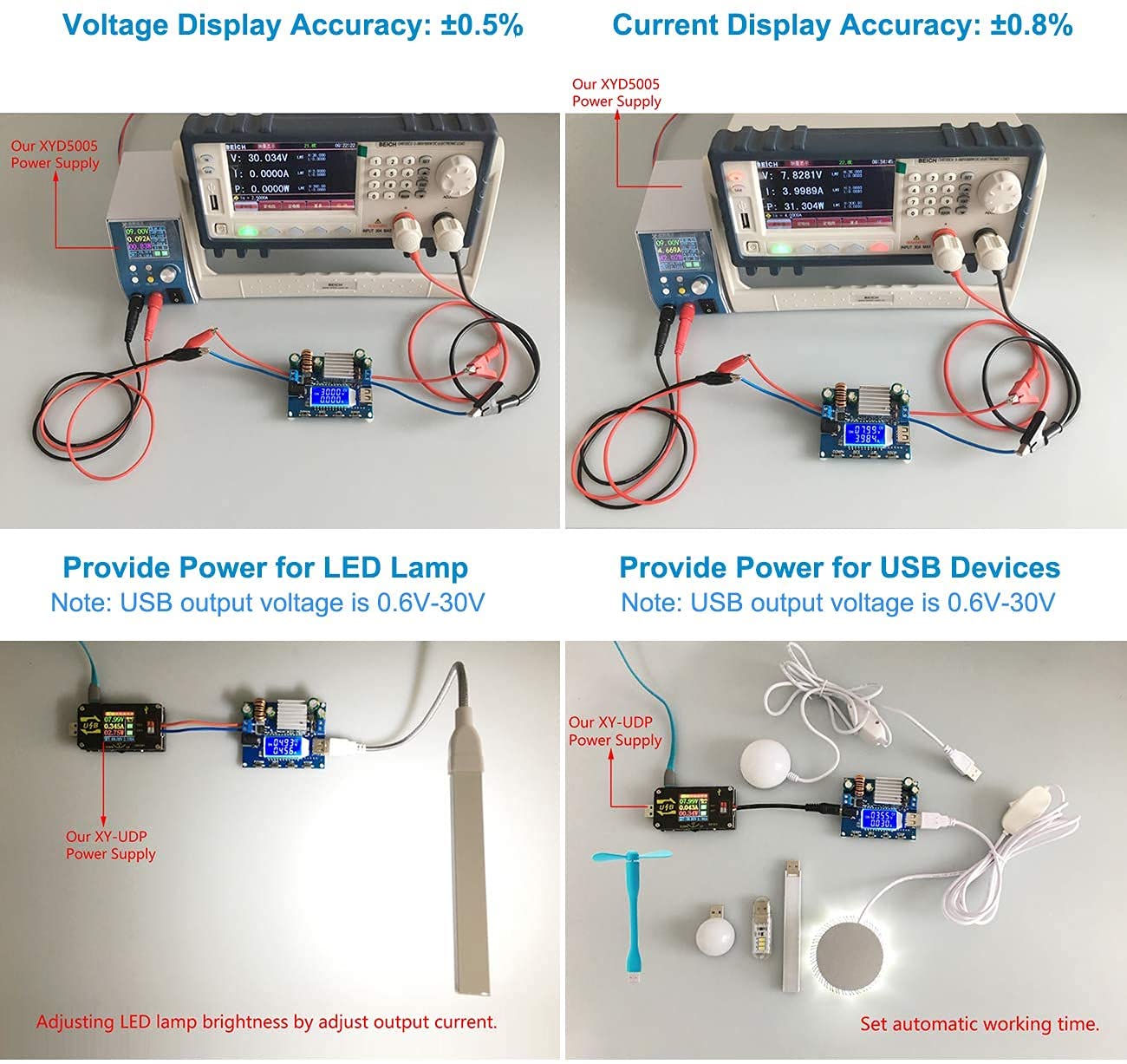

Voltage Regulation Accuracy ±0.5%
Current Setting Accuracy ±0.1A

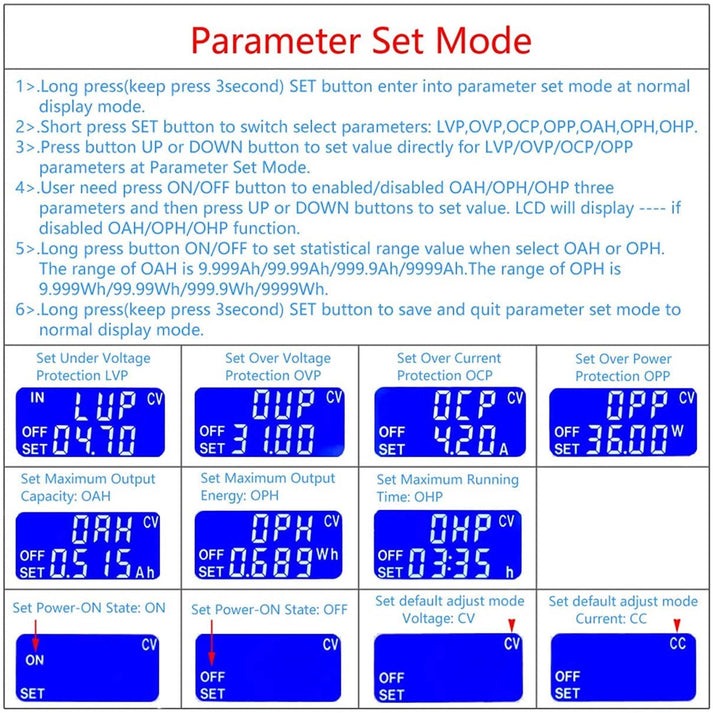

Voltage Adjustment Method Rotary encoder or tactile buttons (based on version)
Protection Features Reverse polarity, overcurrent, over-temperature, short-circuit
Cooling Recommendation Passive cooling up to ~15W; fan/heatsink required above
Working Temperature -20°C to +70°C

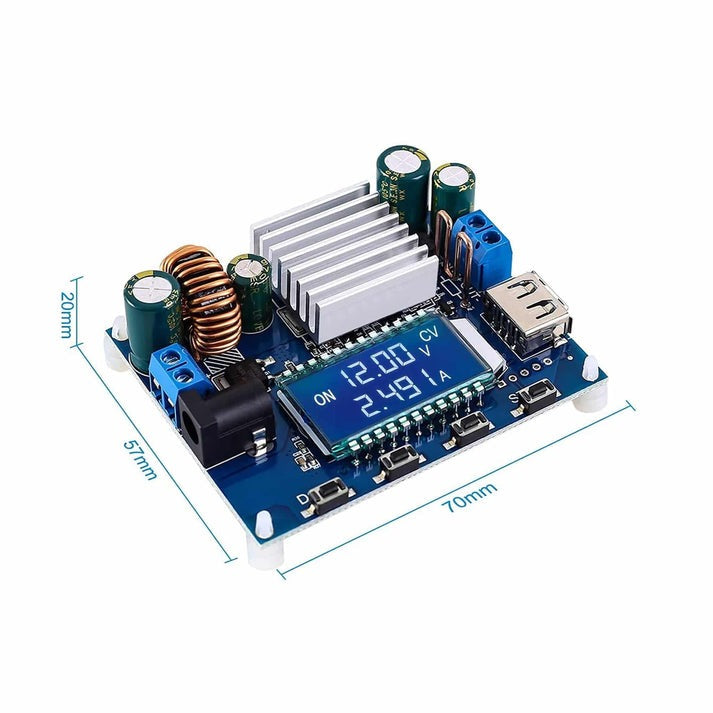

Dimensions Approx. 66mm × 47mm × 20mm
Weight ~45g
Mounting Type Screw holes / panel mountable



Features:

Features:

  • Automatically adjusts for buck (step-down) or boost (step-up) mode.

  • Accurate, user-adjustable output voltage and current settings.

  • Built-in LCD displays voltage, current, and power in real-time.

  • Suitable for charging batteries, powering microcontrollers, LEDs, test loads, etc.

  • Dual control: CV + CC, ideal for delicate electronics and Li-ion cells.

  • Multiple safety protections for long-term reliable use.

  • Highly efficient switching design – minimizes power loss and heat.

  • Compact and easy to integrate into DIY power supply projects.

Description:

The RS2809 DC Buck-Boost Converter Module is a highly versatile, programmable DC-DC power regulator that can step up (boost) or step down (buck) voltage depending on the input/output requirements. It features a wide input voltage range (5V–30V) and a continuously adjustable output (0.6V–30V) with both Constant Voltage (CV) and Constant Current (CC) modes, making it suitable for powering and charging a wide range of DC devices.

The module supports up to 35W power output and 4A current (with proper cooling). A built-in LCD display shows real-time voltage, current, and power, helping users monitor performance and protect connected devices. The converter uses a high-efficiency switching regulator with protection features like input reverse polarity, overcurrent, and thermal shutdown.

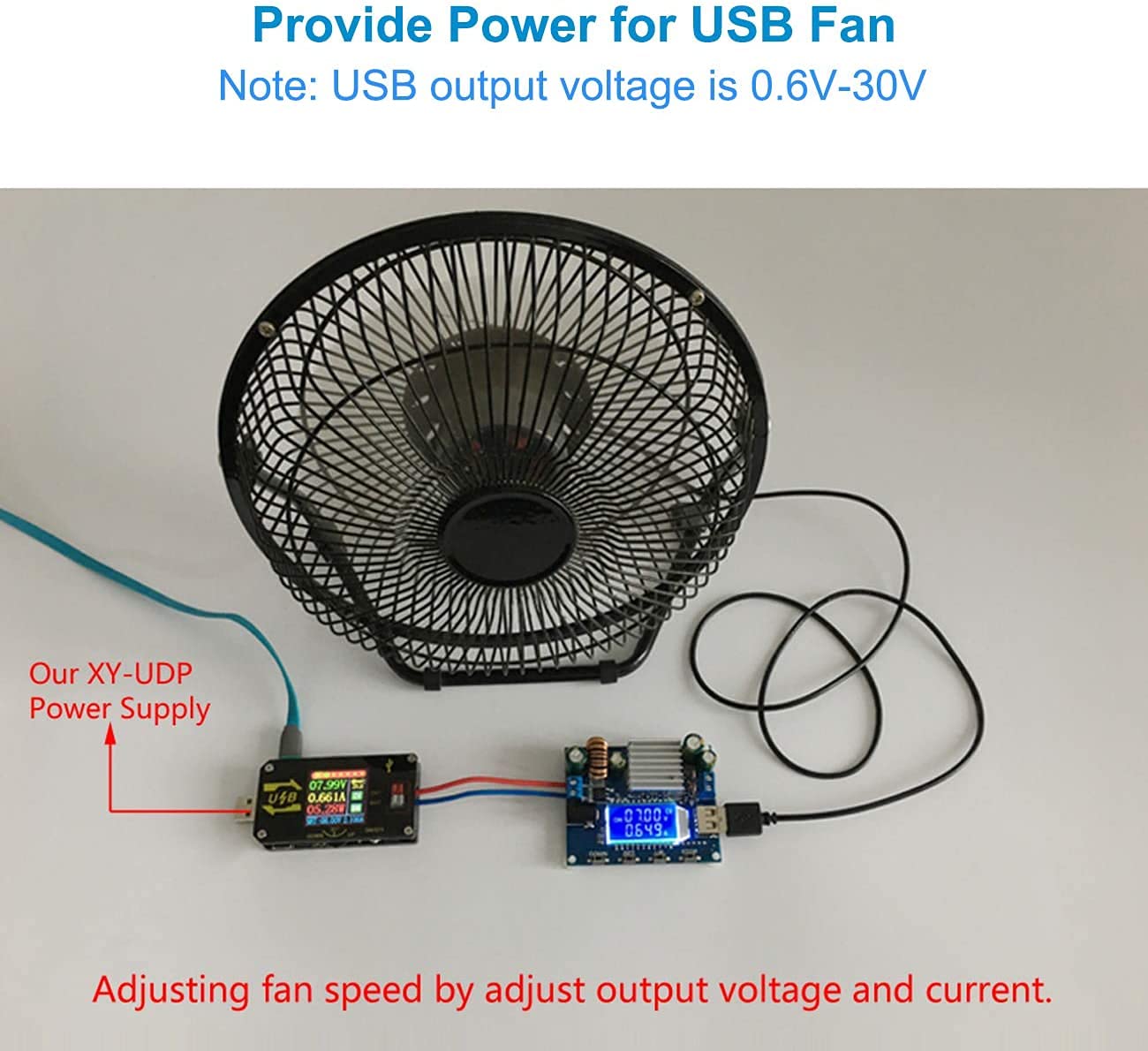

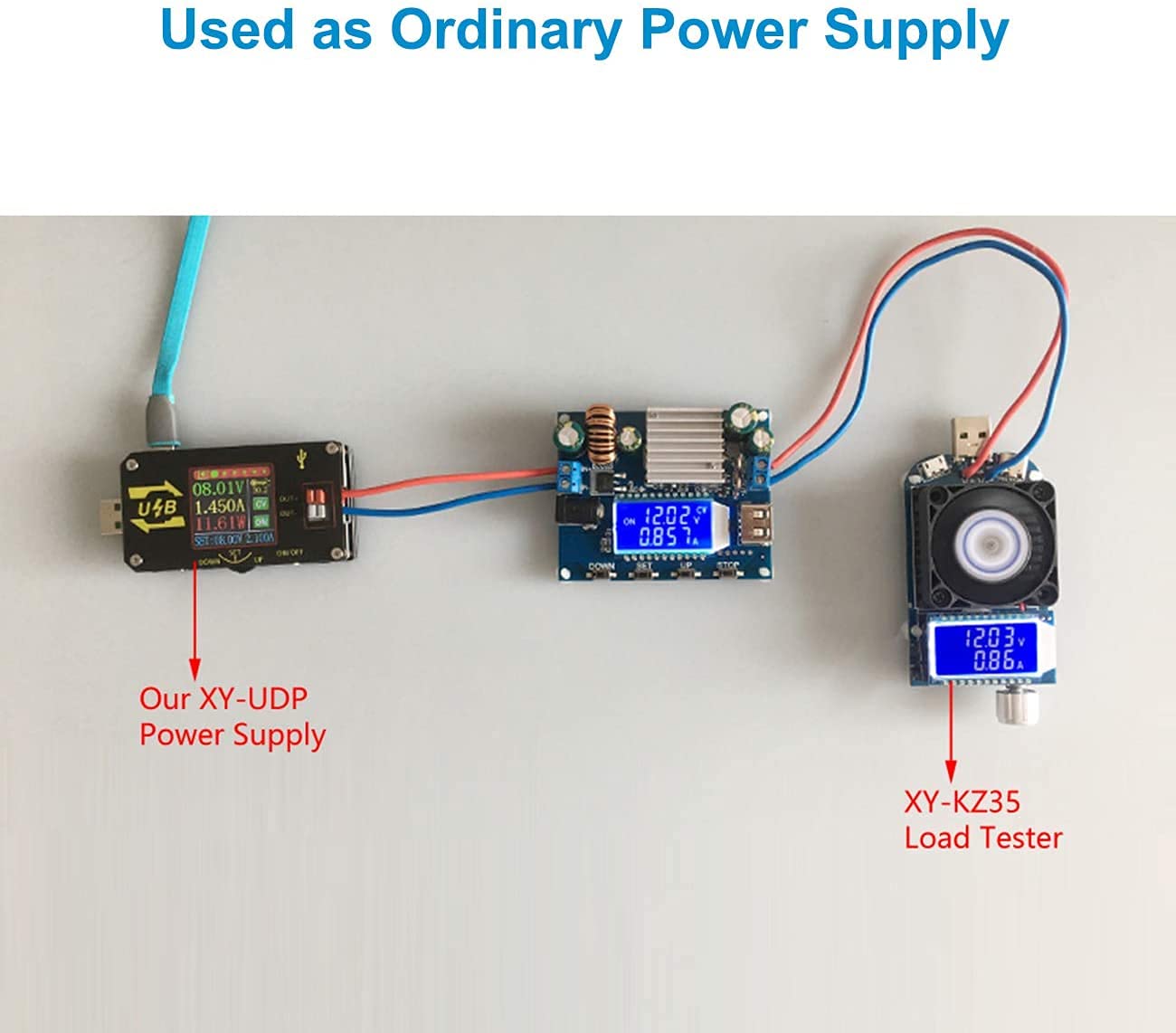

It is ideal for bench power supplies, LED drivers, battery charging (Li-ion, LiFePO4), test equipment, solar regulators, and more.
