Specification:

Rated Voltage: DC 12V
Reduction Ratio: 1: 31.6
No-Load Speed: 100RPM
Rated Torque: 4.5Kg.cm
Rated Current: 1.1Amp
D Shaped Output Shaft Size: 6*14mm (0.24" x 0.55") (D*L)
Gearbox Size: 37 x 24.5mm (1.46" x 0.96") (D*L)
Motor Size: 36.2 x 33.3mm (1.43" x 1.31") (D*L)
Mounting Hole Size: M3 (not included)

Features:

• High Torque Output: Delivers strong torque at low RPM, suitable for driving mechanical loads or robotic actuators.

• 12V Rated Voltage: Optimized for 12V DC power supply, commonly available in battery packs and power adapters.

• 100 RPM Speed: Provides a balanced speed for applications requiring controlled movement.

• 37mm Gearbox Diameter: Sturdy metal gear reduction box for durability and smooth transmission.

• Centrically Aligned Output Shaft: Shaft located in the center for easy mechanical coupling and alignment.

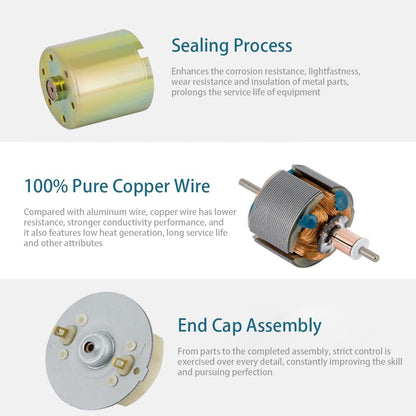

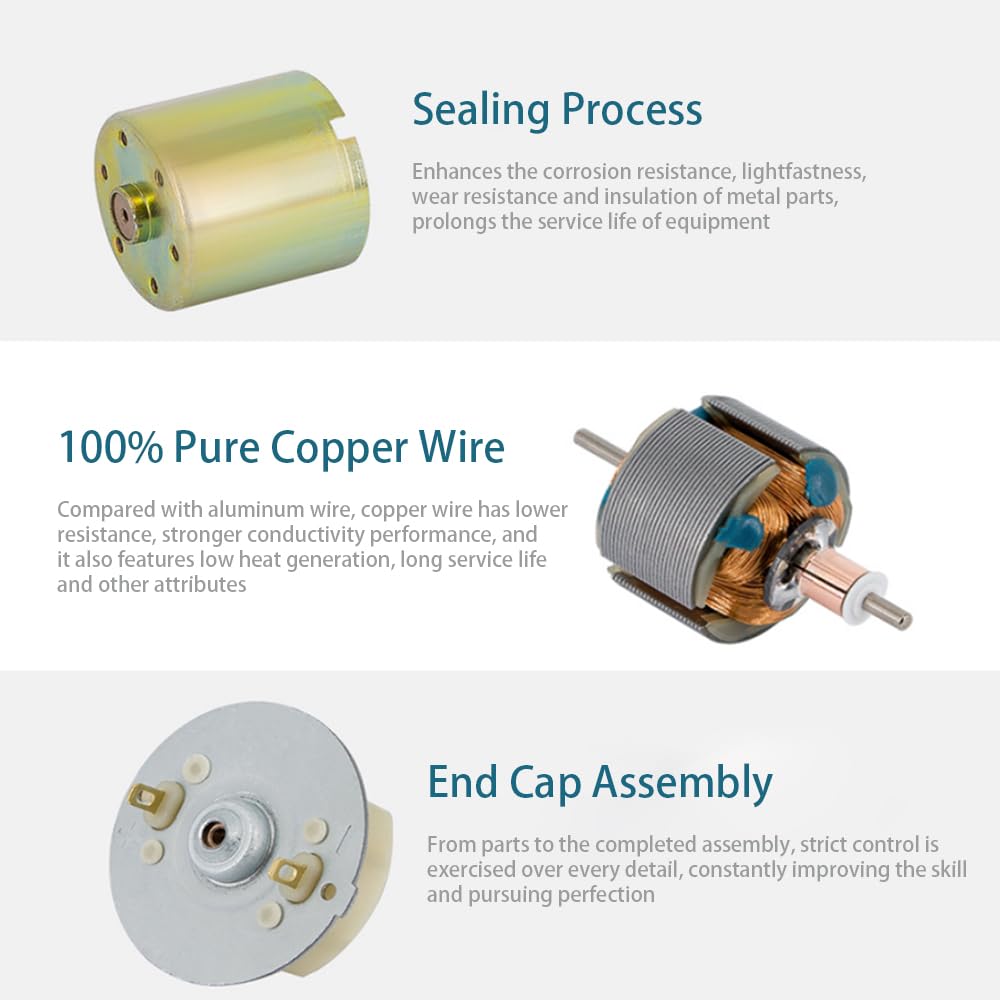

• Metal Gears: High-strength all-metal gear construction ensures long life and resistance to wear.

• Compact Design: Ideal for applications with limited space where powerful, compact motors are needed.

• Reversible Rotation: Motor direction can be changed by reversing the polarity of the power supply.

• Low Noise Operation: Gearbox engineered for quiet performance.

• Mounting Holes: Built-in threaded holes on the gearbox for easy and secure installation.

• Application Versatility: Perfect for robots, RC vehicles, conveyor belts, smart locks, and automation systems.

Description:

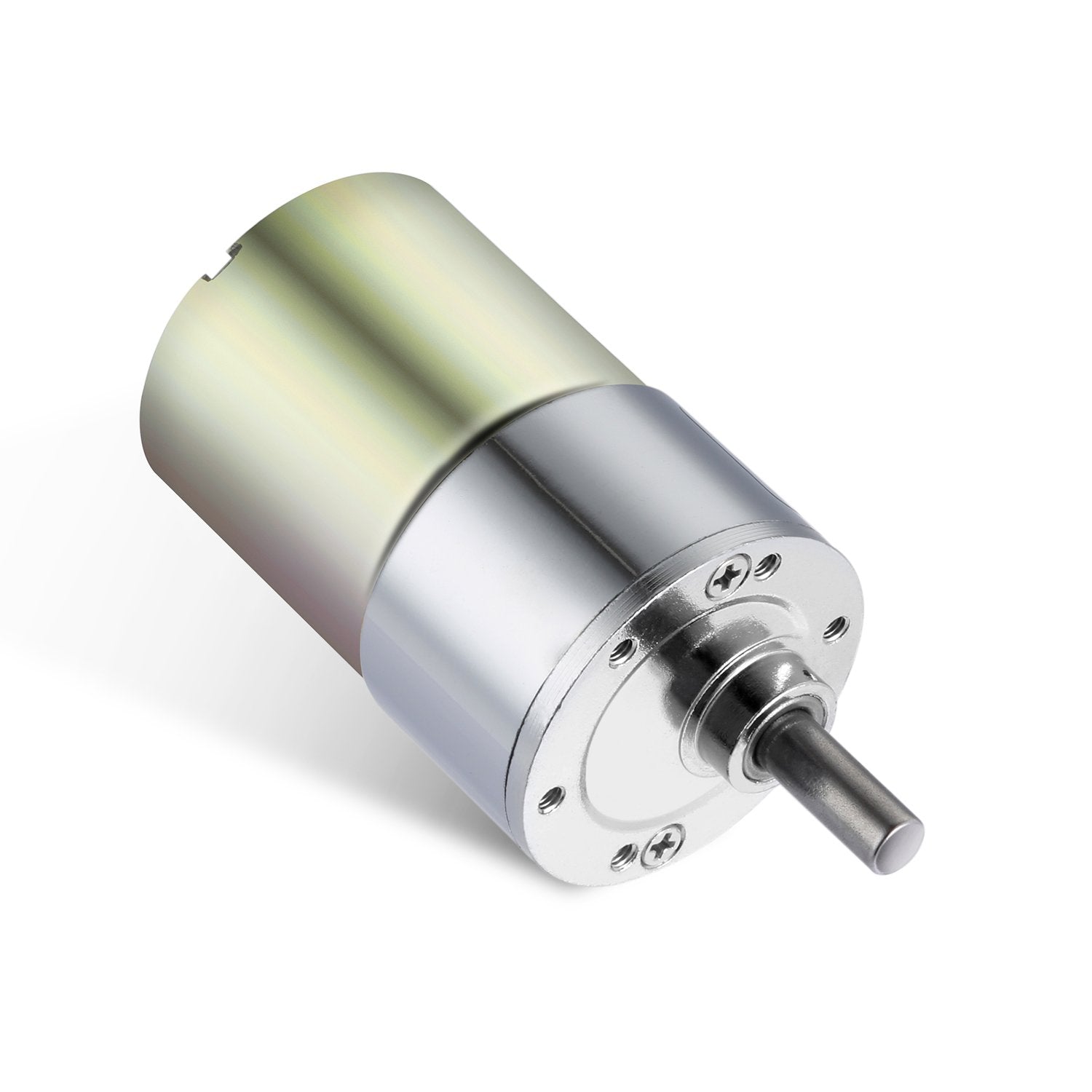

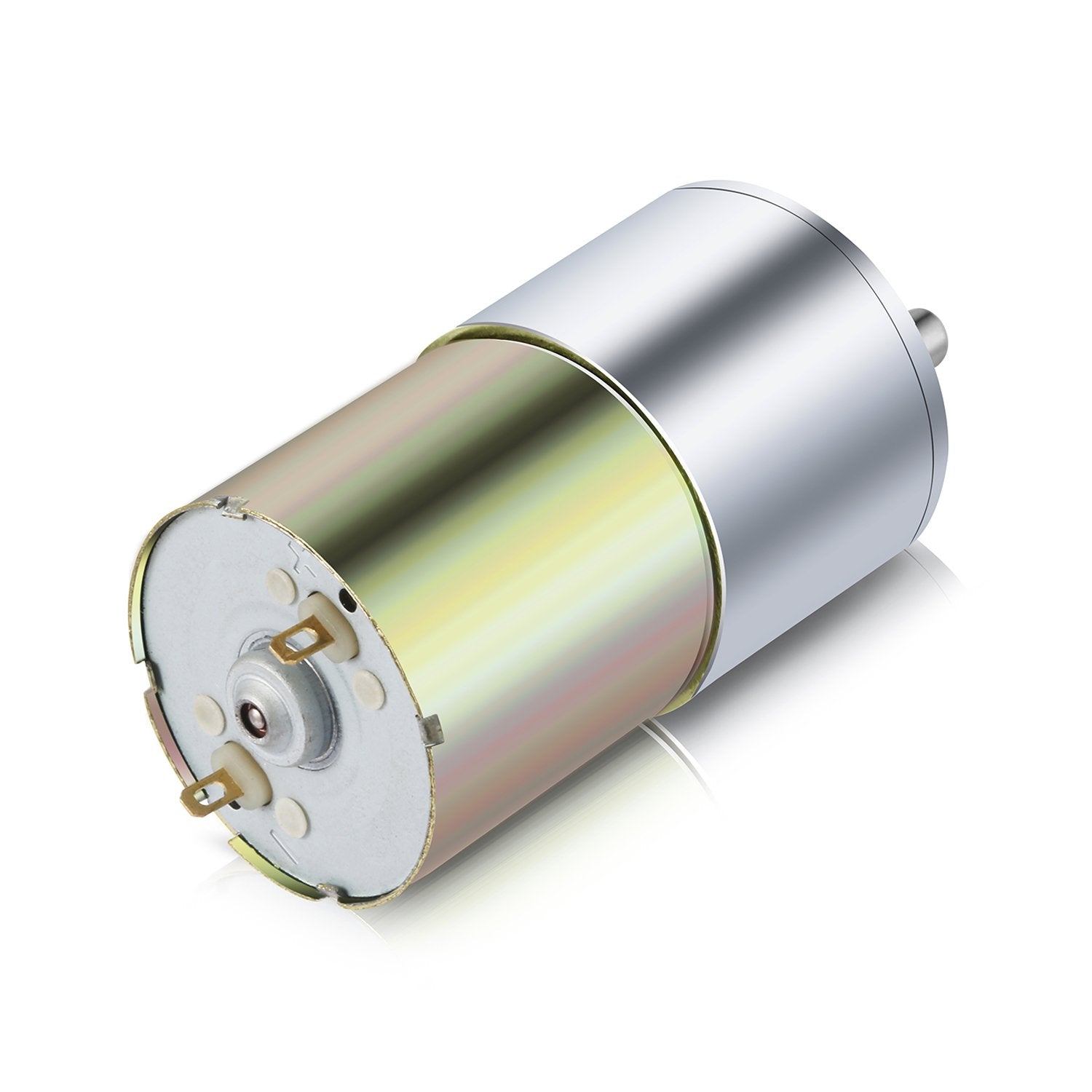

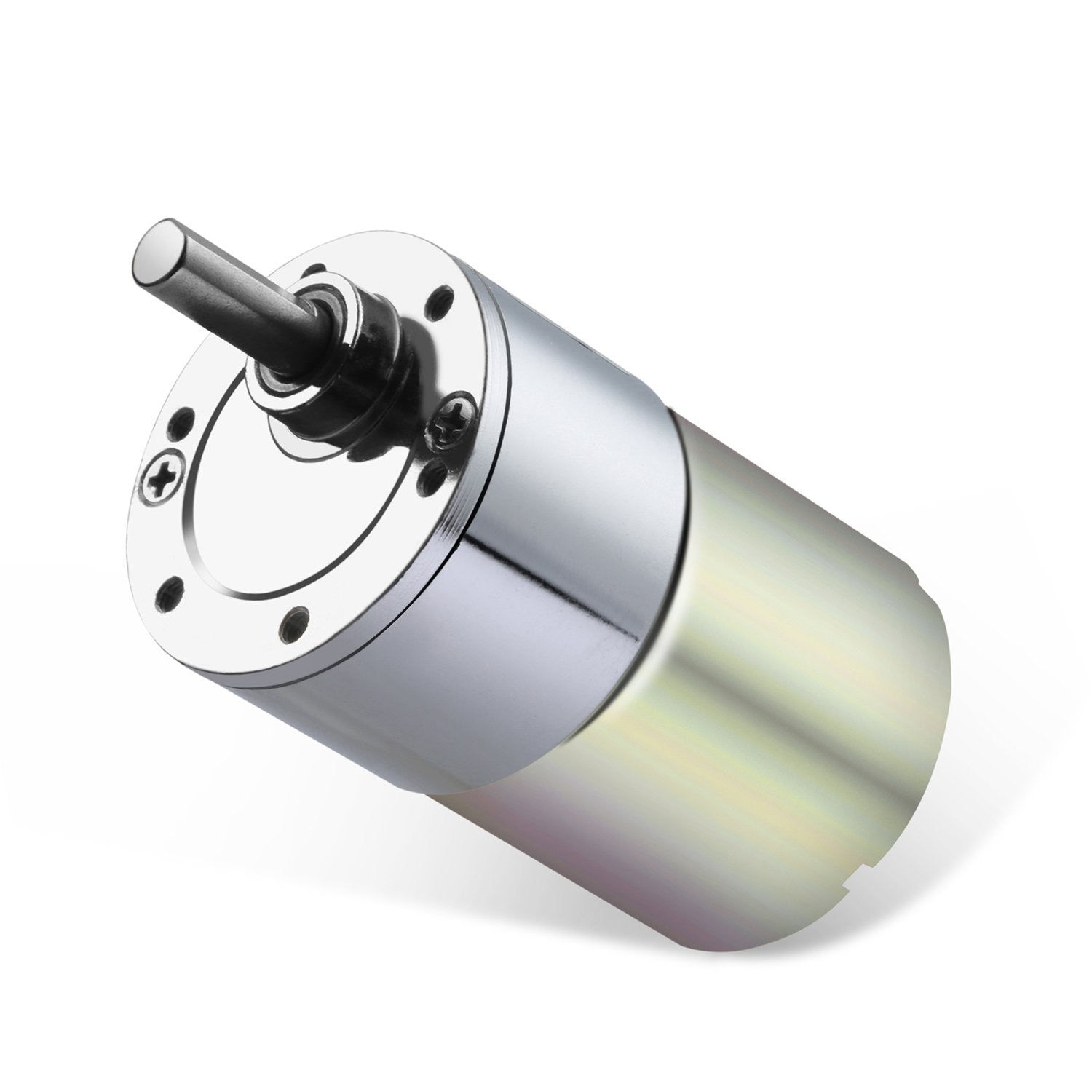

This DC 12V 100RPM gear motor is a compact, high-torque, low-speed electric motor designed for applications requiring precise movement and strong output force. With its built-in metal gearbox and a centric output shaft, it delivers reliable performance for robotics, automation systems, DIY projects, and industrial applications.

The motor operates at 12V DC and delivers approximately 100 revolutions per minute (RPM), making it ideal for tasks that require slow but powerful movement. The 37mm-diameter gearbox is constructed from durable metal, offering excellent torque multiplication and long-term mechanical reliability.

The centric output shaft design ensures balanced torque delivery and simplifies integration into various mechanical assemblies, such as robotic arms, tracked vehicles, camera sliders, or automated doors. Its compact size makes it easy to mount in tight spaces while still providing enough power for demanding tasks.
