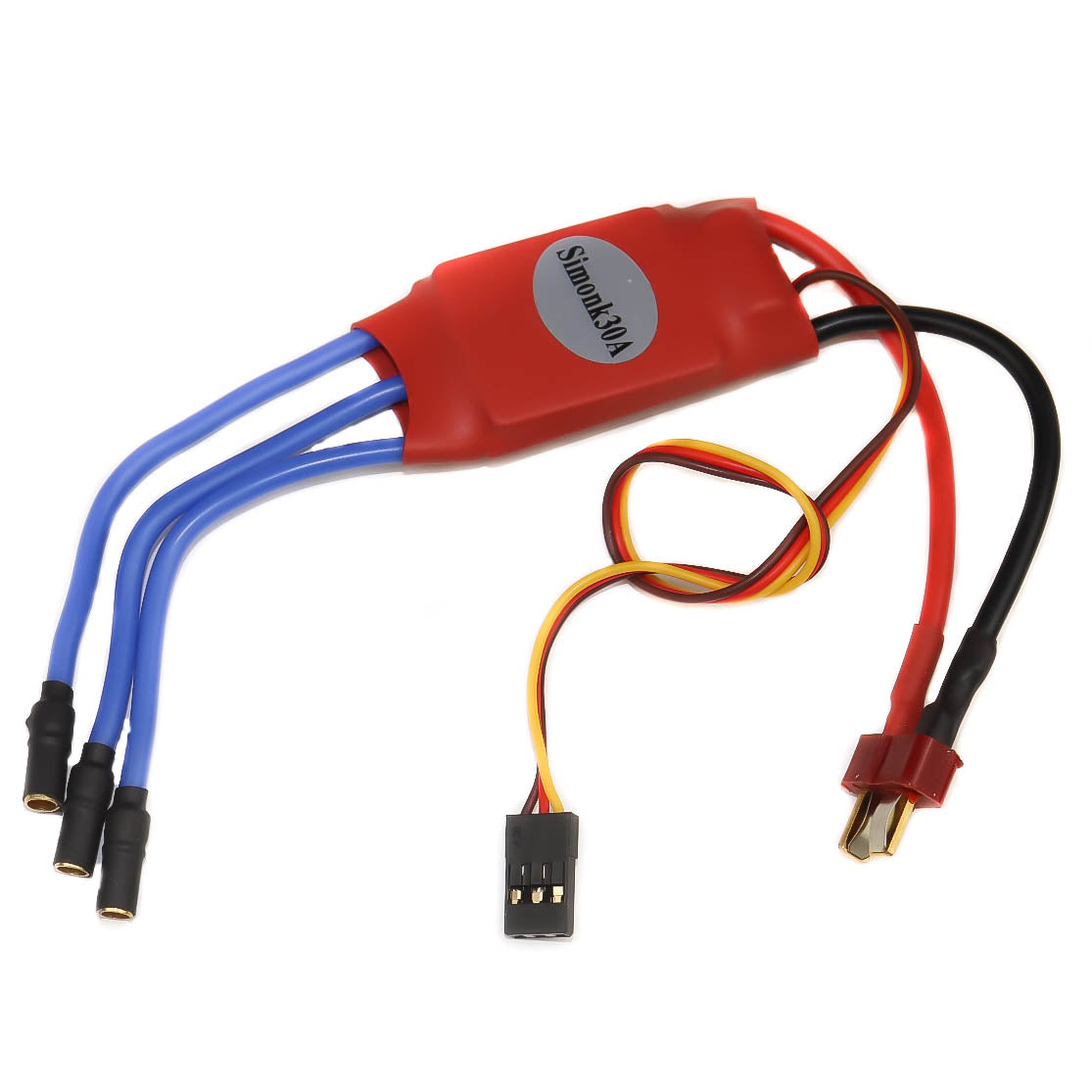

BLDC ESC 30A RED Electronic Speed Controller with Dean Connectors

BLDC ESC 30A RED Electronic Speed Controller with Dean Connectors

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Description:

The 30A BLDC ESC (Electronic Speed Controller) with Connectors is a high-performance ESC designed for brushless motors in drones, quadcopters, and RC vehicles. It provides smooth and precise motor control, ensuring better flight stability and efficiency. Compatible with Simonk firmware, this ESC is optimized for faster throttle response, making it ideal for multi-rotor and aerial applications.

Power your RC models with precision and reliability using the 30A Red Brushless ESC, designed for seamless integration with brushless motors in drones, airplanes, boats, and robotics projects. This high-efficiency electronic speed controller offers smooth throttle response, robust protection features, and compatibility with 2S to 3S LiPo batteries.

Crafted for hobbyists and professionals alike, the red ESC delivers 30 amps of continuous current with up to 40 amps burst current, making it ideal for mid-range brushless setups. The built-in 5V/2A BEC powers your receiver or flight controller, eliminating the need for separate power sources.

Features:

  • Current Capacity: Supports up to 30A continuous current, suitable for most brushless motors.
  • Firmware Compatibility: Preloaded with Simonk firmware for enhanced motor response and efficiency.
  • Voltage Support: Operates with 2S-4S LiPo batteries for flexible power options.
  • Compact Design: Lightweight and compact, perfect for drones and RC applications.
  • Heat Dissipation: Built with efficient heat management to prevent overheating during prolonged use.
  • Plug-and-Play: Comes with pre-soldered connectors for easy installation and setup.
  • High Durability: Designed with quality materials for long-lasting performance.
  • Application: Suitable for quadcopters, drones, helicopters, and other RC vehicles.

Specification:

  • Model: 30A Brushless ESC (Red casing)

  • Type: Electronic Speed Controller for Brushless Motors

  • Continuous Current: 30 Amps

  • Burst Current: Up to 40 Amps (for 10 seconds)

  • BEC Output: 5V / 2A (Linear BEC)

  • Battery Compatibility:

    • 2S–3S LiPo (7.4V to 11.1V)

    • 5–9 NiMH/NiCd cells

Input/Output:

  • Input Voltage Range: 6V – 12.6V

  • Motor Type: Brushless Outrunner / Inrunner

  • PWM Frequency: ~8 kHz (Throttle), 16 kHz (Motor drive)

  • Signal Input: Standard 1–2 ms PWM from RC receiver

  • Connector Type:

    • Input: Male bullet connectors or bare wire

    • Output: Female 3.5mm bullet connectors (to motor).
