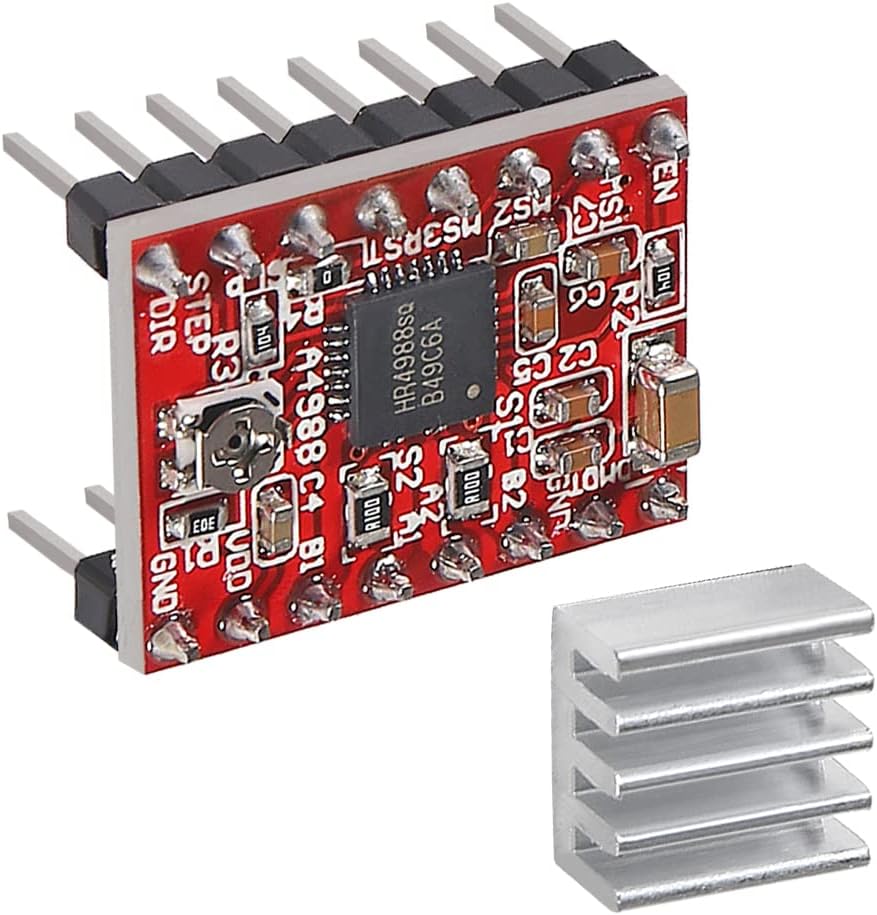

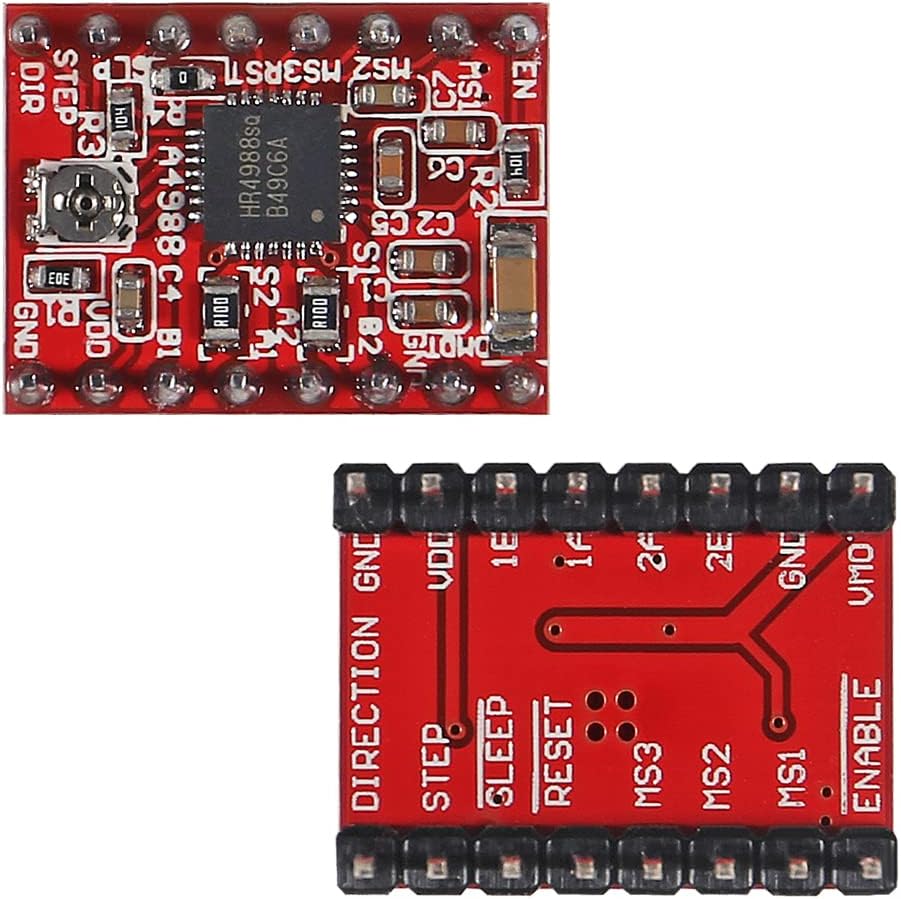

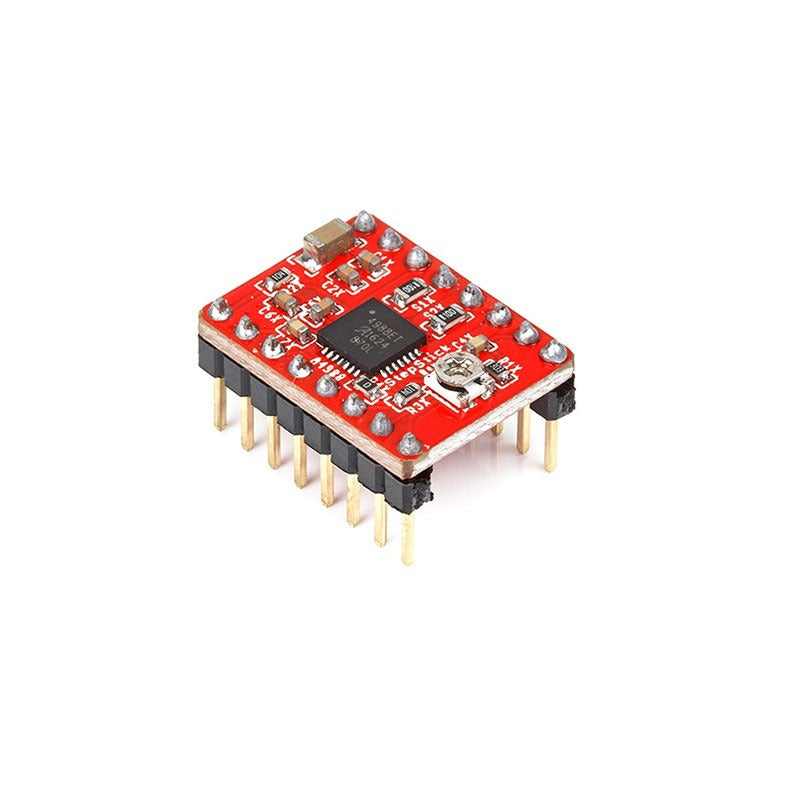

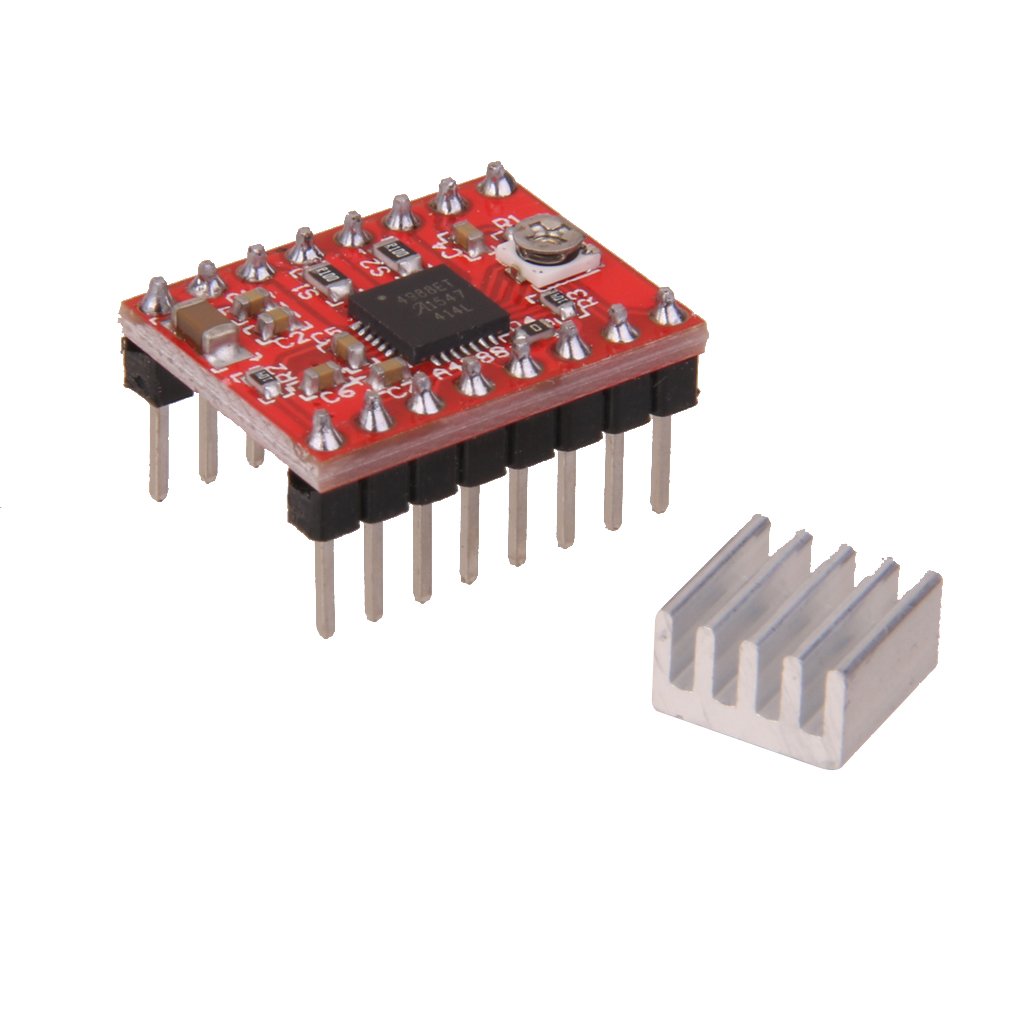

A4988 Stepstick Stepper Motor Driver Module with Heat Sink for 3D Printer Reprap Suitable for Arduino CNC

A4988 Stepstick Stepper Motor Driver Module with Heat Sink for 3D Printer Reprap Suitable for Arduino CNC

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Details
Driver Chip Allegro A4988
Input Voltage (VMOT) 8V – 35V DC
Logic Voltage (VDD) 3.3V – 5V DC
Max Current per Phase Up to 2A (with heat sink & cooling)
Microstepping Resolutions Full, 1/2, 1/4, 1/8, 1/16 steps
Control Interface Step and Direction Pins
Protection Features Thermal shutdown, under-voltage lockout, cross-conduction protection

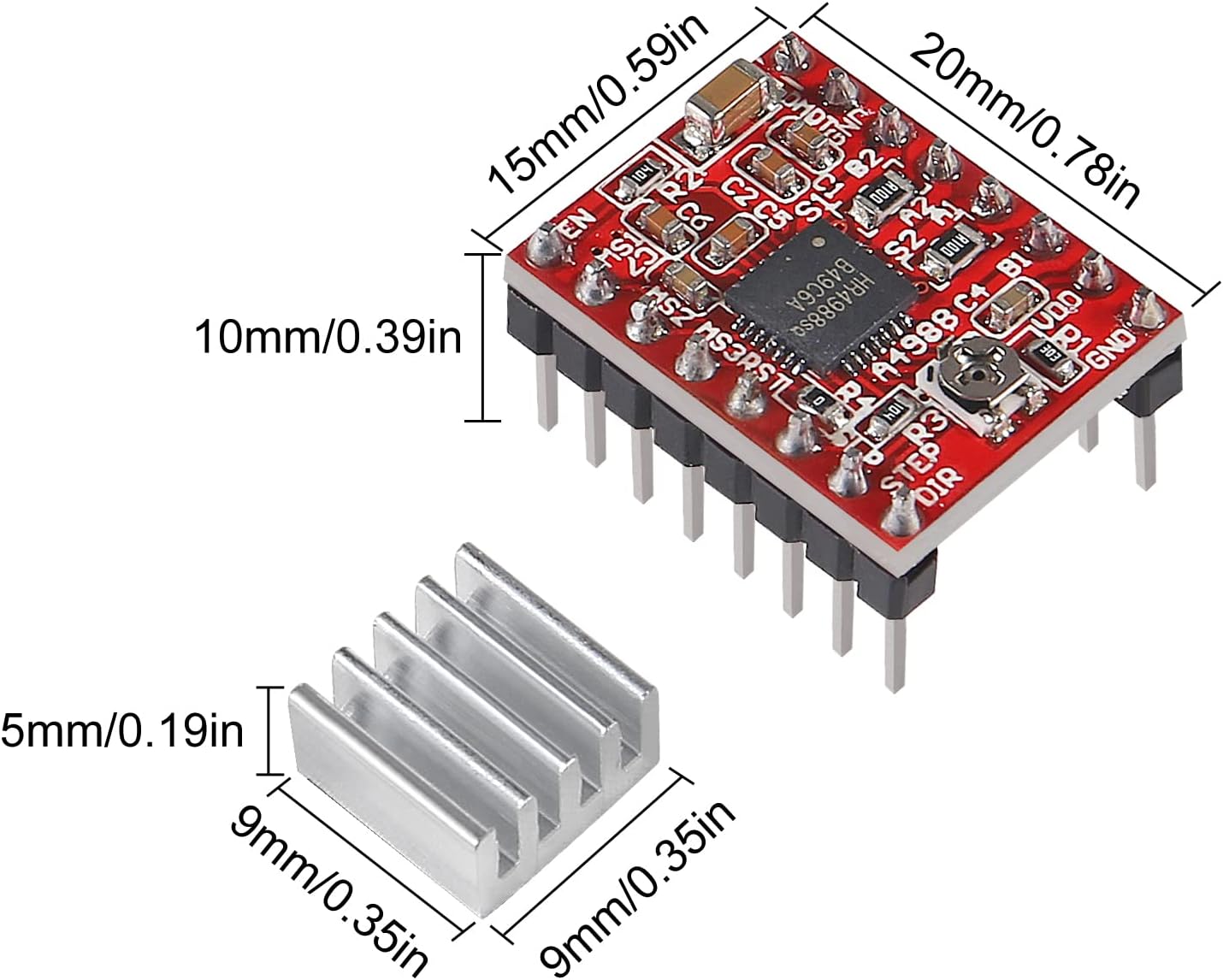

Dimensions Approx. 20mm x 15mm x 10mm
Heat Sink Material Anodized aluminum



Features:

Microstepping Support

  • Selectable microstepping resolutions: Full, 1/2, 1/4, 1/8, and 1/16 step.

  • Enables smoother and more precise motor movements.

Adjustable Current Limiting

  • Set the maximum current output via an onboard potentiometer.

  • Helps protect motors from overheating and allows for quiet, efficient operation.

Thermal and Overcurrent Protection

  • Built-in over-temperature shutdown and short-to-ground protection for safety and durability.

Compact and Stackable

  • Small "Stepstick" form factor makes it ideal for space-constrained builds.

  • Compatible with most RAMPS boards used in 3D printing.

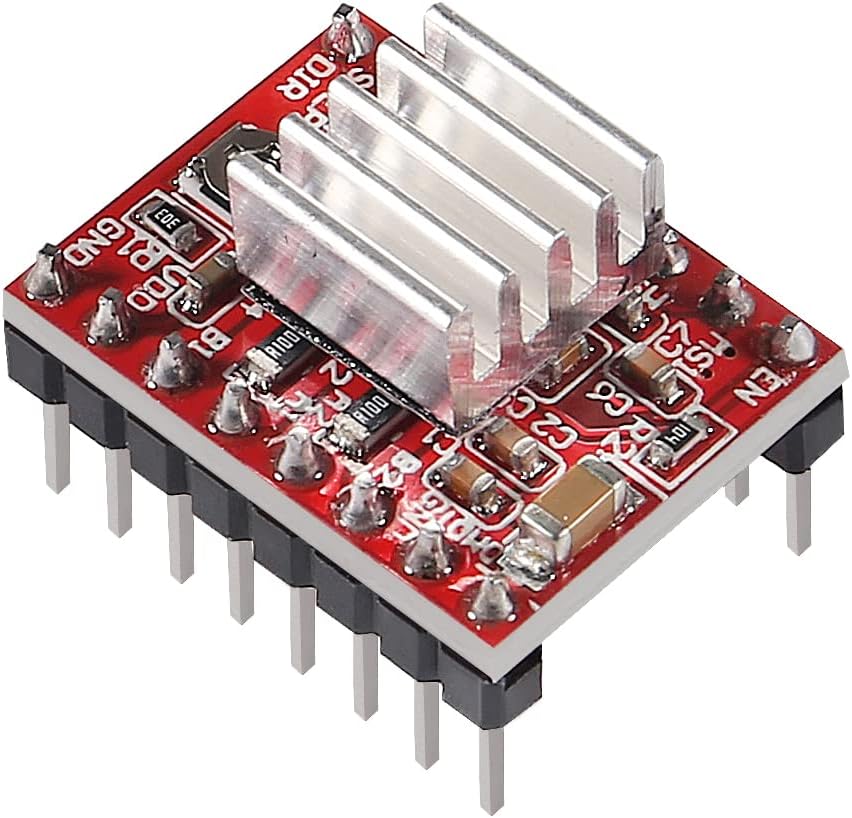

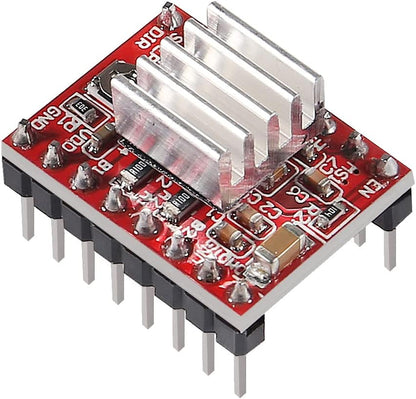

Aluminum Heat Sink Included

  • Improves thermal management during prolonged usage.

Description:

The A4988 Stepstick Stepper Motor Driver Module is a compact, versatile motor driver board designed to control bipolar stepper motors with precision and efficiency. It is widely used in 3D printers (e.g., Reprap, Prusa), CNC machines, and other automated motion systems. The driver is based on the Allegro A4988 IC, which allows for full-, half-, quarter-, eighth-, and sixteenth-step microstepping—enabling smoother motor performance and higher positioning accuracy.

This module comes pre-soldered with header pins and includes a dedicated aluminum heat sink, ensuring optimal thermal dissipation during continuous operation.
