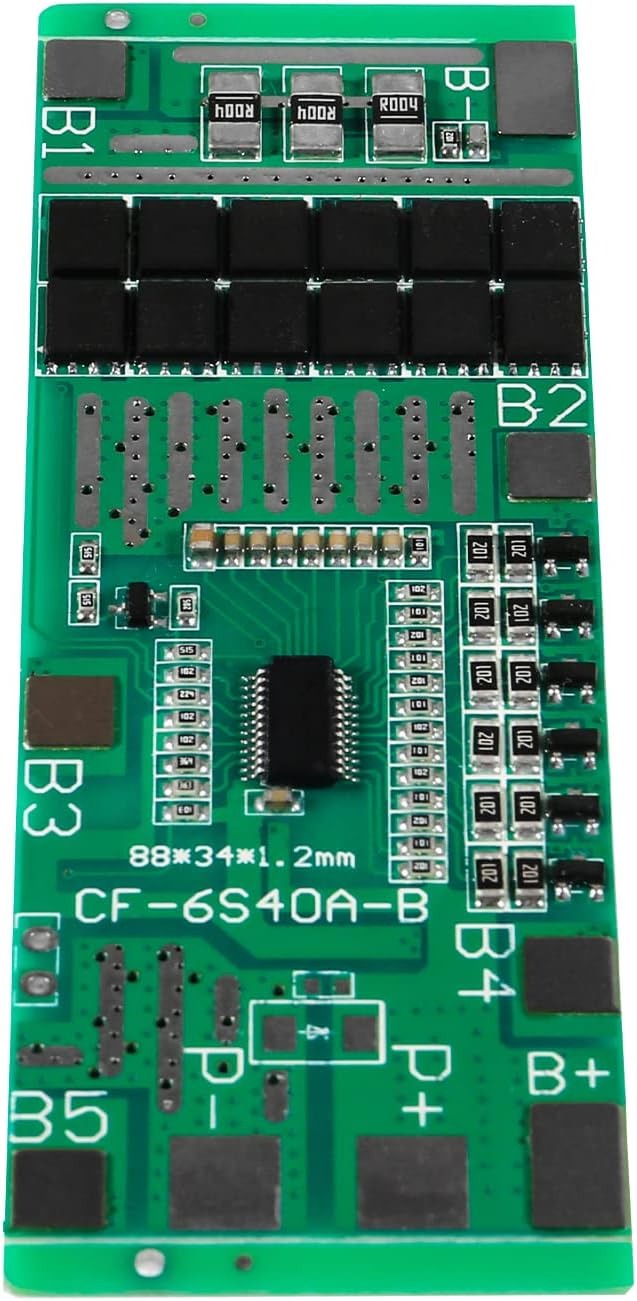

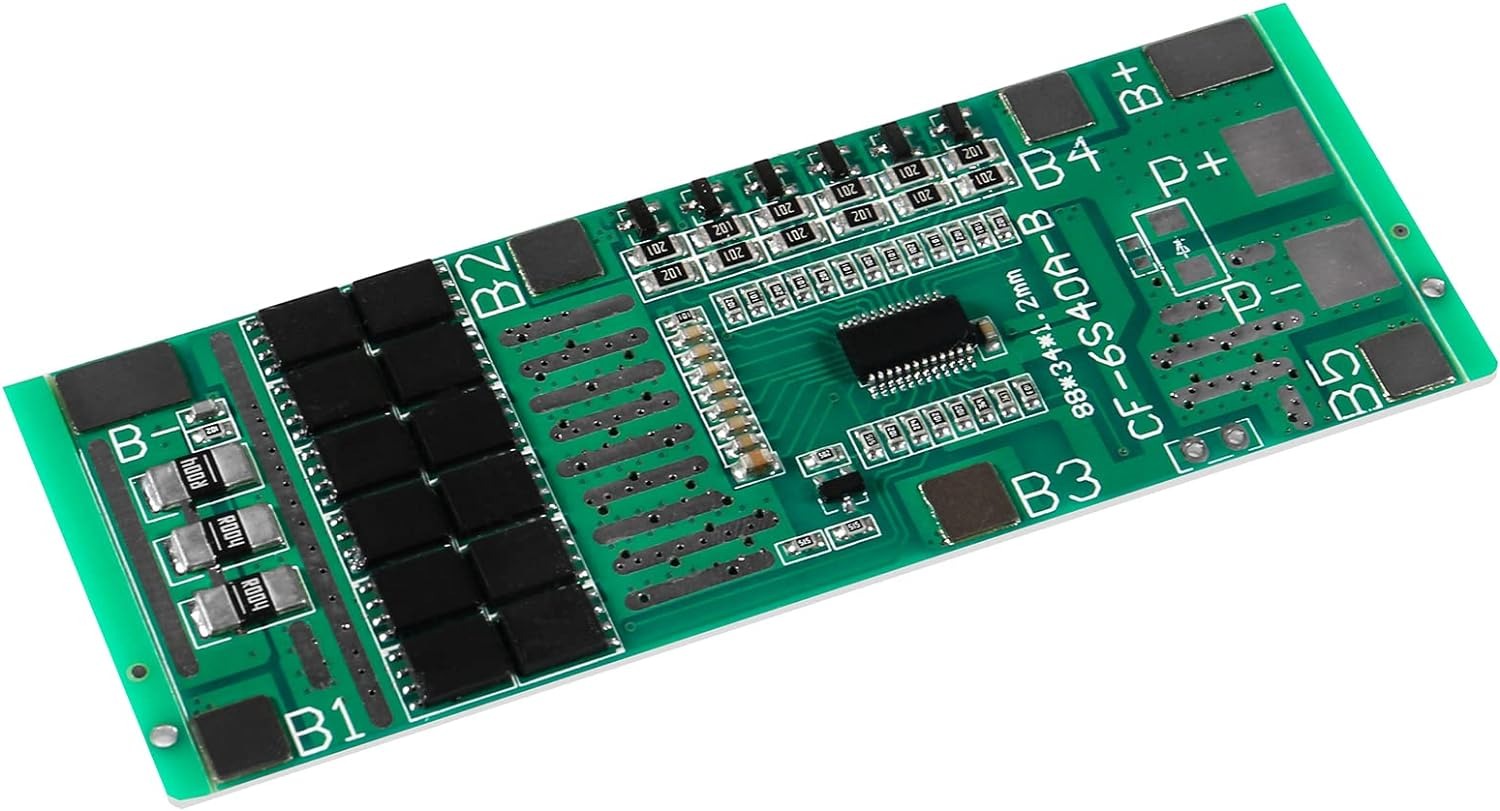

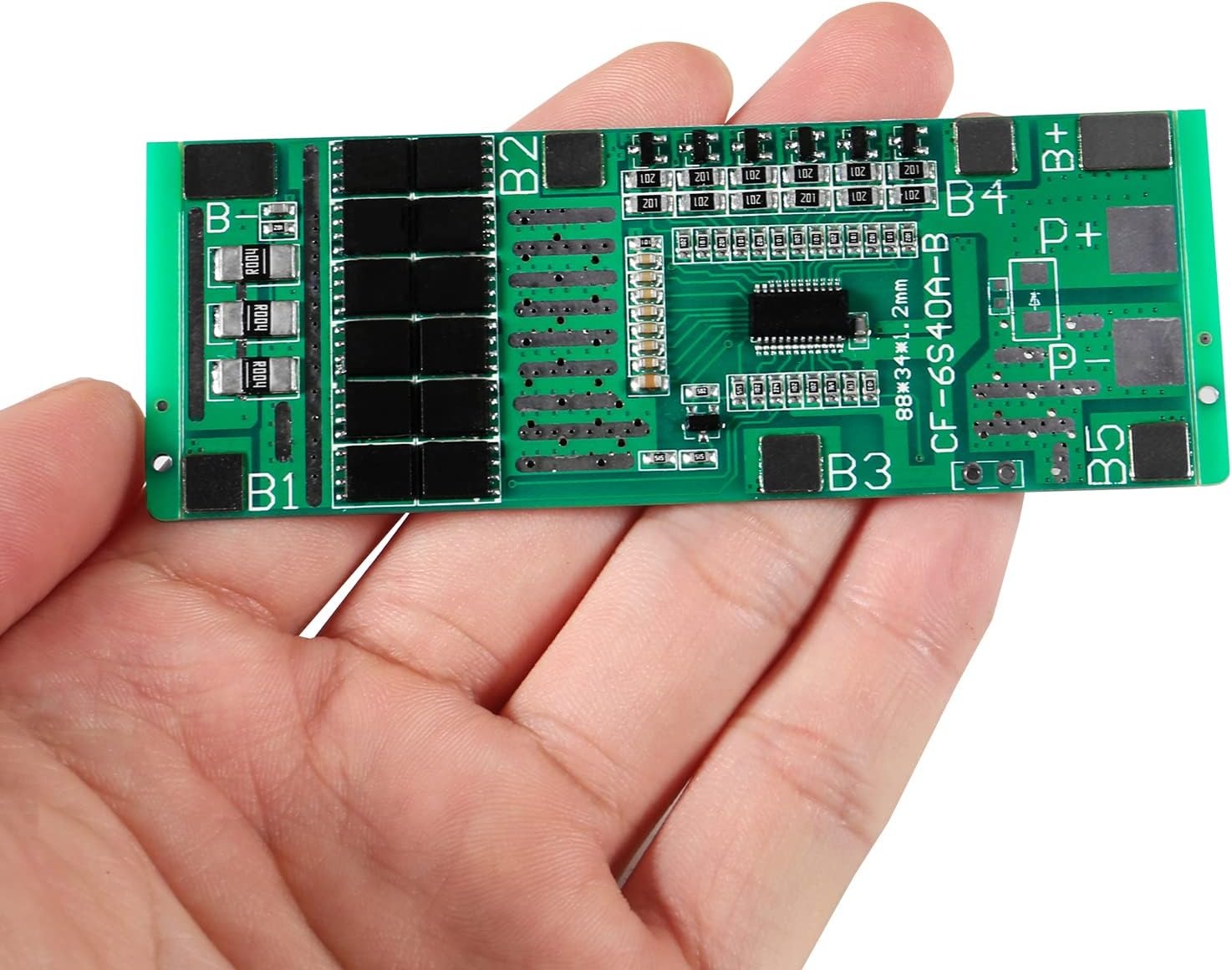

6S 40A 24V BMS 18650 Lithium Battery Protection Board PCB Protection Board 18650 Charger Module for Li-ion Lithium Battery Module Over-Discharge/Over-Current

6S 40A 24V BMS 18650 Lithium Battery Protection Board PCB Protection Board 18650 Charger Module for Li-ion Lithium Battery Module Over-Discharge/Over-Current

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp
Parameter Specification
Battery Type Lithium-ion (Li-ion) 18650 / Li-Polymer (3.7V nominal, 4.2V max)
Number of Cells 6 Series (6S) – Total Pack Voltage: 22.2V nominal, 25.2V max
Continuous Discharge Current 40A
Peak Discharge Current Up to 60A
Charging Voltage 25.2V (4.2V × 6 cells)
Overcharge Protection Voltage ~4.25V ± 0.05V per cell
Over-discharge Protection Voltage ~2.5V ± 0.05V per cell
Overcurrent Protection Yes (Typically ~60A)
Short Circuit Protection Yes
Balance Function Optional (varies by board version; may include passive cell balancing)
Temperature Protection Not always included (depends on version)
Board Dimensions Approx. 70mm × 45mm × 4mm

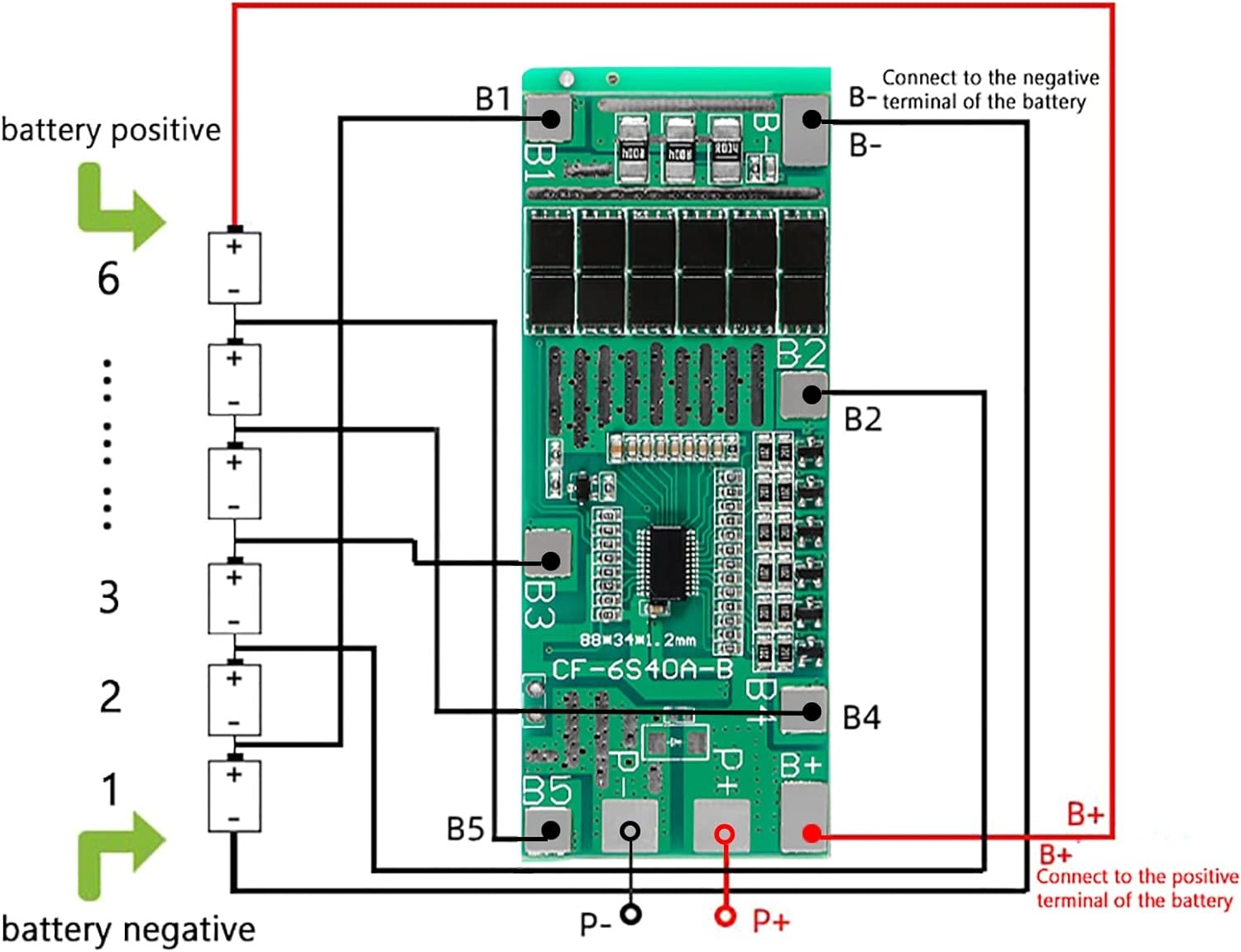

Connector Type 7-pin JST/PH connector for cell balancing
PCB Type High-quality FR4, multi-layer with thickened copper traces
Self-Consumption <50μA (low power standby mode)
Application 6S 18650 battery packs for e-bikes, solar storage, power tools, DIY projects

Features:

  • Maximum discharge current: 40A Instantaneous discharge current: 70A Charging voltage: 25.5V
  • Maximum charging current: 40A Overcharge detection voltage: 4.25±0.025V Overcharge protection delay: 1.0±0.5S
  • Overcharge release voltage: 4.15±0.05V Battery balance detection voltage: 4.125±0.025V Battery balance release voltage: 4.125±0.05V
  • Overcurrent detection delay: 1±0.3S Overcurrent protection current: 75±5A Overcurrent protection release condition: disconnect load
  • Overdischarge detection delay: 1.0±0.5S Overdischarge release voltage: 3.0±0.1V Overcurrent detection voltage: 100mV

Description:

Maximum Continuous Discharge Current: Capable of handling a continuous discharge current of up to 40 amperes (40A), making it suitable for high-power applications. Charging Method: Utilizes a constant current (CC) and constant voltage (CV) charging method for safe and efficient battery charging. Overcharge Protection: Monitors individual cell voltages and prevents overcharging by cutting off the charging current when cells reach their maximum voltage limit (typically around 4.2 volts per cell). Over-discharge Protection: Cuts off the discharge current when the battery voltage drops below a safe threshold to prevent over-discharging and protect battery health. Overcurrent Protection: Limits the discharge current to protect the battery pack and BMS during high-current operations, ensuring safety and longevity. Short Circuit Protection: Detects and protects against short circuits in the battery pack or load circuit, safeguarding against potential damage. Balancing Function: Includes balancing functionality to ensure that individual cells in the battery pack are charged and discharged evenly, optimizing overall battery performance and lifespan.
