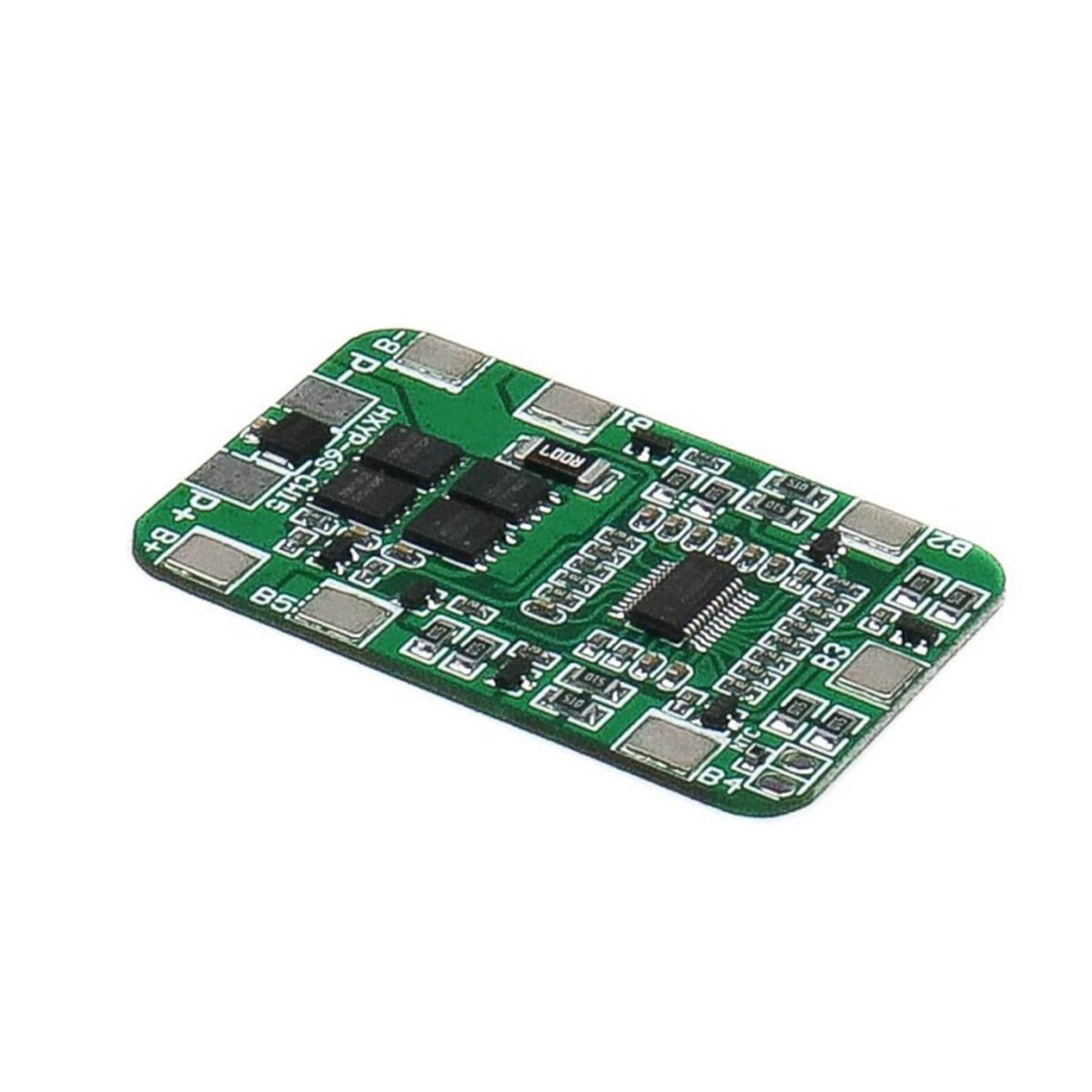

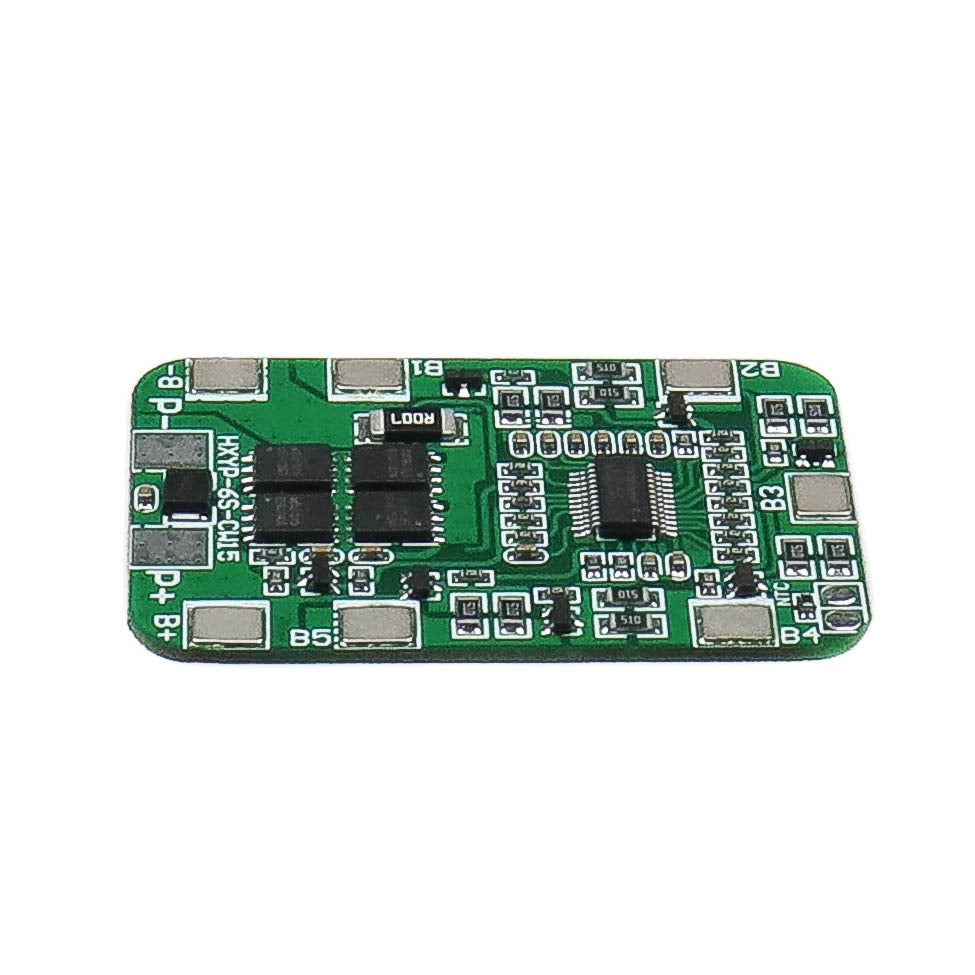

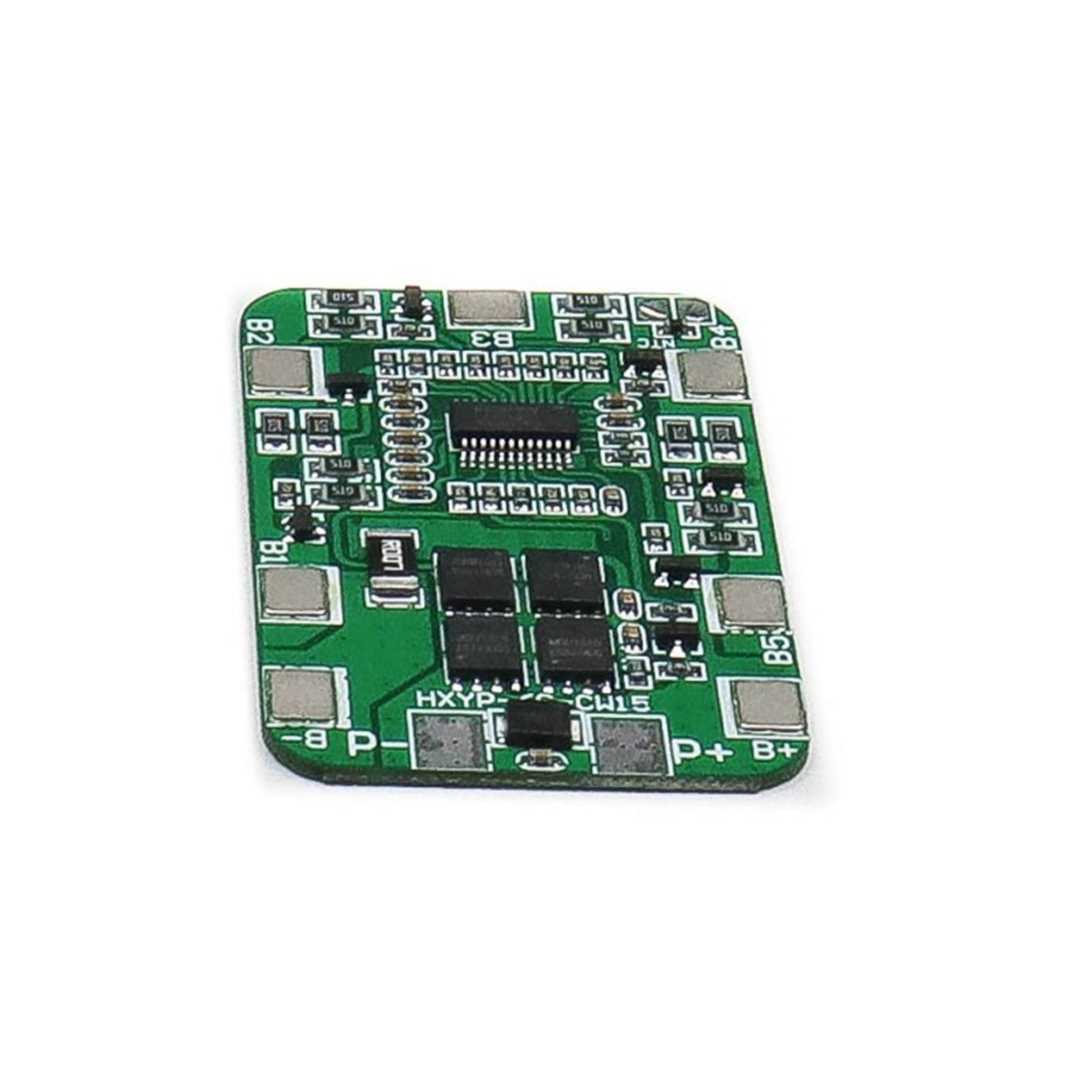

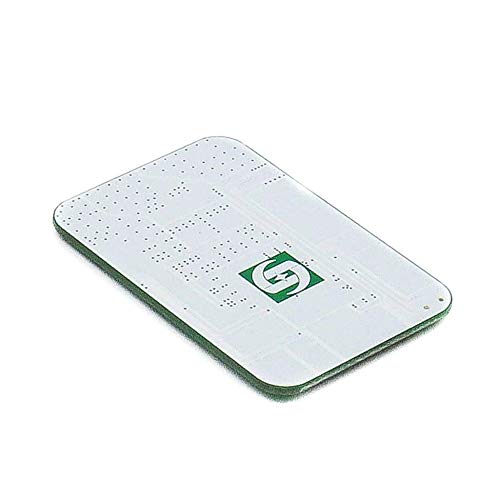

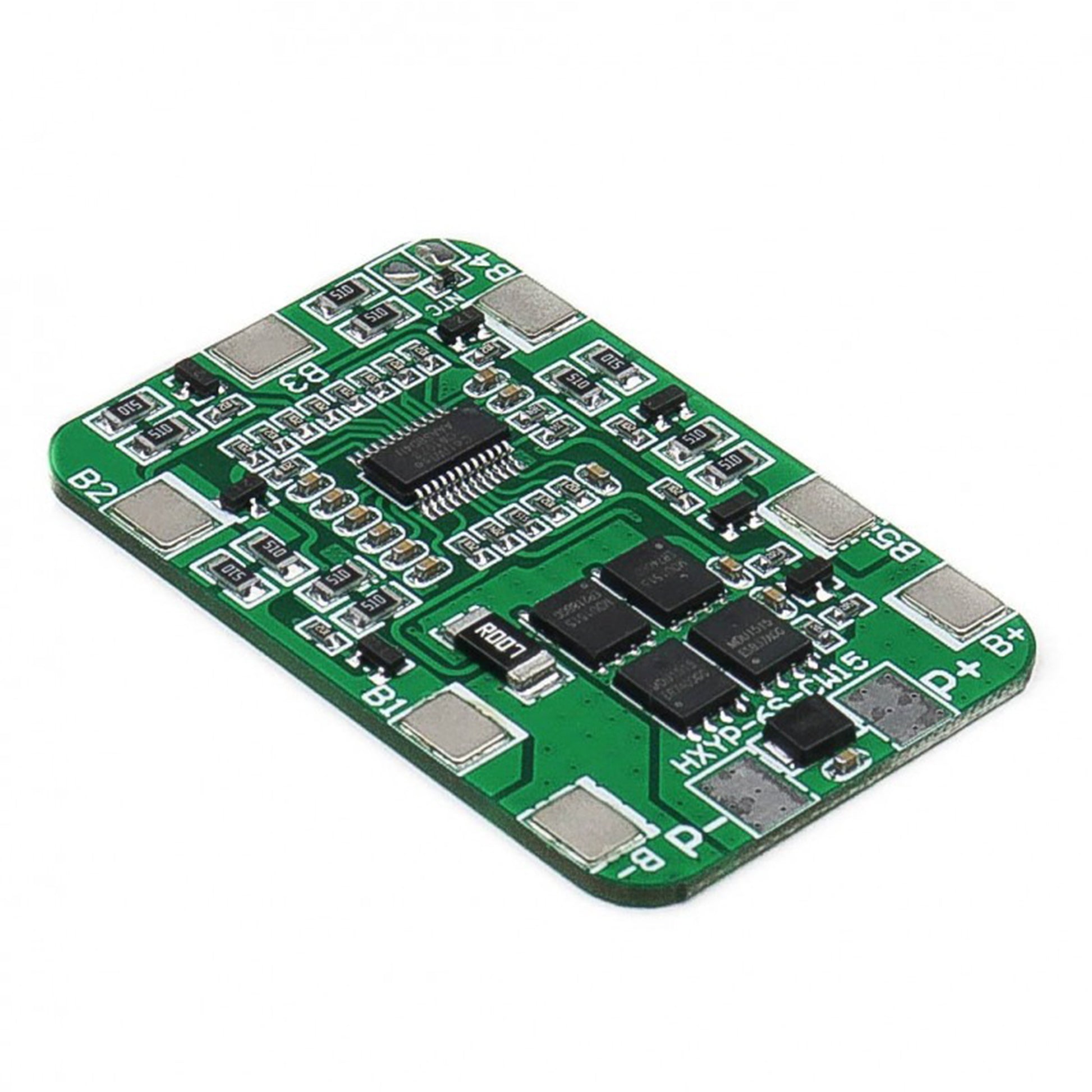

6S 20A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module

6S 20A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module

₹ 180.00
₹ 180.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Details
Battery Type 18650 Li-ion / LiPo cells
Series Configuration 6S (6 cells in series)
Nominal Voltage 22.2V (3.7V × 6)
Max Charge Voltage 25.2V (4.2V × 6)
Charge Current (Recommended) 5A – 10A
Discharge Current (Max) 20A (continuous)
Overcharge Detection Voltage 4.25V ± 0.05V per cell
Overcharge Release Voltage 4.15V ± 0.05V per cell
Over-discharge Detection 2.8V ± 0.1V per cell
Over-discharge Release 3.0V ± 0.1V per cell
Overcurrent Protection 25A – 35A (typical)
Short Circuit Protection Yes, auto recovery
Balancing Function Yes (passive balancing during charging)
Balance Voltage Threshold ~4.2V per cell
Operating Temperature -30°C to +80°C
Board Dimensions Approx. 65mm × 45mm × 8mm
Wiring Interface Solder pads or JST connector (7 wires: B-, B1 to B6)
Application E-bikes, scooters, solar storage, power tools, DIY packs



Features:

  • Protects 6-series lithium battery packs from overcharge, over-discharge, overcurrent, and short circuits.

  • Supports up to 20A continuous current – ideal for moderate-load devices.

  • Passive cell balancing for improved battery health and uniform charging.

  • Compatible with standard 18650 cells and other Li-ion/LiPo cells.

  • Helps maintain safety, reliability, and extended battery life.

  • Compact design for easy integration in battery enclosures.

  • Can be used in DIY power systems, UPS, robotics, and portable energy devices.

Description:

The 6S 20A BMS (Battery Management System) Protection Board is designed for 6-cell (6S) 18650 Li-ion battery packs configured in series, offering a total nominal voltage of 22.2V and a maximum fully charged voltage of 25.2V (4.2V × 6). This BMS provides essential protection features to prevent battery damage, enhance lifespan, and ensure safe usage.

It offers built-in overcharge protection, over-discharge protection, overcurrent protection, and short circuit protection. With a maximum continuous discharge current of 20A, it's well-suited for medium-load applications such as electric bicycles, scooters, power tools, solar battery systems, and DIY energy storage setups.

The board includes a balance function, which equalizes the voltage of all 6 cells during charging to prevent overcharging of individual cells and maintain long-term performance.
