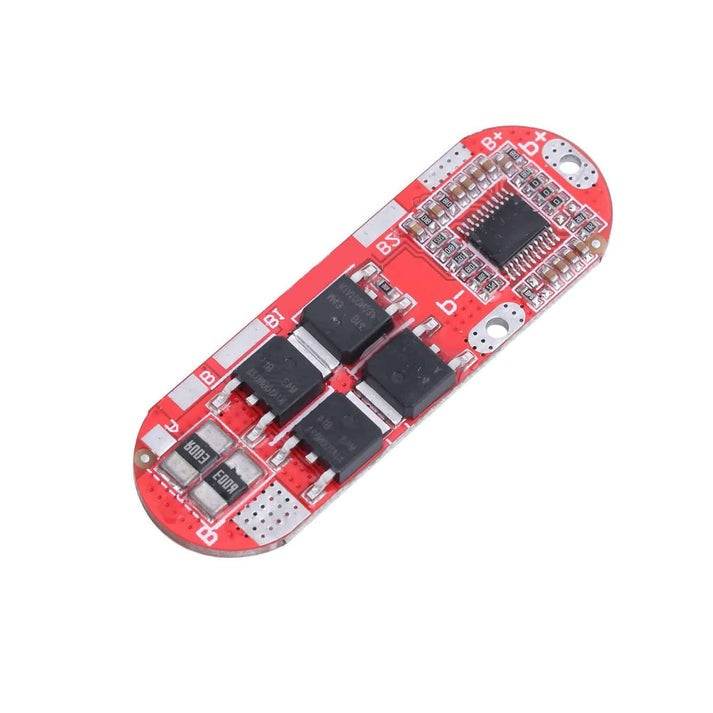

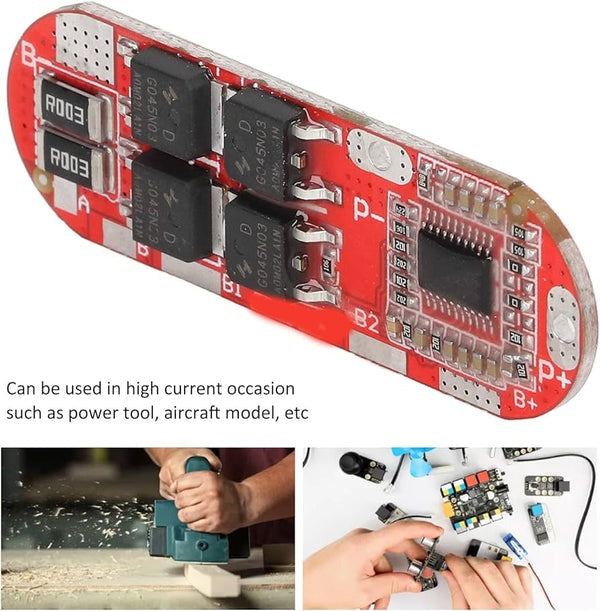

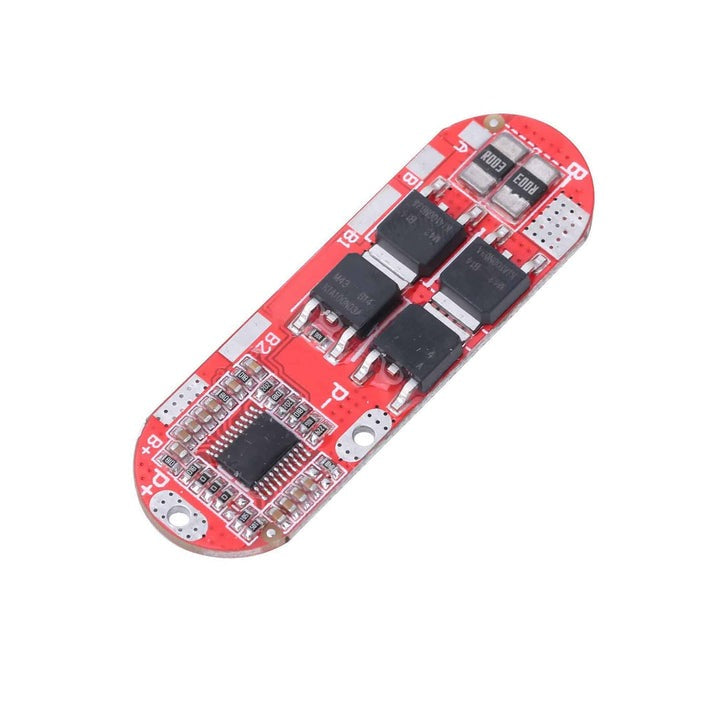

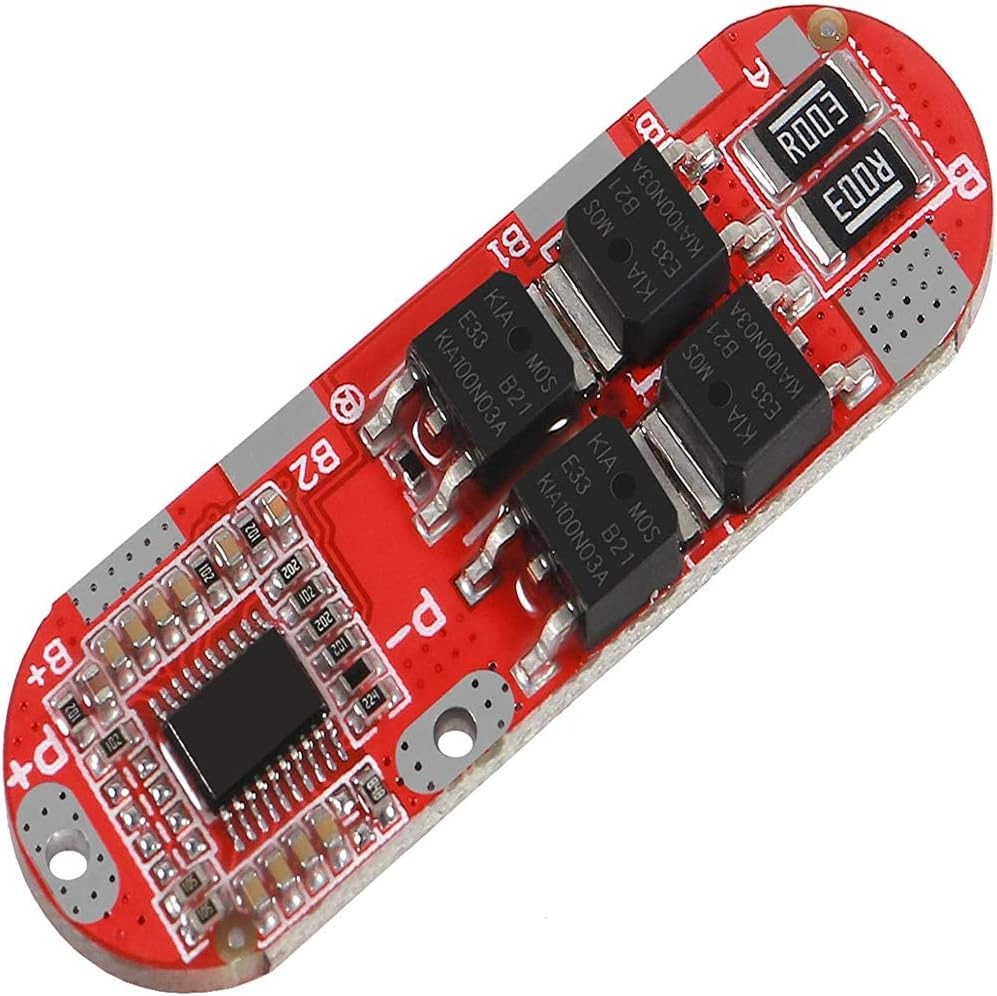

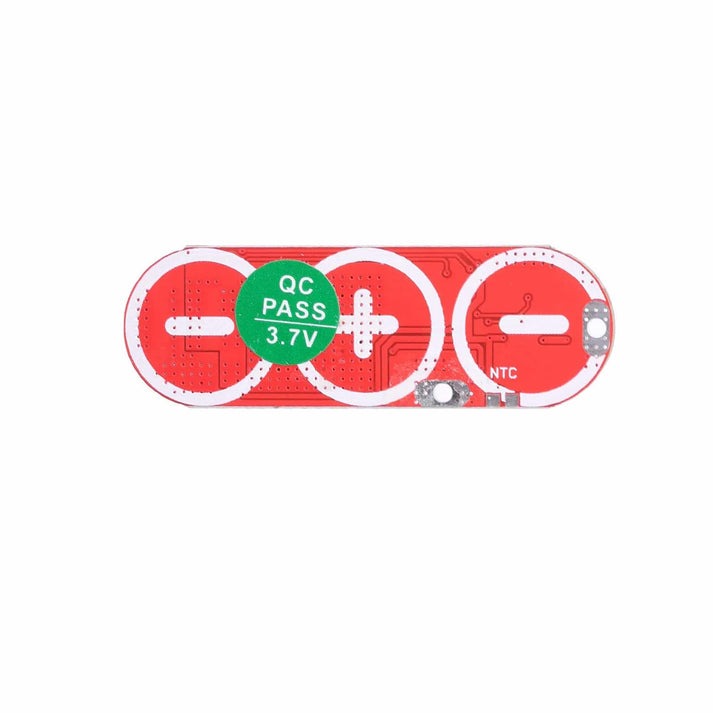

5S 40A BMS Board 5S 40A 18650 Li-ion Lithium Battery Charger Protection Board - RS2874

5S 40A BMS Board 5S 40A 18650 Li-ion Lithium Battery Charger Protection Board - RS2874

₹ 180.00
₹ 180.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Details
Model RS2874
Battery Type Li-ion (18650)
Configuration 5S (5 cells in series)
Charge Voltage 21V (4.2V × 5 cells)
Discharge Cut-off Voltage ~14.5V (approx. 2.9V per cell)
Rated Charge Current 20A (recommended), max 40A
Rated Discharge Current 40A
Overcharge Detection Voltage 4.25V ± 0.05V
Overcharge Release Voltage 4.15V ± 0.05V
Over-discharge Detection 2.8V ± 0.1V
Over-discharge Release 3.0V ± 0.1V
Overcurrent Protection 60A–80A (typical)
Short Circuit Protection Yes, automatic recovery
Balance Function Yes (passive balancing)
Balance Voltage Threshold ~4.2V per cell
Working Temperature -30°C to +80°C
Internal Resistance < 100 mΩ
Board Dimensions Approx. 65mm × 45mm × 8mm
Wiring Type With 6-pin JST connector for cell monitoring
Application

E-bikes, DIY battery packs, solar storage, tools



Festures:

Features:

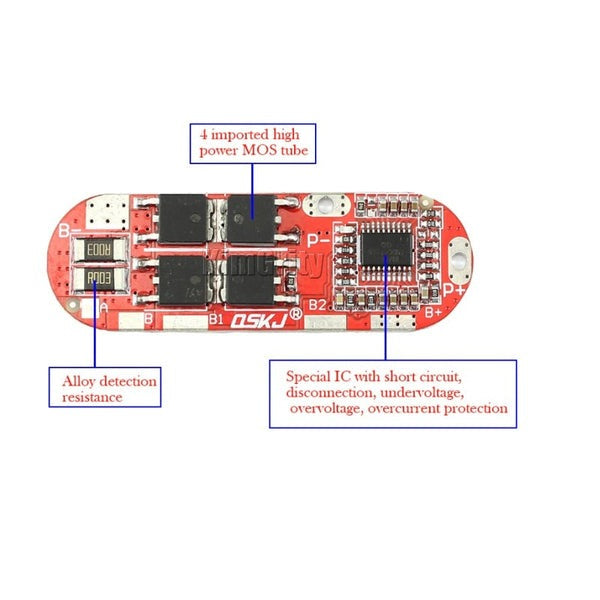

  • 5-cell lithium battery pack management.

  • Supports high discharge current up to 40A.

  • Overcharge, over-discharge, overcurrent, and short-circuit protection.

  • Auto-recovery after protection trigger.

  • Passive cell voltage balancing for improved lifespan.

  • Compact and lightweight design.

Description:

The 5S 40A BMS (Battery Management System) board is designed to manage and protect 5-series (5S) 18,650 Li-ion battery packs. It supports a charging/discharging current of up to 40A, offering overcharge, over-discharge, overcurrent, and short-circuit protection. The board helps maintain battery longevity and safety in high-power applications such as e-bikes, power tools, DIY power banks, and energy storage systems. It balances each cell’s voltage during charging to improve overall performance.
