Description:

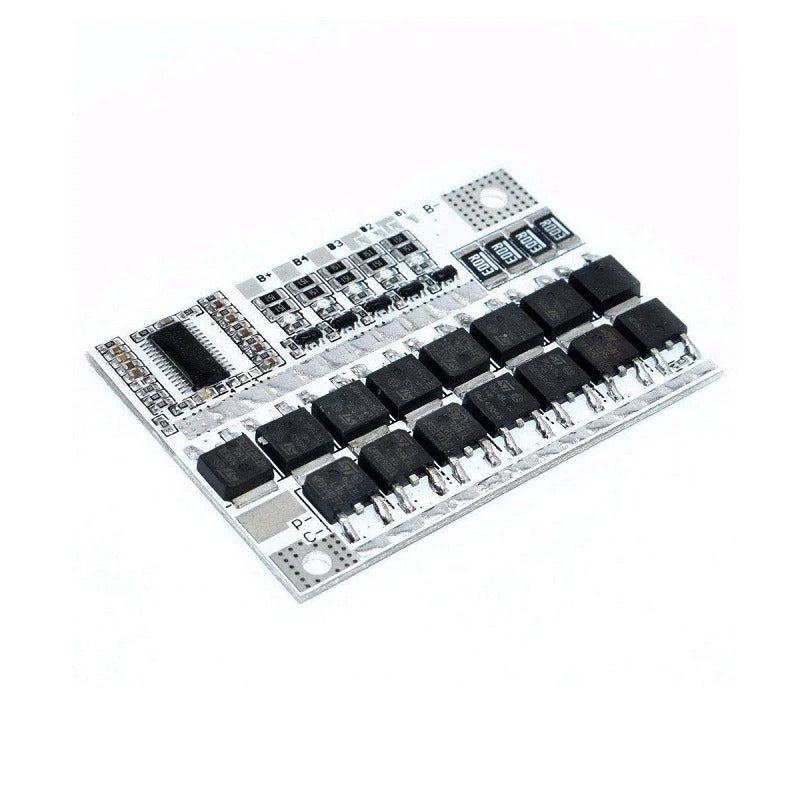

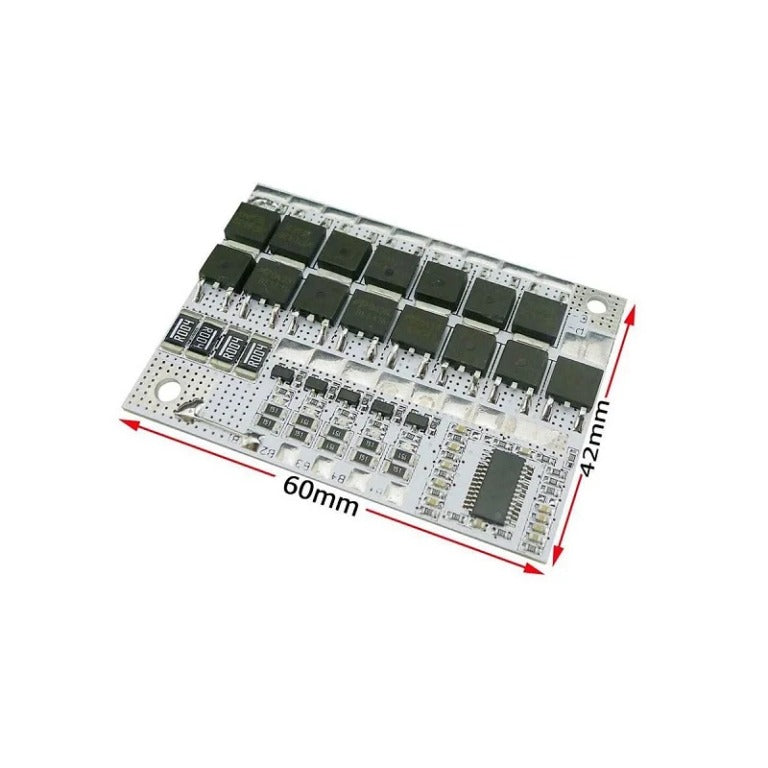

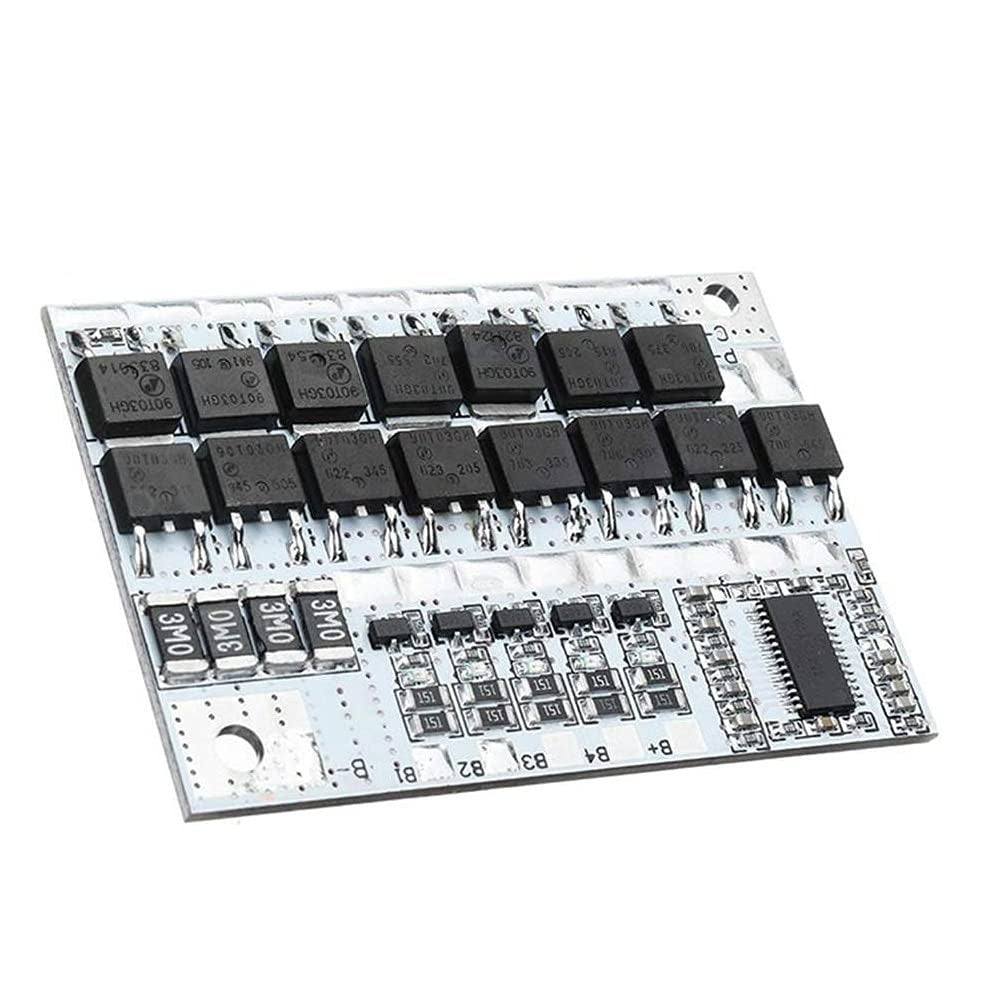

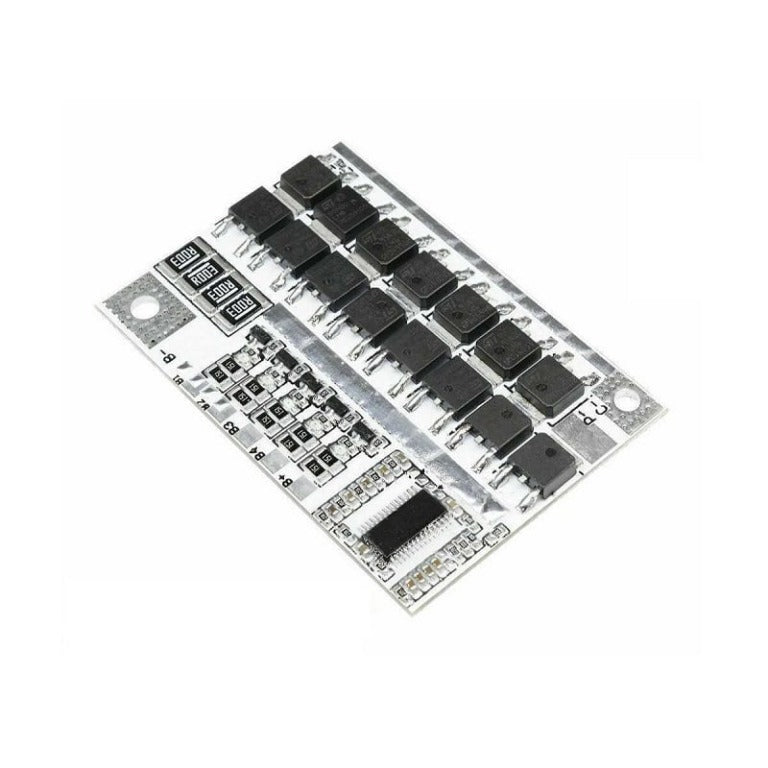

5S 100A LiFePO4 Battery Balance Charging BMS Battery Protection Board-white

This 5S lithium battery protection board is versatile and compatible with various battery types and configurations. Equipped with a high-quality chip, it offers reliable protection against disconnection, over-current, over-discharge, overcharge, and imbalance. The board supports both “same port” and “different port” modes to accommodate different current requirements.

It features 15 high-power, ultra-low resistance MOSFETs—eight for discharge and seven for charging. In “same port” mode, the board can handle both discharge and charge currents up to 60A. In “different port” mode, it supports a discharge current of 80A and a charge current of 60A. This protection board is compatible with LMO, ternary lithium, LCO (3.7V), and other lithium-based battery packs.

Features:

  1. Over charge protective current:100A
  2. Over discharge protective current:100A
  3. Over-discharge protect delay : 0.5-1.5S
  4. Temperature protection: Yes, have a Temperature control interface.
  5. Disconnect protect: Yes
  6. Shortage protect: Yes
  7. Shortage delay: 100-600 uS
  8. Shortage protects recover mode: Offload release.
  9. balance function: yes

Specification:

For Li-Po  LiMnO Protect Parameter 3.6V/3.7V
Single-cell battery overcharge protect voltage 4.21-4.29 V
Single-cell battery overcharge protects recover voltage: 4.14-4.24 V
Overcharge protect delay 1.5-2.5S
Single cell battery over-discharge  protect voltage 2.72-2.88 V
Single cell battery over-discharge  protect recover voltage 2.9-3.1 V
Over charge protective current 100A
Over discharge protective current 100A
Over-discharge protect delay 0.5-1.5S
Temperature protection Yes, have a Temperature control interface.
Disconnect protect Yes
Shortage delay 100-600 uS
Contact discharge current 80A
Syncline discharge current 60A
Charging current 60A
Ampere balance (Current) 60MA
Shipping Weight 0.015 kg
Shipping Dimensions 8 × 7 × 1 cm
