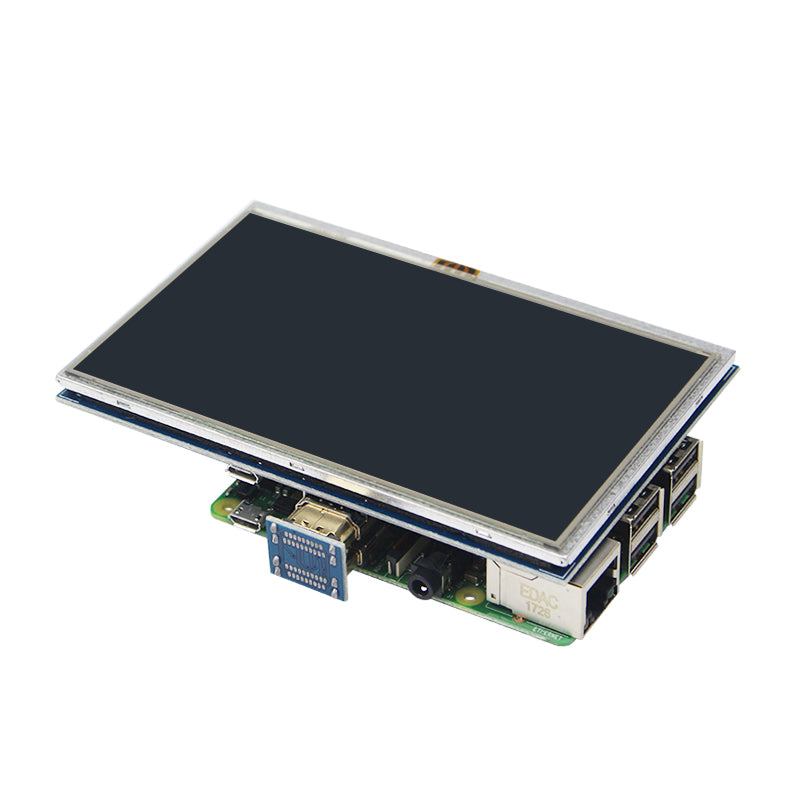

5 Inch Touch Screen HDMI Interface TFT LCD for Pi 3 model B + Touch Pen

5 Inch Touch Screen HDMI Interface TFT LCD for Pi 3 model B + Touch Pen

₹ 2,201.00
₹ 2,201.00
Sale Sold out
Shipping calculated at checkout.
  • Express Delivery FedEx
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • On Time Delivery
  • Worldwide Order Delivery
  • Delivery Location

Specification:

Parameter Details
Screen Size 5.0 inches diagonal
Display Type TFT LCD
Touch Type Resistive or Capacitive (varies by model)
Touch Input Method Stylus pen (for resistive touch), finger (for capacitive)
Touch Interface USB (micro USB or USB Type-A)
Resolution 800×480 pixels (native), supports up to 1920×1080 with software scaling
Aspect Ratio 16:9
Video Input HDMI (standard full-size HDMI port)
Power Supply 5V via USB or Pi GPIO header
Power Consumption ~0.5W to 1.5W (typical)
Backlight LED backlight
Viewing Angle 140° horizontal / 120° vertical (typical)
Compatibility Pi 3 Model B, B+, Pi 4, Pi Zero, Jetson Nano, Windows/Linux PCs

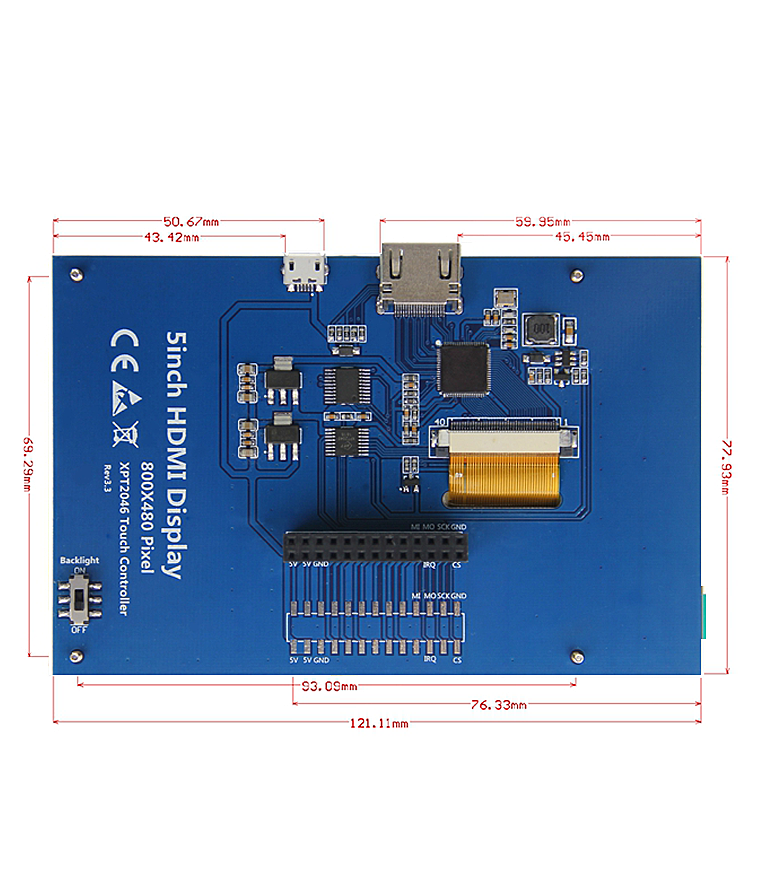

Dimensions ~120mm × 77mm × 10mm (varies slightly by version)
Weight ~100g (including display, without accessories)
Mounting Options Mounting holes for enclosures, 3D printed frames, stands

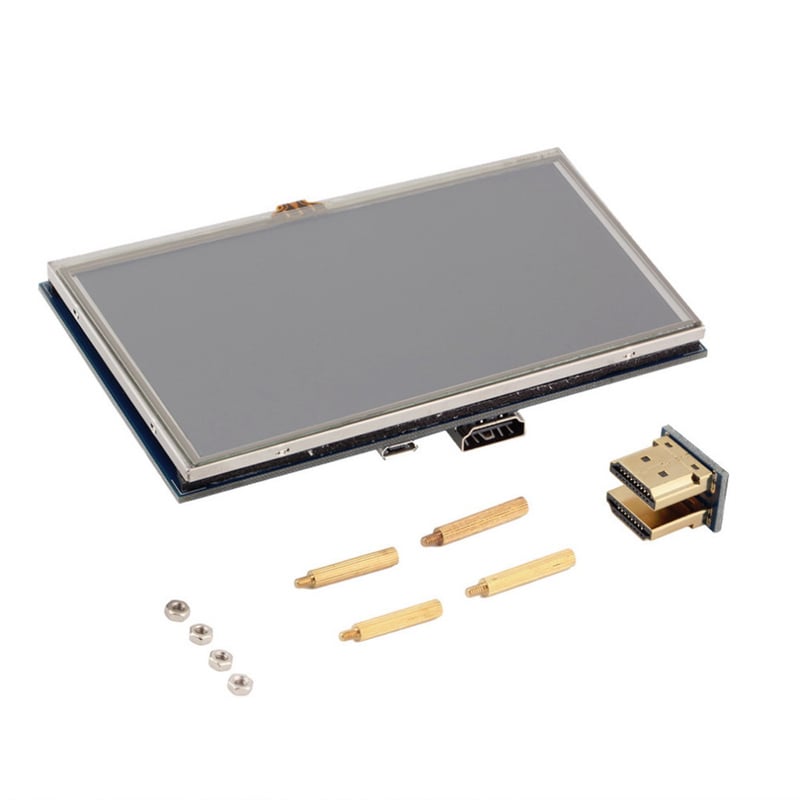

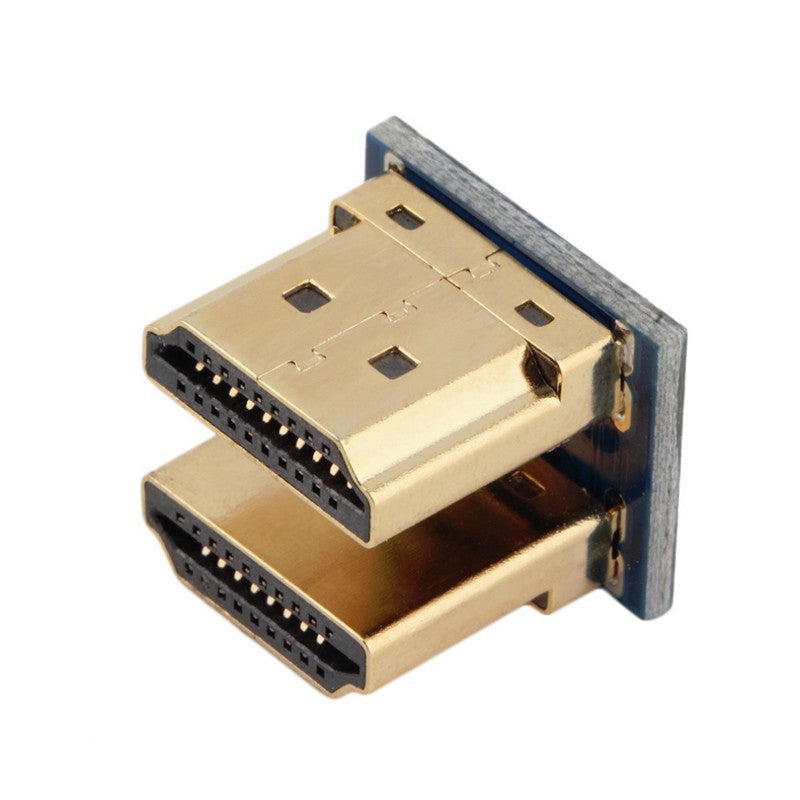

Accessories Included Touch stylus pen, HDMI adapter, USB cable, mounting hardware (varies)



Features:

  • Plug-and-play HDMI monitor with USB touch input for Pi.

  • Responsive touchscreen with support for stylus/finger touch.

  • Includes touch pen (for resistive models).

  • Works out-of-the-box with Pi OS, Retropie, Kali Linux, and more.

  • High-resolution display (800×480) in a compact 5" size.

  • Can be powered via USB or GPIO for flexible integration.

  • Also functions as a secondary monitor for PC, laptops, or cameras (with HDMI output).

  • Ideal for DIY handheld consoles, automation interfaces, home automation panels, and learning kits.

Description:

The 5-Inch HDMI TFT LCD Touch Screen is a compact, full-color display module with capacitive or resistive touch support and HDMI video input, making it ideal for use with the Pi 3 Model B, as well as other Pi versions, desktop PCs, or any HDMI-capable devices. The screen comes bundled with a touch stylus pen (for resistive touch models) and is plug-and-play with pre-configured Pi OS images.

It provides a resolution of 800×480 pixels, with support for up to 1920×1080 via software scaling. The touch interface communicates over USB, requiring no driver installation for Pi OS. The display is powered via USB or GPIO headers and can also be used as a general-purpose HDMI monitor.

This makes it ideal for building DIY tablets, control panels, kiosks, retro gaming consoles (RetroPie), and portable display solutions.
