Specification

Features:

• Multiple Flame Detection:
  Includes 5 independent flame sensor channels to detect flames from multiple directions simultaneously.

• Infrared (IR) Flame Detection:

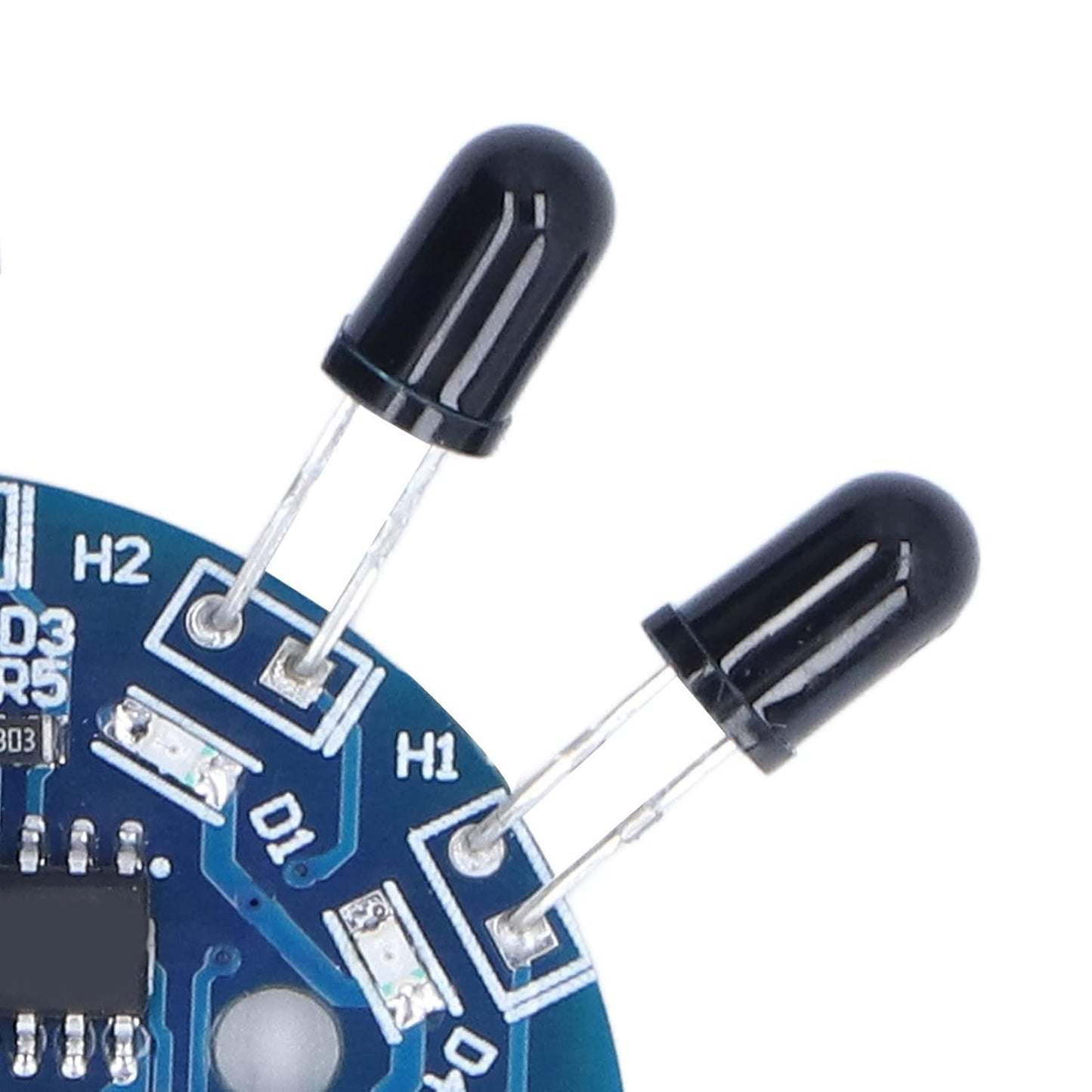

  Uses IR photodiodes or phototransistors tuned to the specific IR wavelength emitted by flames (typically around 760 nm to 1100 nm).

• Digital Output:
  Each sensor channel provides a digital ON/OFF output signal indicating flame presence.

• Adjustable Sensitivity:

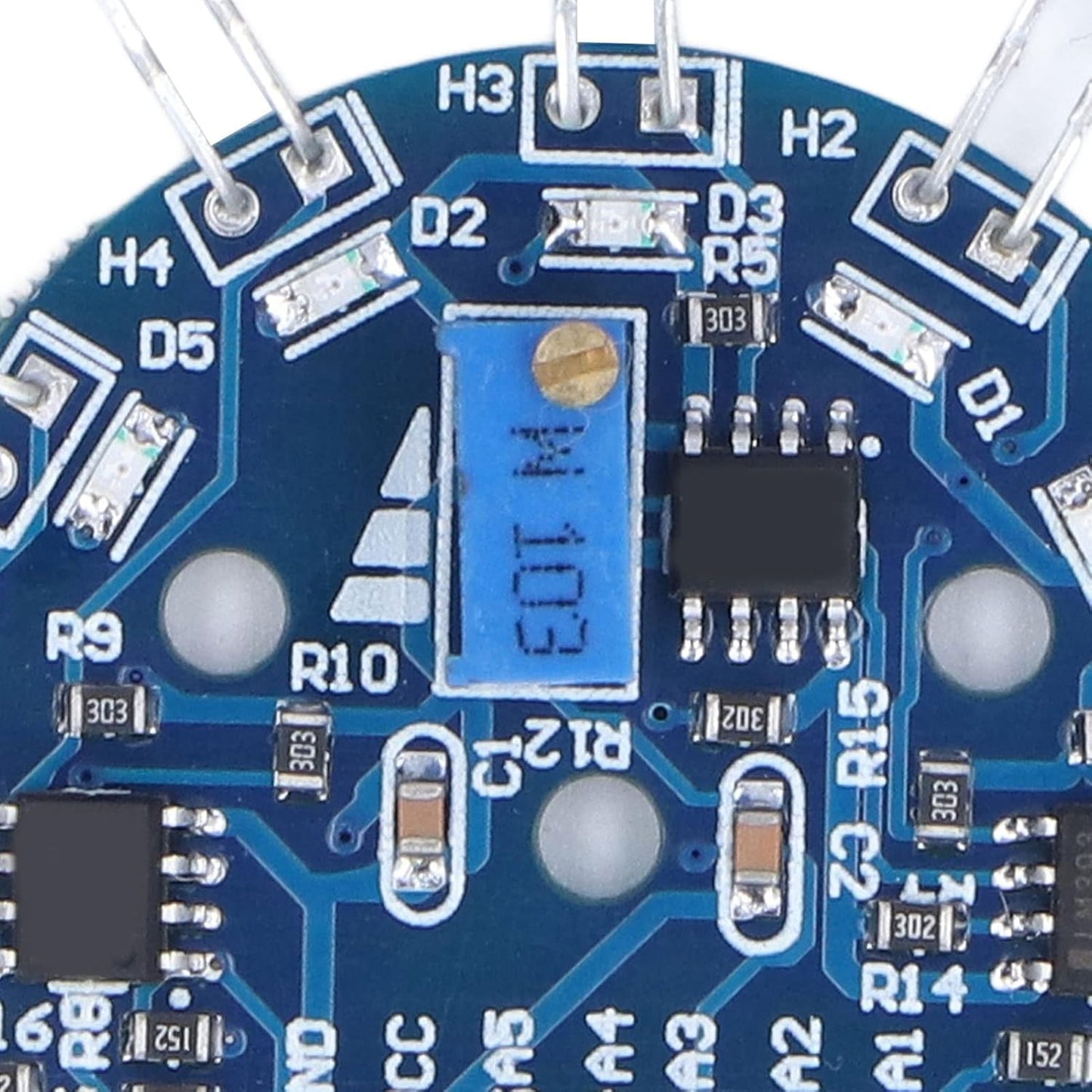

  Each channel has its own onboard potentiometer to fine-tune the detection sensitivity according to environmental conditions.

• Wide Operating Voltage:
  Works reliably on 3.3V to 5V DC power supply, compatible with most microcontrollers.

• Fast Response Time:
  Detects flame presence quickly with response times less than 100 milliseconds.

• Visual Indicators:
  Each channel has an LED indicator to visually show flame detection status for easy debugging and monitoring.

• Compact and Robust:

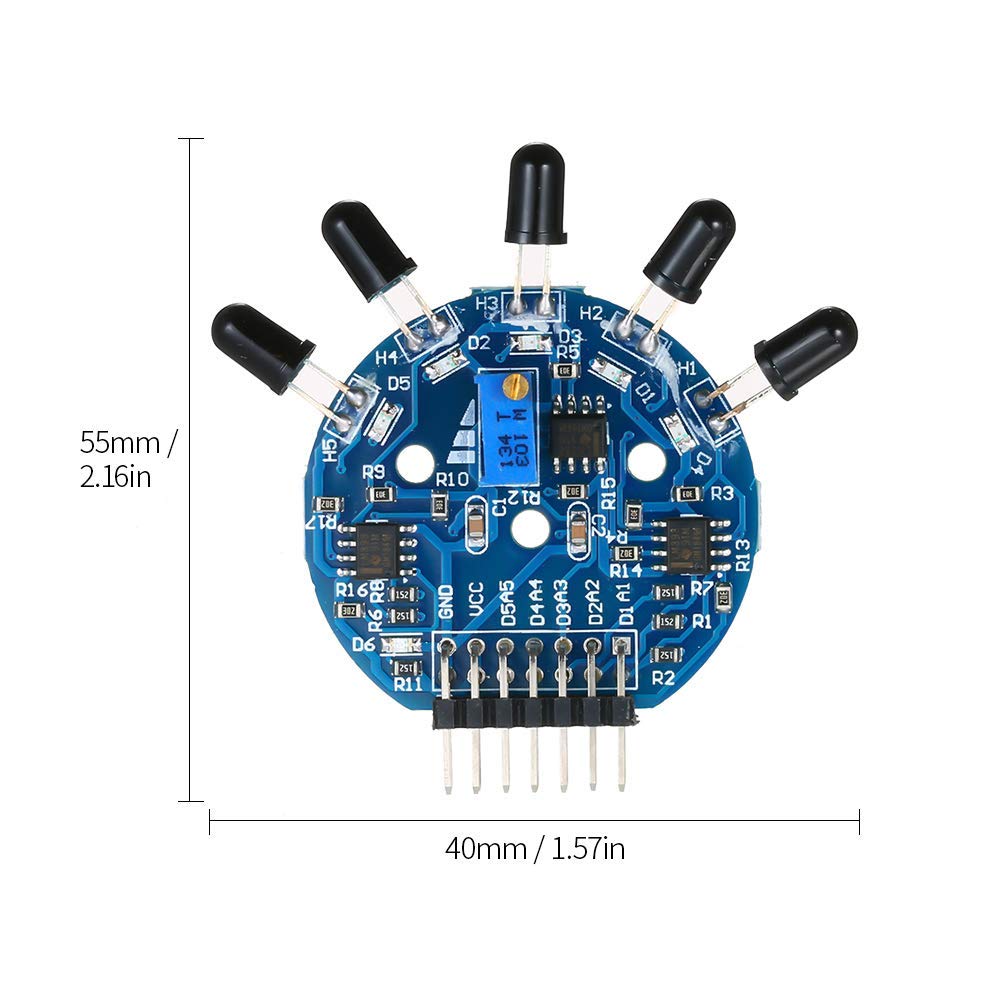

  Compact PCB design with robust sensors for reliable performance in harsh environments.

• Easy Integration:
  Simple digital outputs make it easy to interface with Arduino, Raspberry Pi, ESP32, and other microcontroller platforms.

Description:

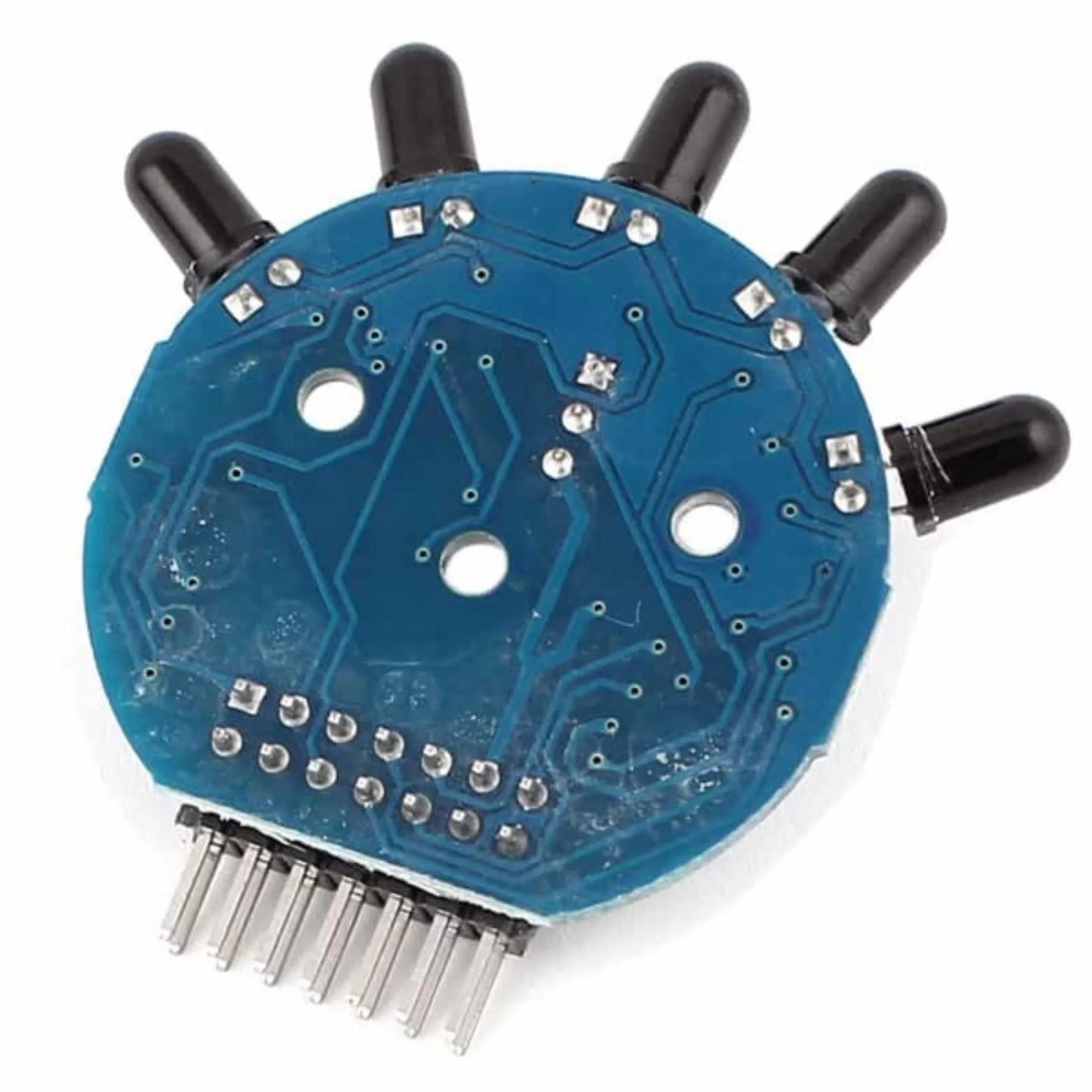

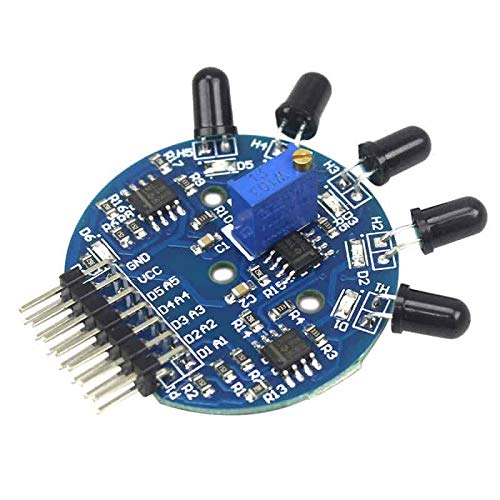

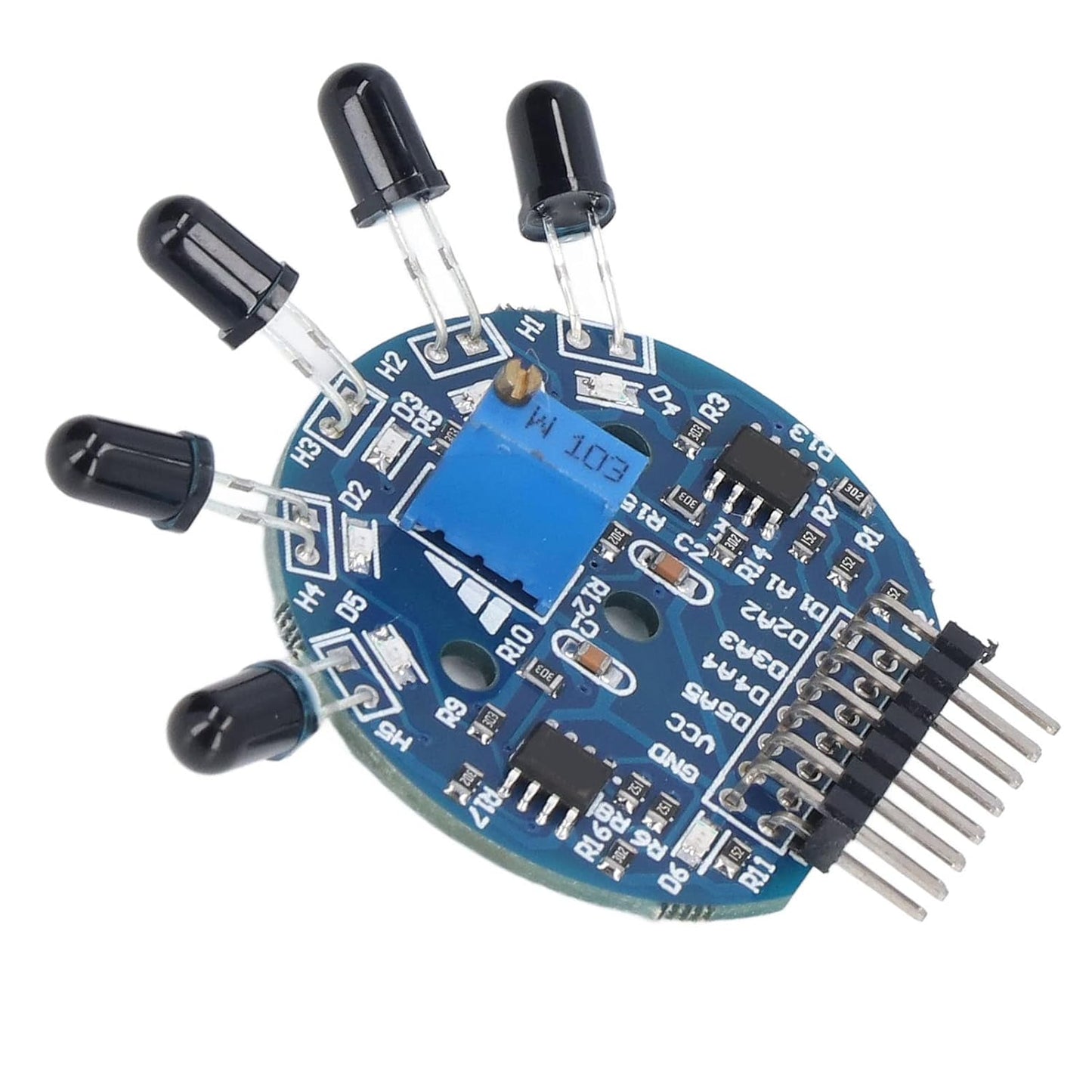

The 5-Channel Flame Sensor Module is a versatile detection board designed to sense flames or fire sources in multiple directions simultaneously. Equipped with five independent infrared (IR) flame sensors, this module can detect the presence of a flame by sensing the specific infrared light wavelengths emitted by fire.

Each sensor on the module outputs a digital signal, which goes LOW when a flame is detected, making it easy to interface with microcontrollers like Arduino, Raspberry Pi, or ESP32. The module also features onboard potentiometers for each channel, allowing you to adjust the sensitivity individually to suit different environmental conditions and detection distances.

This module is ideal for safety and fire detection systems, robotics projects such as fire-fighting or fire-following robots, and industrial flame monitoring applications. Its compact design, quick response time, and easy-to-use digital outputs make it a reliable tool for any project requiring multi-directional flame detection.
