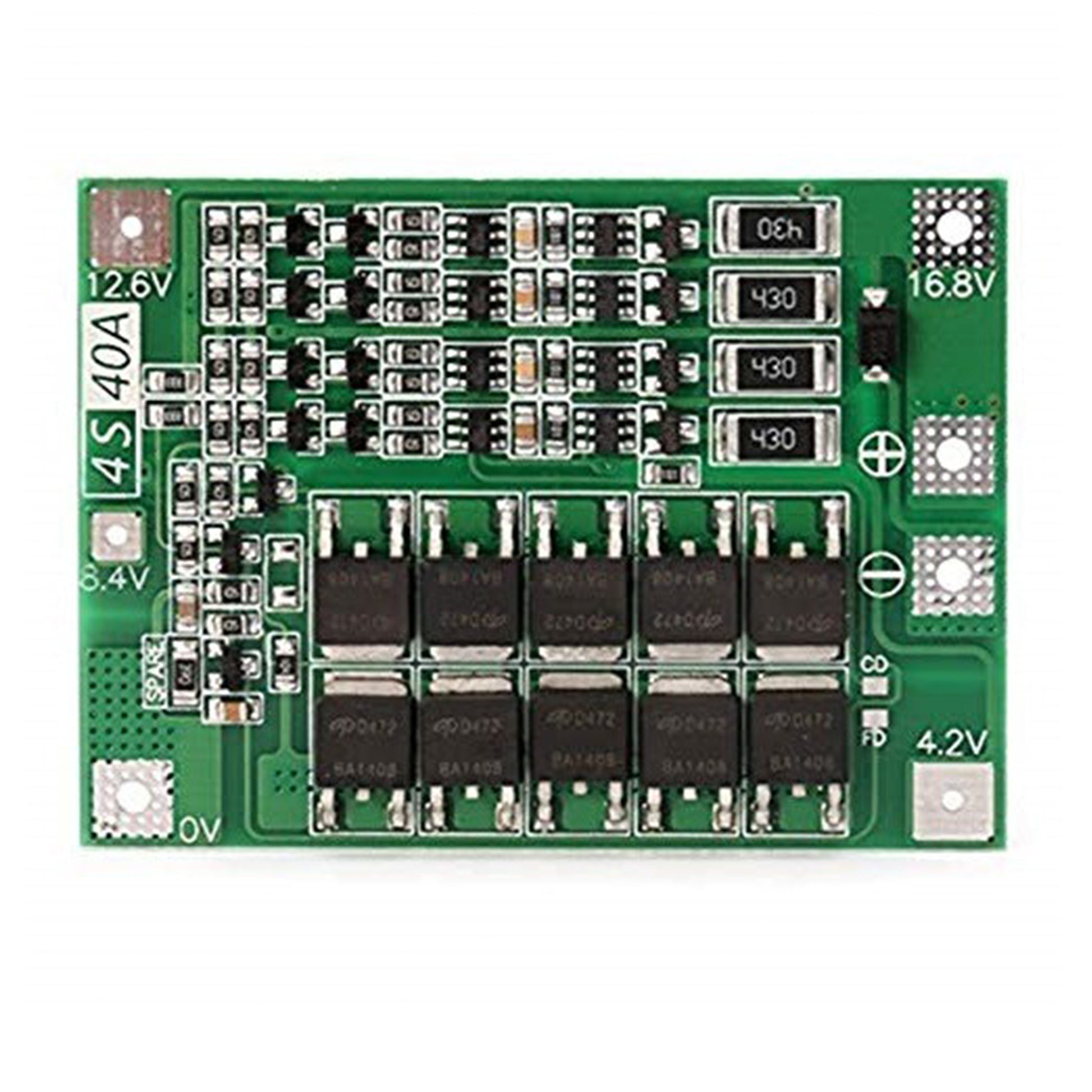

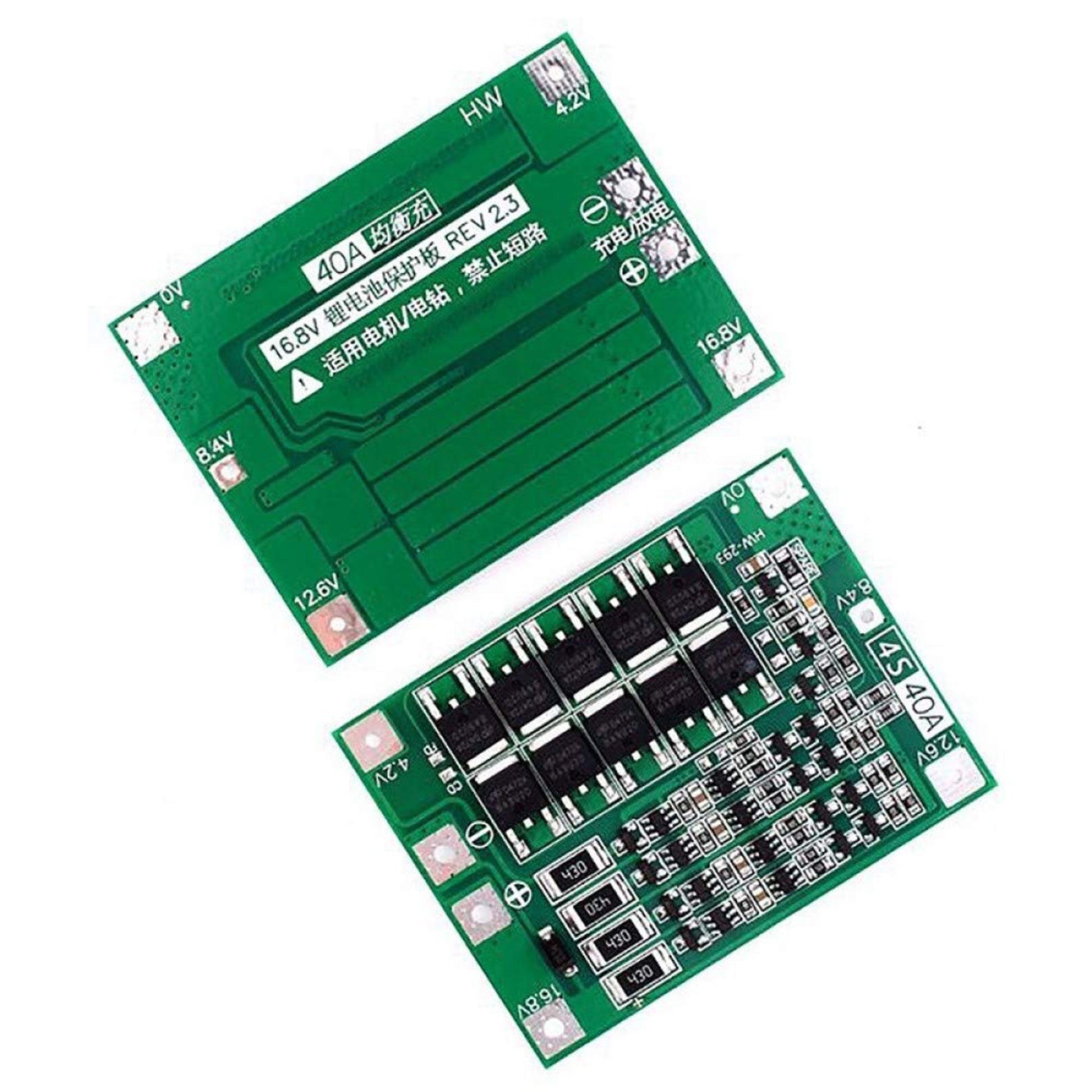

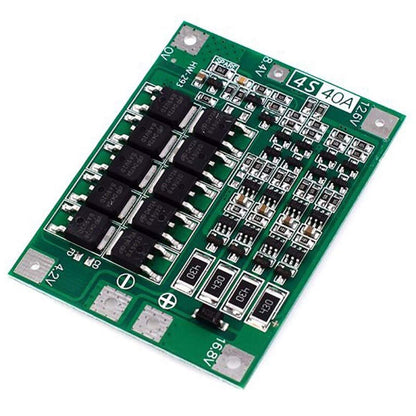

4S 40A 14.8V 16.8V 18650 Charger Li-ion Lithium Battery Protection Board PCB BMS Lipo Cell Module

4S 40A 14.8V 16.8V 18650 Charger Li-ion Lithium Battery Protection Board PCB BMS Lipo Cell Module

₹ 105.00
₹ 105.00
Sale Sold out
Shipping calculated at checkout.
  • Express Delivery FedEx
  • 10 Days Returnable
  • Secure Payment Transaction

In stock
  • On Time Delivery
  • Worldwide Order Delivery
  • Delivery Location

Specification:

Parameter Details
Battery Type Li-ion / LiPo (18650 or similar)
Configuration 4S (4 cells in series)
Nominal Voltage 14.8V
Maximum Charge Voltage 16.8V (4.2V × 4 cells)
Rated Charge Current 20A (recommended), max 40A
Rated Discharge Current 40A (continuous), peak 60A
Overcharge Detection Voltage 4.25V ± 0.05V
Overcharge Release Voltage 4.15V ± 0.05V
Over-discharge Detection 2.8V ± 0.1V
Over-discharge Release 3.0V ± 0.1V
Overcurrent Protection 50A–60A (typical)
Short Circuit Protection Yes, auto recovery or manual reset
Balancing Function Yes (passive balancing to equalize cell voltages)
Balance Start Voltage ~4.2V per cell
Internal Resistance < 100 mΩ
Temperature Protection No (unless external module is added)
Board Dimensions Approx. 65mm × 45mm × 8mm

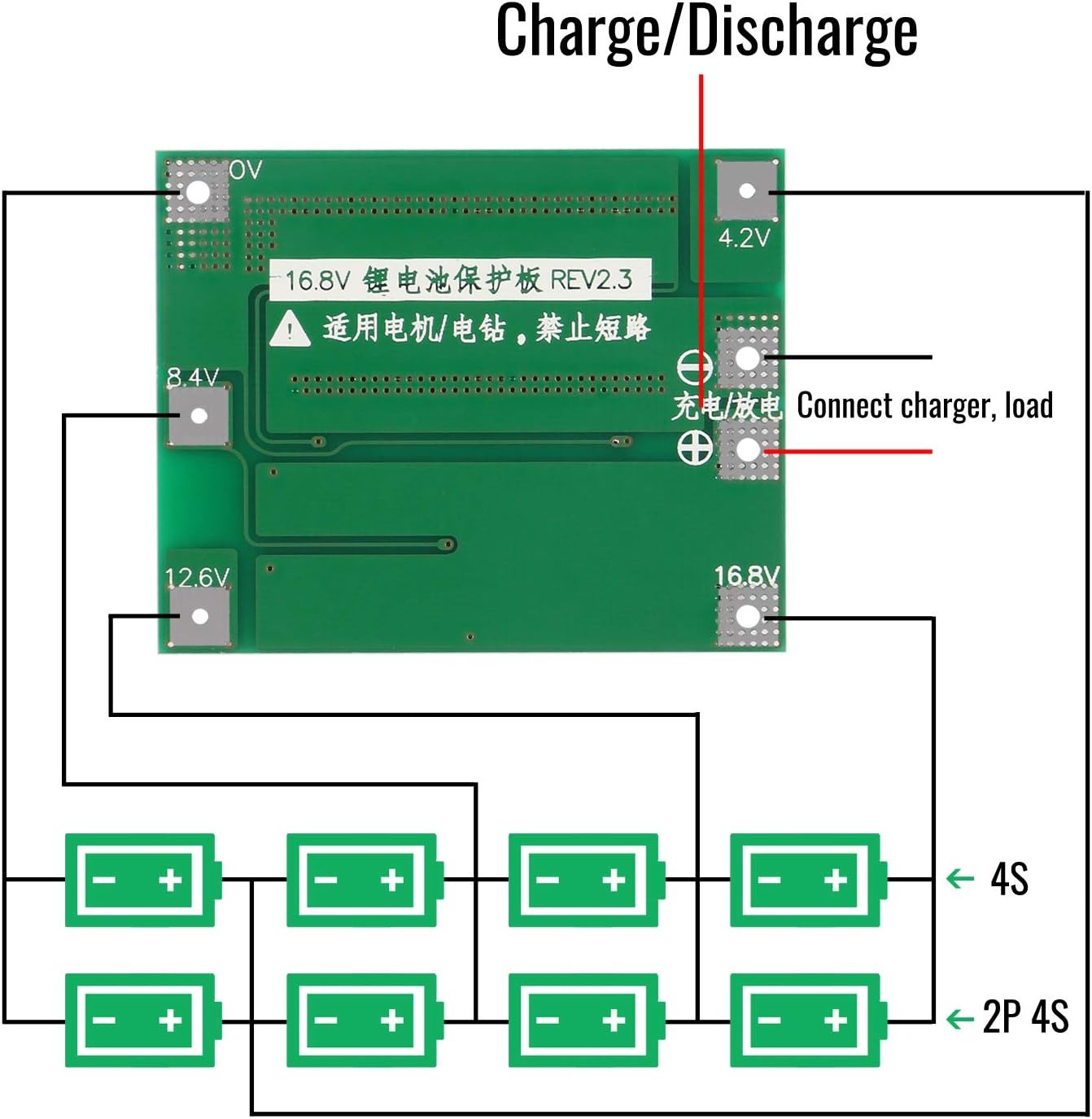

Connector Type 5-pin JST or solder pads for cell connections
Application E-bikes, scooters, tools, solar storage, DIY packs



Features:

  • Designed for 4-cell lithium-ion or lithium-polymer packs.

  • Supports up to 40A continuous discharge current.

  • Integrated over-voltage, under-voltage, overcurrent, and short circuit protection.

  • Passive cell balancing to equalize cell voltages during charging.

  • Compact size and high efficiency for space-constrained applications.

  • Helps extend battery life and ensures operational safety.

Description:

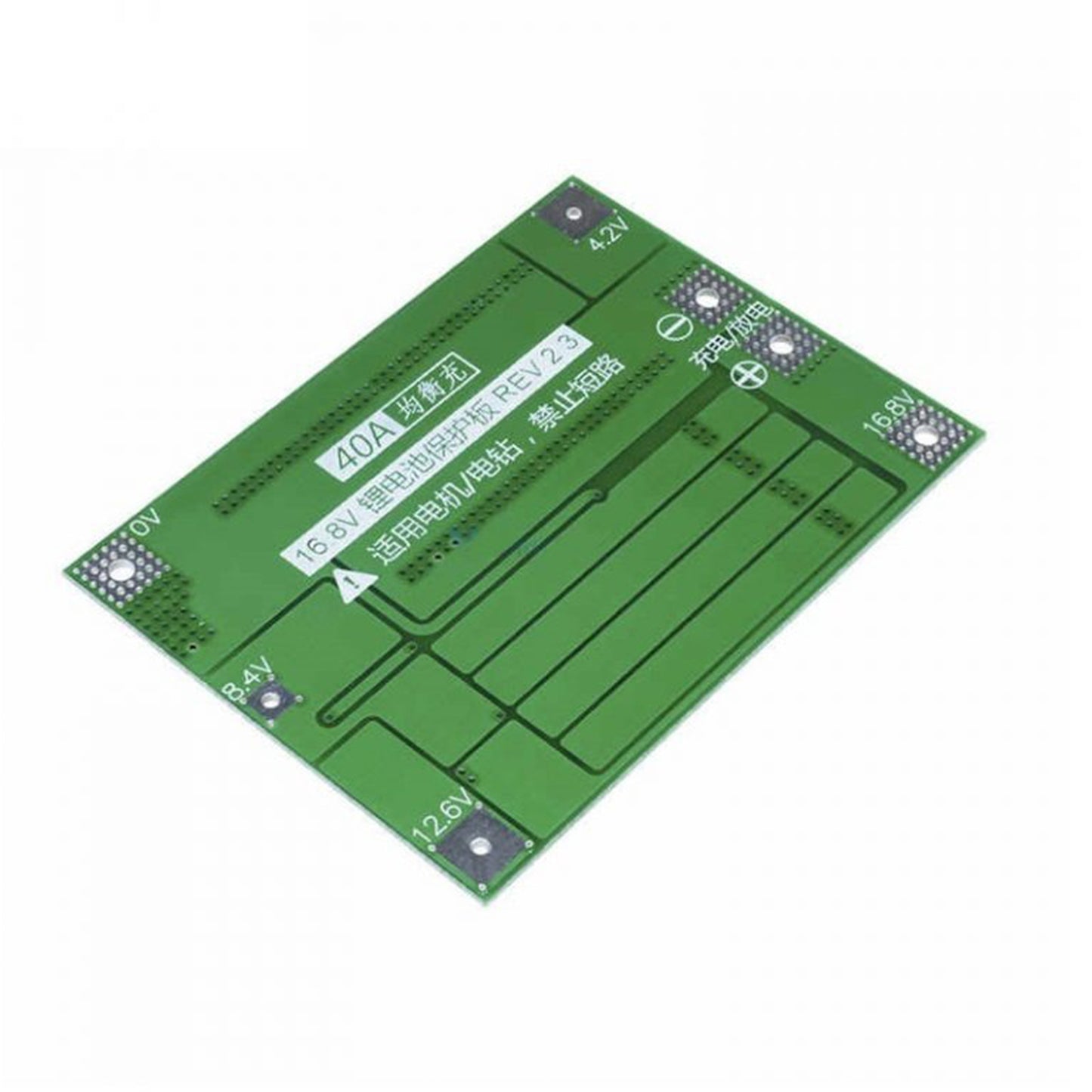

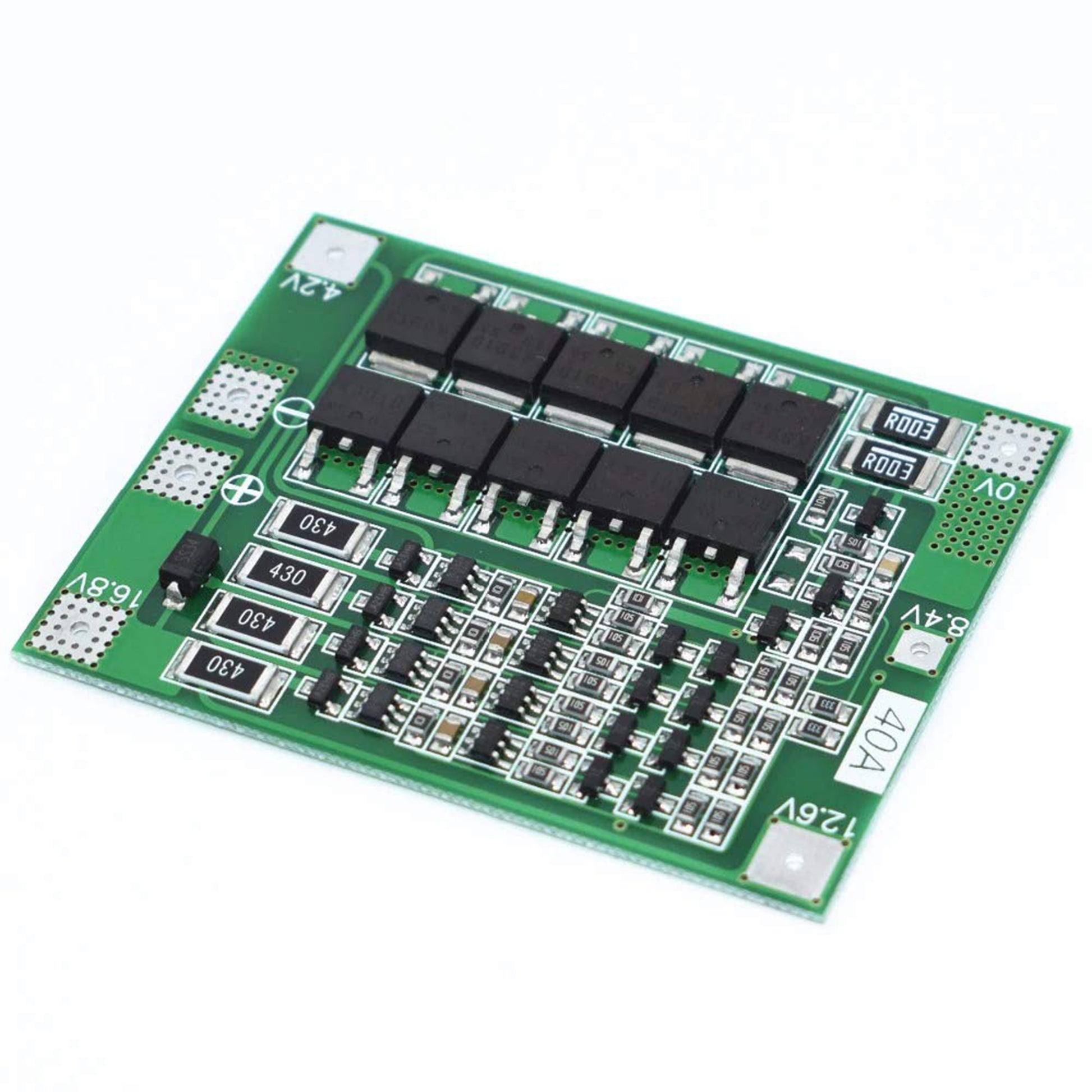

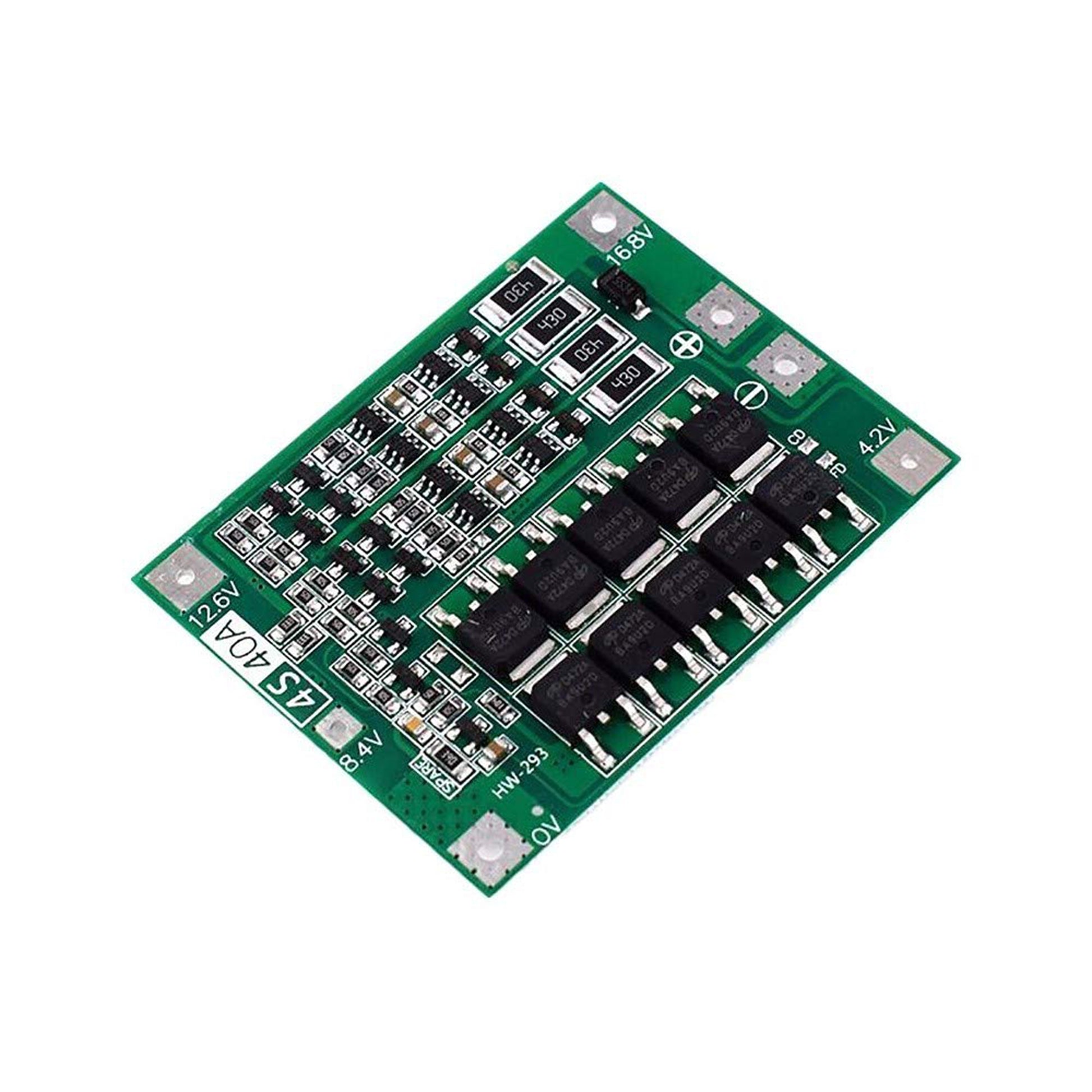

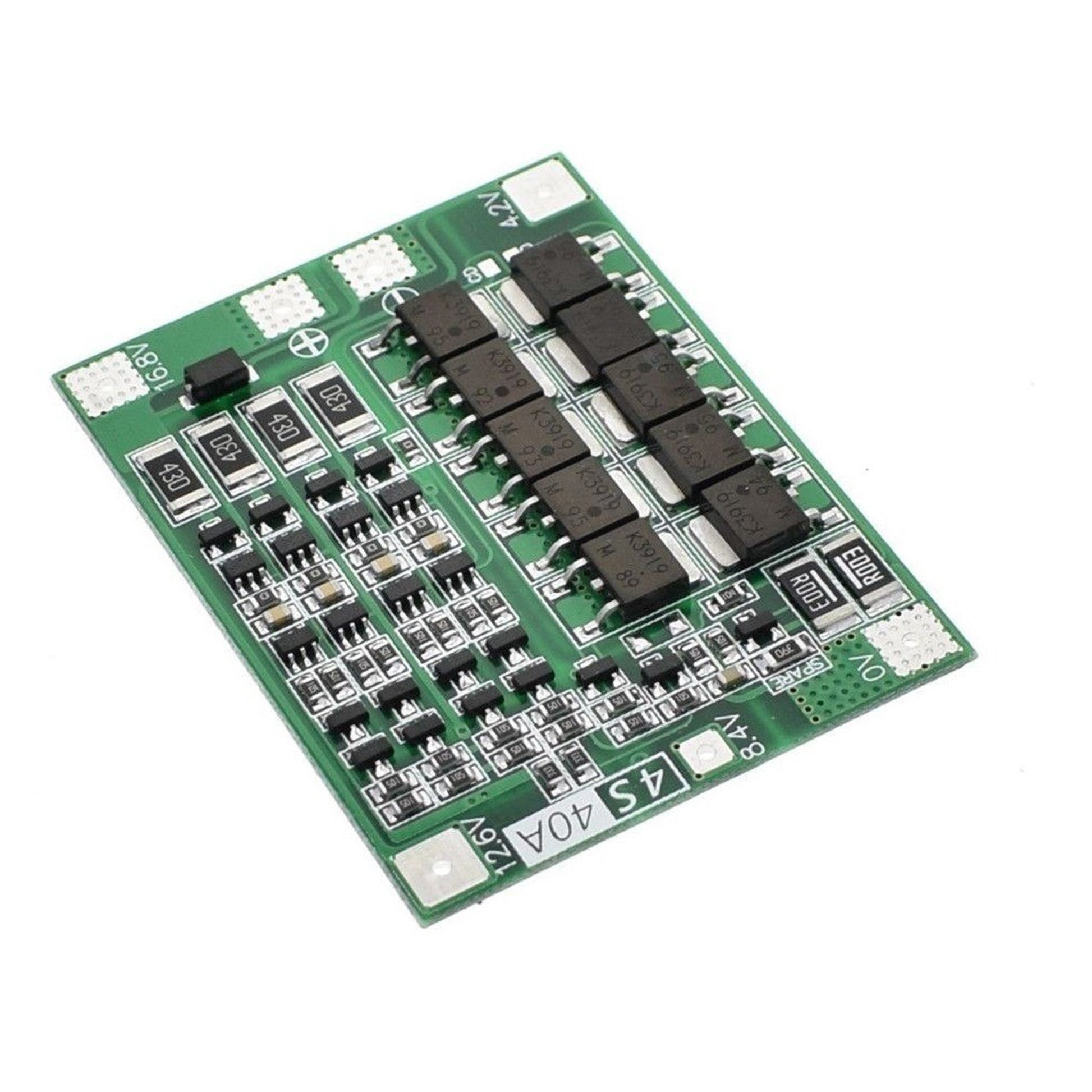

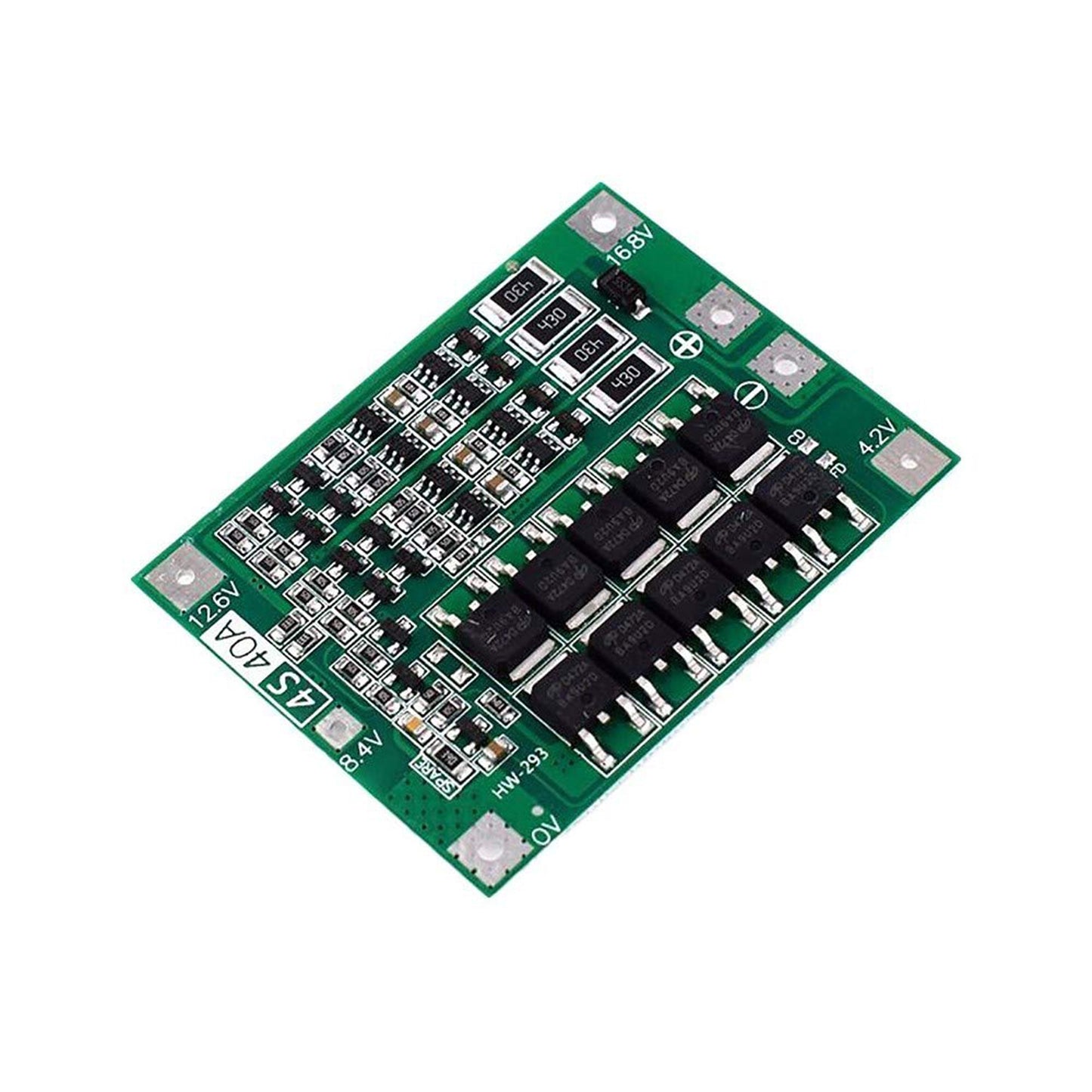

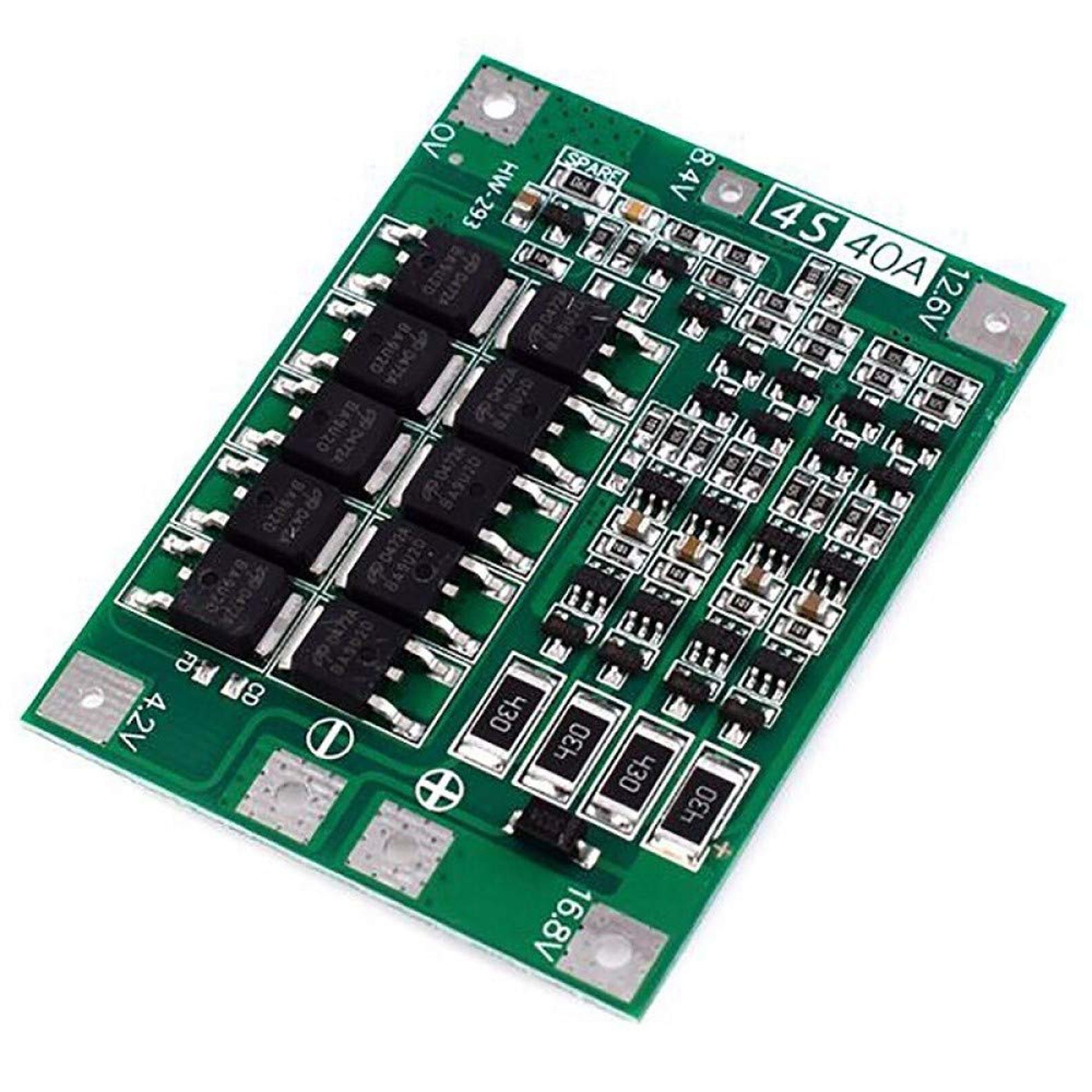

The 4S 40A BMS (Battery Management System) Protection Board is an advanced circuit designed to manage and protect 4-series (4S) 18650 lithium-ion or LiPo batteries. This protection board ensures the safe and efficient operation of battery packs by preventing common battery issues such as overcharging, over-discharging, overcurrent draw, and short circuits, which can damage cells and reduce their lifespan.

With support for up to 40A of continuous discharge current, this BMS is suitable for medium- to high-drain applications including e-bikes, hoverboards, power tools, electric scooters, solar energy storage systems, and custom DIY battery projects. The module is capable of managing both charging and discharging cycles effectively and provides automatic recovery once abnormal conditions are resolved.

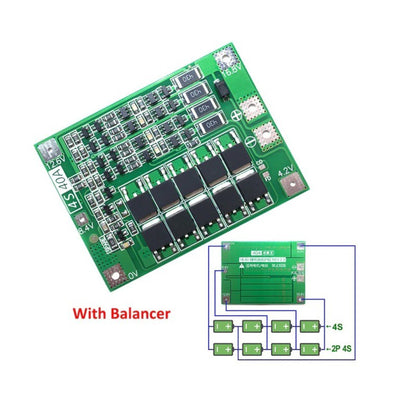

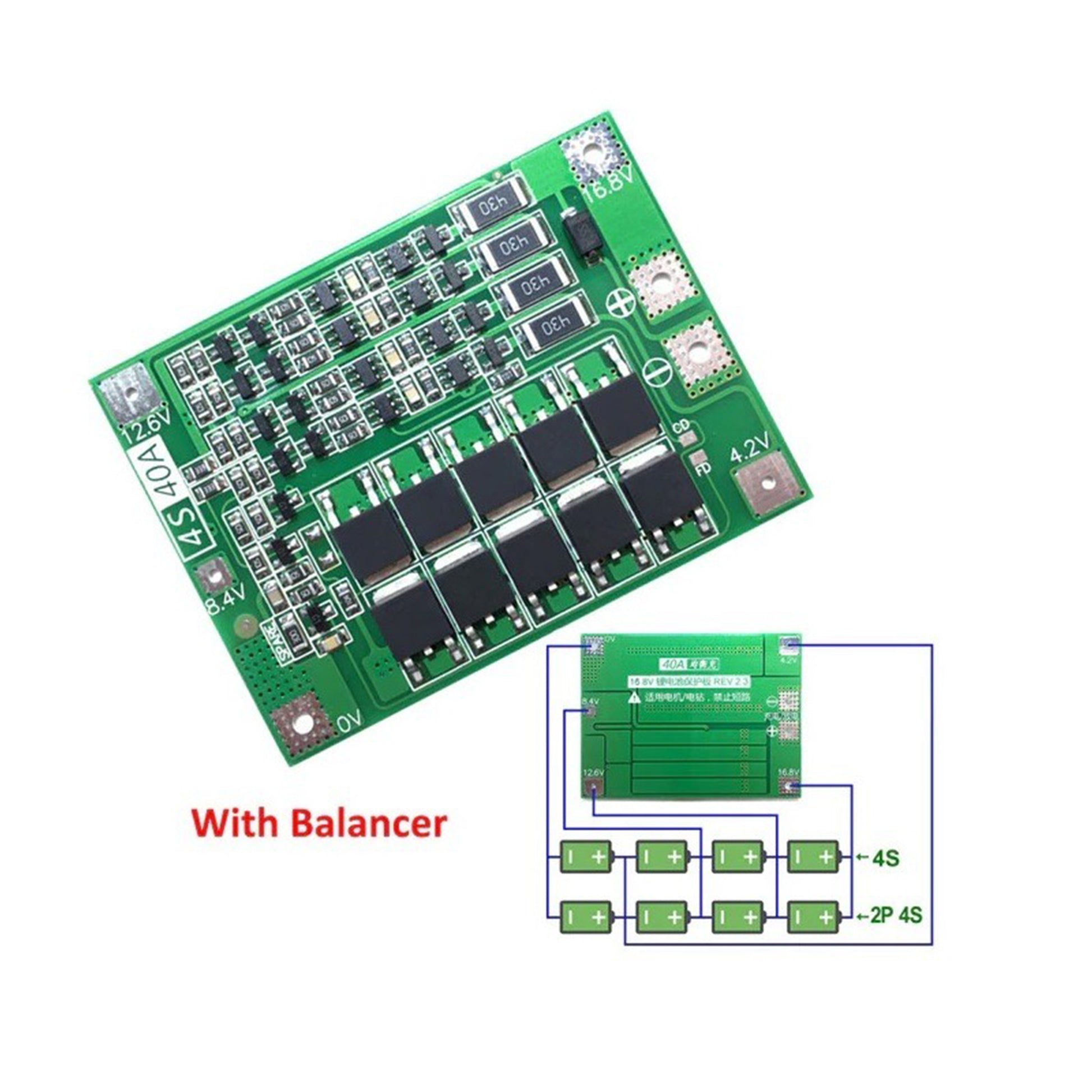

This 4S BMS is equipped with passive balancing circuitry that activates when cell voltages reach near full charge (around 4.2V). This helps maintain uniform voltage across all cells, which enhances the efficiency, performance, and lifespan of the battery pack. It ensures that each cell charges evenly, reducing the risk of overvoltage in individual cells and improving overall pack safety.
