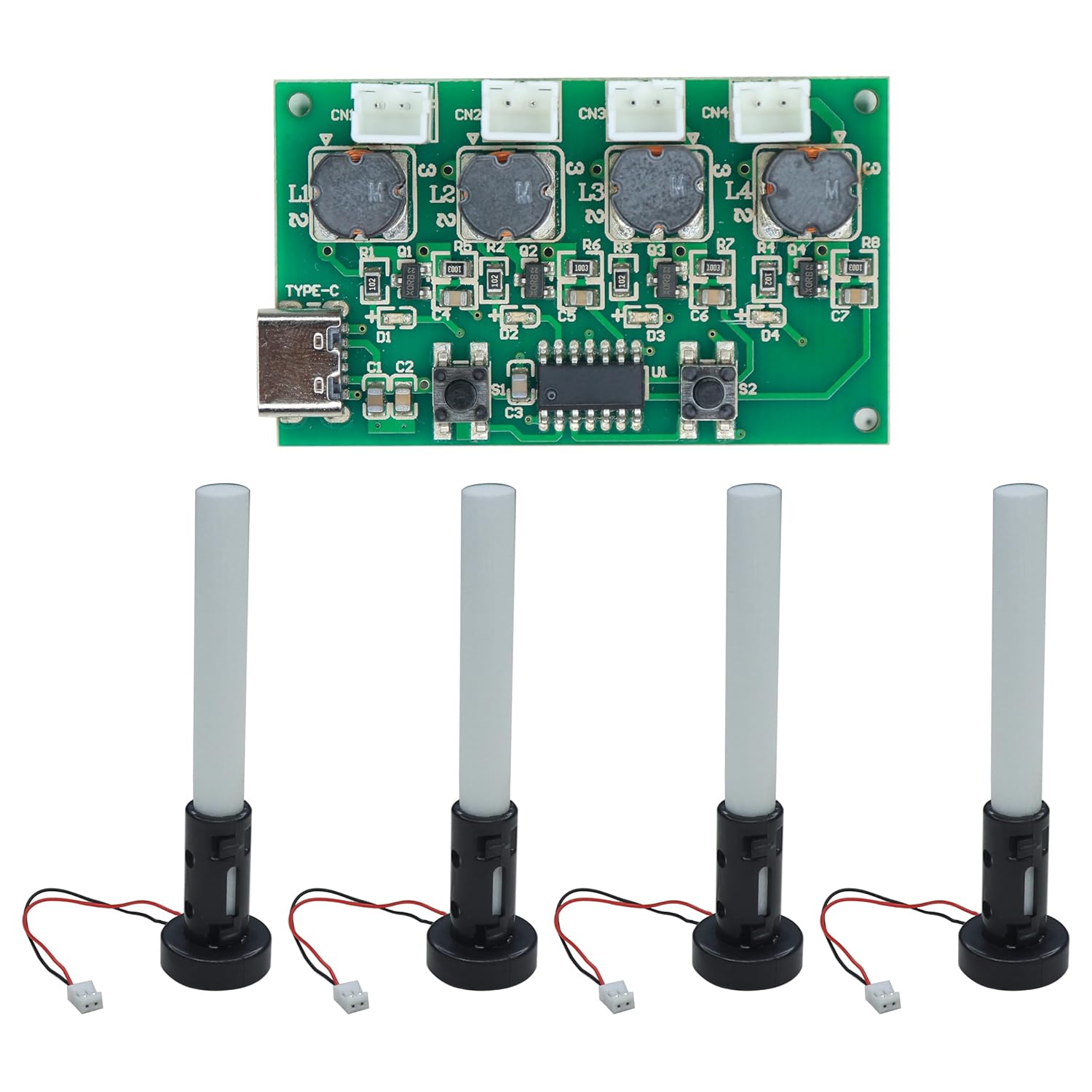

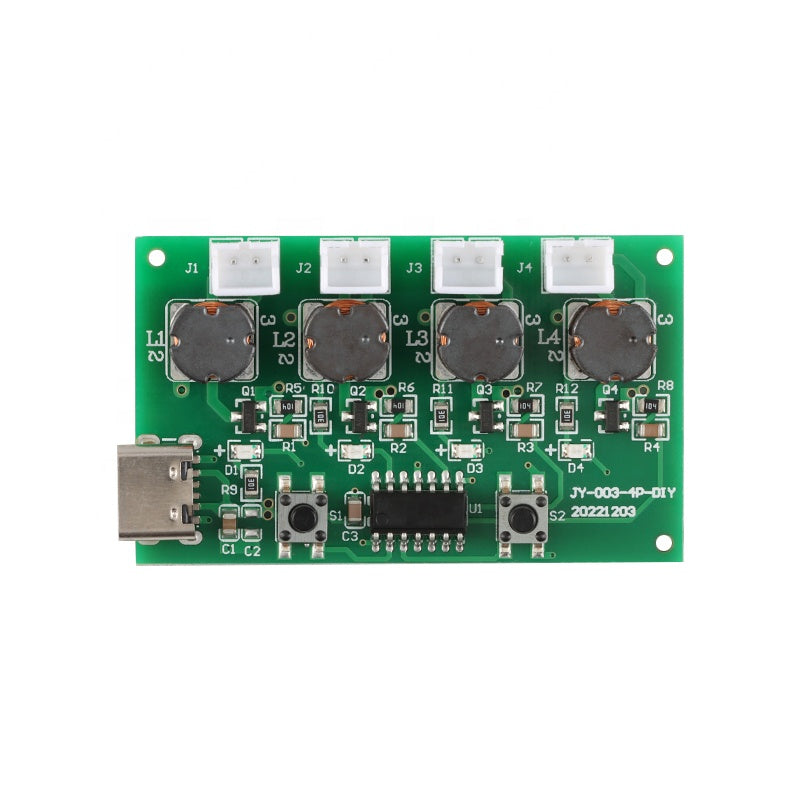

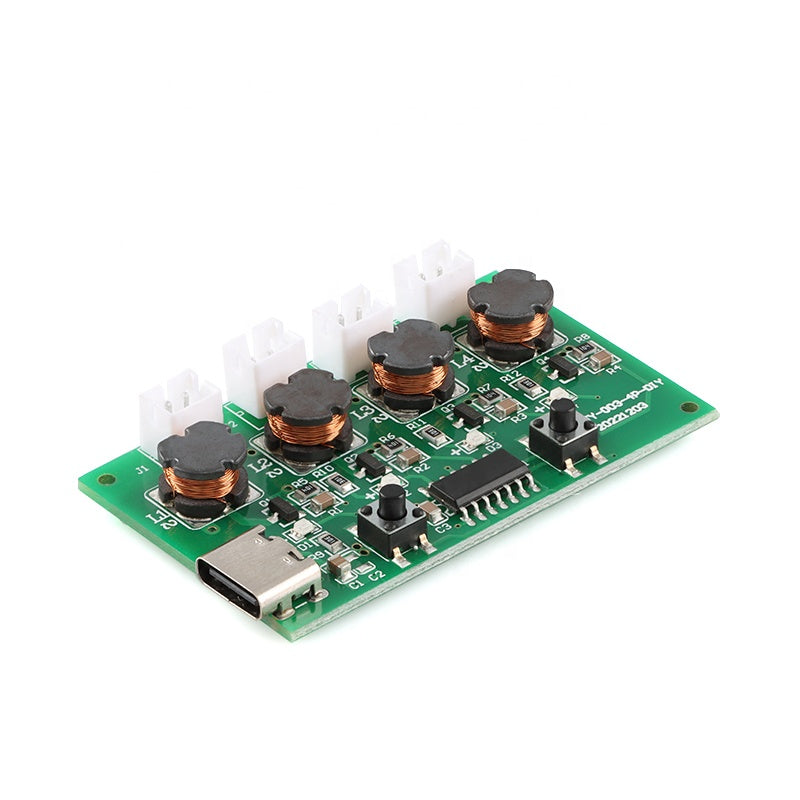

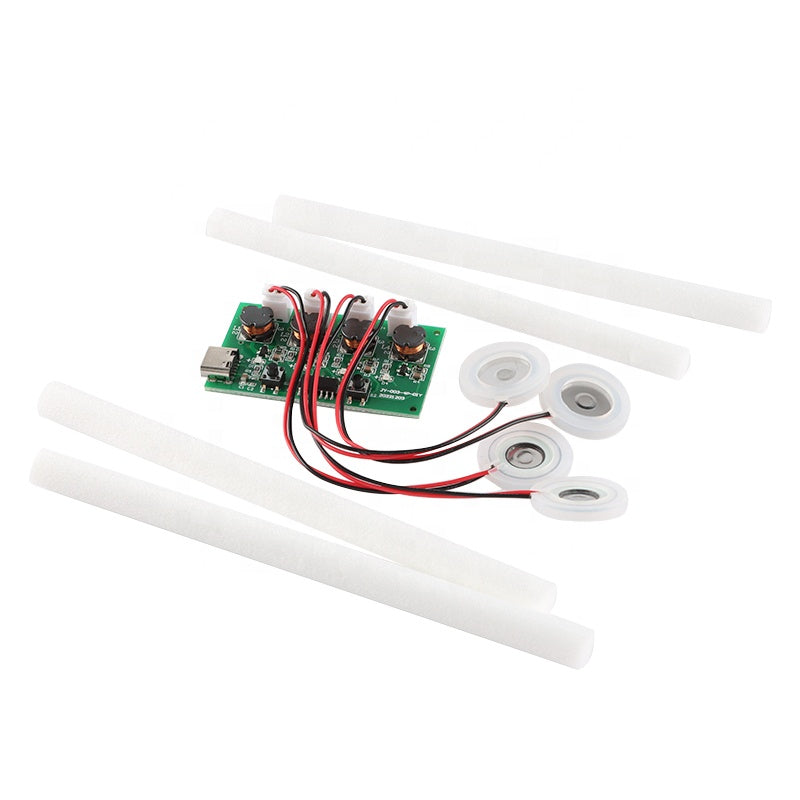

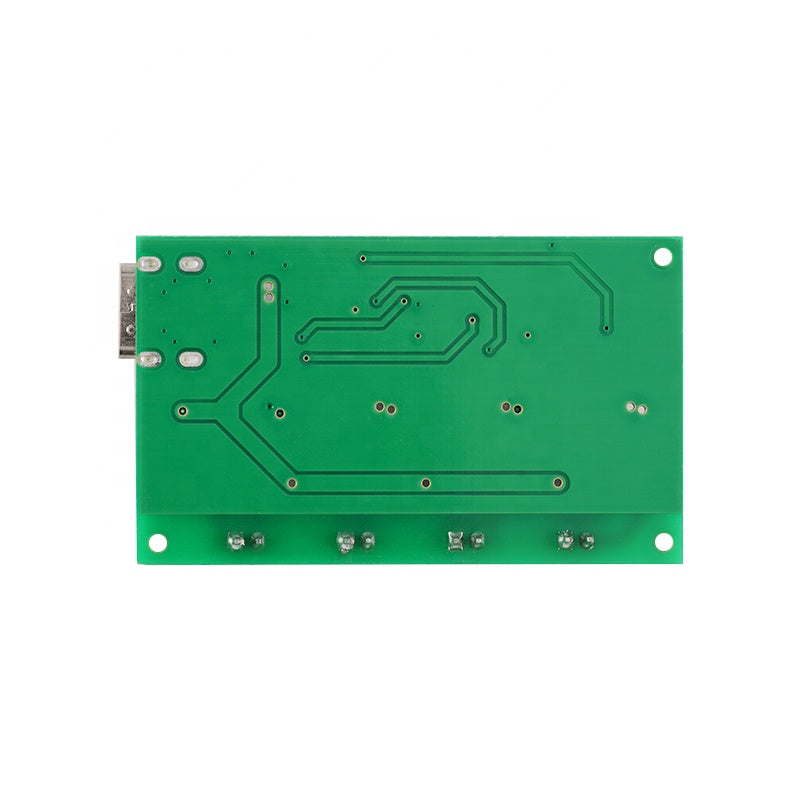

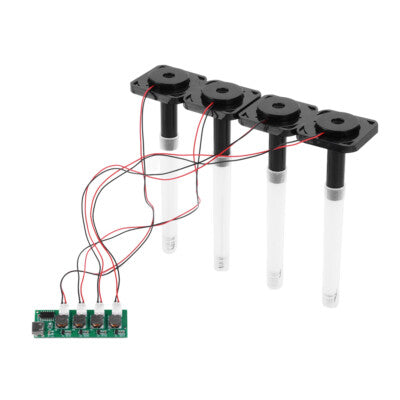

4 CHANNEL HUMIDIFIRE KIT TYPE-C 5V DIY Four Spray Operated Switch Ultrasonic Humidifier Mist Maker Circuit Board

4 CHANNEL HUMIDIFIRE KIT TYPE-C 5V DIY Four Spray Operated Switch Ultrasonic Humidifier Mist Maker Circuit Board

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp

Specification:

Parameter Specification
Product Type Ultrasonic Humidifier Mist Maker Circuit Board
Model C-Type (4 Spray Control with Switch)
Input Voltage 5V DC (via USB Type-C or standard 2-pin terminal)
Current Consumption 300 mA (typical)
Power Output Capable of driving up to four ultrasonic mist generator discs/sprayers
Ultrasonic Frequency 108 – 110 kHz
Control Interface Push-button switch (momentary ON/OFF for mist control)
Number of Outputs 4 individual mist spray channels (operated together or separately depending on design)
Circuit Type Piezoelectric driver circuit with oscillation and control logic
Connector Type USB Type-C (for power input) + JST-style or solder points for atomizers
LED Indicator Yes – On-board LED indicator (power or working status)
Waterproofing ❌ No (board must be kept dry; only the mist discs are submersible)
PCB Size Approx. 35mm × 30mm × 10mm (varies slightly)
Operating Environment 0°C to 50°C; indoor use only



Features:

  • Four Spray Operated Switches: Allows for multiple mist outputs from a single device, providing flexibility in mist distribution.

  • Low Noise Operation: Ensures a quiet environment, making it suitable for bedrooms, offices, and other quiet spaces.

  • High-Quality Components: Constructed with durable materials to ensure long-lasting performance.

  • USB Type-C Power Input: Provides a modern and reliable power connection, compatible with various power sources.

Description:

The C-Type 5V DIY Ultrasonic Humidifier Mist Maker Circuit Board is engineered to operate at a low voltage of 5V DC, making it ideal for energy-efficient and safe use in DIY projects, small humidifiers, and aroma diffusers. Equipped with an ultrasonic piezoelectric element, the mist maker generates fine water mist through high-frequency vibrations, enhancing the humidity and air quality in your environment.
