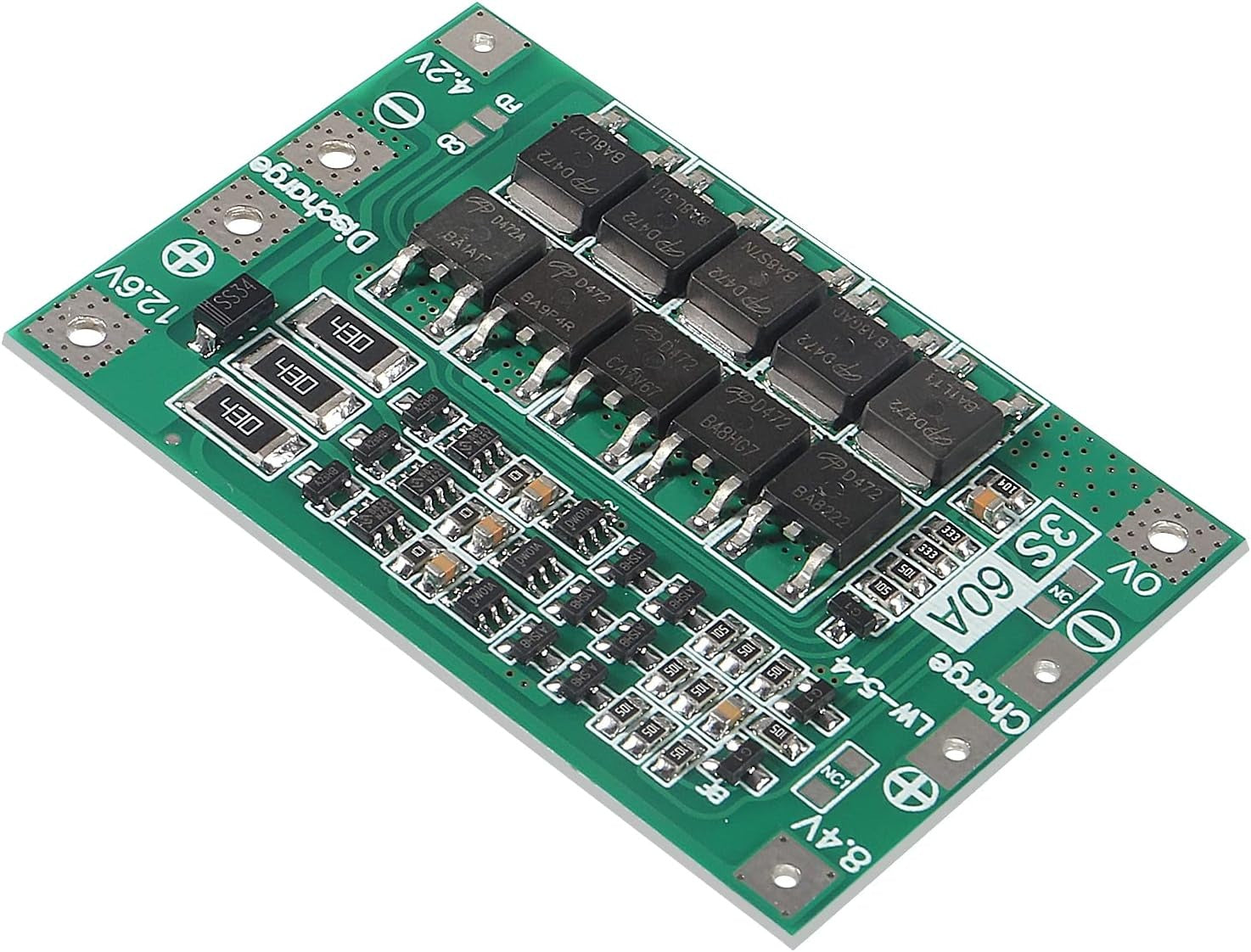

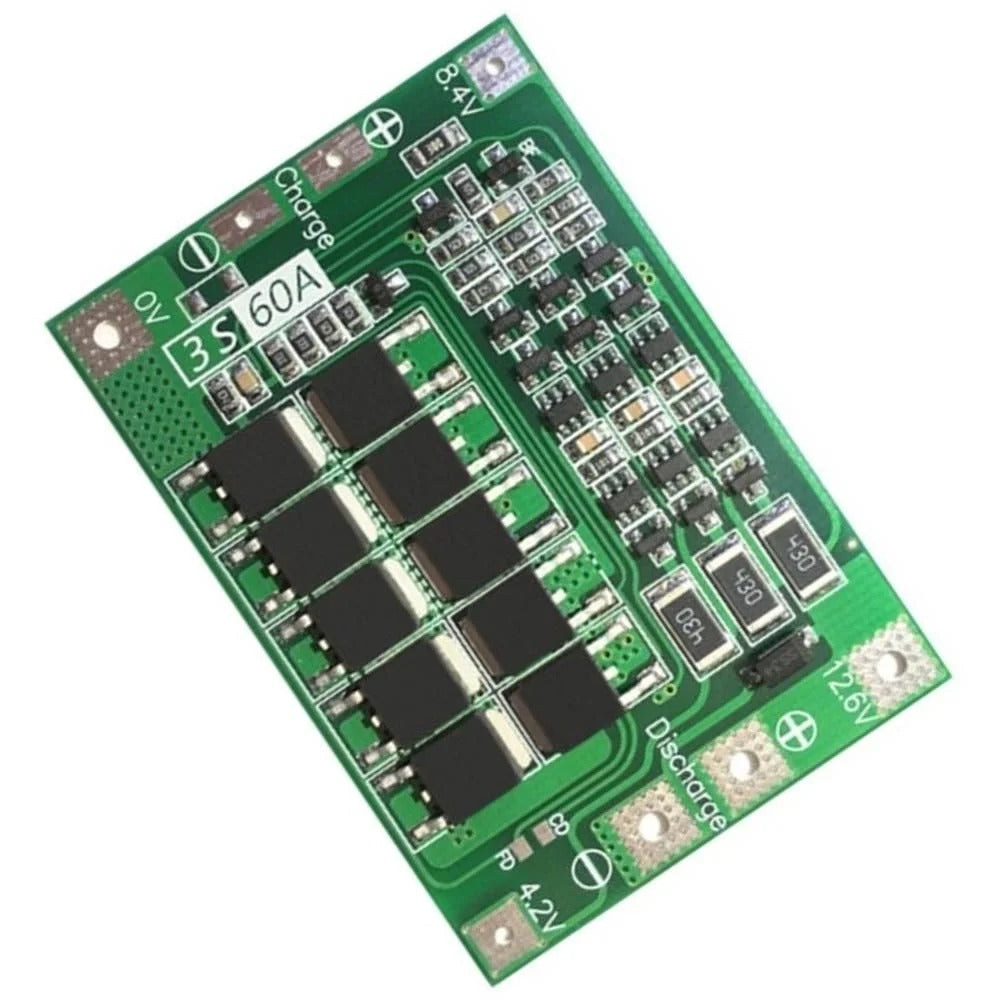

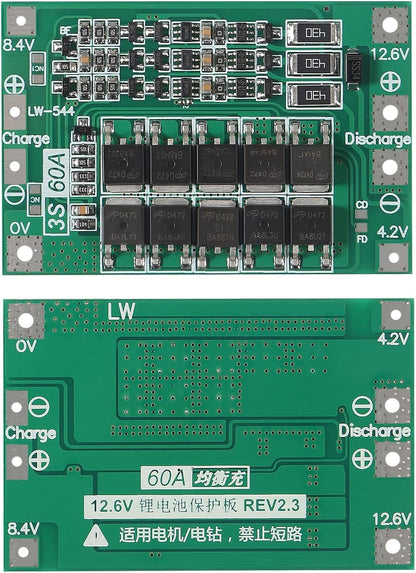

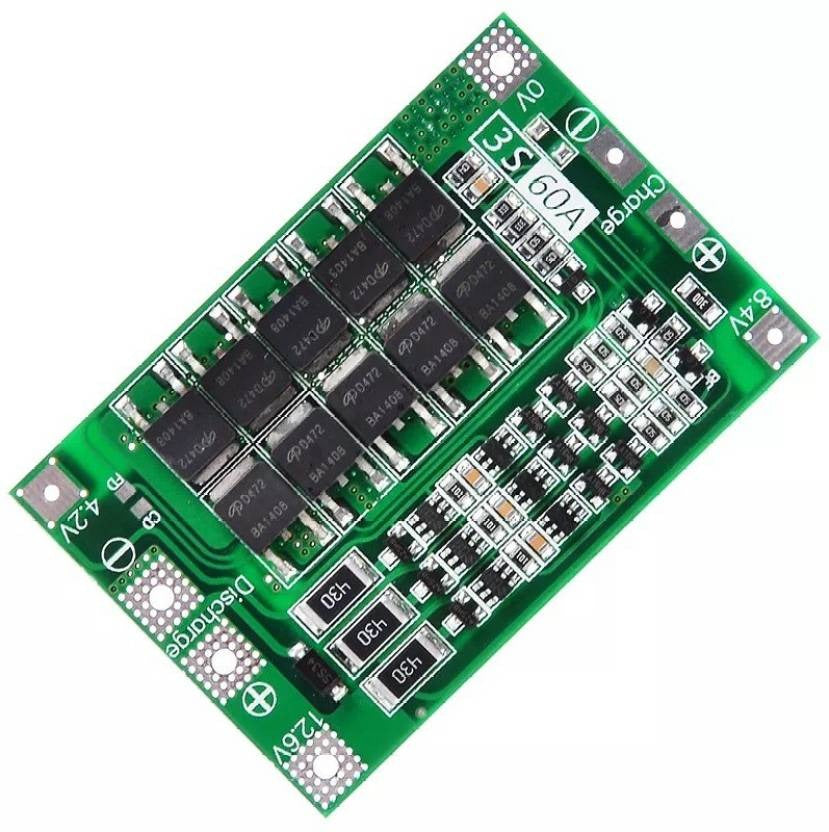

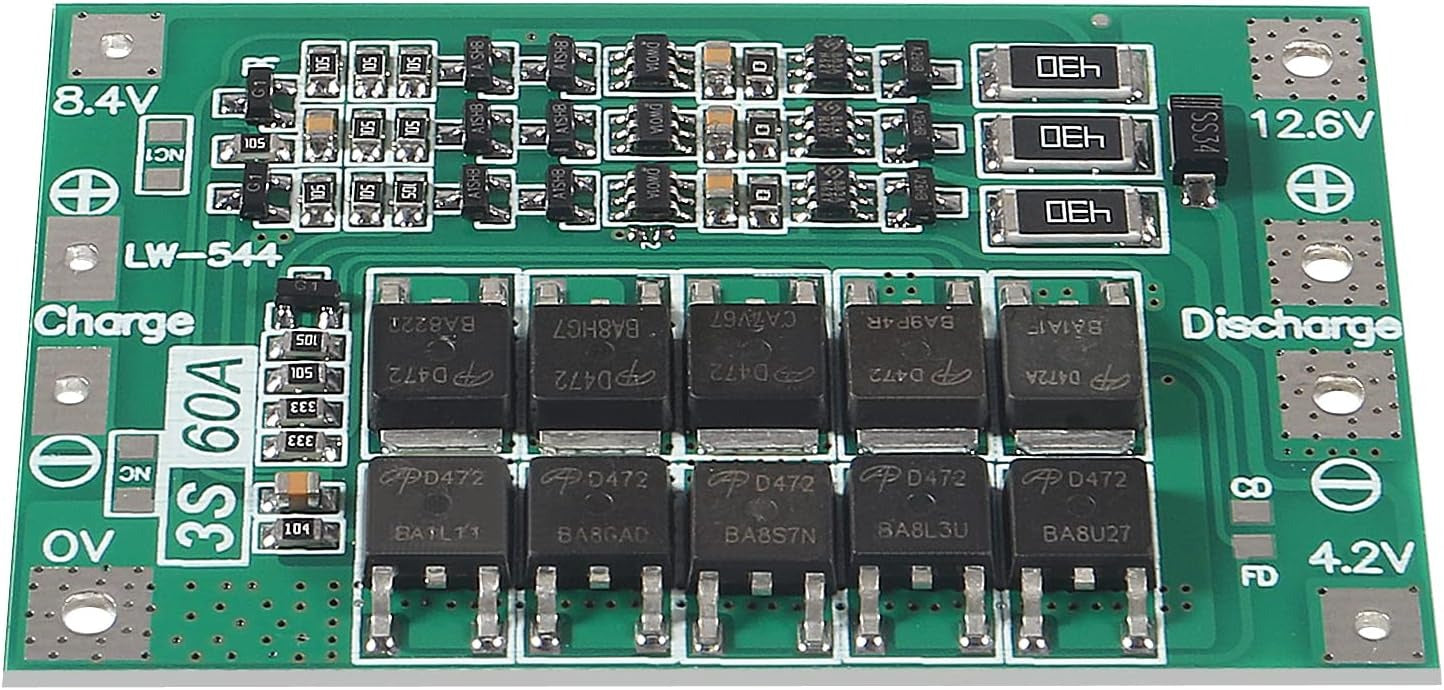

3S 60A Lithium Battery Charger BMS 18650 Protection Module Circuit

3S 60A Lithium Battery Charger BMS 18650 Protection Module Circuit

₹ 0.00
₹ 0.00
Sale Sold out
Shipping calculated at checkout.
  • Safe Secure Delivery
  • 10 Days Returnable
  • Secure Payment Transaction

Out of stock
  • For bulk orders or B2B inquiries, email us: support@uglandindia.com
  • Bulk order on WhatsApp
Parameter Specification
Battery Type Lithium-Ion (Li-ion) / 18650 Rechargeable Cells

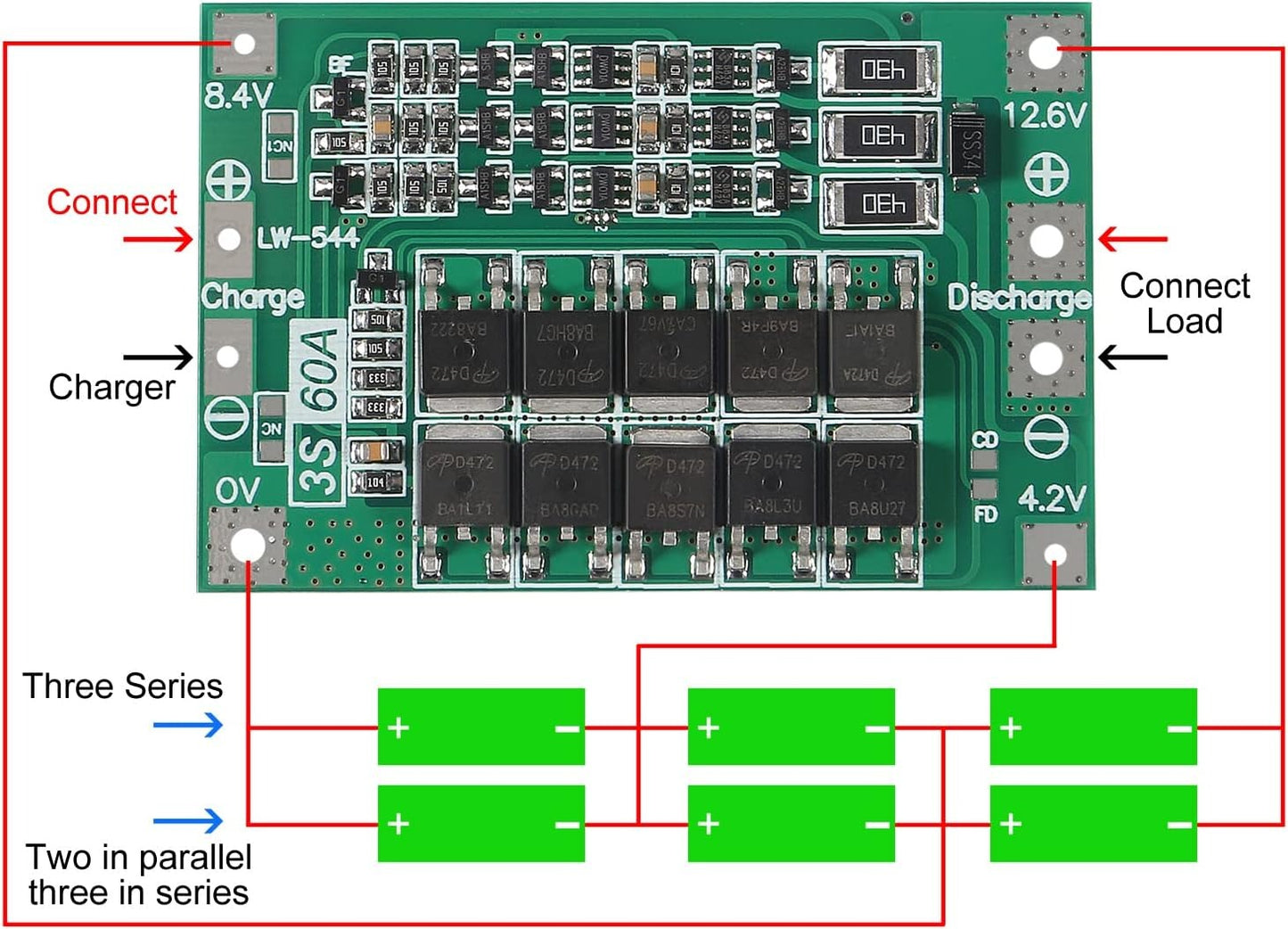

Number of Series (S) 3S (3 cells in series)
Nominal Voltage 11.1V (3.7V x 3 cells)
Charge Voltage 12.6V (4.2V per cell)
Maximum Continuous Discharge Current 60A
Maximum Charge Current 30A
Overcharge Protection Voltage 4.25V ± 0.05V per cell
Overcharge Release Voltage 4.15V ± 0.05V per cell
Over-discharge Protection Voltage 2.7V ± 0.1V per cell
Over-discharge Release Voltage 3.0V ± 0.1V per cell
Overcurrent Protection 60A - 80A
Short Circuit Protection Yes (with automatic recovery or power reset)
Balance Function Yes (typically passive balancing)
Operating Temperature -20°C to +60°C
Board Size (Approx.) 60mm x 45mm x 3mm (may vary slightly by manufacturer)
Weight Approx. 20g (depending on version and components)
Applications E-bike, scooter, power tools, solar battery packs, DIY battery packs, etc.



Features:

  1. 3S 11.1V 12.6V 60A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery).
  2. Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, a polymer lithium battery).
  3. Continuous discharge current (upper limit): 60A (if the cooling environment is not good, please reduce the load current use).
  4. Continuous charge current (upper limit): 20A.
  5. Suitable for the drills with starting current below 80A, power 135W below.

Description:

Lithium-Ion Battery Packs need to be Balanced Charged and protected from Over Charge and Over-Discharge. This ensures the safety of the circuit and gives optimum battery life preserving the original capacity through use. You can use this Battery Management System(BMS) to ensure these conditions. It also offers short circuit protection.

If you are using a 3S Lithium Battery in your project, you can also use this BMS Module to protect it from short circuits in the circuit. In the event of a short circuit, the BMS will cut power to the battery and restart.

The 3 Series 60A 18650 Lithium Battery Protection Board 11.1V 12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube.

It provides a continuous discharge of 60A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter.  (if the cooling environment is not good, please reduce the load current use).

The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance).

The Board comes in a size of approx. 46 x 60 x 3.4 mm which can be easily installed in a compact size or on the battery bundle itself.
